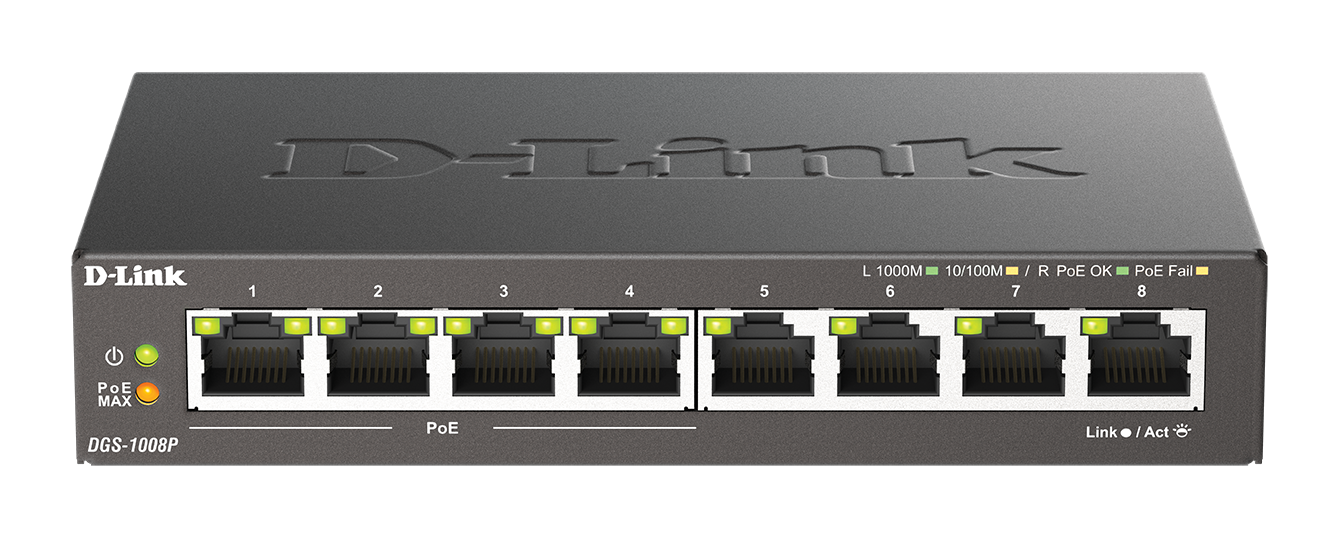

8-Port Desktop Switch with 4 PoE Ports
DGS-1008P

Compact and silent PoE for home and office.

  • Supports both IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards
  • A large 60 W PoE power budget and up to 30 W of power per port
  • Plug and play installation

  • Supports both IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards
  • A large 60 W PoE power budget and up to 30 W of power per port
  • Plug and play installation

Specifications

1000Base-T Interface 4
1000Base-T PoE Interface 4
Auto MDI/MDIX Yes
Switching Capacity 16 Gbps
Max. Packet Forwarding Rate 11.90 Mpps
Store & Forwarding Forwading Yes
Dimension 150 x 98 x 28 mm (5.90” x 3.85” x 1.10 in”)
Weight 0. 383kgs
Operation Temperature 0 ~ 50  °C for device 0 ~ 40  °C for external power adaptor
Storage Temperature - 40 ~ 70 °C
Operation Humidity 0% ~ 95% RH
Storage Humidity 0% ~ 90% RH
Maximum Power Consumption 74.2 Watts
Standby Power Consumption 0.26 Watts
Maximum Heat Dissipation 41.602 BTU/h
MTBF 1423889.87
Power Input 100-240V AC
Flash Memory Size 512Kbits
Packet Buffer Size 1.5Mbits
FAN Fanless
Comply with RoHS 6 Yes
Energy Efficiency Ethernet (EEE) Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
Maximum PoE Budget 60 W (30 W max. per PoE port)
MAC Address Table Size 4K
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
Jumbo Frame 9216 Bytes

Flexible Connectivity

The D-Link DGS-1008P enables both home and office users to connect Power over Ethernet (PoE) devices such as wireless access points, IP cameras, and IP phones to your network in remote locations without the need for external adapters. Built with home and small business users in mind, the DGS-1008P is compact and operates silently, making it ideal for virtually any room or office.

Crossover

High Performance

The DGS-1008P features Auto-MDI/MDI-X support on all ports which removes the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port intelligently adjusts the port speed for optimal compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1008P maximizes network performance while minimizing the transmission of bad network packets.

Business Speed

Compact and Silent

The DGS-1008P has a compact design, meaning it can be placed virtually anywhere, including small offices and work spaces where space is at a premium. The desktop form-factor provides everything you need to set up a new network, or expand an existing network by connecting it to other switches. The fanless design ensures silent operation, making the switch suitable for office spaces, work floors, and noise-sensitive areas such as meeting rooms.

PoE

Power over Ethernet

The DGS-1008P features four 10/100/1000BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, enabling these ports to supply up to 30 W of power to connected devices for a total PoE power budget of 60 W. This allows compatible devices to be connected without requiring an additional power supply, saving on cabling and allowing devices to be installed in locations without immediate access to power outlets.

Energy Saving

D-Link Green Technology

The DGS-1008P features green technology, including IEEE 802.3az Energy-efficient Ethernet (EEE), link status detection, and cable length detection. Energy-efficient Ethernet dynamically reduces the power consumption of the switch when network utilization is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
