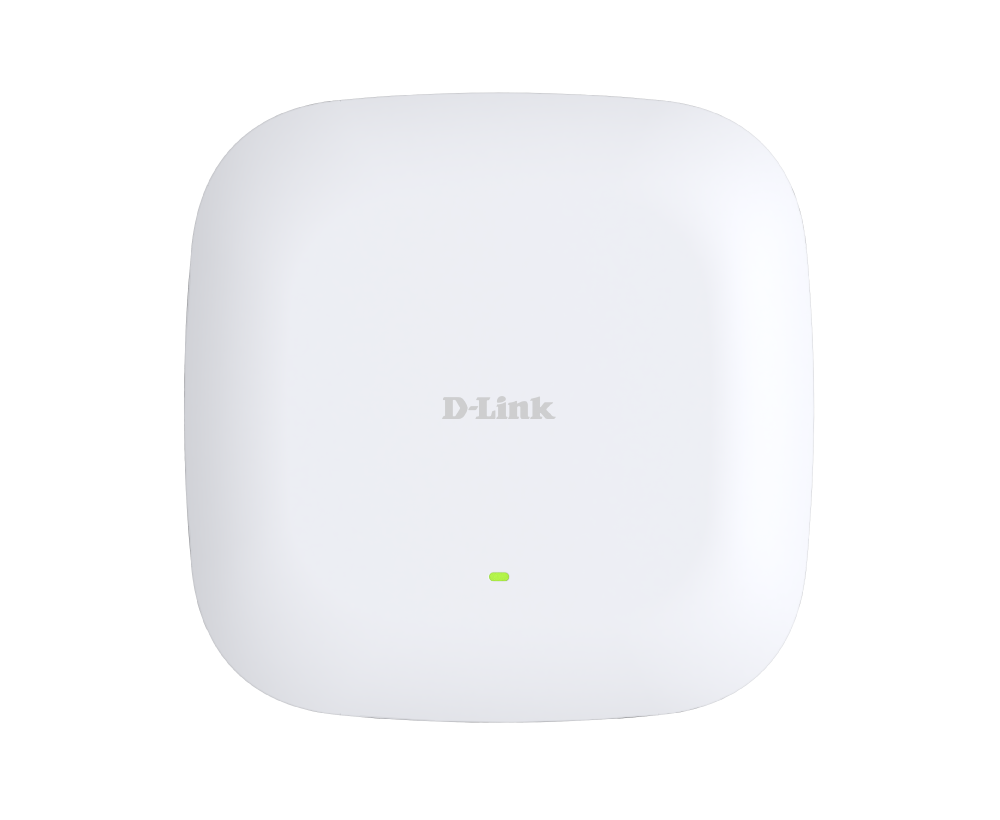

BE9500 Wi-Fi 7 Ceiling Mount Access Point
DAP-E9560
- Product Status (v100 WW): Live
- Wi-Fi 7 BE9500 Tri-band high-speed connectivity
- 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
- Powered by 802.3bt PoE, USB-C adapter
- Max. channel bandwidth support (320MHz)
- 4096-QAM – Up to 20% faster than Wi-Fi 6
- Flexible use of multiple operating modes
- WPA3 encryption for enhanced Wi-Fi security
- Customizable Captive Portal for user access
- Multi-Link Operation boosts connection stability
- Centrally managed via Nuclias Network Controller
Where to buy
Enhanced Performance for All Applications
Wi-Fi 7 will reduce interference and enhance the performance of your wireless network, making it suitable for various usage environments and applications, such as remote work, video conferencing, large file transfers, streaming media, AR/VR, and cloud service access.

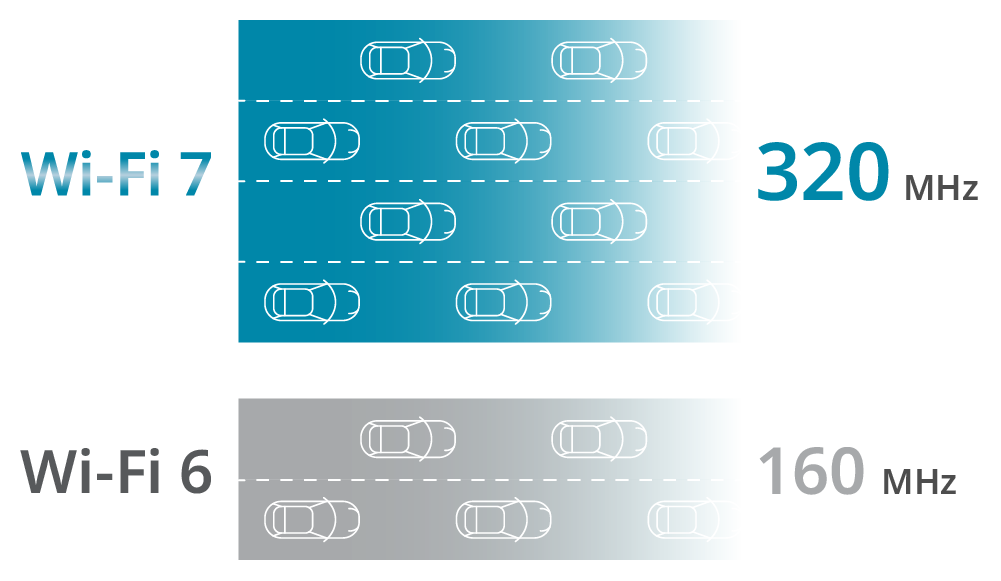

Double the bandwidth from 160 MHz to 320 MHz

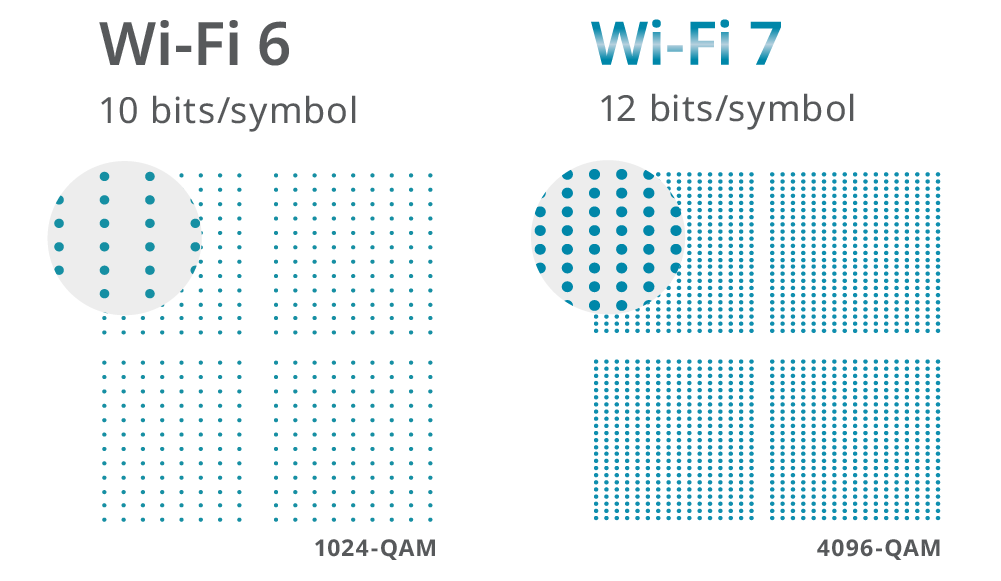

4096 QAM Modulation - 20 % data transmission increase than Wi-Fi 6

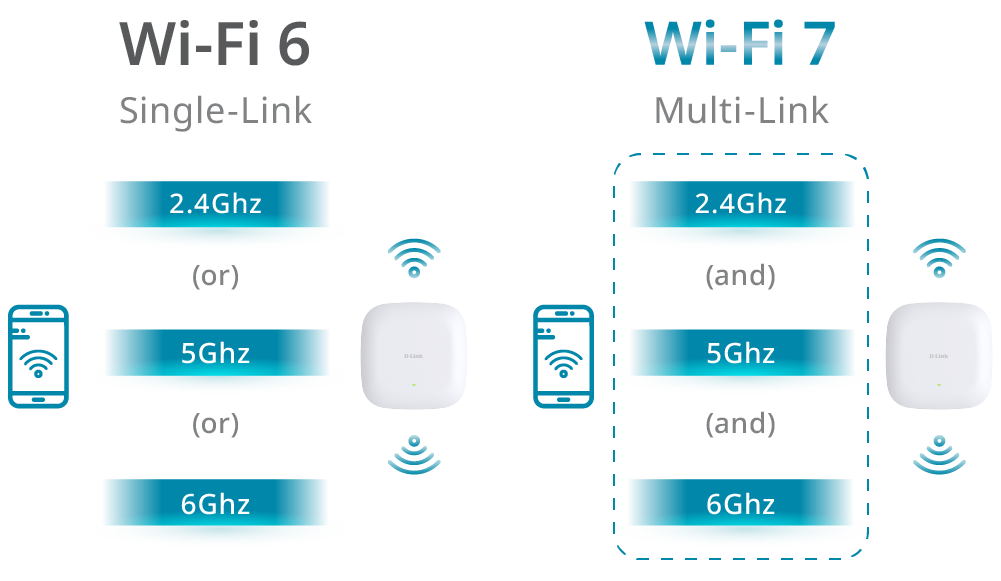

Multi-Link Operation (MLO) - Improves speed and stability

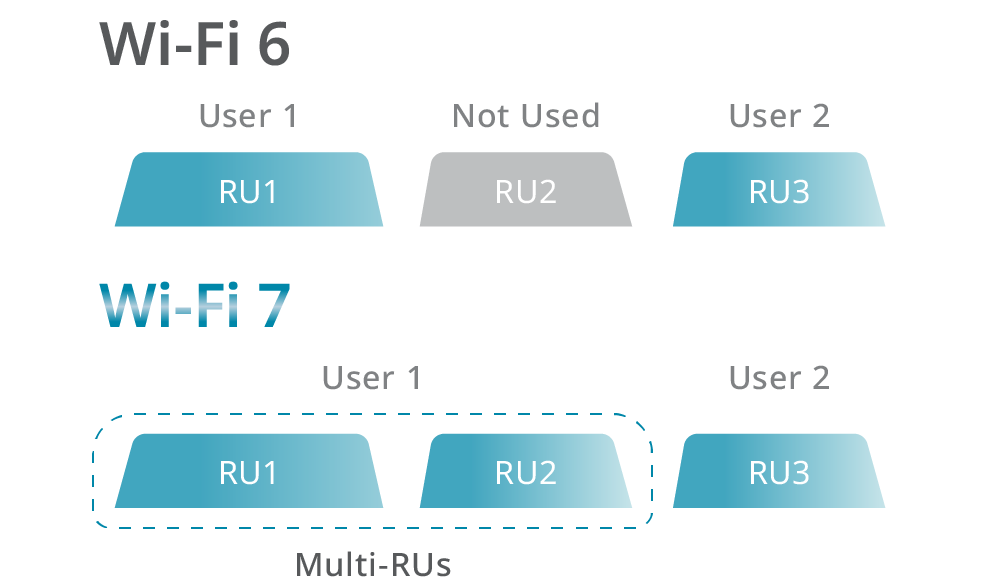

Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently
Multiple Operation Modes
．Access Point
．Wireless Distribution System (WDS) with Access Point
．WDS/Bridge (no AP broadcasting)

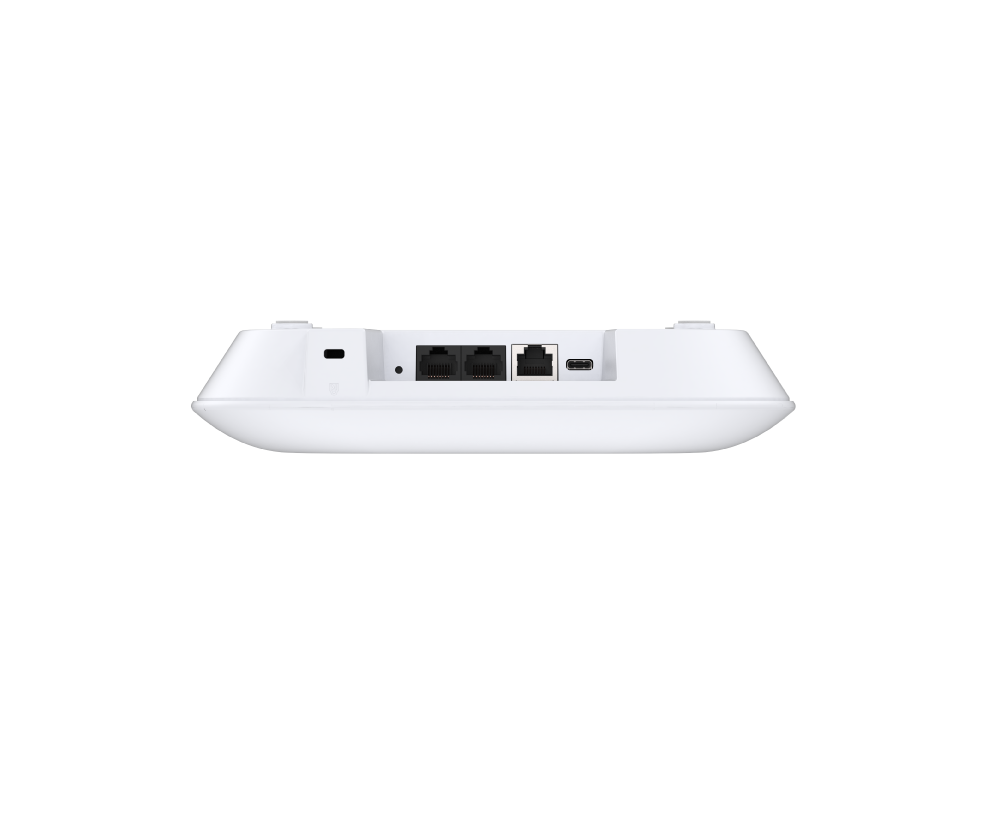

Optimized Wired Performance with 10G PoE and 2.5G Ports
Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.

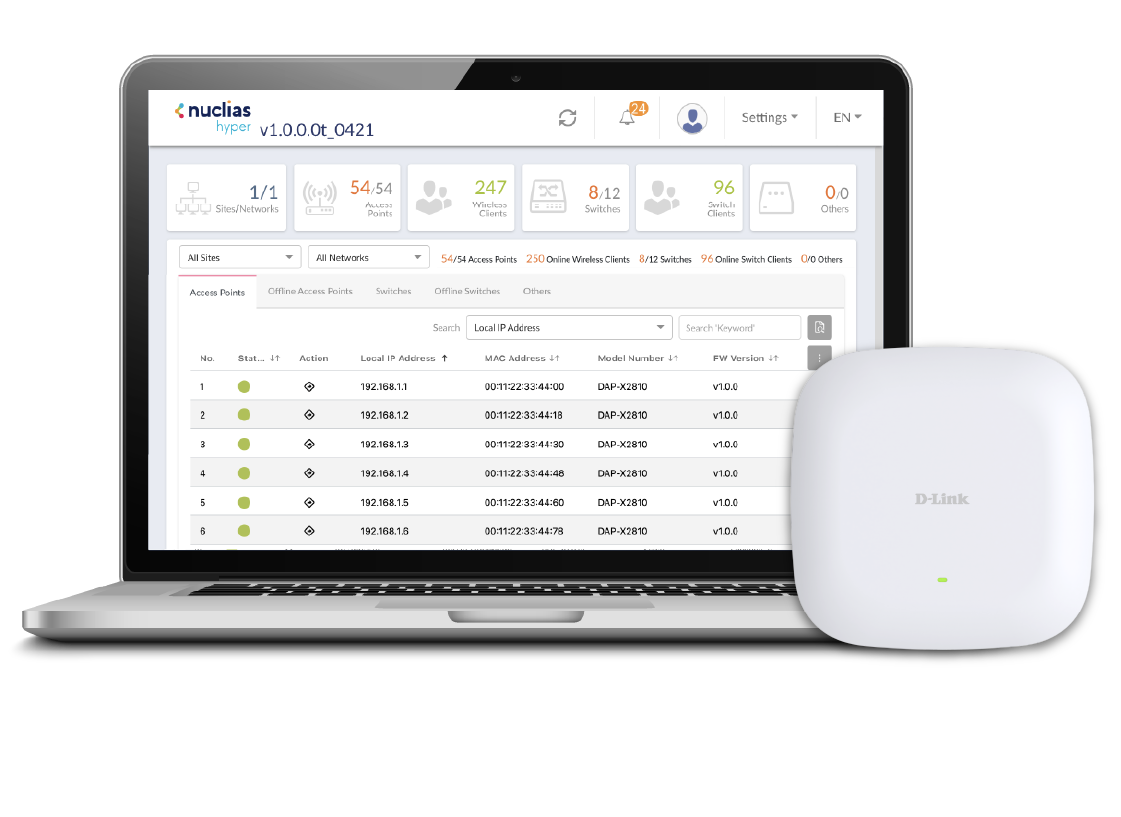

Centralized Network Control Made Simple
The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

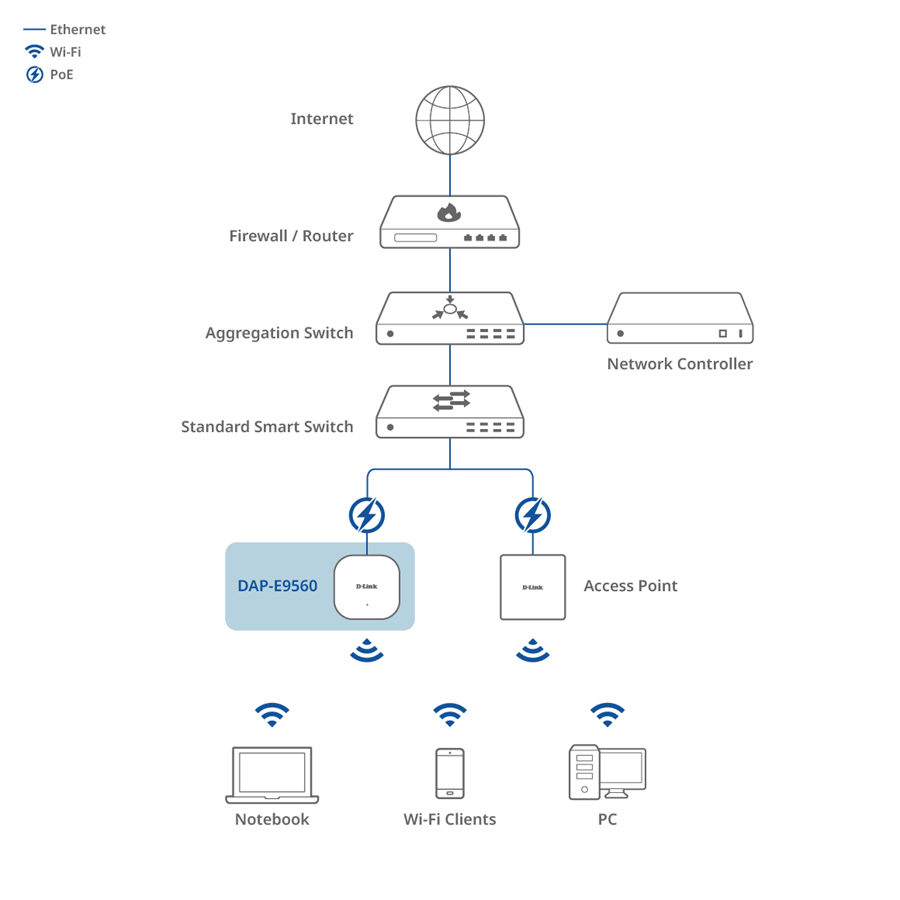

Connection Diagram
DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.
Business Router
Aggregation Switch
Network Controller
Standard Smart Switch
Access Point
Related Products
Applications
SME (Enterprise)
Department Store (Business)
Transnational University (Education)

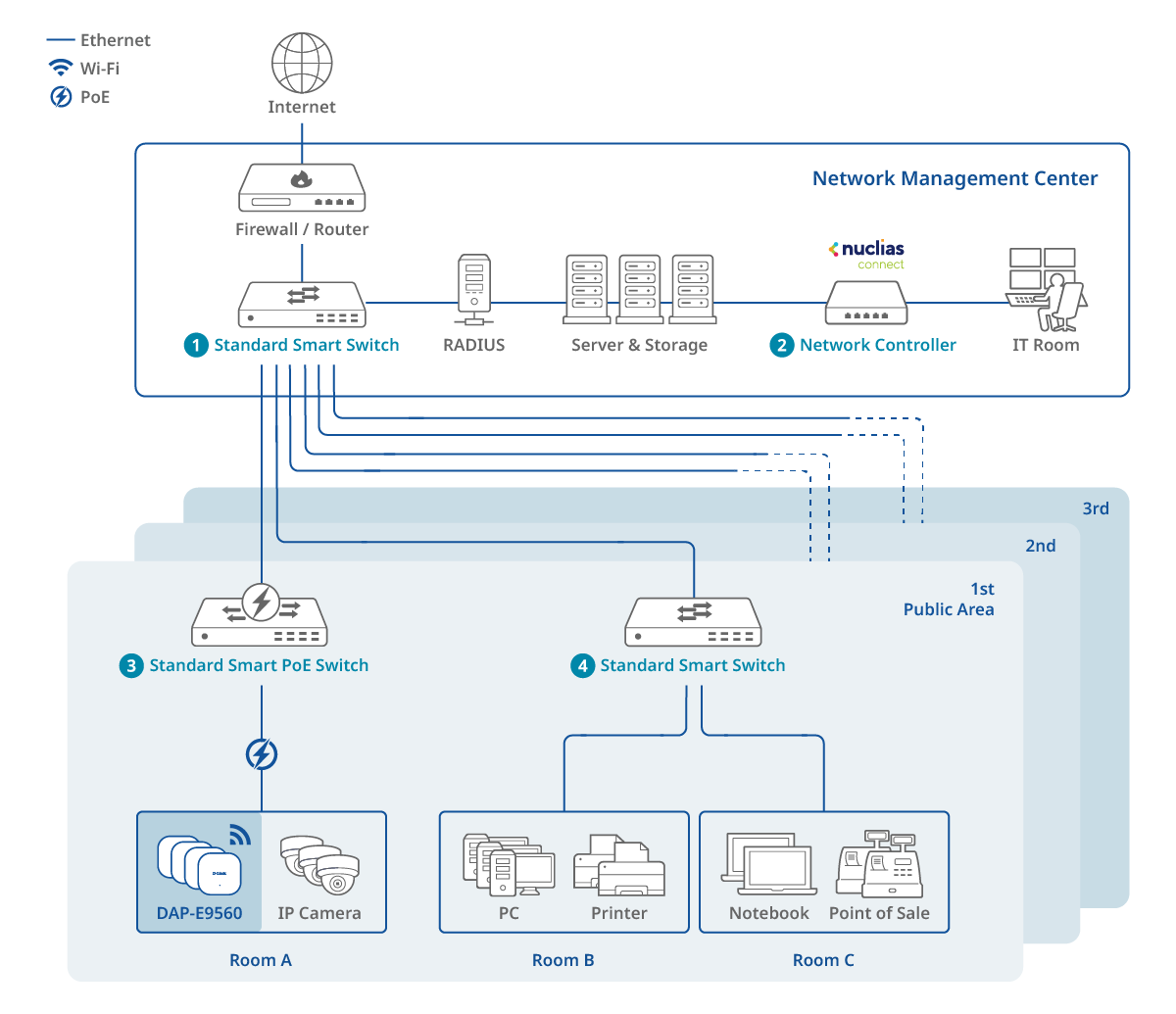

SME (Enterprise)
User benefits :
- Smooth video calls and collaboration
- Stable performance for many devices
- Fast roaming across floors
- Enhanced your productivity
- Secure access with WPA3 and VLANs
Learn more :
- Standard Smart Switch : DXS-1210-12SC
- Network Controller : DNH-1000
- Standard Smart PoE Switch : DXS-1250-28YP (Coming soon)
- Standard Smart Switch : DMS-1250-18

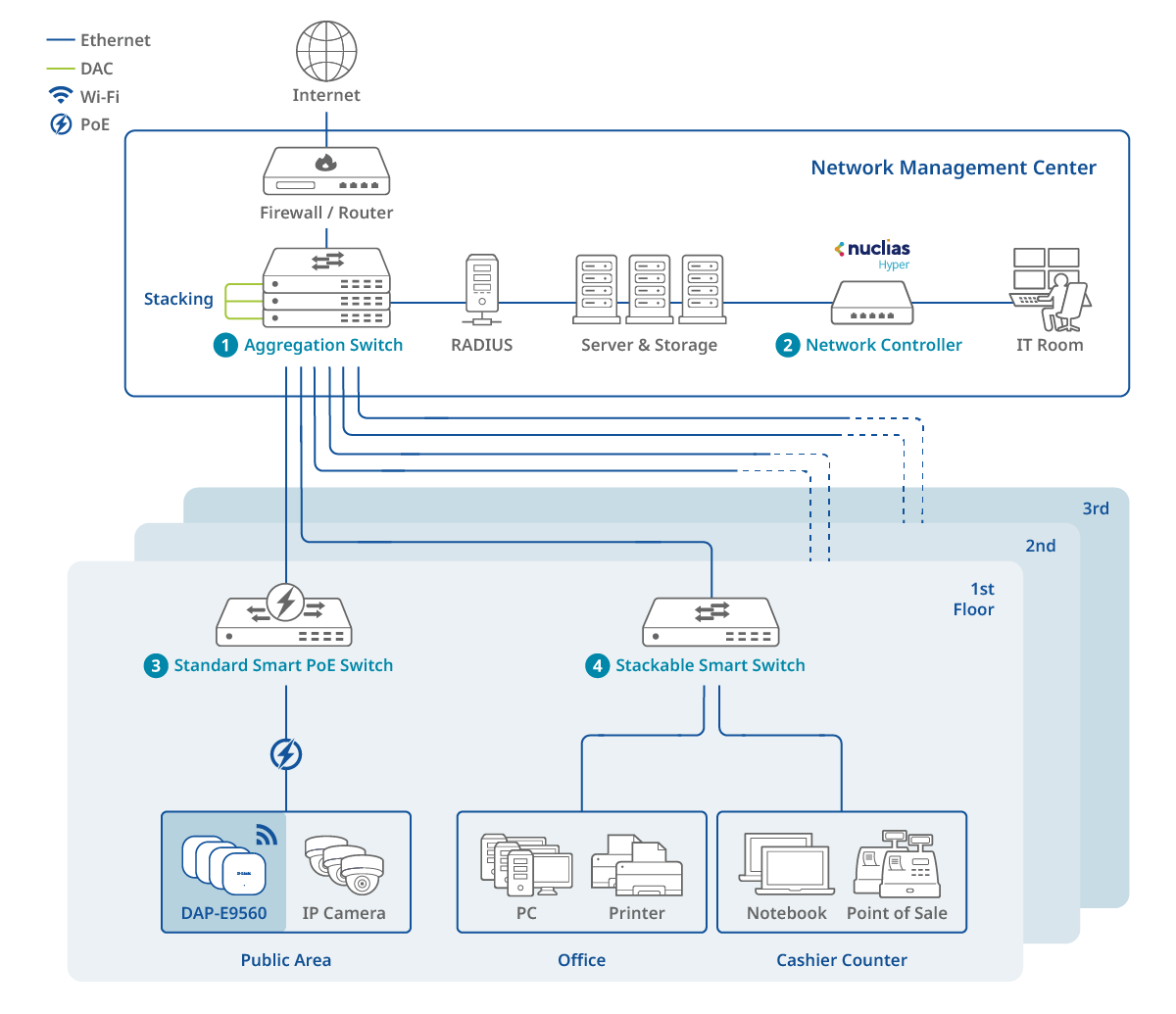

Department Store (Business)
- Rapid fault recovery for reliable performance
- Comprehensive security to protect critical data
- Supports long-distance connectivity
- VLAN and QoS to optimize the learning experience
Learn more :
- Aggregation Switch : DXS-3130-32S (Coming Soon)
- Network Controller : DNC-5000
- Standard Smart PoE Switch : DXS-1250-28YP (Coming Soon)
- Stackable Smart Switch : DGS-1530 Series

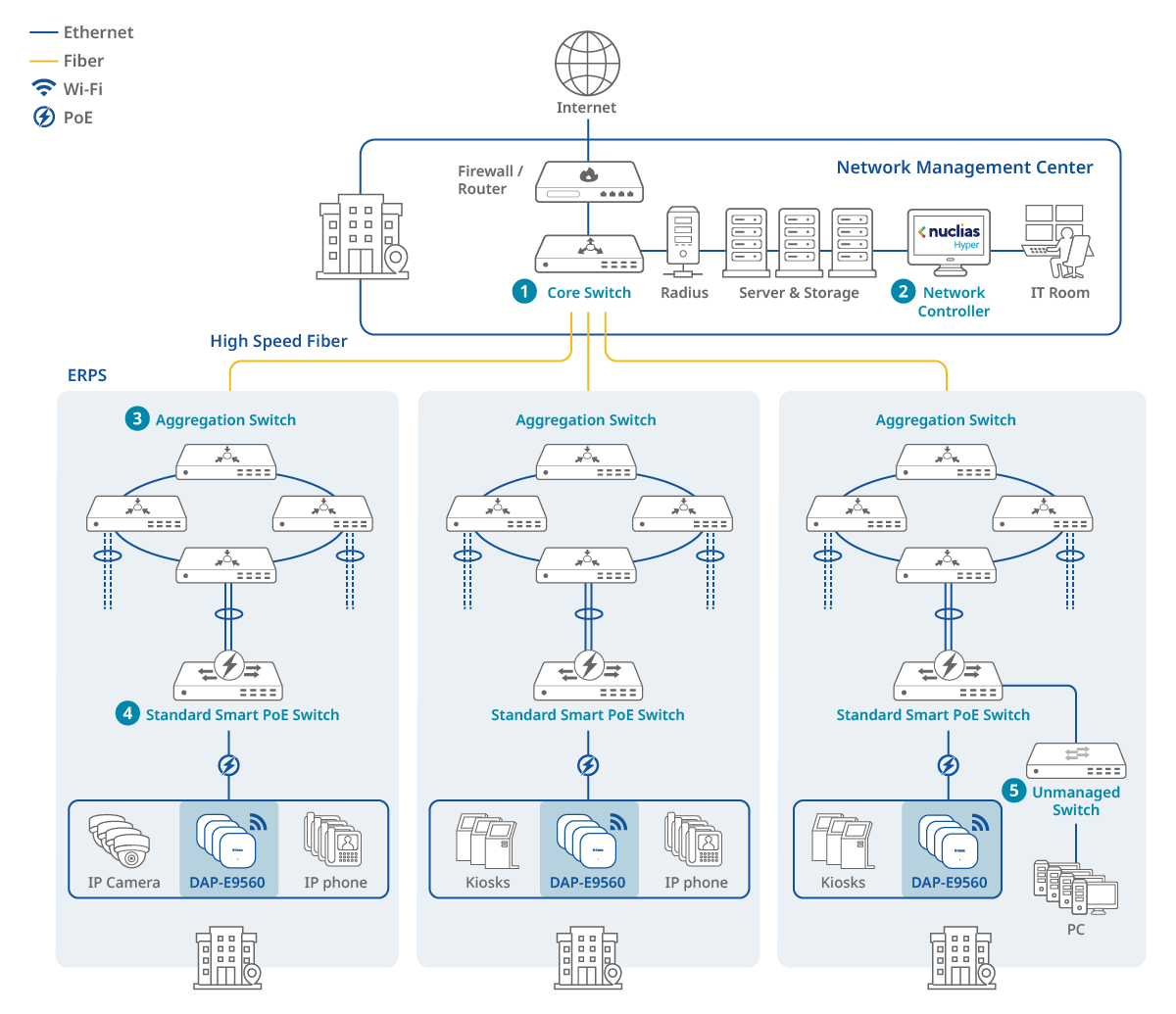

Transnational University (Education)
- Reliable performance in high-density areas
- Low latency for online learning and research
- Fast roaming between buildings
- Supports AR/VR and 4K applications
- Secure access for all user groups
Learn more :
- Core Switch : DXS-3610-54S
- Network Controller : DNC-5000
- Aggregation Switch : DXS-3130-32S (Coming soon)
- Standard Smart PoE Switch : DXS-1250-28YP (Coming soon)
- Unmanaged Switch : DMS-1024
Specification
|
Interfaces
|
1 x 10-Gigabit Ethernet PoE LAN port 1 x 2.5-Gigabit Ethernet LAN port |
|---|---|
|
Antenna type
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas 2 x 6 GHz internal antennas |
|
IEEE Standard
|
IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/an IEEE 802.3bt PoE |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server |
|
Operating Frequency
|
2.4 - 2.483 GHz 5_925 7_125 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz |
|
Device Management
|
Web (HTTP/HTTPS) Telnet/SSH Nuclias Network Controller SNMP |
|
Dimensions
|
212 x 212 x 44.5 mm (W x D x H) |
|
Power Input
|
20V/2.25A |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Console Port
|
RJ-45 console port |
|
Power Supply Type
|
USB Type-C |
