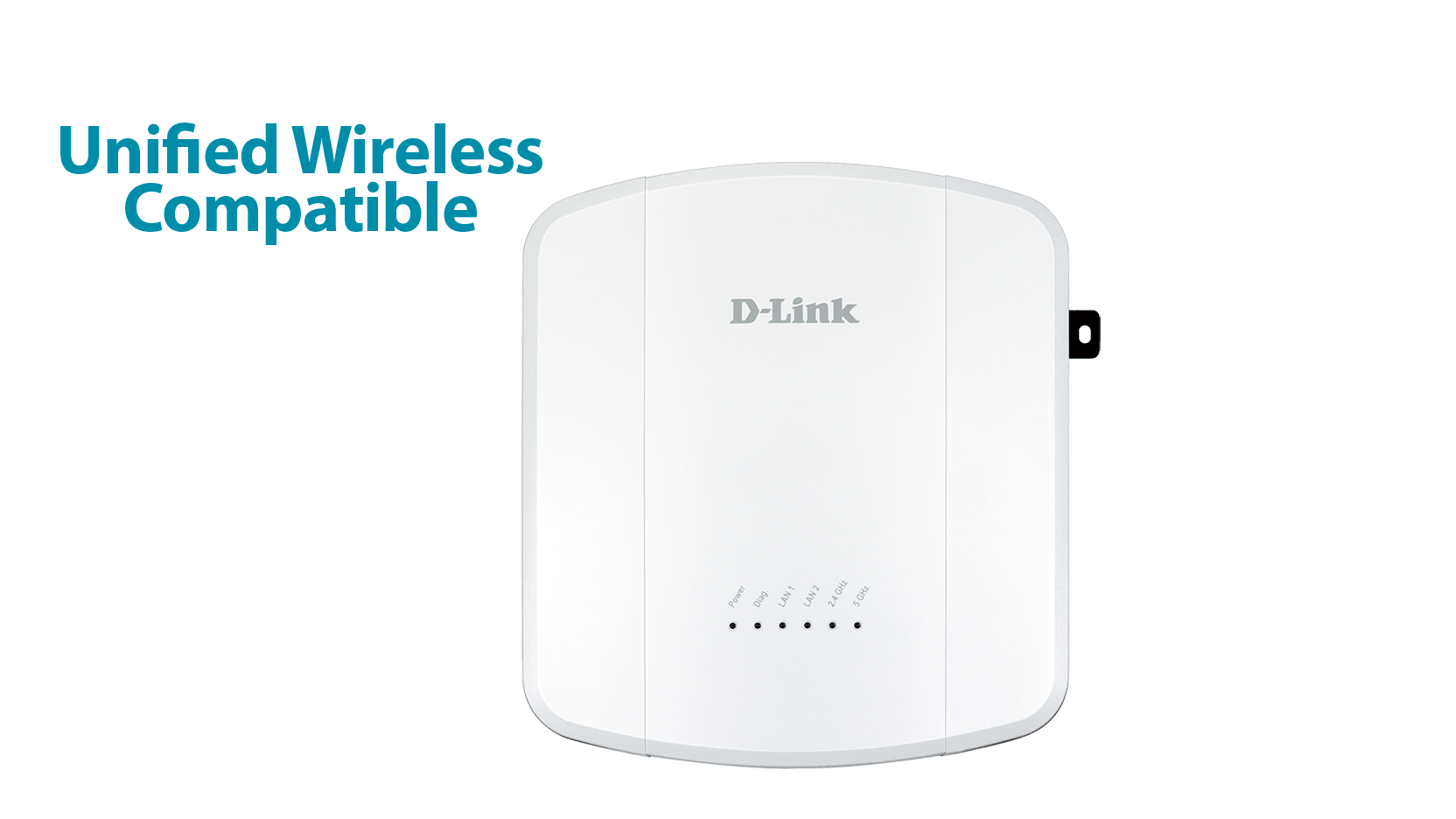

Unified Wireless AC1750 Dual-Band Access Point

DWL-8610AP

  • Product Status (Revision A2): End of Sale

Performance without Compromise

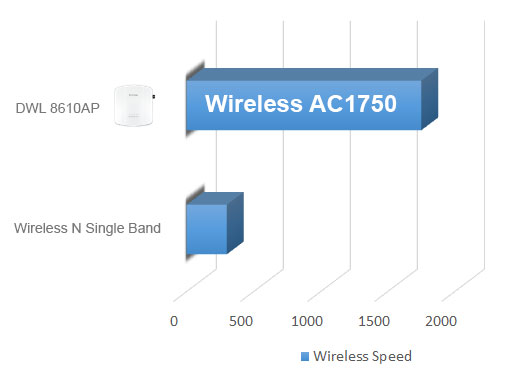

Incorporating the latest leading Wireless AC Chipset, the DWL-8610AP delivers a maximum wireless speed of 1750Mbps, up to 4x the performance of Wireless N*.

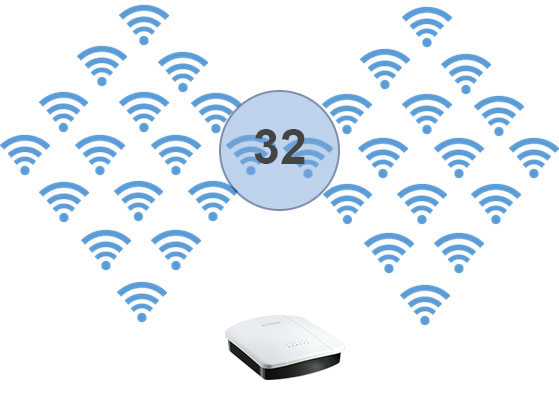

Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including station isolation

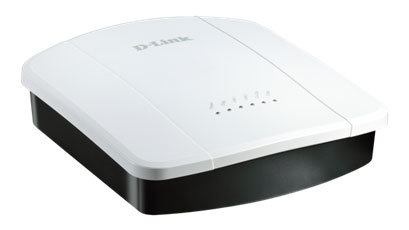

Smart Design

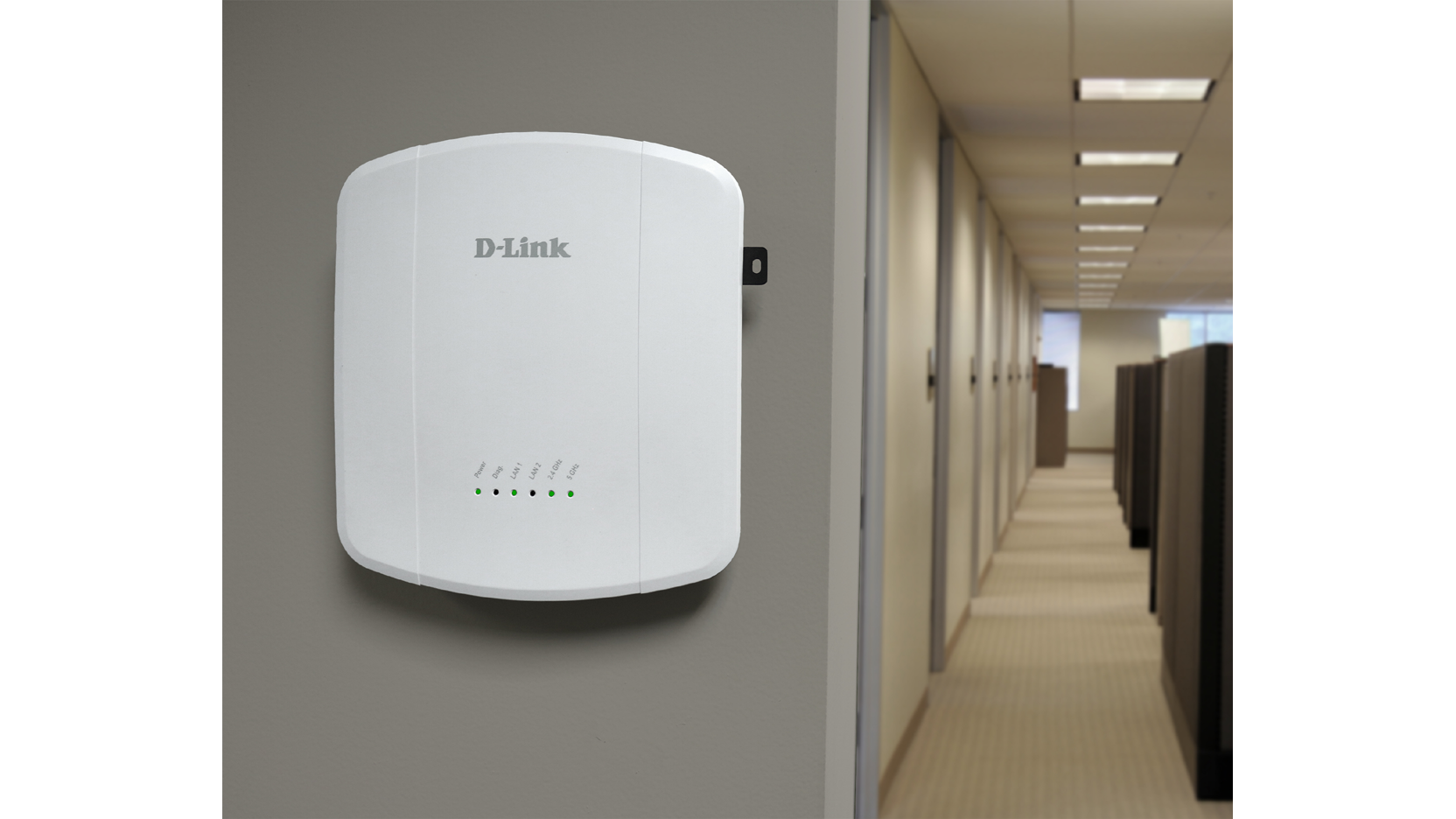

The DWL-8610AP can be mounted easily onto any wall or ceiling. Designed with standard Power over Ethernet requirements, the DWL-8610AP can easily be deployed and connected to any network and configured centrally.

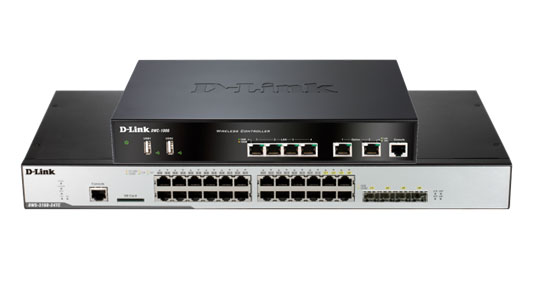

Managed using Wireless Controller or Unified Wireless Switch

All D-Link’s Unified Wireless Access Point can be managed using D-Link’s Wireless Controller or Unified Switch.

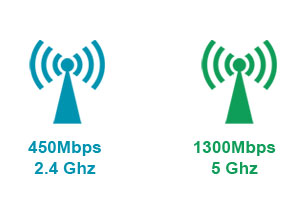

Simultaneous Dual-Band Wireless

Supports up to 1300 Mbps 3x3 MIMO for the 5Ghz band and up to 450Mbps 3x3 MIMO for the 2.4Ghz band

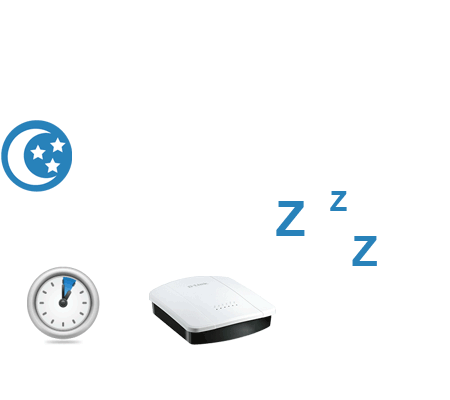

Secure and Green Design

The DWL-8610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

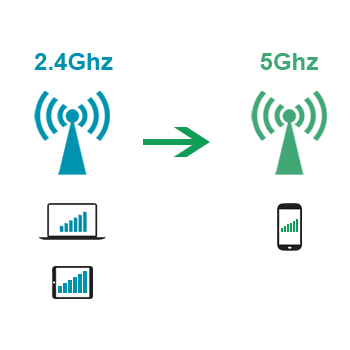

Band Steering Offered as Standard

With band steering, the DWL-8610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

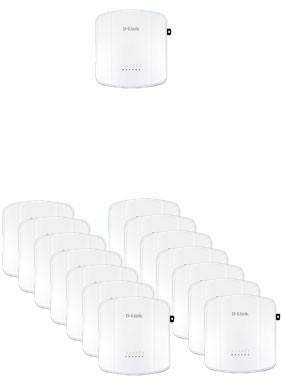

Versatility built as Standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-8610AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.

  • Standalone

  • Large Deployment

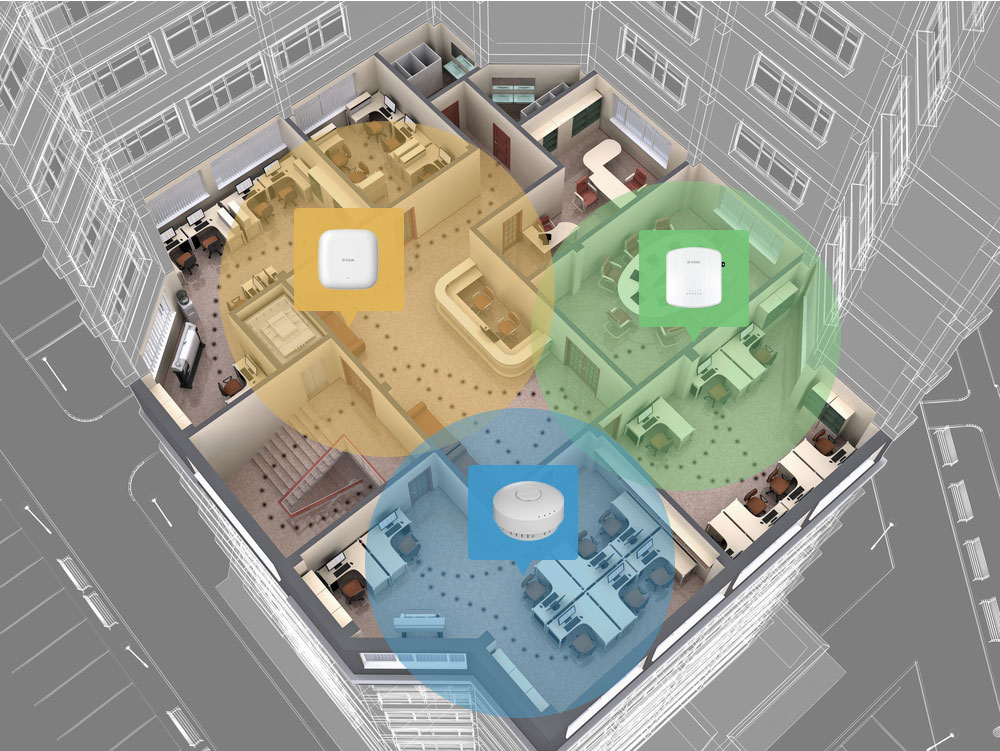

    Fast Seamless Roaming

    Combining the DWL-8610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity

    * When compared to Wireless N300

    Product Comparison


      DWL-2600AP DWL-3600AP DWL-6600AP DWL-8610AP
    Wireless Standard B, G, N B, G, N B, G, N B, G, N, AC
    Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
    2.4GHz Throughput1 300Mbps 300Mbps 300Mbps 450Mbps
    5GHz Throughput1 - - 300Mbps 1300Mbps
    Aspect Indoor Indoor Indoor Indoor
    Range2 100m 100m 100m 100m
    Suggested number of users Up to 25
    users
    Up to 40
    users
    Up to 75
    users
    Up to 250
    users

    1 Maximum wireless signal rate derived from IEEE standard 802.11 and draft 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
    2 Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

    Related Products

    Wireless Controller
    DWC-1000
    Find out more
    Type
    Hardware-managed AP
    Wireless standard
    Wireless AC
    Frequency band mode
    Dual-band simultaneous
    Wireless speed
    1300 Mbps 5 GHz
    450 Mbps 2.4 GHz
    Antenna type
    Embedded omni-directional antennas
    Antenna gain
    5 dBi for 2.4 GHz
    6.5 dBi for 5 GHz
    Power-over-Ethernet
    Yes

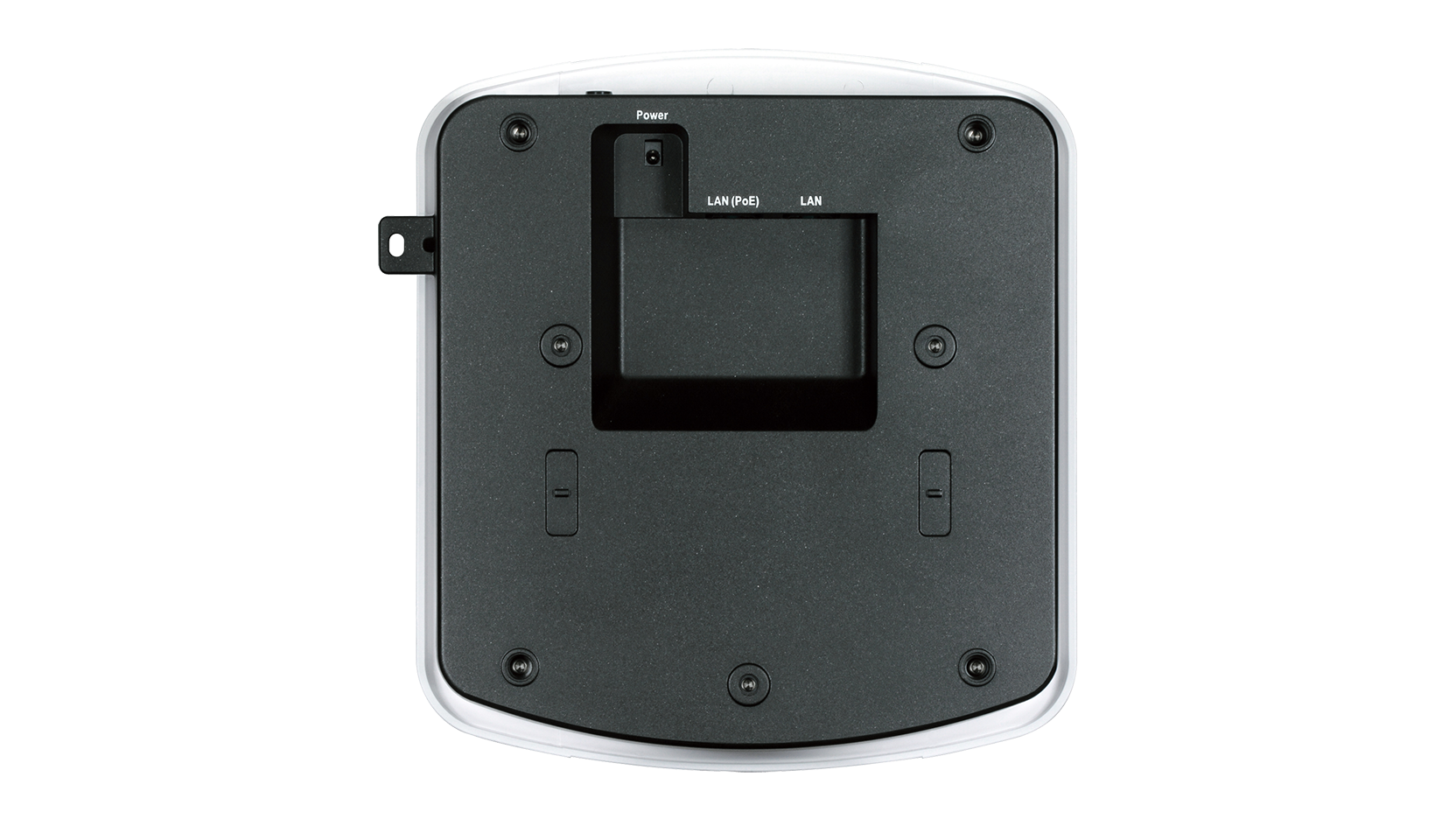

    Wired interface
    2 x Gigabit Ethernet LAN

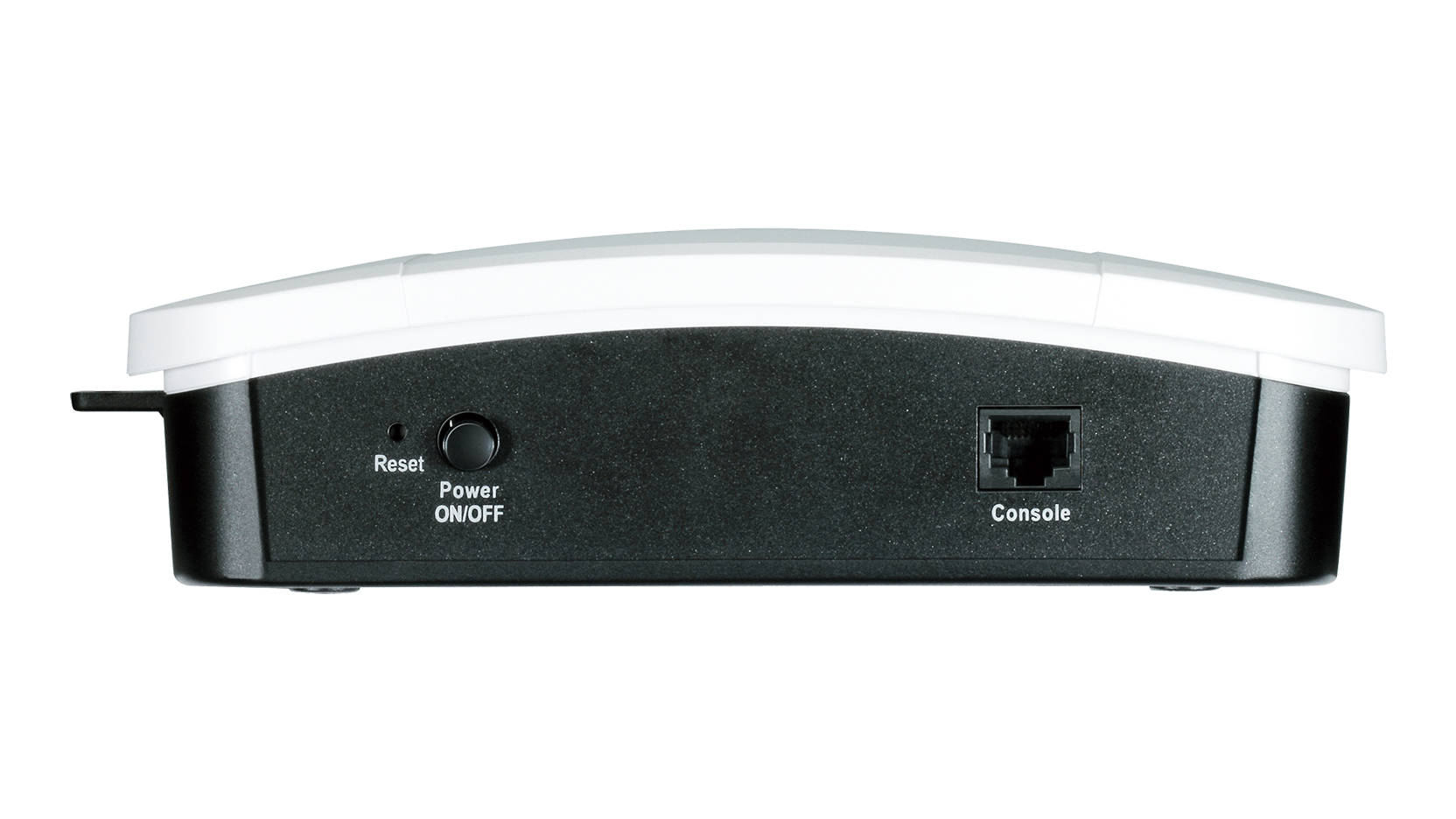

    Console port
    Supported
    Indoor/outdoor
    Indoor
    Type of housing
    Metal
    Plastic
    Plenum rated (UL-2043)
    Supported
    Wireless modes
    Access Point (AP)
    WDS bridge
    WDS with AP
    Advanced features
    MIMO
    Maximum number of SSIDs
    16 per radio
    Auto channel selection
    Supported
    WMM-PS/802.11e (U-APSD)
    Supported
    Wi-Fi scheduler
    Supported
    AP traffic load balance
    Supported
    L2 roaming
    Supported
    WEP 64/128 bit
    Supported
    WPA/WPA2-Personal/Enterprise
    Supported
    TKIP/AES encryption
    Supported
    WPA_WPA2_PSK over WDS
    Supported
    WLAN partition
    Supported
    SSID broadcast disable
    Supported
    Rogue AP detection
    Supported
    Station isolation
    Supported
    MAC address filtering
    Supported
    802.1X authentication
    Supported
    Controller managed features
    AP load balance
    Auto-channel, auto-RF management
    Captive portal
    L2/L3 fast roaming
    Rogue AP mitigation
    View neighbour AP information
    WIDS/WIPS
    Supported D-Link Wireless Controllers/Unified Switches
    DWC-1000
    DWC-2000
    DWS-3160
    DWS-4026
    Management platform
    Hardware controller: DWC Series
    WEB
    Supported
    SNMP (v1, v2c, v3)
    Supported
    CLI
    Supported
    Telnet
    Supported
    SSH
    Supported
    Syslog
    Supported
    This product was phased out on: 20/06/2020
