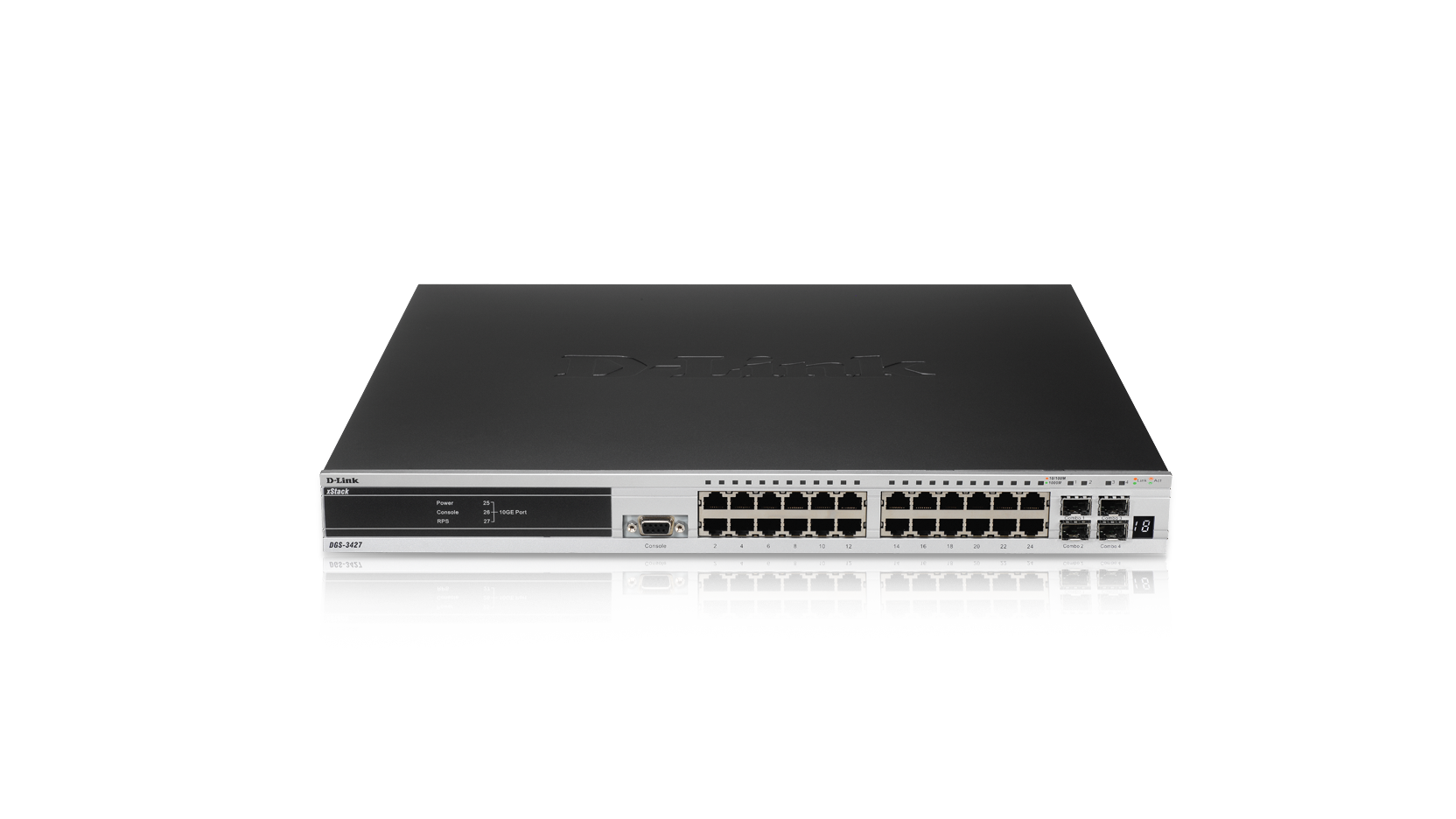

xStack 24-Port Gigabit L2+ Stackable Switch

DGS-3427

  • Product Status: End of Life

There's a new version of this product:

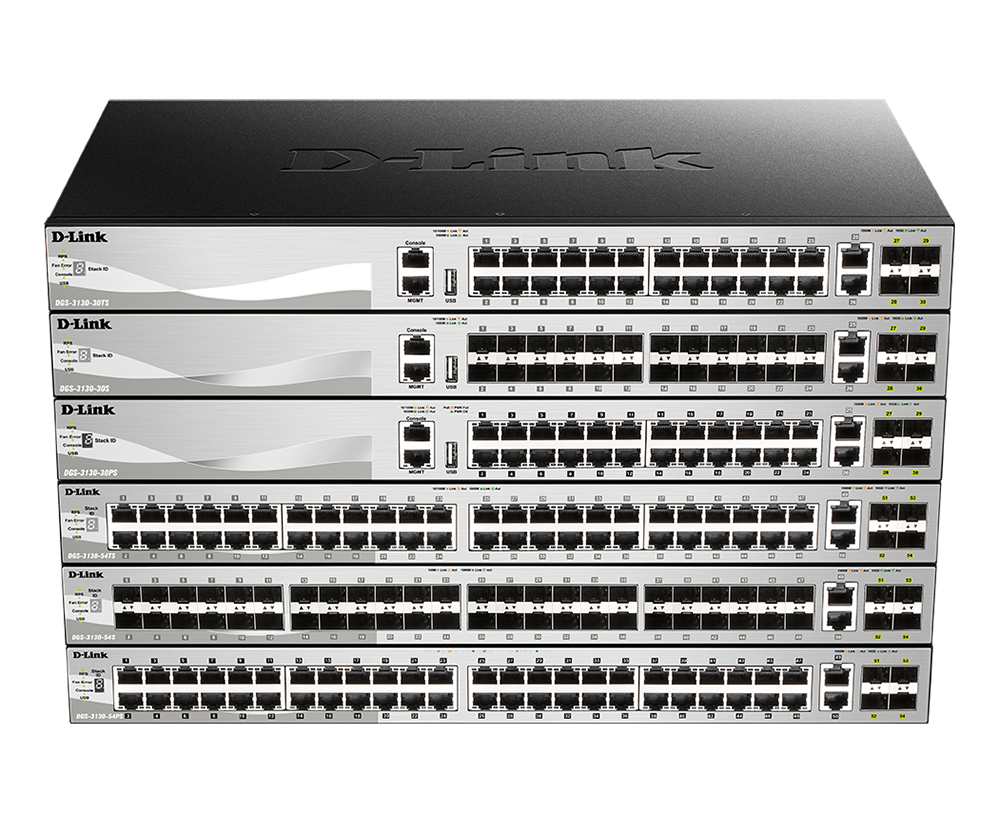

Gigabit Layer 3 Stackable Managed Switches

DGS-3130 Series

See Newer Product

There's a new version of this product:

DGS-3130 Series

Gigabit Layer 3 Stackable Managed Switches

Overview

  • Unified software image with powerful L2 and L3 features
  • 6x 10 Gigabit ports
  • 6kV Surge Protection for Gigabit Ethernet ports
  • Power over Ethernet (PoE) options, up to 740W with RPS
  • D-Link Safeguard Engine
  • Limited Lifetime Warranty with registration
See Newer Product

Overview

  • Unified software image with powerful L2 and L3 features
  • 6x 10 Gigabit ports
  • 6kV Surge Protection for Gigabit Ethernet ports
  • Power over Ethernet (PoE) options, up to 740W with RPS
  • D-Link Safeguard Engine
  • Limited Lifetime Warranty with registration
See Newer Product
The xStack DGS-3400 series of next generation switches delivers performance, flexibility, security, multi-layer Quality of Service (QoS) and redundant power option for the SMB and enterprises. With high Gigabit port densities for desktop connections, SFP fiber connectivity, 10-Gigabit uplink options and enhanced Layer 2+ functions, these switches comprise the workgroup access-layer stack for seamless integration with L3 core switches to form part of a multi-level network structured with high-speed backbone and centralized servers.

Unparalleled Flexibility.


Any switch in the DGS-3400 series can operate as a stand-alone device or part of a scalable stack. Embedded with Single IP Management capability, a standalone switch can form part of a virtual stack, where intra-stack traffic flows through the usual network wires, doing away with the costly stacking cables. Without stacking cables, cable distance barriers and physical stacking limitations, a virtual stack can comprise units that are located anywhere on the network that minimizes the impact of any single point of failure.

Redundant Ring Stacking.

Alternatively, optional 10-Gigabit modules can be installed in the open slots to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack.1 Users can install one or two single-port modules, depending on whether the linear or fault-tolerant Ring stacking is implemented. With each of these ports providing 20Gbps full duplex transmission on the cost-effective coaxial cable, the DGS-3400 series provides not only high-bandwidth stacking but also cost control capability that allows users to add ports strictly on a per need basis. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.

More Intelligent Than Simple Layer 2 Switches.

The DGS-3400 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v.4/v.6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.

Security, Performance & Availability.

The DGS-3400 series provides extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. For prevent malicious flooding traffic caused by worm/virus infections, the DGS-3400 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

Actual product appearance may differ from the image displayed on this page

Related Products

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
This product was phased out on: 24/02/2014
This product's last date of support is on: 23/02/2019
Version Date Type File Size
Datasheet (English) - PDF 0.72mb Download
Version Description Date Type File Size
Manual Manual - PDF 28.93mb Download
Version Description Date Type
Firmware 2.70B56 Firmware 5. 11. 2010 - Download
MIB Firmware 2.60

MIB Firmware

5. 11. 2010 - Download
Version Description Date
DEU_CE_A2_EN_FR_RevA Certificate of Declaration A2 (English and French) 21. 05. 2009 Download
