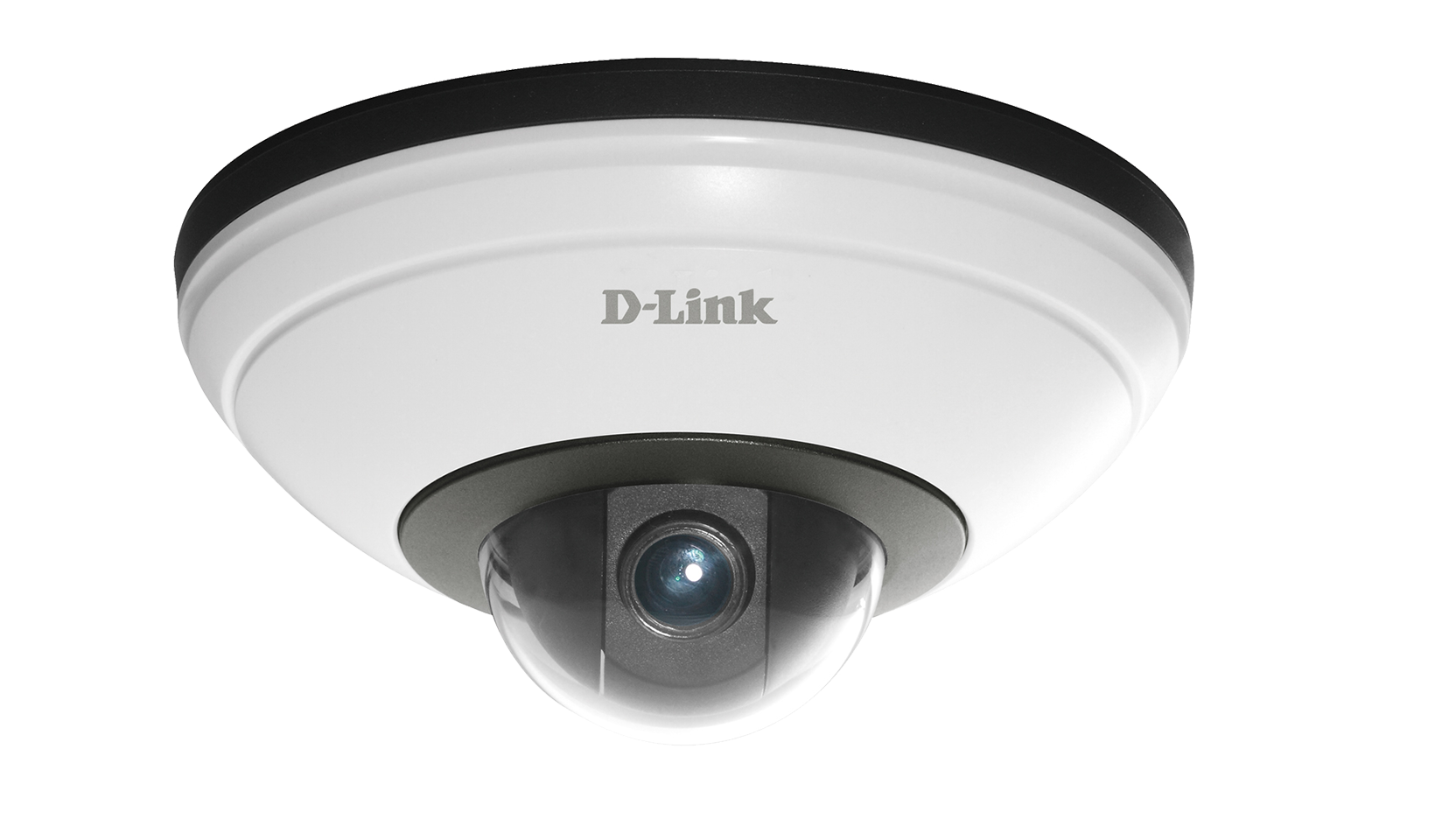

The DCS-5615 Full HD Mini Pan & Tilt Dome Network Camera features industry-leading high definition (Full HD 1080p) 2 megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-5615 connects to a network to provide high-quality live video over the Internet.
Full HD Surveillance

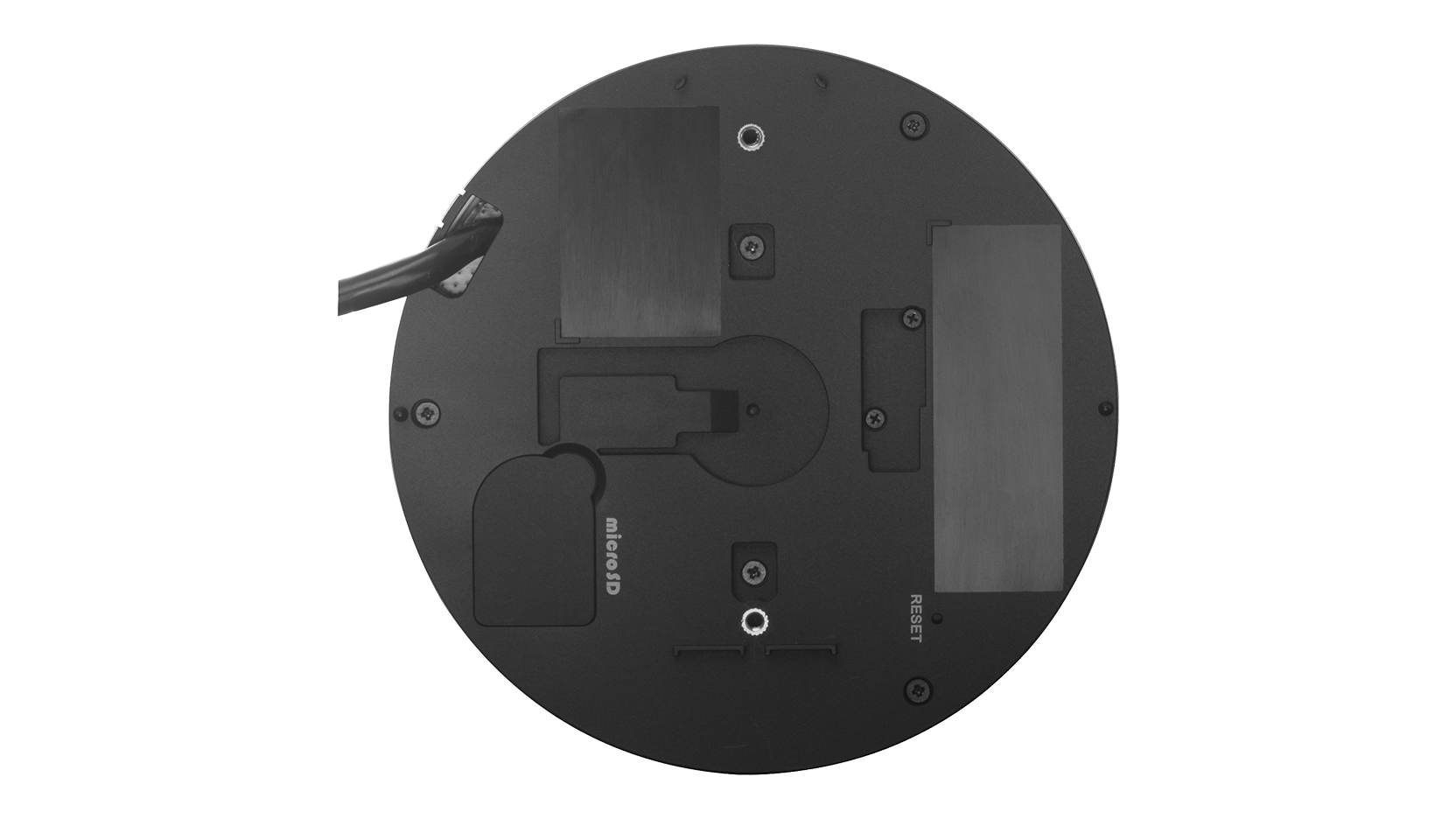

The DCS-5615 delivers Full HD 16:9 widescreen IP video surveillance and provides vivid high-quality video, making it easier to view and monitor footage. With the included D-ViewCam™ 32-channel recording software, the DCS-5615 provides a complete solution for high-quality live viewing and reliable recording. The camera also has a built-in microSD card slot which can be used for local backup by storing important events on an easily retrievable microSD card1.
Multiple Video Streams
The DCS-5615 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with a high level of detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-5615 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
Sharp Image Monitoring from Different Angles
With accurate, responsive pan/tilt movement and digital zoom, the DCS-5615 gives you full control, so you can quickly scan a wide area from a variety of angles and 16x digital zoom lets you zoom in on specific areas for more detail. The DCS-5615 can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area.
Flexible Connectivity
The DCS-5615 includes an input port for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-5615 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.
Tamper-proof
Tamper-proof features make the DCS-5615 camera suitable for tamper‑prone locations such as transportation hubs, schools or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked or spray-painted, and respond promptly with a visible or audible alarm.
D-ViewCam™ for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record important events directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where the cameras are located, further simplifying the management process.
1. MicroSD card not included
Related Products
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
Full HD 2 megapixel |
Image sensor
|
1/2.7" 2 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) |
Lens
|
4 mm F1.5 Fixed |
Motorised Pan/Tilt
|
Supported
|
Privacy Masks
|
5 zones |
Built-in Microphone
|
Supported
|
External Card Slot
|
MicroSD SDHC (max 32 GB) |
Video Format
|
H.264 MJPEG MPEG-4 |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
16x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.34mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
1.01 | Quick installation guide |
19. 11. 2014 | 8.02mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
