Global Chain Restaurants

Unify store rollout, R&D kitchens, warehousing, and logistics with secure networking for efficient cross-region restaurant collaboration.

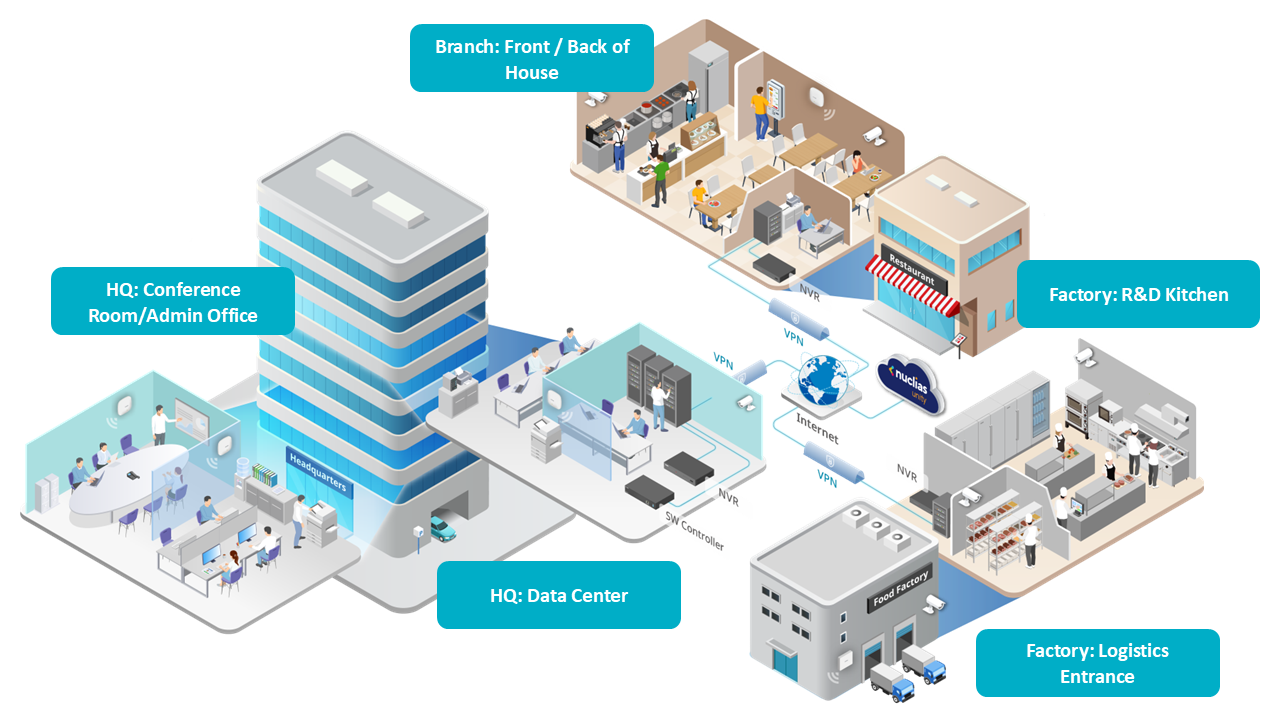

Application Diagram

HQ: Conference Room/Admin Office

Data from global branch ERP, POS, CRM, and BI systems must sync to HQ, but reporting may freeze during peak hours.

Delayed site reporting creates defective status updates, making centralized management tough and causing backlogs.

Factory:
Logistics Entrance

Unstable outdoor connectivity and heavy interference may cause trucks, PDAs, and barcode scanners to disconnect.

Mixed traffic of trucks, forklifts, and staff, combined with license plate recognition, makes access control complex.

Factory:
R&D Kitchen

Metal equipment and microwave ovens may disrupt Wi-Fi connectivity and leading to disconnect of KDS and barcode systems.

Track inventory loss, ensure high-resolution monitoring in oily environments, and enable critical fire alerts.

HQ:
Data Center

Simultaneous HQ access to multi-site operational data can spike core system loads, and data must sync back to branches.

Failures in inter-department communication and network paths may lead to site-wide disconnection.

Branch:
Front / Back of House

Quick store deployment is essential, but varying installer skills often result in inconsistent configurations and frequent issues.

Efforts to prioritize business operations may result in private cabling or improper rewiring, increasing troubleshooting complexity.

up to 1,500 devices

DNH-3000 manages up to 1,500 devices, enabling headquarters to oversee switches and wireless equipment across all branches.

25G high-bandwidth

Fiber backbone supports 25G high-bandwidth, long-distance transmission, meeting current needs and scaling for future data growth.

ERPS ring protection

ERPS ring protection restores links within 50ms after a failure, minimizing downtime and service impact.

6kV surge protection

Switches with 6kV surge protection safeguard equipment from power surges and reduce damage risks.

VPN

VPN provides secure uplink to headquarters, with Guest VLAN offering safe internet access for visitors.

tailor login pages

Customizable Captive Portal allows stores to tailor login pages for promotions and customer engagement.

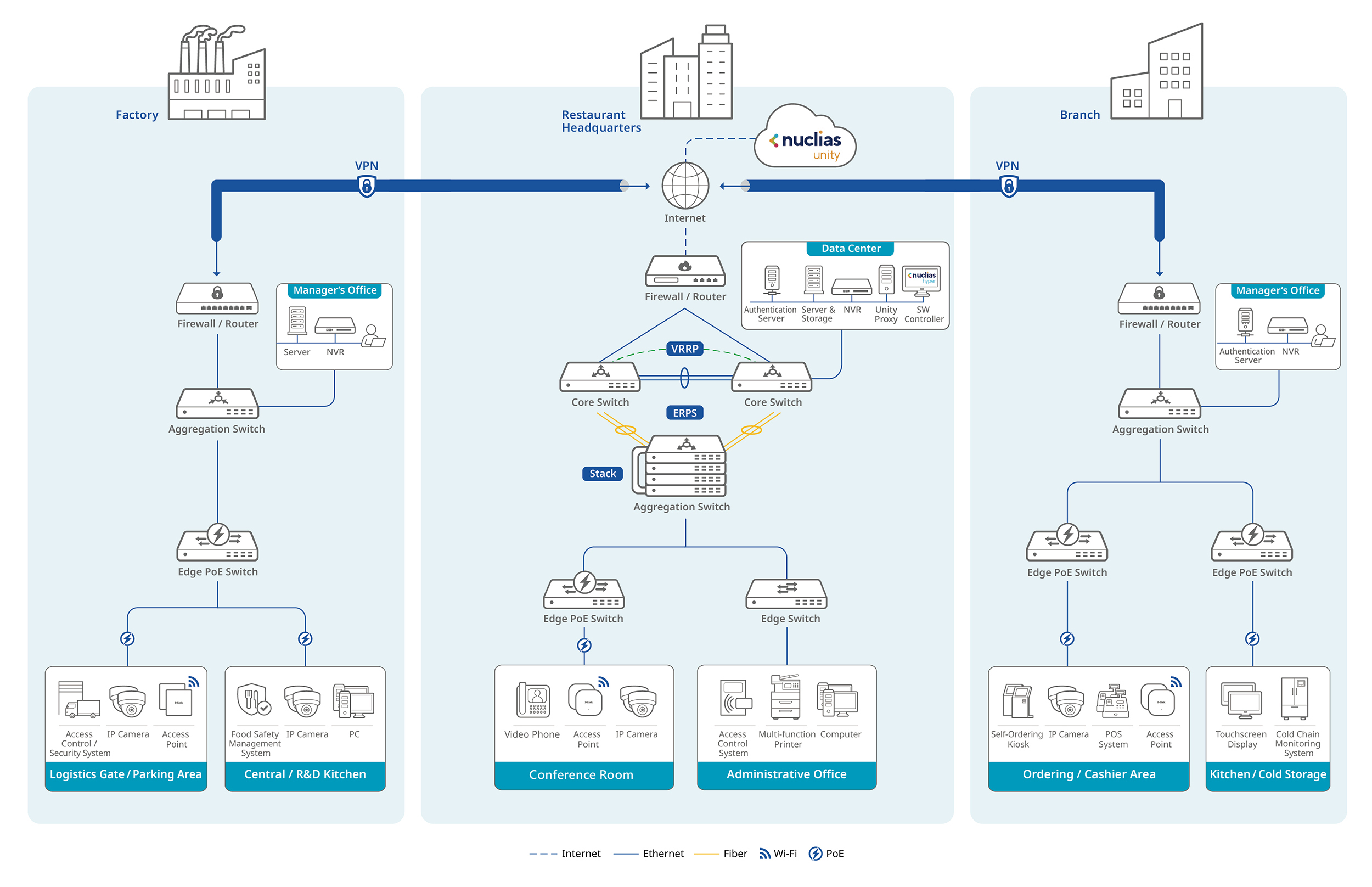

Connection Diagram

Cost-Efficient Network Solution

DNC-5000

On-Premises Software Network Controller

DXS-3610-54S

48-Ports 10G SFP+ + 6-Ports 100G QSFP28 Managed Switch

DGS-3130-54S

54-Port Lite Layer 3 Stackable Managed Gigabit PoE Switch

DGS-1530-28P

24-Port Gigabit Stackable Smart Managed PoE Switch

Learn More

DGS-1530-28

24-Port Gigabit Stackable Smart Managed Switch

Learn More

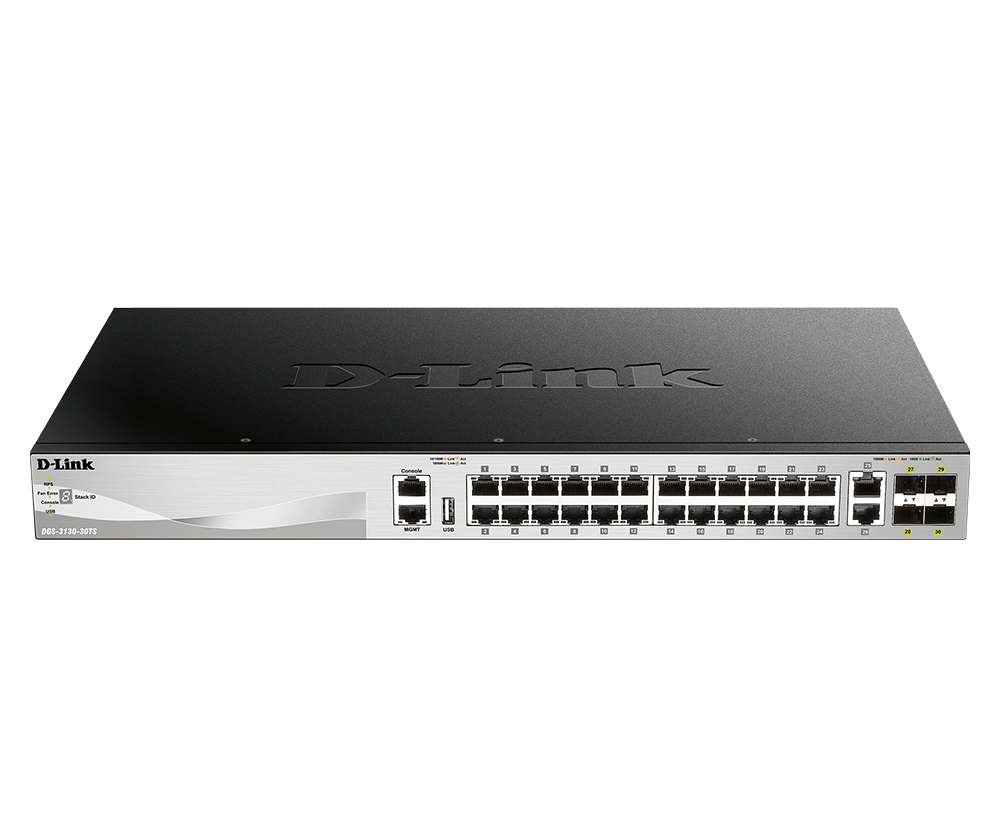

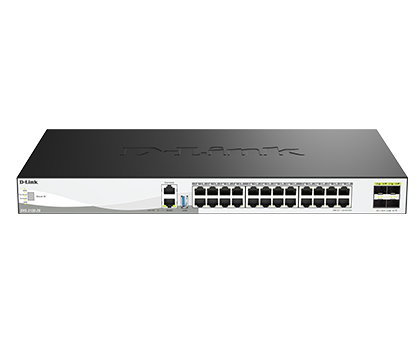

DGS-3130-30TS

30-Port Lite Layer 3 Stackable Managed Gigabit Switch

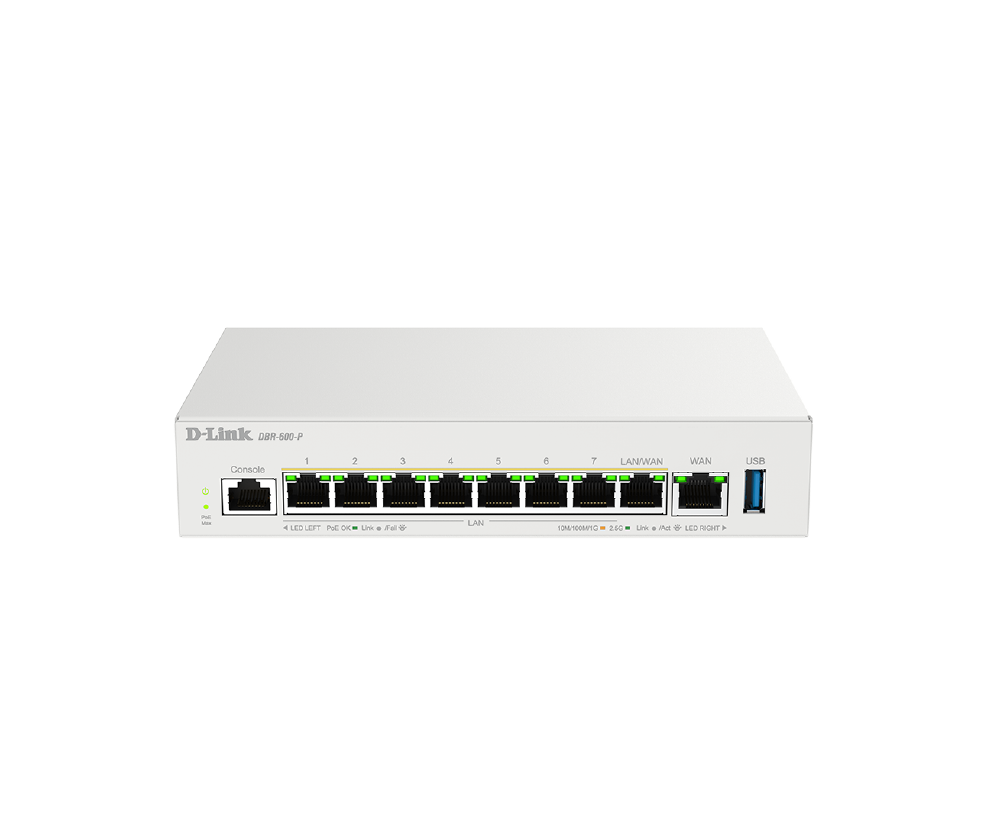

DBR-600-P

Business PoE Router

Learn More

BNR-008

H.265 8-Channel Network Video Recorder

Learn More

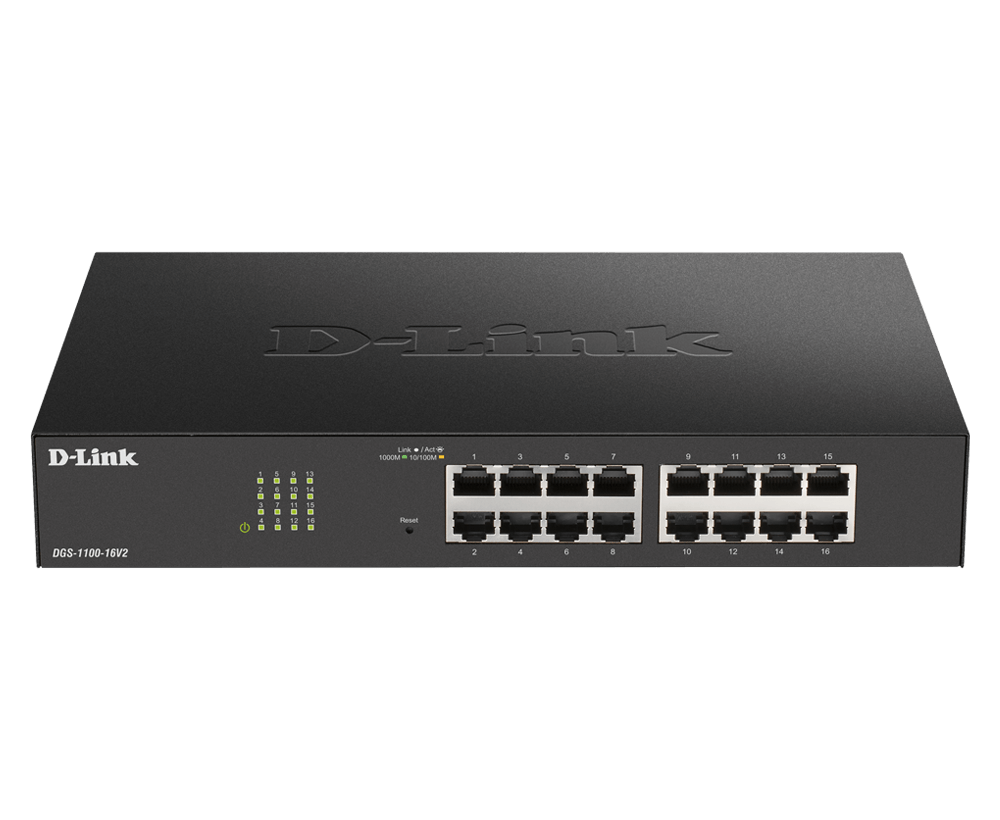

DGS-1100-16V2

16-Ports 1G Easy Smart Switch

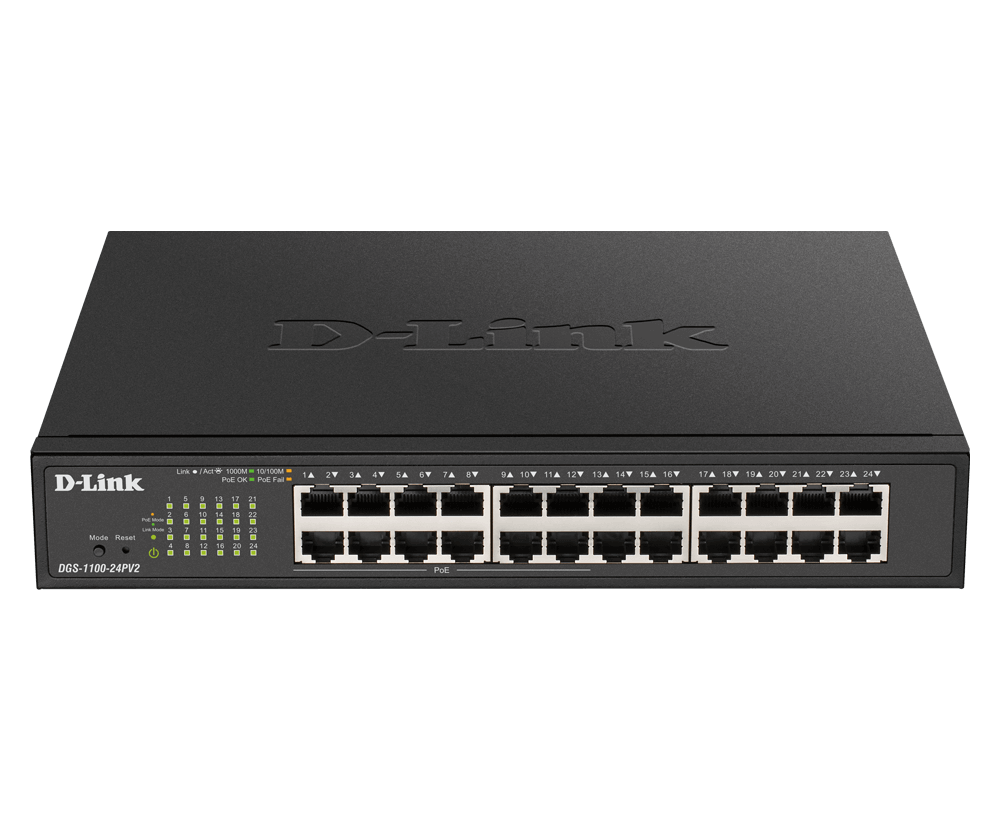

DGS-1100-18PV2

16-Ports 1G PoE+ + 2-Ports 1G Combo PoE Easy Smart Switch

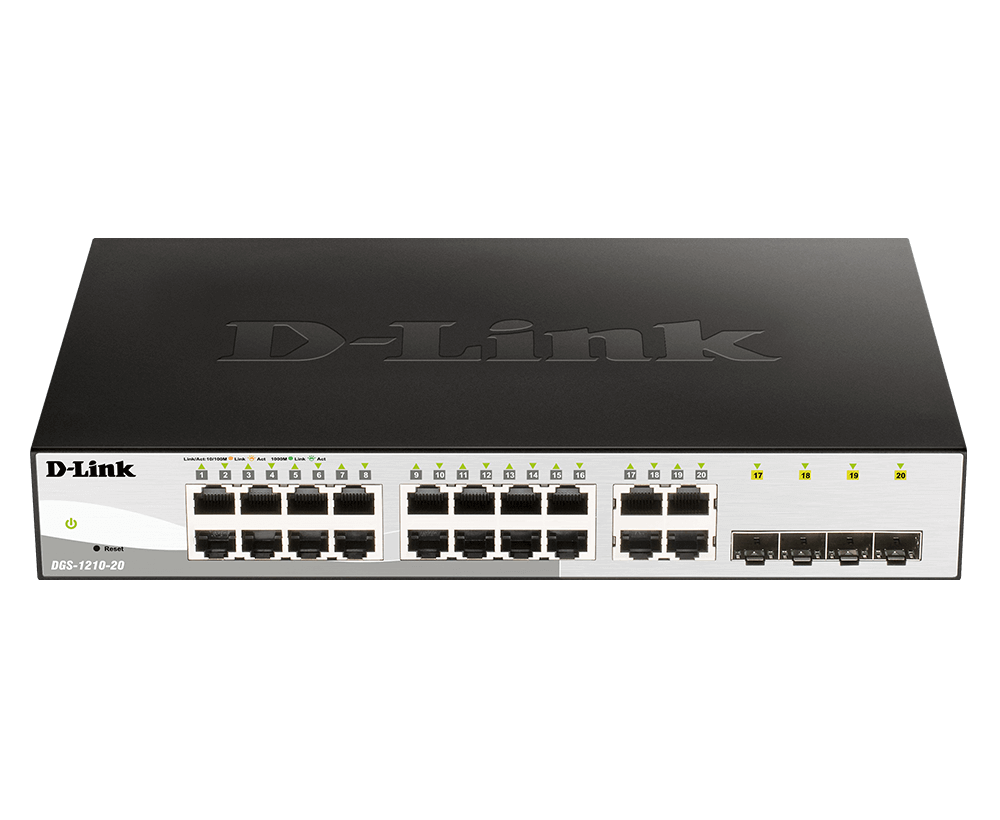

DGS-1210-20

20-Port Gigabit Smart Managed Switch

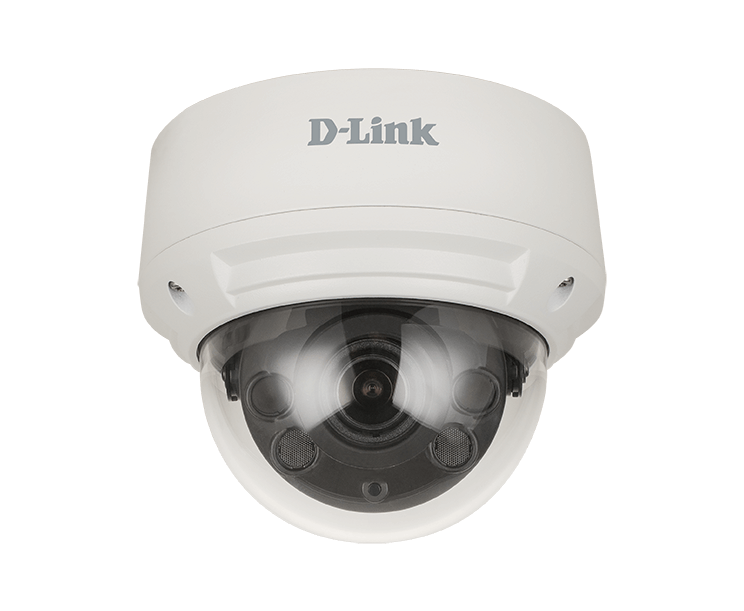

BCD-P01

2 Megapixel H.265 Outdoor Dome Camera

Learn More

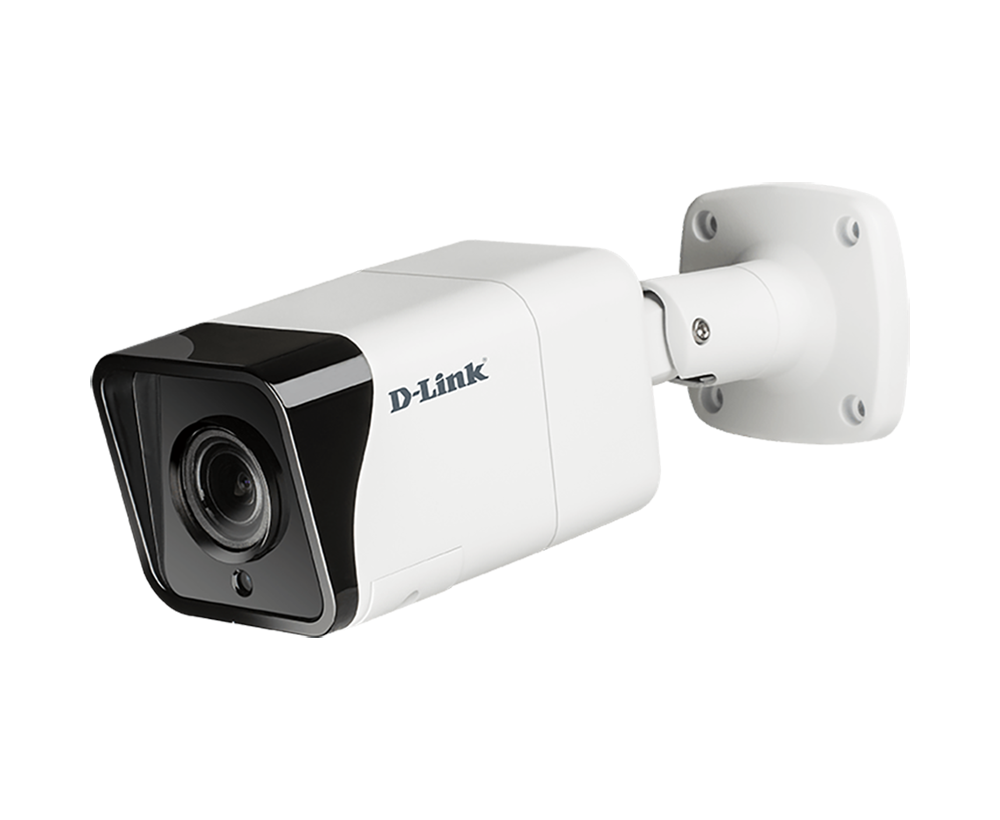

BCB-P01

2 Megapixel H.265 Outdoor Bullet Camera

Learn More

DAP-X2810

AX1800 Wi-Fi 6 Dual-Band PoE Access Point

Learn More

DAP-X3060

AX3000 Wi-Fi 6 Ceiling Mount Access Point

Learn More

DAP-X306OU

AX3000 Wi-Fi 6 Outdoor PoE Access Point

Learn More
