Dual-Band 802.11n/ac Unified Wireless Access Point
DWL-6610AP
- Product Status (Revision B1_v100): Live
- Self-configuring cluster feature
- Up to 32 virtual access points may be created from a single access point
- IEEE 802.3af Power over Ethernet (PoE)
- UL2043 certified chassis (plenum-rated SKU)
- Bandsteering for efficient traffic management
- Airtime fairness
- Trusted Wireless Security with WPA/WPA2 Personal, WPA/WPA2 Enterprise, MAC address filtering, Rogue AP detection
Where to buy
Performance without Compromise
The DWL-6610AP is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610AP can be discreetly deployed anywhere.
Why You Want It
Wireless AC 1200
Maximum combined wireless speed of 1200 Mbps.*
Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.
Dual Band
Supports both 2.4Ghz and 5Ghz bands simultaneously.
Unified Wireless
Access points can be managed by unified wireless controller.
Smart Design

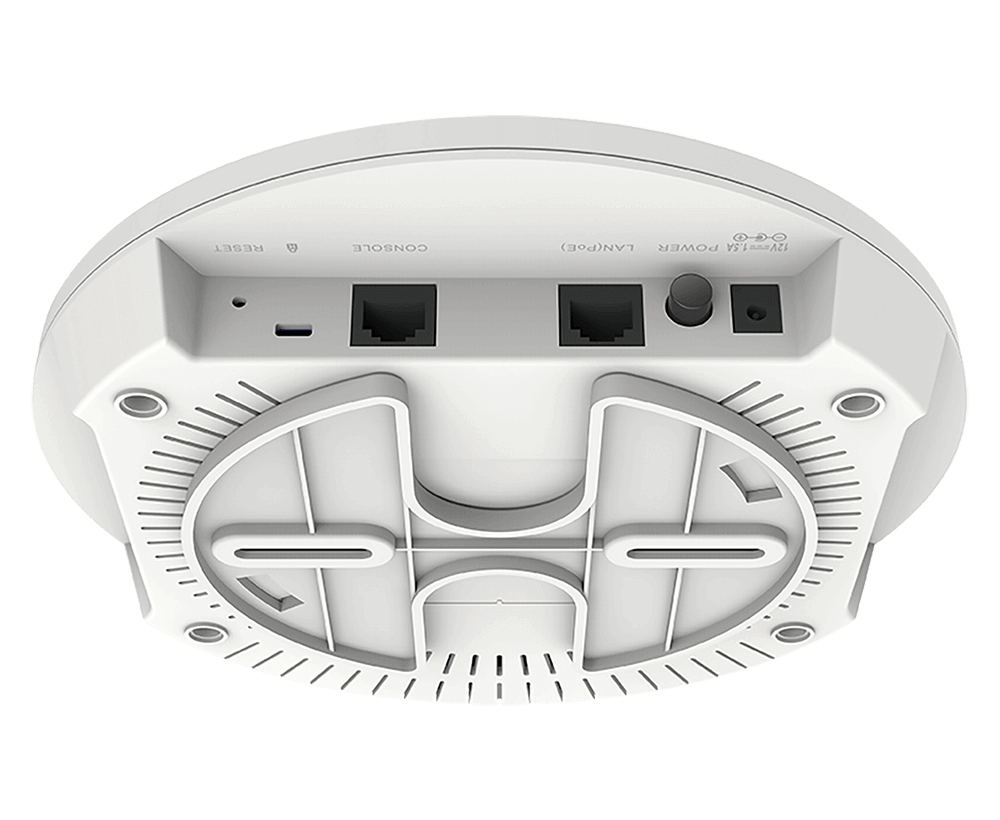

The DWL-6610AP can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610AP adheres to strict fire codes for placement in air passageways.
Band Steering Technology
With band steering, the DWL-6610AP detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.
Versatility Built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610AP coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.

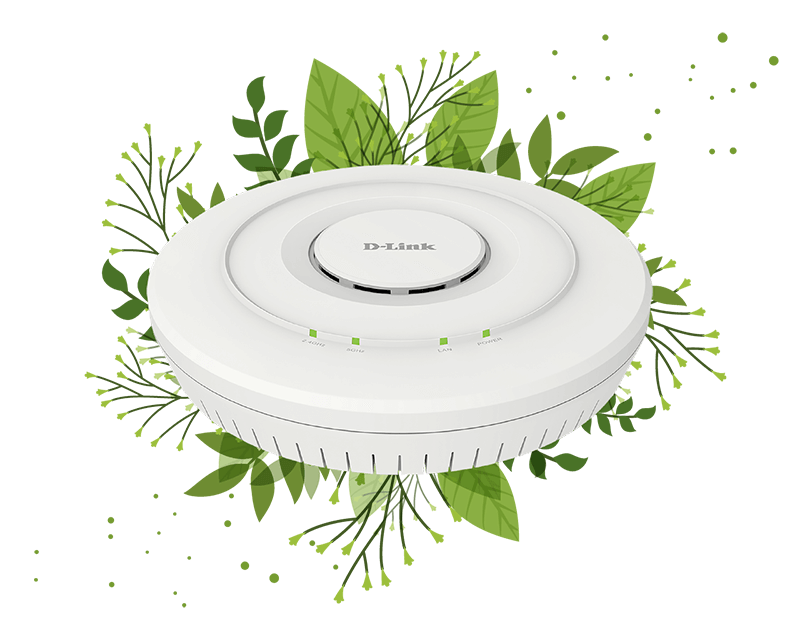

Secure and Green Design
The DWL-6610AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Fast Seamless Roaming

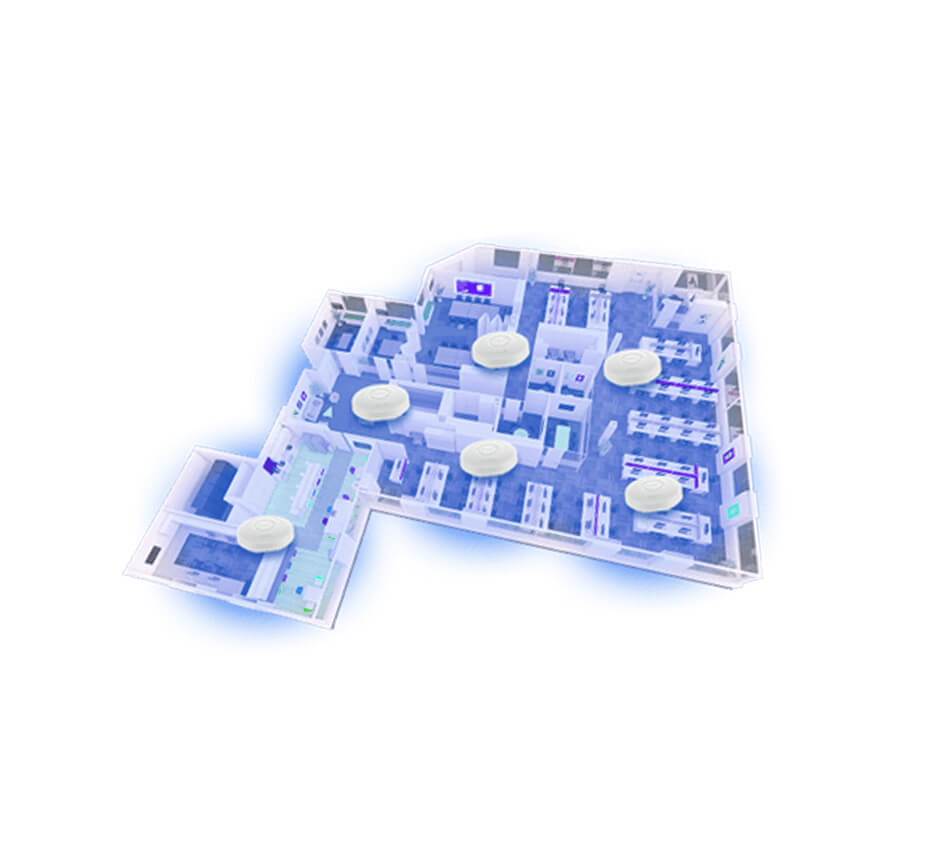

Combining the DWL-6610AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
Management platforms

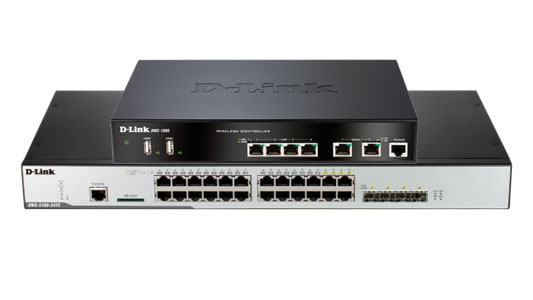

D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.

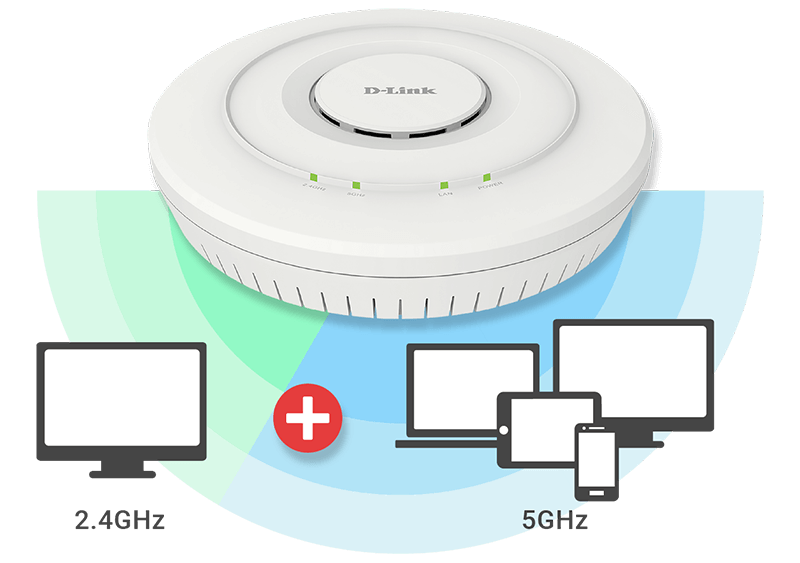

Simultaneous Dual-Band
Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band * Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Specification
|
Antenna
|
Internal omnidirectional antennas 4 dBi for 5 GHz, 4 dBi for 2.4 GHz |
|---|---|
|
Data Transfer Rate
|
802.11a: 54, 48, 36, 24, 12, 9, and 6 Mbps 802.11ac: 433 Mbps-867 Mbps 802.11b: 11, 5.5, 2, and 1 Mbps 802.11g: 54, 48, 36, 24, 12, 9, and 6 Mbps 802.11n: 6.5 Mbps-300 Mbps |
|
Dimensions
|
158.79 x 158.79 x 69.39 mm |
|
Interfaces
|
1 x 10/100/1000 LAN port 802.11ac 5 GHz wireless 802.11b/g/n 2.4 GHz wireless |
|
Product Description
|
Wireless AC1200 DualBand Unified Access Point |
|
System Management
|
Web-based User Interface HTTP/HTTPS |
|
Weight
|
500 grams |
|
Wireless Frequency
|
2.4 GHz band: 2.4-2.4835 GHz 5 GHz band: 5.15-5.35 GHz, 5.47-5.825 GHz |
