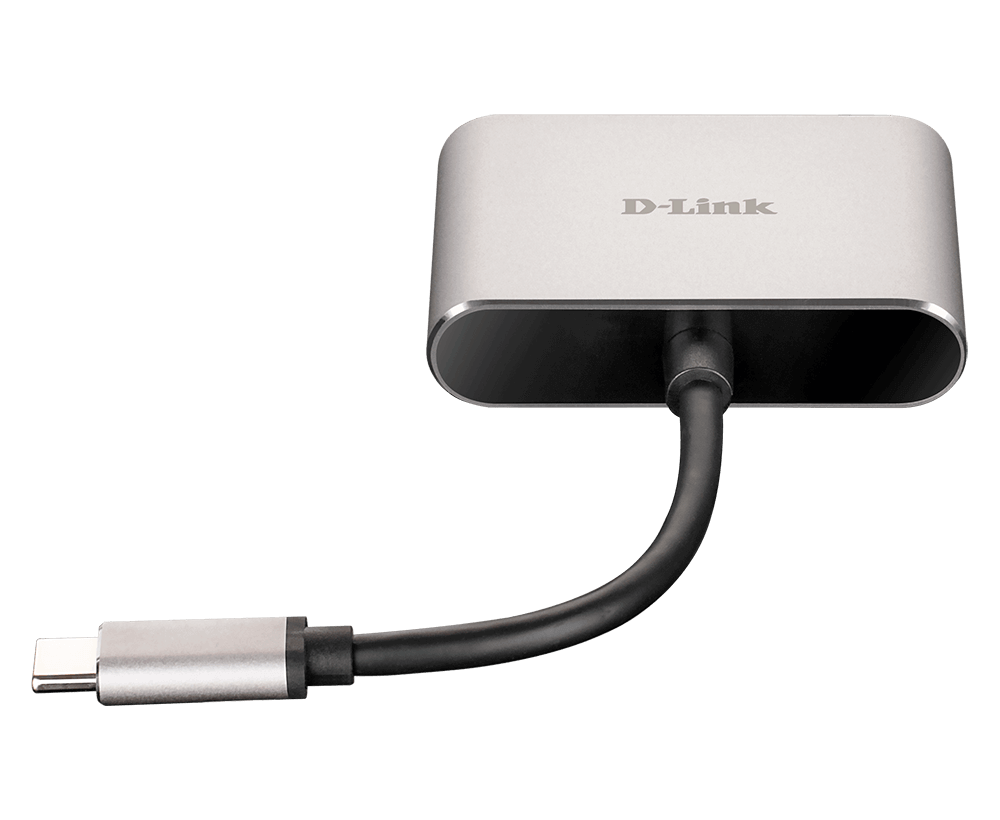

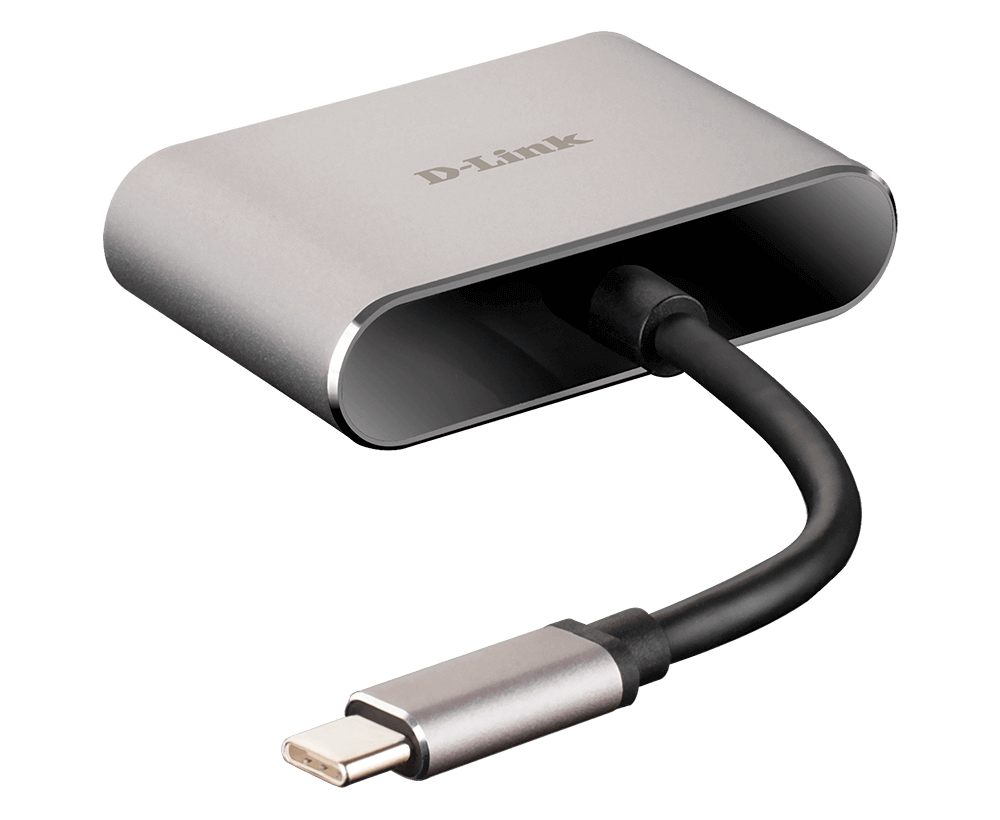

USB-C™ to HDMI/VGA Adapter

DUB-V210

  • Product Status (Revision A1_v100): Live
  • HDMI resolution up to 4K @ 30 Hz
  • VGA resolution up to 1080p @ 60 Hz
  • Compliant with USB-C and Thunderbolt™ 3
  • Supports DisplayPort Alternate Mode over USB-C
  • Supports display mirroring on HDMI and VGA output
  • Plug-and-Play
  • Compact, portable design
  • Aluminum alloy casing

Download the datasheet.

Where to buy
Product Description USB-C to HDMI/VGA Adapter
Device Interfaces 1* USB-C connector with USB cable 11 cm, 1* HDMI Port, 1* VGA Port
Standards HDMI 1.4, HDCP 2.2, DisplayPort Alternate Mode, Resolution: HDMI up to 4K @30Hz, Resolution: VGA up to 1920X1080P @60HZ
Minimum System Requirements Computer with Microsoft Windows® OS, Mac OS® , or Chrome OSTM. Available USB Type-C Port with DisplayPort Alternate Mode Supported
Dimensions 62.5 x 40.5 x 15 mm
Power Input: Bus-powered, Consumption: 5V DC, 22.5 mA
Weight 42.0 grams
Temperature Operating: 0 to 70 °C, Storage: -25 to 85 °C
Humidity Operating: 5% to 80% RH, non-condensing, Storage: 5% to 80% RH, non-condensing
Certifications CE, FCC, IC, RCM

Support

Version Date Type File Size
Datasheet - PDF 0.44mb Download
