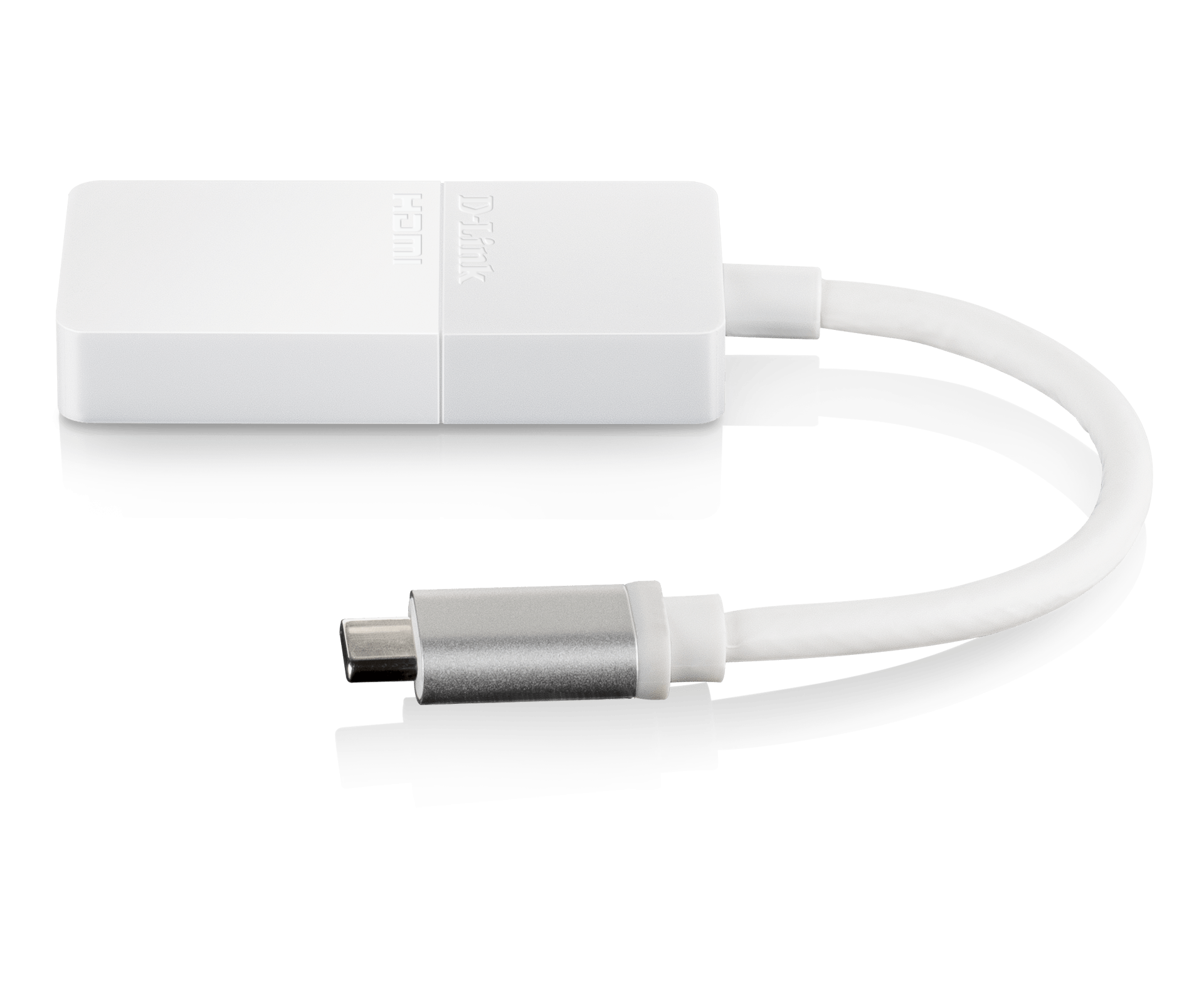

USB-C to HDMI Adapter

DUB-V120

  • Product Status (Revision A1_v101): Live
  • Fully compliant with HDMI
  • Ultra-HD video resolution up to 4K@60 Hz as specified in HDMI 2.0
  • USB-C and Thunderbolt compliant
  • Supports DisplayPort over USB-C alternative mode
  • Plug-and-play installation
  • Compact, portable design

Download the datasheet.

Where to buy
Product Description USB-C to HDMI Adapter
Device Interfaces HDMI Port, USB Type-C Connector (Thunderbolt 3 compliant)
Standards USB Specification Version 3.1 Gen 1, USB Specification Version 2.0, USB Specification Version 1.1, HDMI 2.0, DisplayPort Alternative Mode, EDID
Minimum System Requirements Computer with Microsoft Windows® OS, Mac OS® , or Chrome OS™; Available USB Type-C Port with DisplayPort Alternate Mode Supported
Dimensions 67.0 x 30.5 x 10.5 mm
Power Input: Bus-powered Consumption: 140 mA, (± 10%) 5 V DC
Temperature Operating: 0 to 40 °C (32 to 104 °F), Storage: -20 to 70 °C (-4 to 158 °F)
Weight 26.34 grams
Humidity Operating: 10% to 90% RH, non-condensing Storage: 5% to 90% RH, non-condensing
Certifications CE, FCC, HDMI, IC, RCM

Support

Version Date Type File Size
Datasheet - PDF 0.31mb Download
