Description
The tandem of D-Link’s new Enterprise Gigabit switches and DPS Series of Modular Redundant Power Supplies (RPSU) enables today’s business networks with unmatched flexibility, performance, scalability, and availability.
The modular design of the DPS Series of RPSUs enables companies to selectively and cost effectively deploy higher availability configurations precisely when and where they are needed most. When paired with a supported D-Link switch, the DPS-200, and DPS-500 provide uninterrupted fail-over, in the unlikely event of a mechanical power supply failure. The system integration between D-Link’s Managed Layer 2 switches, Layer 3 switches, and RPSU system, provide customers with the fundamental building blocks to create economical and scalable networks without having to sacrifice network performance and availability.

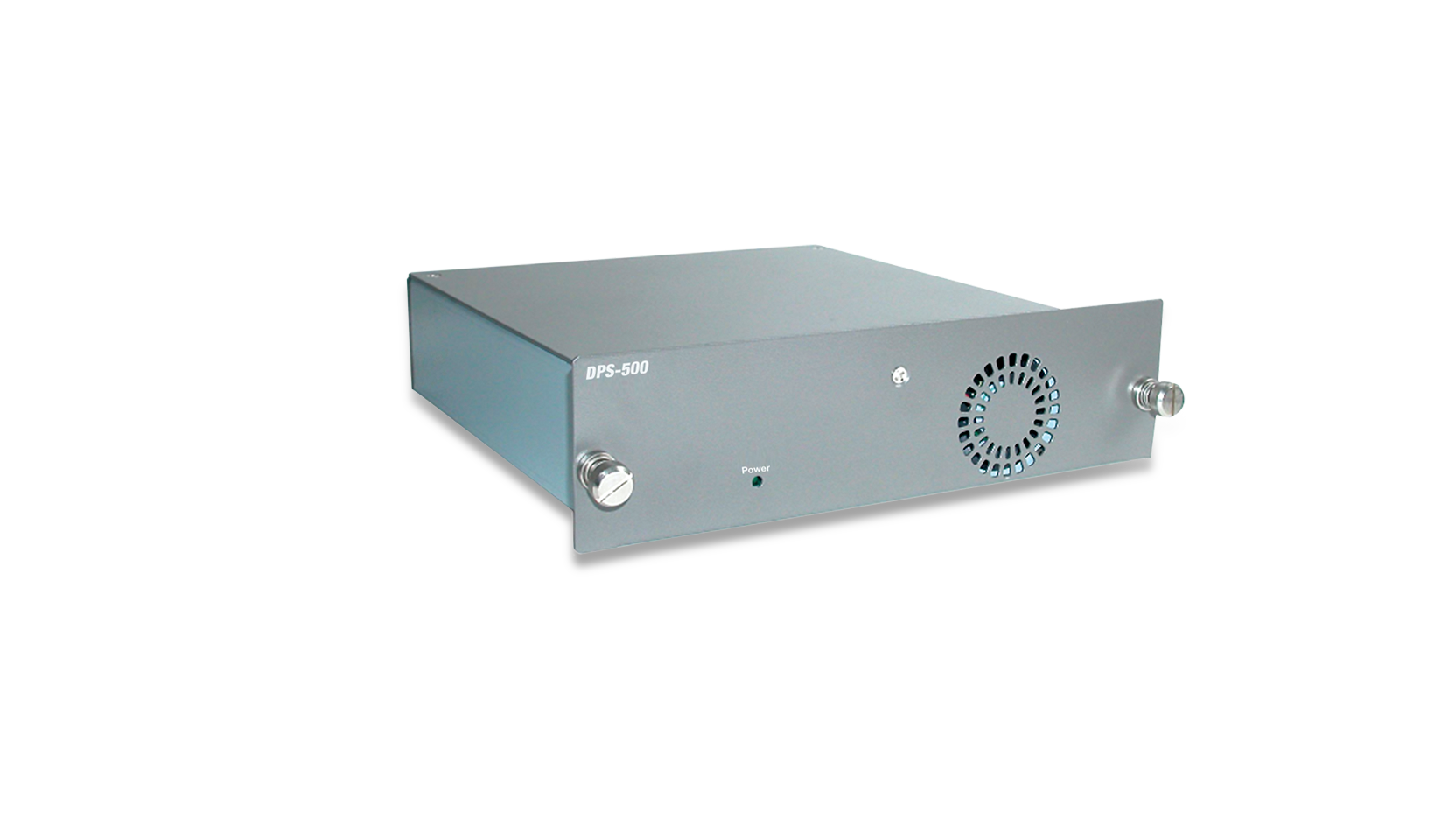

- Redundant Power Supply for xStack DES, DGS Series
The tandem of D-Link’s new Enterprise Gigabit switches and DPS Series of Modular Redundant Power Supplies (RPSU) enables today’s business networks with unmatched flexibility, performance, scalability, and availability.
The modular design of the DPS Series of RPSUs enables companies to selectively and cost effectively deploy higher availability configurations precisely when and where they are needed most. When paired with a supported D-Link switch, the DPS-200, and DPS-500 provide uninterrupted fail-over, in the unlikely event of a mechanical power supply failure. The system integration between D-Link’s Managed Layer 2 switches, Layer 3 switches, and RPSU system, provide customers with the fundamental building blocks to create economical and scalable networks without having to sacrifice network performance and availability.
Specification
Input Voltage Range
Input Frequency Range
AC Input Current
Maximum In-rush Current
Leakage Current
Output Voltage
Minimum Load Current
Maximum Load Current
Total Output Power
Efficiency
Over Voltage Protection
AC Power Good (PWR-GOOD) Signal Required
LED Status
Dimensions
Weight
Operating Altitude
Storage Altitude
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Safety Standards
Safety Approvals
EMI
MTBF
- 90VAC to 264VAC
Input Frequency Range
- 47 Hz to 63 Hz
AC Input Current
- 4A max. @ 115VAC
- 2A max. @ 230VAC
Maximum In-rush Current
- 30A max. @ 115VAC (at 25˚ C ambient cold start)
- 50A max. @ 230VAC (at 25˚ C ambient cold start)
Leakage Current
- 3.5mA max.
Output Voltage
- +5VDC
- +12VDC
Minimum Load Current
- 0A (+5VDC output)
- 0A (+12VDC output)
Maximum Load Current
- 1.5A (+5VDC output)
- 13A (+12VDC output)
Total Output Power
- 140 watts
Efficiency
- 80% min. @ max.
Over Voltage Protection
- 13.5V to 17V
AC Power Good (PWR-GOOD) Signal Required
- +5V
- +12V
LED Status
- On: RPS good
- Off: RPS failed
Dimensions
- 196mm (L) x 195mm (W) x 50mm (H)
Weight
- 1.5 kg
Operating Altitude
- 3,000 m (10,000 feet) max.
Storage Altitude
- 12,000 m (40,000 feet) max.
Operating Temperature
- 0˚ to 50˚C
Storage Temperature
- -20˚ to 80˚C
Operating Humidity
- 5% to 95% RH
Storage Humidity
- 5% to 95% RH
Safety Standards
- UL 60950 3rd Edition
- CSA 22.2 No.234
- EN 60 950
Safety Approvals
- UL
- CSA
EMI
- FCC Class B
MTBF
- 598,552hours
Support
This product was phased out on: 19/04/2017
This product's last date of support is on: 19/04/2019
