Description

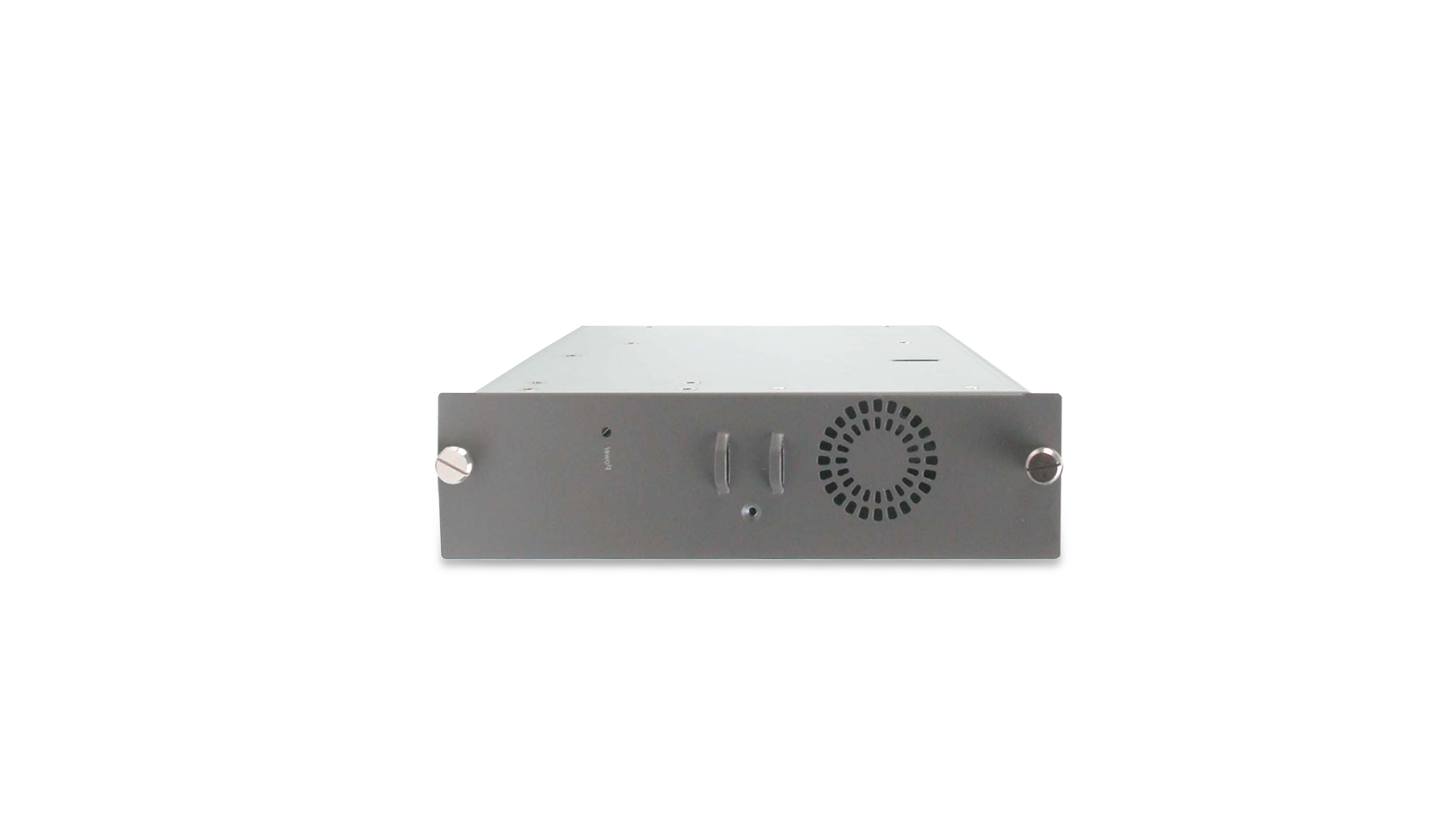

The DPS-200 is the backup Redundant Power Supply for the DES-3010PA. When the DES-3010PA is equipped with the DPS-200, both power supplies are switched on and share the current load. In case the power supply of the DES-3010PA should fail, the DPS-200 will instantaneously take 100% of the load without any loss.
The DPS-200 provides up to 130 Watts of redundant power to help insure that even PoE powered devices such as phones, APs, and cameras remain alive and active in the event the internal power supply fails. In addition, the DPS-200 also supports a fan-failure signal to indicate when a fan is about to fail based on detected reduced fan RPM. The DPS-200 is rack mountable and can be mounted in an EIA standard-size 19-inch rack.
The DPS-200 is the backup Redundant Power Supply for the DES-3010PA. When the DES-3010PA is equipped with the DPS-200, both power supplies are switched on and share the current load. In case the power supply of the DES-3010PA should fail, the DPS-200 will instantaneously take 100% of the load without any loss.
The DPS-200 provides up to 130 Watts of redundant power to help insure that even PoE powered devices such as phones, APs, and cameras remain alive and active in the event the internal power supply fails. In addition, the DPS-200 also supports a fan-failure signal to indicate when a fan is about to fail based on detected reduced fan RPM. The DPS-200 is rack mountable and can be mounted in an EIA standard-size 19-inch rack.
If rack mounting is not required, the DPS-200 can also be easily placed on a desktop or wiring closet shelf. The DPS-200 includes everything you need to get started right out of the box including: AC Power cord, RPS cable for connecting to the DES-3010PA, Rack mounting brackets for rack installations and rubber feet for desktop or shelf mounting.
Specification
Dimension
Weight
Input Voltage Range
Input Frequency
MAX Input Current
MAX In-rush Current
Efficiency
Operating Temperature
Storage Temperature
Operating Humidity
MTBF
- 127 x 76 x 36.6 mm
Weight
- 0.83Kg
Input Voltage Range
- 90~264Vac
Input Frequency
- 47~63Hz
MAX Input Current
- 1.6A@115Vac
- 0.8A@230Vac
MAX In-rush Current
- 30A@115Vac
- 60A@230Vac
Efficiency
- 75%
Operating Temperature
- 0~50˚ C
Storage Temperature
- -20~80˚ C
Operating Humidity
- 10~90% RH
MTBF
- 71,713 hours
Support
This product was phased out on: 09/11/2016
This product's last date of support is on: 09/11/2018
