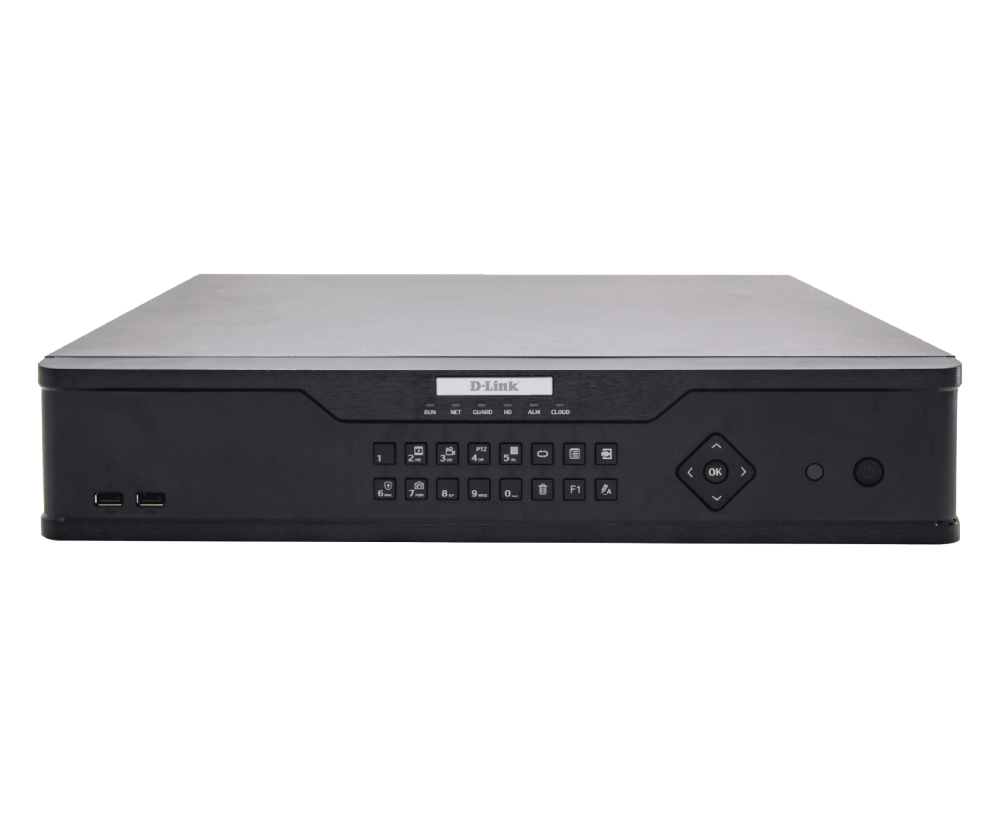

MYDLINK 64 CH NETWORK VIDEO RECORDER

DNR-F5864

  • Product Status (Revision Datasheet ME): Live
  • Support Ultra H.265/H.265/H.264 video formats
  • 64-channel input • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G,Profile T
  • Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support RAID 0, 1, 5, 6, 10
  • 8 SATA HDDs, Up to 8TB for each HDD
  • Various fisheye dewarping modes for live view and playbackfor both web interface and GUI
  • Support N+1 Hot spare
  • Support for 12V Power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Download the datasheet.

Where to buy

Specification

Download the datasheet.

Channel Number 64 Channels
Compression Format Ultra H.265/H.265/H.264
Two-way Audio Two-way Audio
Audio Recording Yes
Image Export File Format JPG
Video Search (Factor) Yes (Time, Event, Camera)
Playback Viewer up to 8TB for each HDD
Supported Camera D-Link Cameras
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Dimensions (mm) 442mm ×425mm×86mm (17.4" × 16.7"× 3.4")
Weight (g) 5.13 Kg (11.31 lb )
Power Consumption (watts) 20 W( without HDD )
Operation Temperature -10°C ~ + 55°C ( +14°F ~ +131°F)

Support

Version Date Type File Size
Datasheet - PDF 1.59mb Download
