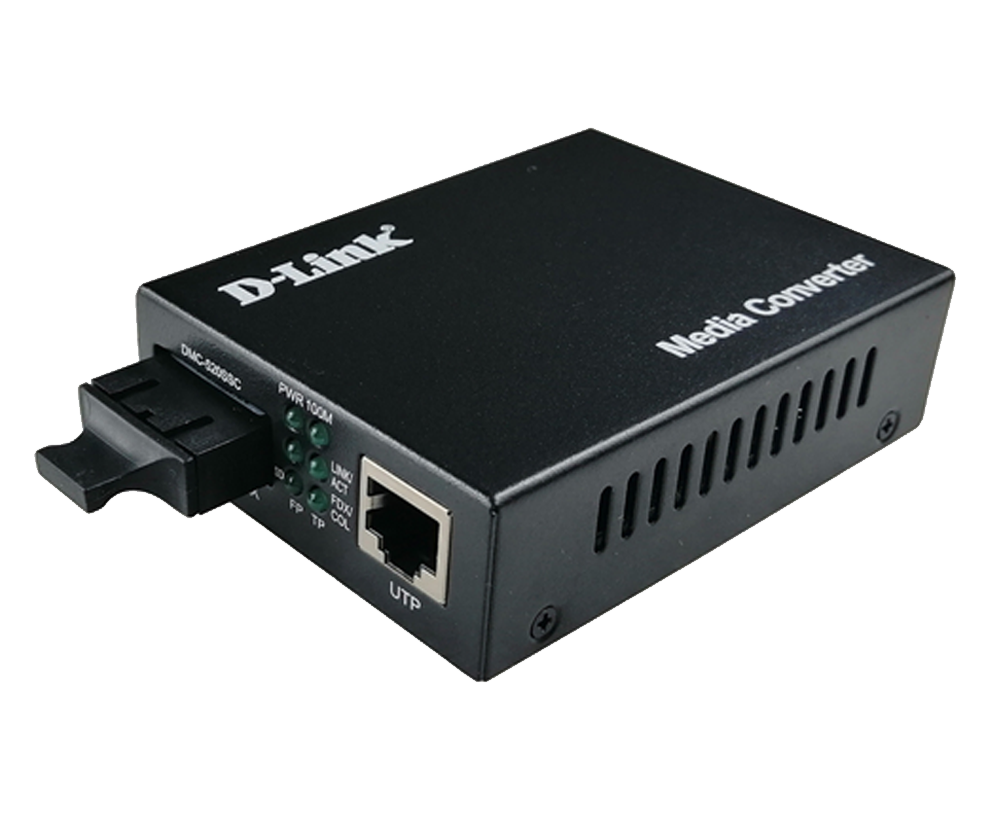

100Base-TX to 100Base-FX Single-mode Fiber (SC) Media Converter
DMC-560SSC
- Product Status (Revision Datasheet ME): Live
Fast and Easy to Use
- One/Two channel 10/100/1000 Mbps Ethernet to 10/100 Mbps bre optic conversion
- Plug-and-Play, no additional software required
- Can be used standalone or installed in the DMC-1014 chassis
- Half or full-duplex operation
- Auto-MDI/MDIX
Easy Placement and Monitoring
- Mount up to 14 media converters in the specially designed DMC-1014 Media Converter Chassis
- Dedicated power supply for powering the chassis and all installed media converters
- Hot-swappable when mounted
- Front panel LEDs for instant status feedback
Where to buy
Specification
Power Input | 5 V/1 A external power adapter |
---|---|
Dimensions | 95 x 70 x 26 mm |
Operation Temperature | 0 °C to 60 °C |
Storage Temperature | -20 °C to 70 °C |
Humidity | 5% to 90% RH, non-condensing |
Emission (EMI) | • FCC• CE• VCC |
Description | 100Base-TX to 100Base-FX Single-mode Fiber (SC) Media Converter |
LED Indicators | "Power (PWR) LINK/ACT" |
