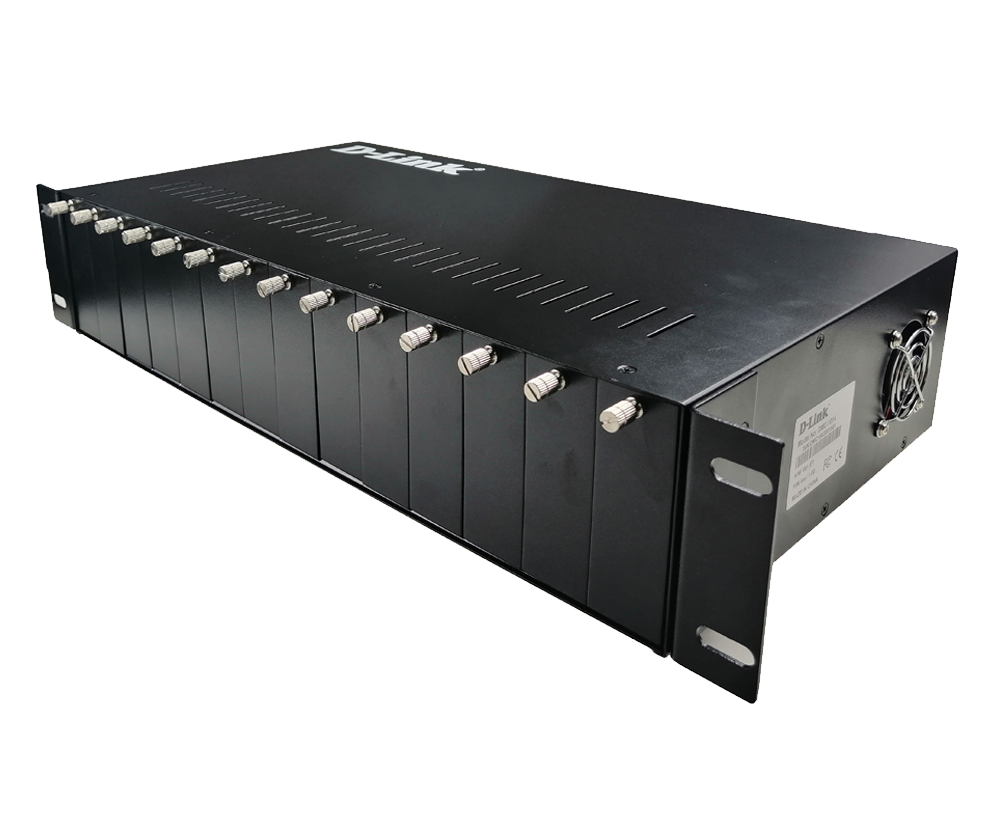

14-Slot Standalone Media Converter Chassis

DMC-1014

  • Product Status (Revision Series_v100): Live

Fast and Easy to Use

  • One/Two channel 10/100/1000 Mbps Ethernet to 10/100 Mbps bre optic conversion
  • Plug-and-Play, no additional software required
  • Can be used standalone or installed in the DMC-1014 chassis
  • Half or full-duplex operation
  • Auto-MDI/MDIX

Easy Placement and Monitoring

  • Mount up to 14 media converters in the specially designed DMC-1014 Media Converter Chassis
  • Dedicated power supply for powering the chassis and all installed media converters
  • Hot-swappable when mounted
  • Front panel LEDs for instant status feedback

Download the datasheet.

Where to buy

Specification

Download the datasheet.

Power Input AC 90V to 230 V , OR DC 48V[No text in field]
Operation Temperature -10 to 60 °C
Storage Temperature -20 to 85 °C
Dimensions 485 x 231 x 90 mm ( 19 inches 2U )
Emission (EMI) "FCC Class B VCCI Class B CE Class B C-Tick"
Humidity 5% to 95%
LED Indicators "Power (PWR) LINK/ACT"
Description 14-Slot Standalone Media Converter Chassis

Support

Version Date Type File Size
Datasheet - PDF 0.89mb Download
