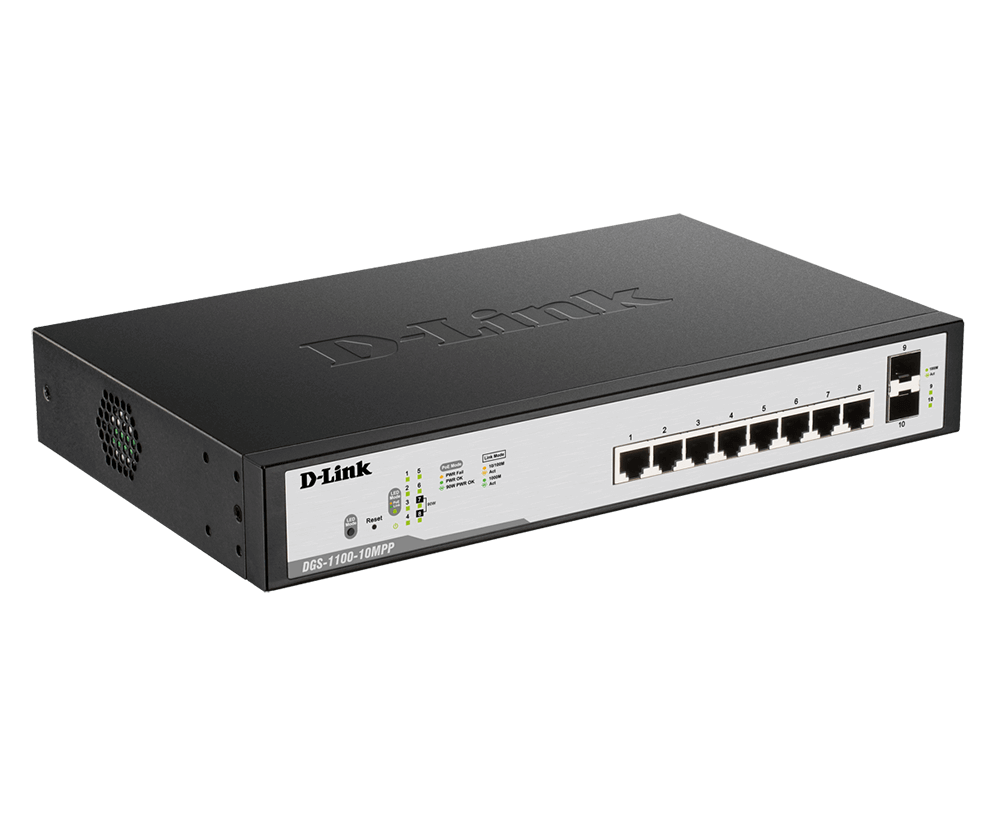

10-Port Gigabit PoE++ Smart Managed Switch

DGS-1100-10MPP

  • Product Status (Revision C1_v111): Live

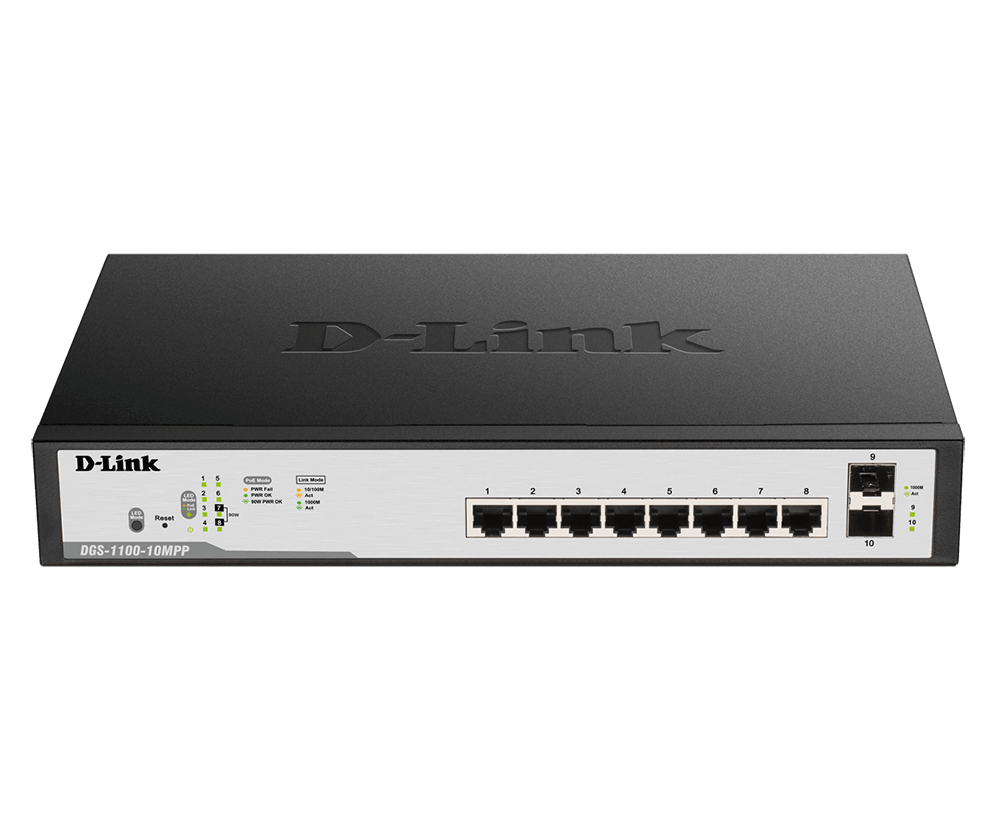

  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x SFP ports
  • Supports IEEE 802.3at/bt
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management

Download the datasheet.

Where to buy

Simple. Easy. Smart.

Web UI

Easy to use web interface to access management features.

VLANs

Segment your network into VLANs.

Surveillance Mode Interface

Get a snapshot of your security topology in an instant.

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Full PoE Support

Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Acoustic
51.9 dB(A)
CPU Speed
400MHz
Dimensions
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in)
DRAM Size
128 MB
DDR3
FAN
1
Flash Memory Size
32 MB
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
Interfaces
2 x 1000M SFP
2 x SFP ports
8 x 10/100/1000BASE-T PoE ports
8 x 1000Base-T ports
Auto MDI/MDIX
Jumbo Frame
9,216 Bytes
Maximum Forwarding Rate
14.88 Mpps
Maximum Heat Dissipation
570.51 BTU/hr
Maximum Power Consumption
11.68 W (PoE off)
285.5 W (PoE on)
MTBF
362,120 hours
Operating Altitude
2000 m
Packet Buffer Size
4.1Mbits
PoE Power Budget
242 W

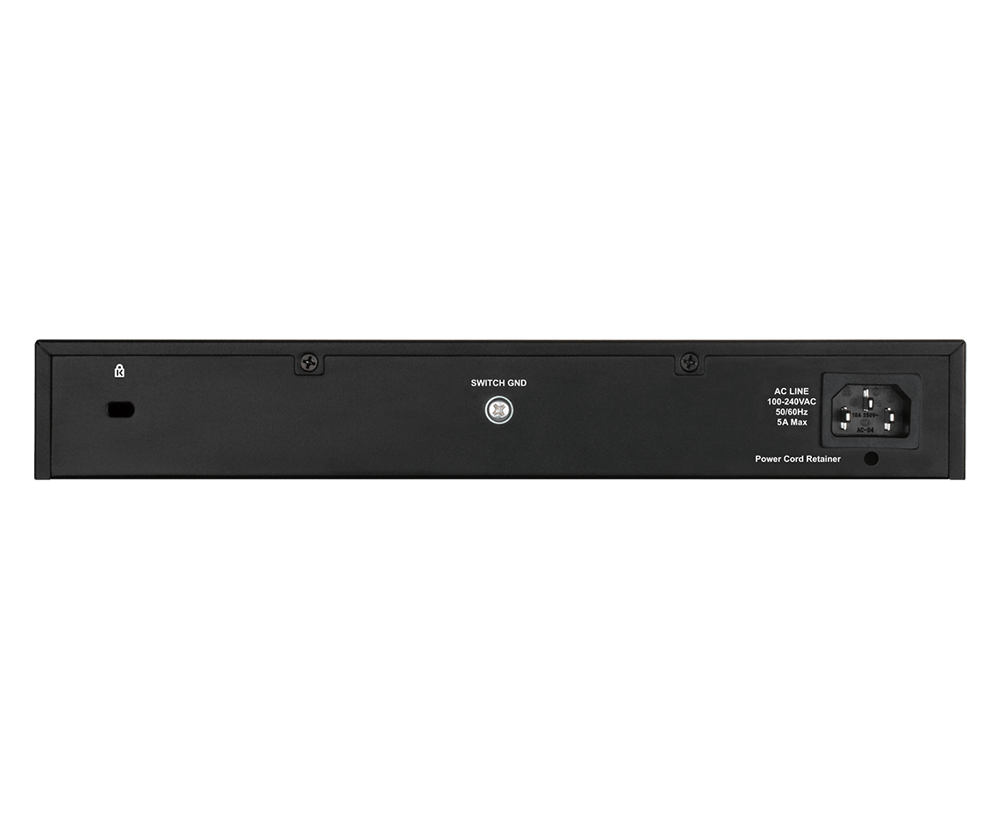

Power Input
AC:100 ~ 240 V
Switching Capacity
20 Gbps
Temperature
Operating -10 - 55°C
Storage: -20 - 70 ˚C
Weight
1.77 kg
