24-Port Gigabit Smart Managed Switch
DGS-1100-24
- Product Status (Revision Series_v117): Live
- 24 x 10/100/1000BASE-T ports
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Where to buy
Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features.
Green Technology
Innovative D-Link Green power saving features
Management Software
Supports DNA and D-View for remote setup and management
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management

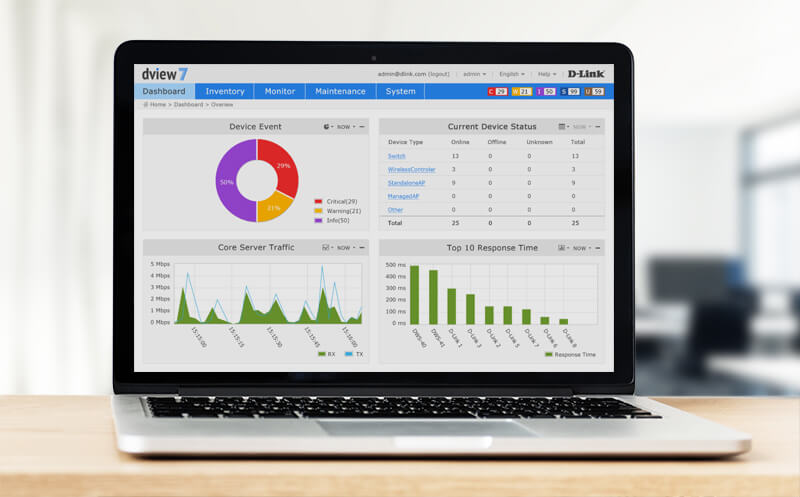

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
DGS-1100 Series
| Product |  DGS-1100-05V25-Port Gigabit Smart Managed Switch | DGS-1100-05PDV25-Port Gigabit PoE Smart Managed Switch and PoE Extender |  DGS-1100-08V28-Port Gigabit Smart Managed Switch |  DGS-1100-08PV28-Port Gigabit PoE Smart Managed Switch |  DGS-1100-16V216-Port Gigabit Smart Managed Switch |  DGS-1100-24V224-Port Gigabit Smart Managed Switch |  DGS-1100-24PV224-Port Gigabit PoE Smart Managed Switch |
|---|---|---|---|---|---|---|---|
| Interface |  | | | | 16 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports | 12 x 10/100/1000BASE-T PoE ports 12 x 10/100/1000BASE-T ports |
| Performance | |||||||
| Switching Capacity | | | | | | 48 Gbps | |
| Max. Packet Forwarding Rate | | | | | | 35.71 Mpps | |
| PoE | |||||||
| PoE Budget | | | | | | | 100 W (30 W max. per PoE port) |
Specification
|
Acoustic
|
0 dB |
|---|---|
|
Aggregation
|
12 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group |
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
CPU Speed
|
125MHz |
|
Dimensions
|
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) |
|
DRAM Size
|
128KBytes |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
16 MBytes |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
IGMP Snooping
|
Max 64 IGMP Snooping Groups |
|
Interfaces
|
24 x 10/100/1000BASE-T ports 24 x 1000Base-T Auto MDI/MDIX |
|
Jumbo Frame
|
9,216 Bytes |
|
MAC Address Table Size
|
8000 |
|
Maximum Forwarding Rate
|
35.712 Mpps |
|
Maximum Heat Dissipation
|
54.3 BTU/hr |
|
Maximum Power Consumption
|
15.9 W |
|
MTBF
|
424,762 hours |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
4.1Mbits |
|
Power Input
|
AC:100 ~ 240 V |
|
Power Saving
|
By LED Shut-Off By Link Status By Port Shut-Off By System Hibernation |
|
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP |
|
Standby Power Consumption
|
4.5 Watts |
|
Switching Capacity
|
48Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
|
VLAN
|
802.1Q Asymmetric VLAN Auto Surveillance VLAN Port-based VLAN VLAN Groups Voice VLAN |
|
Weight
|
1.47 Kg |
