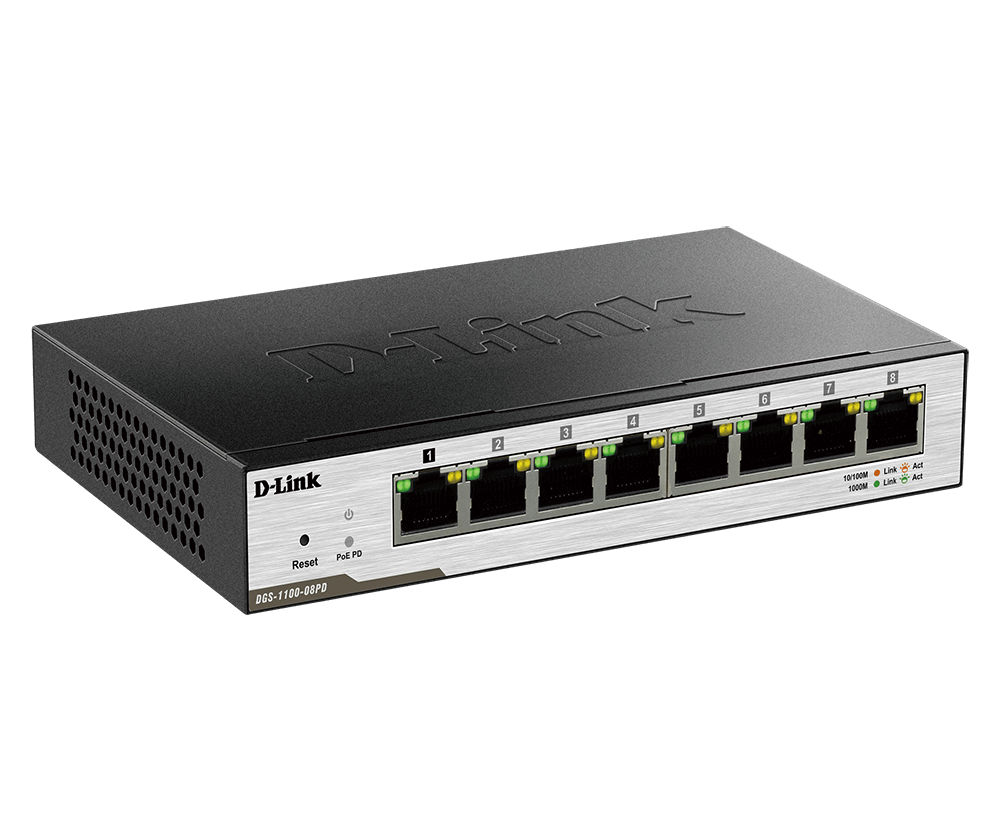

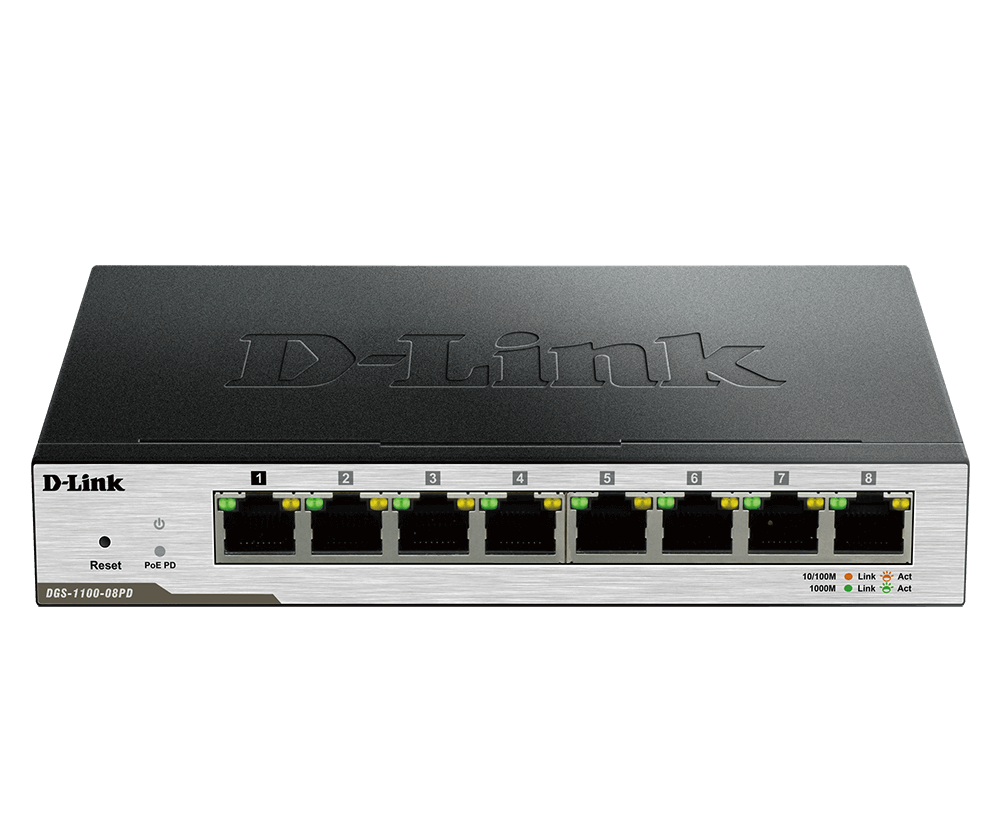

8-Port Gigabit PoE-Powered Smart Managed Switch
DGS-1100-08PD
- Product Status (Revision A1_v117): Live
- 8 x 10/100/1000BASE-T ports
- Powered by IEEE 802.3af Power of Ethernet through port 1
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Where to buy
Simple. Easy. Smart.
Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Power over Ethernet
Convenient installation of PoE devices in remote areas
Management Software
Supports DNA and D-View for remote setup and management
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
DGS-1100 Series
| Product |  DGS-1100-05V25-Port Gigabit Smart Managed Switch | DGS-1100-05PDV25-Port Gigabit PoE Smart Managed Switch and PoE Extender |  DGS-1100-08V28-Port Gigabit Smart Managed Switch |  DGS-1100-08PV28-Port Gigabit PoE Smart Managed Switch |  DGS-1100-16V216-Port Gigabit Smart Managed Switch |  DGS-1100-24V224-Port Gigabit Smart Managed Switch |  DGS-1100-24PV224-Port Gigabit PoE Smart Managed Switch |
|---|---|---|---|---|---|---|---|
| Interface |  | | | | 16 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports | 12 x 10/100/1000BASE-T PoE ports 12 x 10/100/1000BASE-T ports |
| Performance | |||||||
| Switching Capacity | | | | | | 48 Gbps | |
| Max. Packet Forwarding Rate | | | | | | 35.71 Mpps | |
| PoE | |||||||
| PoE Budget | | | | | | | 100 W (30 W max. per PoE port) |
Specification
|
Acoustic
|
0 dB |
|---|---|
|
Aggregation
|
4 x Link Aggregation Group Per Device |
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
CPU Speed
|
500MHz |
|
Dimensions
|
171 × 97.8 × 28.6 mm |
|
DRAM Size
|
128 MB |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
32 MB |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operation 0%-90% RH Storage: 0% - 95% RH |
|
IGMP Snooping
|
Max 128 IGMP Snooping Groups |
|
Interfaces
|
8 x 10/100/1000BASE-T PoE ports 8 x 1000Base-T ports Auto MDI/MDIX |
|
Jumbo Frame
|
10,000 Bytes |
|
MAC Address Table Size
|
8000 |
|
Maximum Forwarding Rate
|
11.9Mpps |
|
Maximum Heat Dissipation
|
52 BTU/hr |
|
Maximum Power Consumption
|
4.72 Watts |
|
MTBF
|
648,153 hours |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
4.1Mbits |
|
Power Input
|
802.3af/at PoE input only AC:100 ~ 240 V |
|
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP IEEE 802.1w RSTP |
|
Standby Power Consumption
|
1.97 Watts |
|
Switching Capacity
|
16 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
VLAN
|
802.1Q Asymmetric VLAN Auto Surveillance VLAN Port-based VLAN VLAN Groups Voice VLAN |
