The D-Link DGS-1016A 16-Port Gigabit Switch offers an economical way for SOHO and small-to-medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.
The 16/24-Port Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

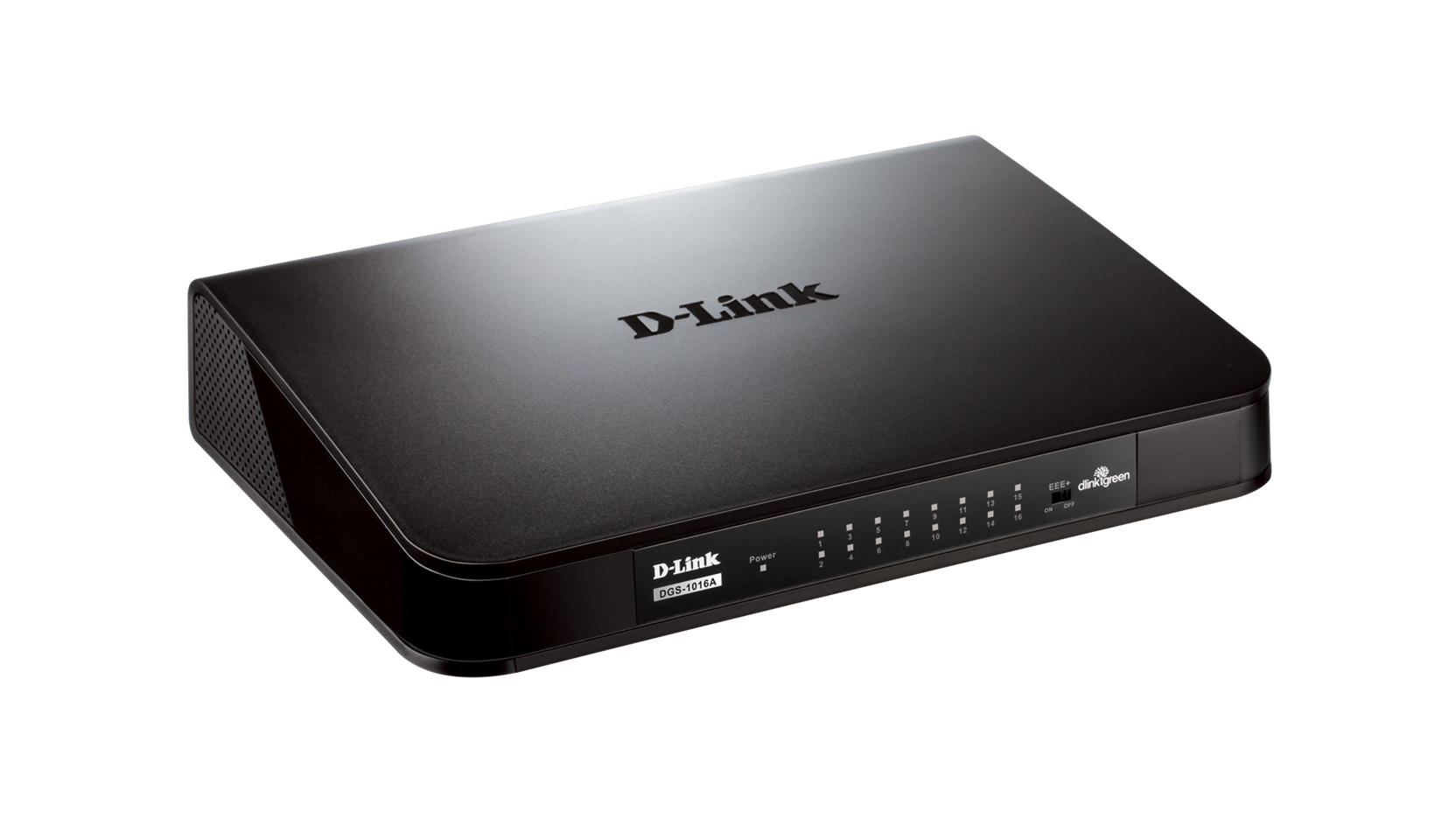

The sleek plastic case of the DGS-1016A/1024A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16/24-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.
The 16/24-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.
The DGS-1016A/1024A 16/24-Port Gigabit Unmanaged Desktop Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.
|
Interfaces
|
16 x 1000Base-T Auto MDI/MDIX |
|---|---|
|
Switching Capacity
|
32 Gbps |
|
Maximum Forwarding Rate
|
23.808 Mpps |
|
Store & Forwarding Forwading
|
Yes |
|
Dimensions
|
231 x 158 x 46 mm |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: -10 - 70 ˚C |
|
Humidity
|
Operating: 5% to 95% RH, non-condensing Storage: 5% ~ 90% RH |
|
Max Power Consumption
|
9.00W |
|
Power Input
|
AC:100 ~ 240 V |
|
Packet Buffer Size
|
2 MB |
|
Comply with RoHS 6
|
Yes |
|
Power Saving
|
By Link Status By Cable Length |
|
MAC Address Table Size
|
8192 |
|
Control
|
802.3x Flow |
|
Jumbo Frame
|
9,216 Bytes |
|
MTBF
|
527,308 hours |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
