5-Port Gigabit Desktop Switch

DGS-1005G

  • Product Status (Revision C1_v100): Live
  • 5 high-speed Gigabit ports
  • QoS support provides clear VoIP calls and smooth online gaming
  • Compact design for convenient placement
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features

Download the datasheet.

Where to buy

Effortless High Speed Networking

The D-Link DGS-1005G 5-Port Gigabit Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005G also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.

Think Green

The DGS-1005G Gigabit Desktop Switch makes use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. Minimized use of harmful substances (RoHS compliant), and recyclable packaging makes this switch truly environmentally friendly.

Conserves Energy

The DGS-1005G helps conserve energy automatically, saving substantial amounts of power by cutting power usage for unused ports or ports connected to computers that are idle.

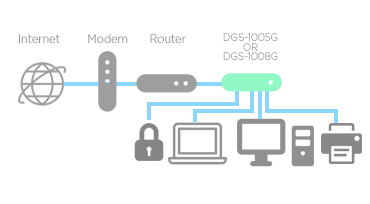

Gigabit Connection for Home and Media Center

Gigabit Desktop Switches offer an economical way for homes and media centers to benefit from the increased bandwidth of Gigabit Ethernet. The DGS-1005G provides 5 Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Interfaces
5 x 1000Base-T
Auto MDI/MDIX
Yes
Switching Capacity
10 Gbps
Max. Packet Forwarding Rate
7.44 Mpps
Store & Forwarding Forwading
Yes
Dimensions
111 x 75 x 30 mm
Weight
0.09 kg
Operating Temperature
0 ~ 40 °C
Storage Temperature
- 10 ~ 70 °C
Operating Humidity
0% ~ 95% RH
Storage Humidity
0% ~ 95% RH
Operating Altitude
2000m
Maximum Power Consumption
3.90 W
Standby Power Consumption
0.6 W
Maximum Heat Dissipation
13.299 BTU/h
MTBF
1,151,786 hours
Power Input
AC:100 ~ 240 V
Flash Memory Size
64KBytes
Packet Buffer Size
128KBytes
FAN
Fanless
Comply with RoHS 6
Yes
Energy Efficiency Ethernet (EEE)
Yes
Power Saving By Link Status
YES
Power Saving By Cable Length
Yes
MAC Address Table Size
4,000
Control
802.3x Flow
Head-of-line (HOL) Blocking Prevention
Yes
Jumbo Frame
9,720 Bytes
Surge/Lightning Protection
AC Power Inet: 1kV
All Ethernet Ports: 1kV
Air Discharge
8kV

Support

Version Date Type File Size
Datasheet - PDF 0.84mb Download
