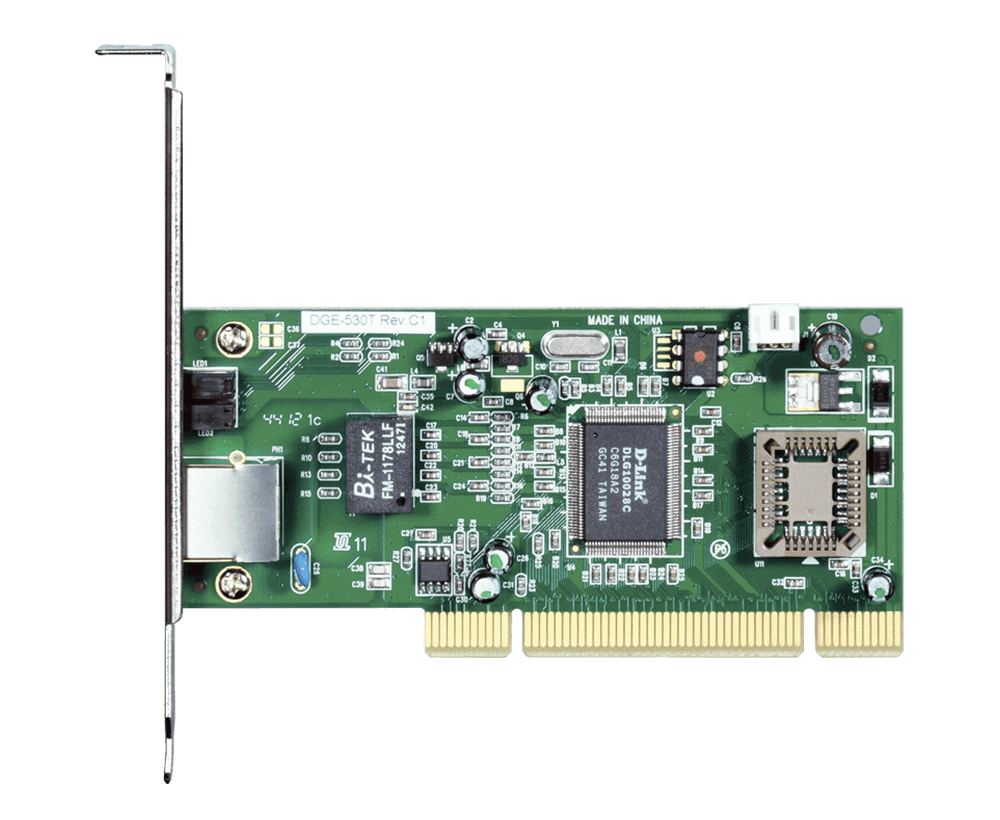

Gigabit Desktop PCI Adapter
DGE-530T
- Product Status (Revision 2D_v400): Live
- One 1000 Mbps Gigabit port
- Auto-negotiates port speed to 10 Mbps, 100 Mbps, or 1000 Mbps
- Plug and play installation
- Supports Jumbo Frames of up to 7 KB
- ACPI 2.0 WOL Power Management
- Supports 802.1Q VLAN tagging
Where to buy
Remote Management
The DGE-530T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.
Versatility
The DGE-530T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying troubleshooting.
Specification
|
Certifications
|
CE |
|---|---|
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% ~ 95% RH |
|
Storage Temperature
|
- 40 ~ 70 °C |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Dimensions
|
120 x 120 x 18 mm (4.7 x 4.7 x 0.7 inches) |
|
Supported Functions
|
7 KB Jumbo Frames Diagnostics utility IEEE 802.1p Priority Queues IEEE 802.1Q VLAN Tagging Remote Boot (PXE) Wake on LAN |
|
Maximum Power Consumption
|
3.42 W |
|
Data Transfer Rate
|
Gigabit Ethernet: Up to 2000 Mbps full duplex Fast Ethernet: 100 Mbps half duplex, 200 Mbps full duplex Ethernet: 10 Mbps half duplex, 20 Mbps full duplex |
|
Diagnostic LEDs
|
10/100/1000 Link 10/100/1000 Activity |
|
Interfaces
|
PCI half-height card suitable for low-profile cases |
|
OS Support
|
Microsoft Windows Server 2000/2003/2008/2012 Microsoft Windows XP/Vista/7/8/8.1/10 Linux for Kernel 2.4.x/2.6.x/3.16 Mac OS X 10.4/10.5/10.6 Free BSD 7.x/8.x NDIS 2 for DOS Novell client for server 5.x/6.x Novell client for server 5.x/6.x |
|
Standards
|
IEEE 802.3, 802.3u, 802.3ab PCI local bus 2.2, 2.3 ANSI/IEEE 802.3 NWay auto-negotiation Universal Bus Support 3.3 V / 5 V IEEE 802.3x Flow Control |
|
Topology
|
Star |
|
Weight
|
50 grams (1.76 ounces) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
