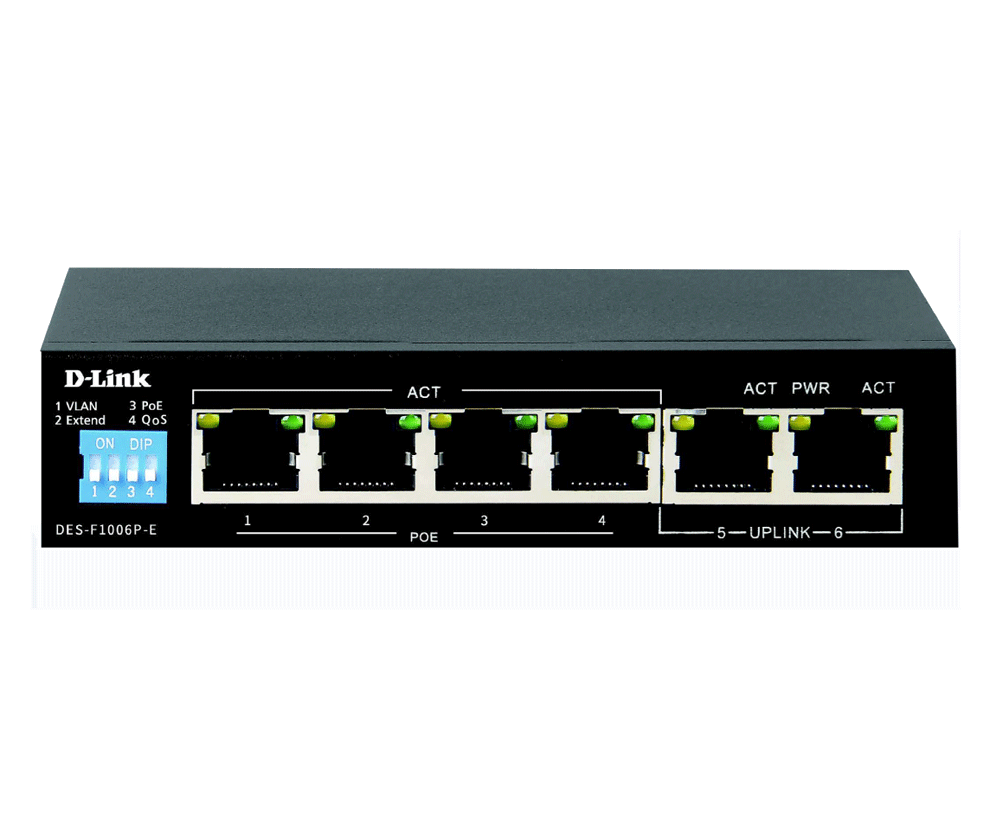

6-Port 10/100 Long Range PoE+ Surveillance Switch

DES-F1006P-E

  • Product Status (Revision Datasheet_ME): Live

Superior connectivity

  • 4 10/1 0OMbps Fast Ethernet ports
  • 2 10/1 0OMbps uplink port
  • 60 watts available for PoE
  • Flow control for protection against data loss
  • Maximum distance of 250m

Standards

  • IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
  • IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet

Easy to Use

  • Plug-and-play installation
  • IEEE 802.3x Flow Control
  • Auto MDI I MDIX crossover for all ports
  • Fanless device

Download the datasheet.

Where to buy
100Base-TX Interface Ethernet RJ-45 port
Auto MDI/MDIX Yes
Switching Capacity 1.2 Gbps
Max. Packet Forwarding Rate •1 OM: 14,800pps• 1 QOM: 148,800pps
Dimension (LxWxH): 125 x 75 x 27mm
Weight 0.75kg
Operation Temperature Oto 40 °C (32 to 104 °F)
Operation Humidity 10% to 90% non-condensing
Maximum Power Consumption External Power adapter: 100~240 - 50/60Hz, 52V, 1.15A
FAN Fanless
802.3x Flow Control Yes
