5-Port 10/100 Unmanaged Desktop Switch

DES-105/B

  • Product Status (Revision C2_v100): Live
  • Auto-sensing 10/100 Mbps ports
  • Auto-MDI/MDIX crossover
  • Flow Control for secure transmission
  • Innovative D-Link Green technology

Download the datasheet.

Where to buy

Designed for Enterprise Connections

The 5‑Port 10/100 Unmanaged Desktop Switch provides a quick, easy, and economical way to connect up to five devices for fast file transfers and smooth media streaming. Powerful and versatile, it eliminates network bottlenecks while giving home offices and small-to-medium businesses the capability to fine-tune performance.

Robust Design

The DES-105 is designed with durability and performance in mind. Its sturdy metal housing ensures the product can withstand extreme temperatures and can be placed in typical industrial environments such as factories, construction and mining. This helps to dissipate heat and reduce stress on internal components.

Easy Installation

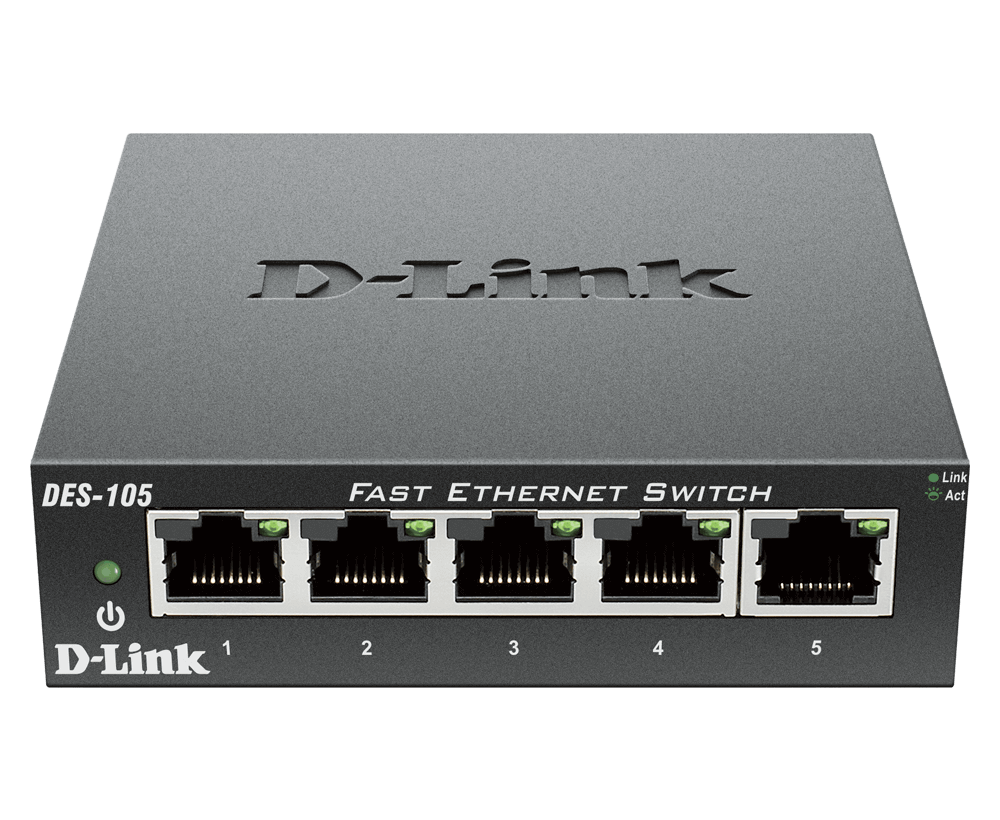

This unmanaged switch comes with easy-access, auto-sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-105 also supports Auto-MDI/MDIX crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.

Flow Control For Secure Transmission

When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, paying games, or accessing media.

Power-Saving Technology

The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. It supports the IEEE 802.3az Energy Efficient-Ethernet (EEE) standard which detects when a connected device is shut down or when there is no Ethernet traffic, in which case the switch will power down the idle port, saving a substantial amount of power. This helps businesses to reduce their electricity bills with no compromise on performance.

Environmentally Friendly

The DES-105 switch is designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy-efficient power adapters. It's built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an Energy Star Level V-qualified power adapter all with recyclable packaging making this product truly environmentally friendly.

Store & Forwarding Forwading Yes
Power Input AC:100 ~ 240 V
Packet Buffer Size 0.38 MB
FAN Fanless
Comply with RoHS 6 Yes
Power Saving By Link Status Yes
MAC Address Table Size 2,048
802.3x Flow Control Yes
Jumbo Frame 2047 bytes
Number of Queue 2
Two Rate Three Color Marker (trTCM) Yes
Queue Handling Yes
Strict Priority Queue (SPQ) Yes
100Base-TX Interface 5
Auto MDI/MDIX Yes
Switching Capacity 1 Gbps
Max. Packet Forwarding Rate 0.74 Mpps

Support

Version Date Type File Size
Datasheet - PDF 0.69mb Download
