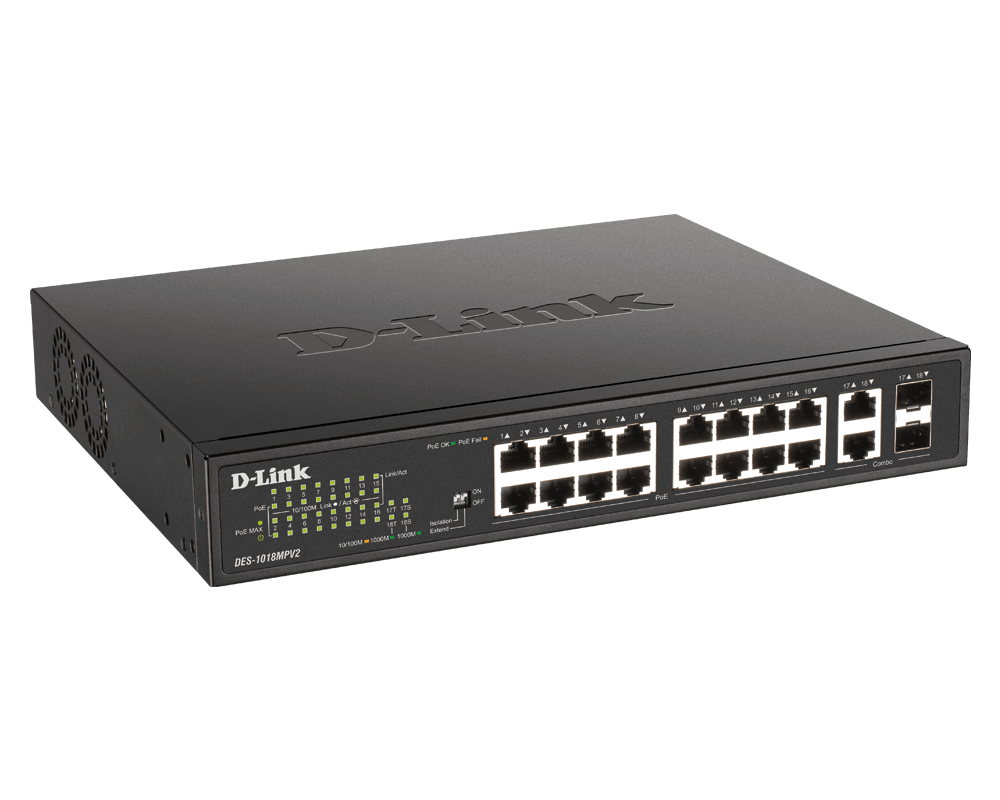

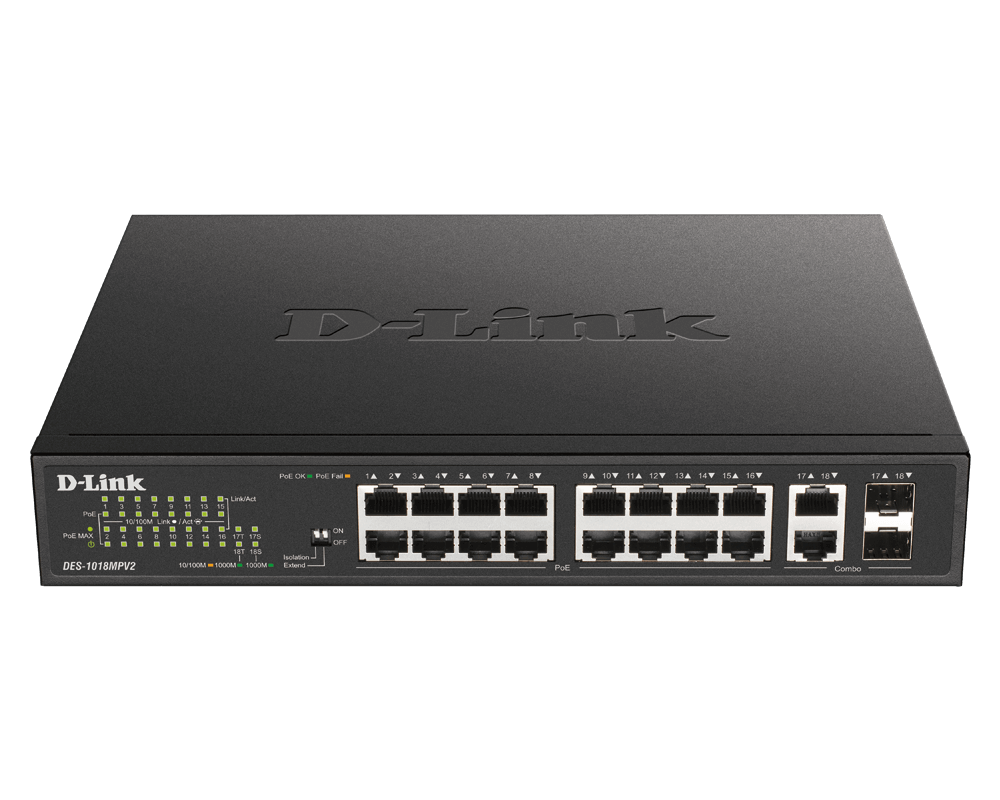

18-Port 10/100BASE-TX PoE Unmanaged Switch
DES-1018MPV2
- Product Status (Revision A1_v100): Live
- Delivers an impressive PoE power budget of up to 247W and 30W per port
- 16 x 10/100 Mbps PoE+ Ethernet ports
- 2 x Gigabit Combo (RJ45/SFP) ports for unrestricted high-speed uplinks
- Supports IEEE 802.3af/at PoE and PoE+
- Equipped with 2kV surge protection to prevent damage from lightning and power surges
- Extended reach: supports power delivery to devices up to 250m away
- Multiple port modes: Extender mode for longer PoE power delivery or Isolation mode for greater security on a port basis
- Plug-and-play installation and auto-MDI/MDIX crossover
- Energy Efficient Ethernet (EEE) slashes operation costs without sacrificing performance
Where to buy
PoE+ Support
16 ports provide up to 30W per port to even the most power-hungry devices
Surge protection
Protection from power surges and lightning
Far-Reaching Connectivity
Extended range of up to 250m
Plug and Play
Simple plug and play installation with auto-MDI/MDIX crossover on all ports
Multiple Port Modes
Isolated mode and Extend Mode
Energy Efficient Ethernet
Cut operating costs without sacrificing performance

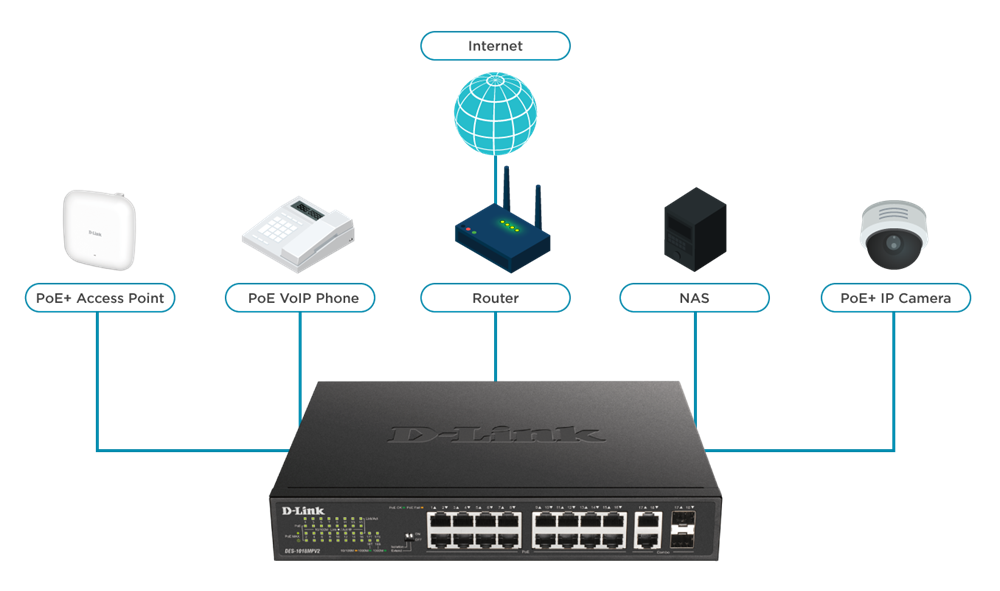

All Your Home or Small Business Devices Under One Banner
The DES-1018MPV2 is specifically designed to facilitate easy connections and supply of power to devices such as access points (AP) or IP cameras and phones. But that’s not all, connect other Ethernet devices such as computers, printers and NASs to unify all your devices under one efficient network ready for any application.
Power More Devices over Greater Distances with PoE+
The DES-1018MPV2 comes with a PoE upgrade: PoE+. Featuring a hefty 247 watts power budget and up to 30 watts per port, users can connect 802.3af/at-compliant devices for a simple, power-cable free setup or in locations with no nearby power outlet.
Far-Reaching Connectivity
The DES-1018MPV2 features two operating modes: Isolation or Extended mode, each with their own use cases. If both modes are deactivated, ports offer 10/100 Mbps PoE connectivity as standard, with ports 1 to 8 prioritized to optimize the port cache.
Extended PoE Mode
Have a device more than 100m away? Extend mode facilitates long-range power delivery by enhancing ports 9 to 16 to supply power to devices up to 250m away.

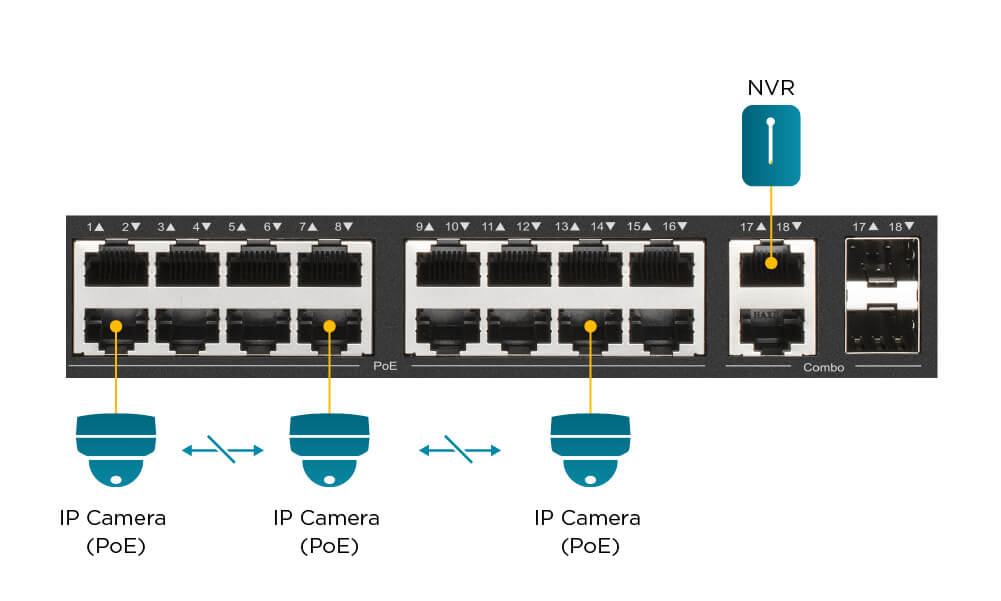

Isolation Mode
Isolation mode prevents port-to-port communications, permitting ports 1-16 to communicate solely through uplink ports 17-18, where strengthened security measures are necessary.
Weather the Storm
The DES-1018MPV2 is equipped with 2 kV surge protection, keeping the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your mission-critical systems continue functioning uninterrupted.
Better For Your Budget, Better For The Planet
To help balance the budget, the DES-1018MPV2 supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature detects network activity, automatically putting unused ports to sleep and powering them on as required.
The smart fan also automatically adjusts itself to reduce power consumption and noise when possible, so businesses can reinvest savings back into their business.

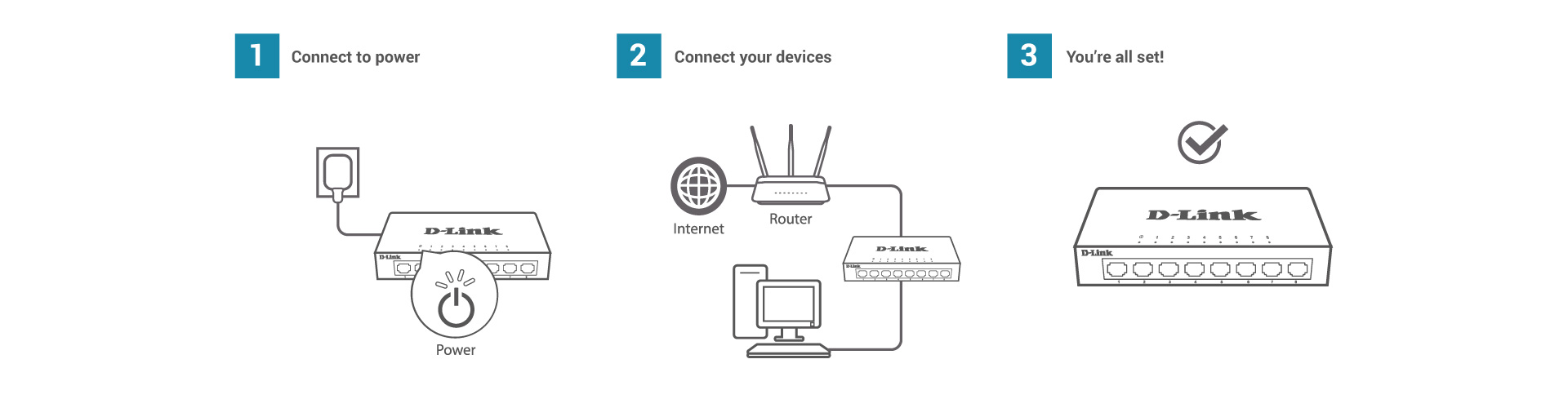

Simple Plug and Play
Simply connect the switch to the network to connect multiple computers, share files and make lag-free VoIP calls. Additional support for auto-MDI/MDI-X on all ports also eliminates the need for crossover cables when connecting to another switch or hub.
Autonegotiation empowers ports to detect the link speed of a connected network device (10 or 100 Mbps) and adjust accordingly for compatibility and optimal performance.
Specification
|
Dimensions
|
280 x 230 x 44 mm(11.02 x 9.05 x 1.73 in) |
|---|---|
|
FAN
|
Fanless |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
16 x 100Base-TX 2 x Combo 1000Base-T/SFP Auto MDI/MDIX |
|
Maximum Forwarding Rate
|
5.35 Mpps |
|
Maximum Power Consumption
|
294.4 watts (PoE on) 9.94 watts (PoE off) |
|
Packet Buffer Size
|
512KBytes |
|
PoE Power Budget
|
Max 247 W |
|
Power Input
|
AC:100 ~ 240 V |
|
Switching Capacity
|
7.2 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
Weight
|
2 kg |
