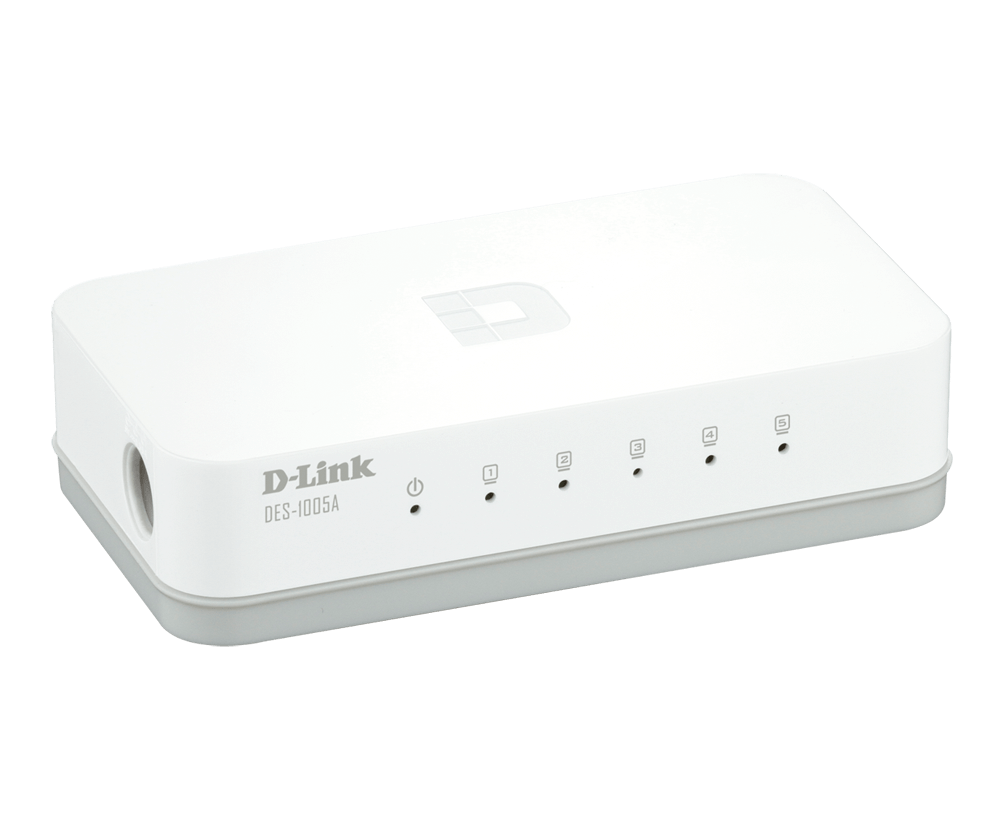

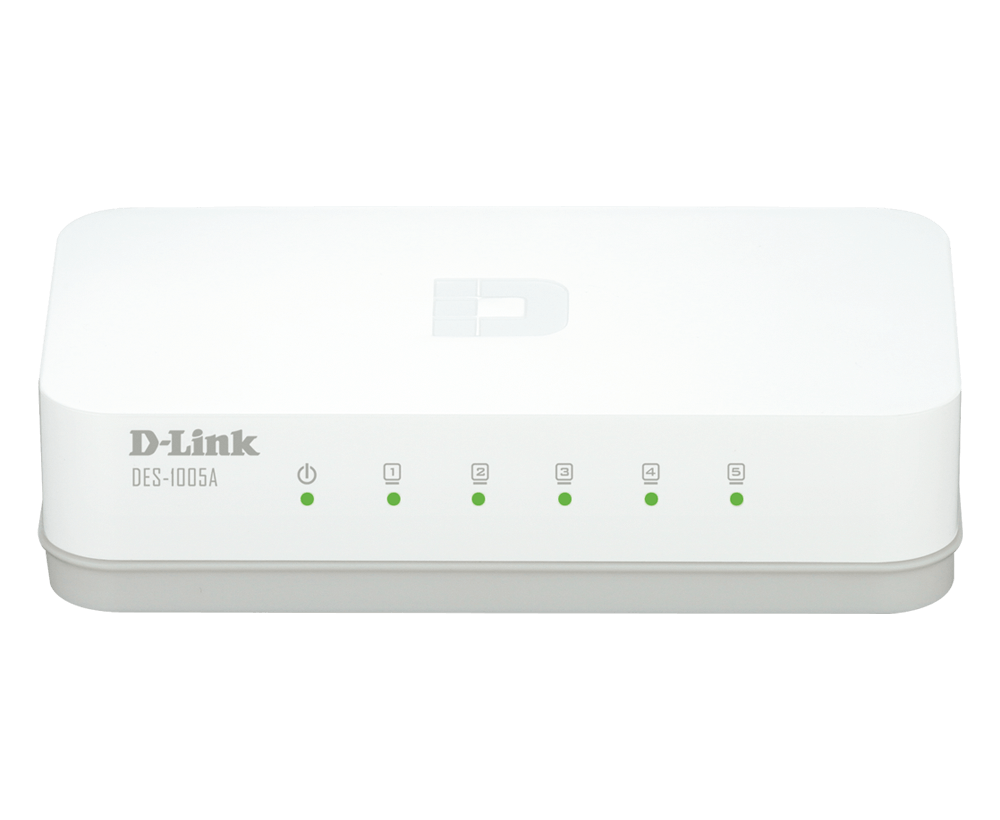

5-Port 10/100 Switch
DES-1005A/E
- Product Status: Live
The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Where to buyAutoMDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specification

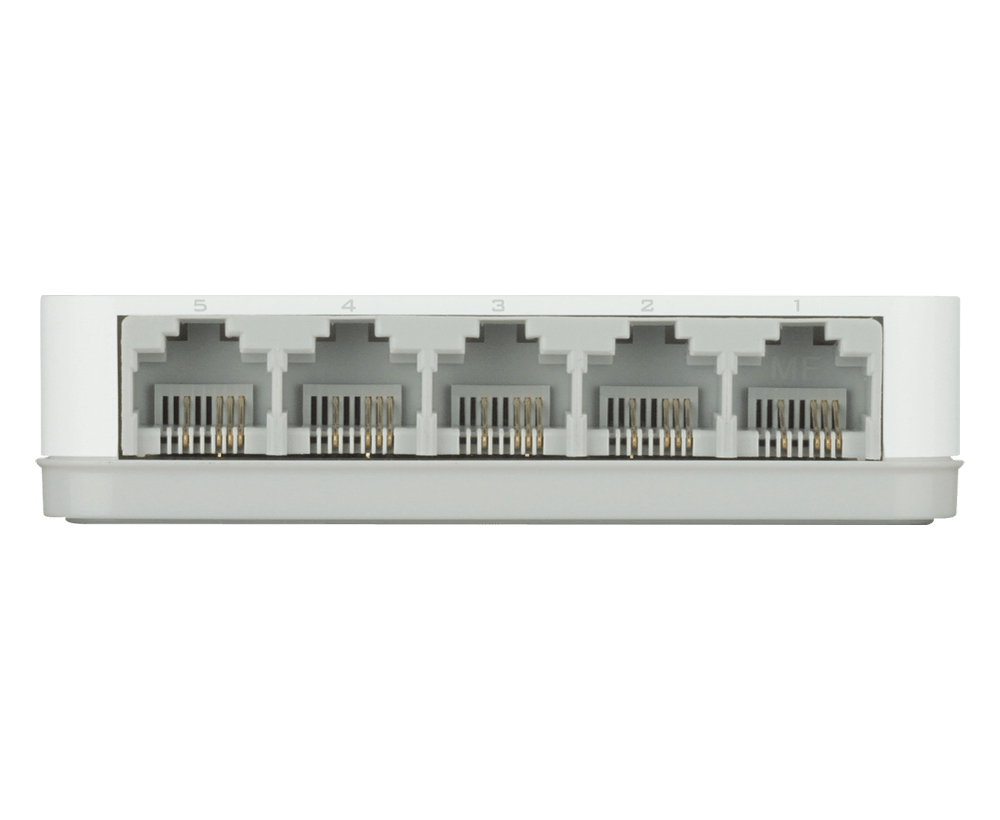

| 100Base-TX Interface | 5 |
|---|---|
| Auto MDI/MDIX | Yes |
| Switching Capacity | 1Gbps |
| Max. Packet Forwarding Rate | 0.74 Mpps |
| Dimension | 88x48x21.45mm |
| Weight | 0.0434kgs |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 40 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
| Maximum Power Consumption | 0.784 watts |
| Standby Power Consumption | 0.4 watts |
| Maximum Heat Dissipation | 0.406 BTU/h |
| MTBF | 1,785,631hours |
| Store & Forwarding Forwading | Yes |

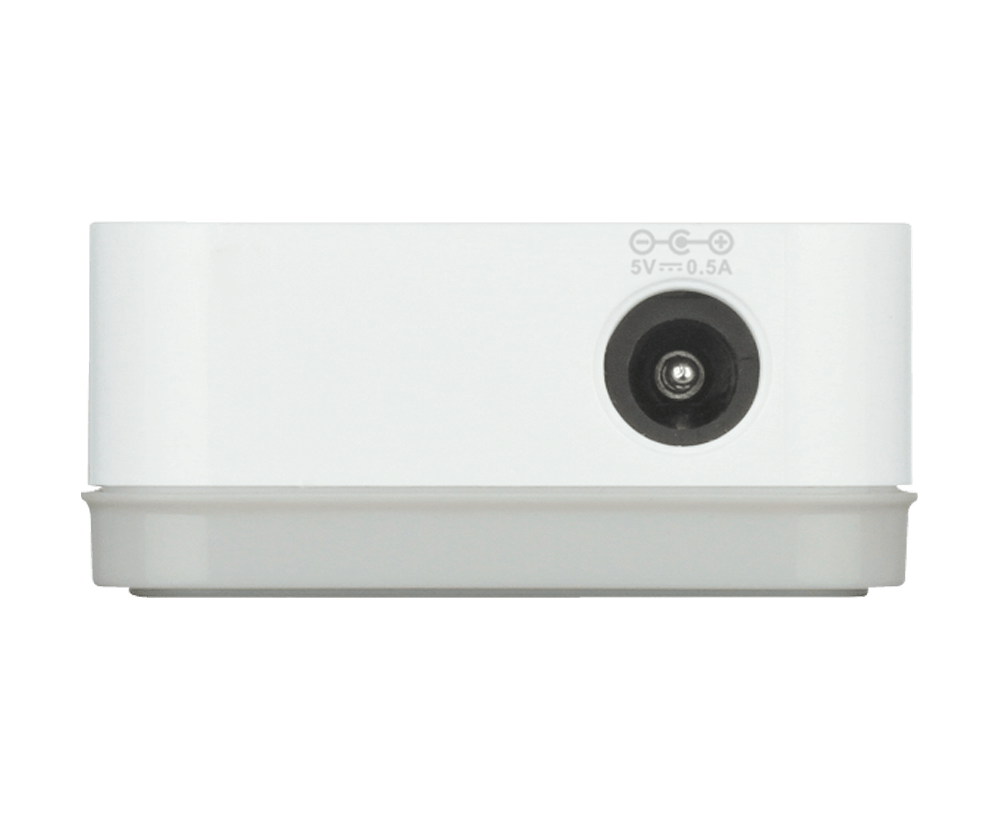

| Power Input | DC:5V, 0.55A |
| Packet Buffer Size | 96KBytes |
| FAN | Fanless |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| MAC Address Table Size | 2,000 |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 2048 Bytes |
