10GBase-ZR SFP+ Transceiver (Single-Mode 1550nm) (80km)

DEM-434XT

  • Product Status (Revision Series_v200): Live
  • Enhanced Small Form-Pluggable (SFP+) form factor
  • Hot pluggable
  • Support 10G Ethernet
  • Feature Digital Diagnostics Monitoring (DDM)
  • RoHS Compliant
  • Compliant with MSA (Multiple Source Agreement)
  • Compliant with IEEE802.3ae and 802.3aq standards

Download the datasheet.

Where to buy

Better 10G Ethernet Connectivity for Enterprise Deployments

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

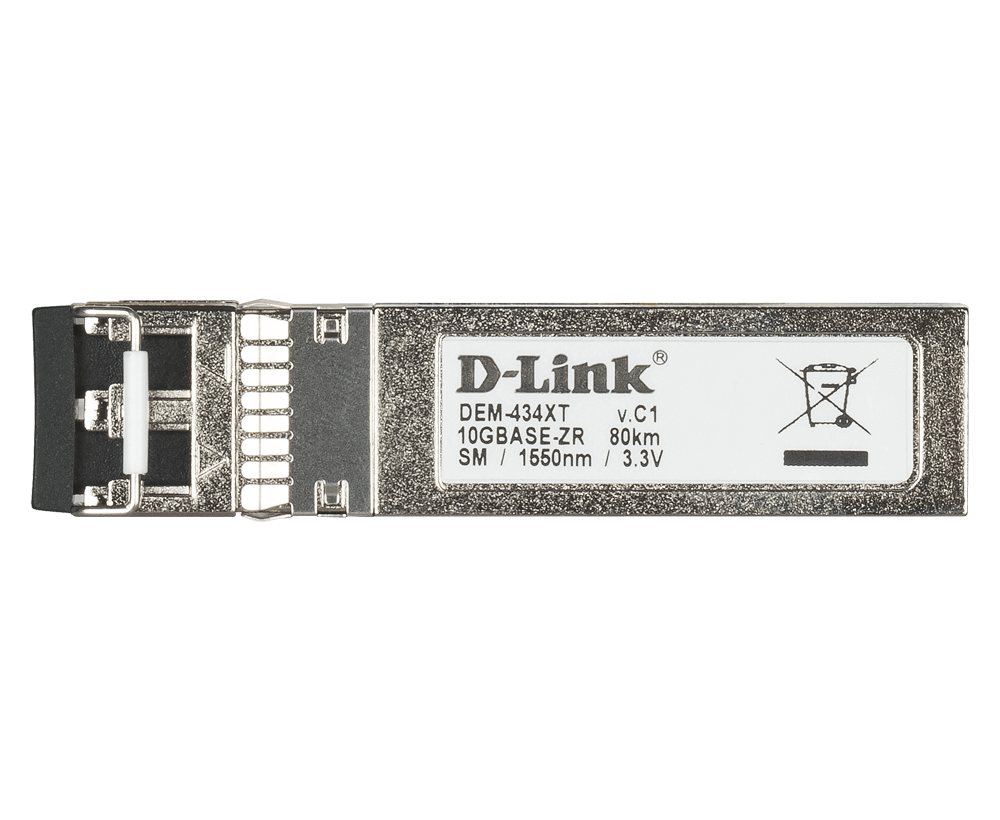

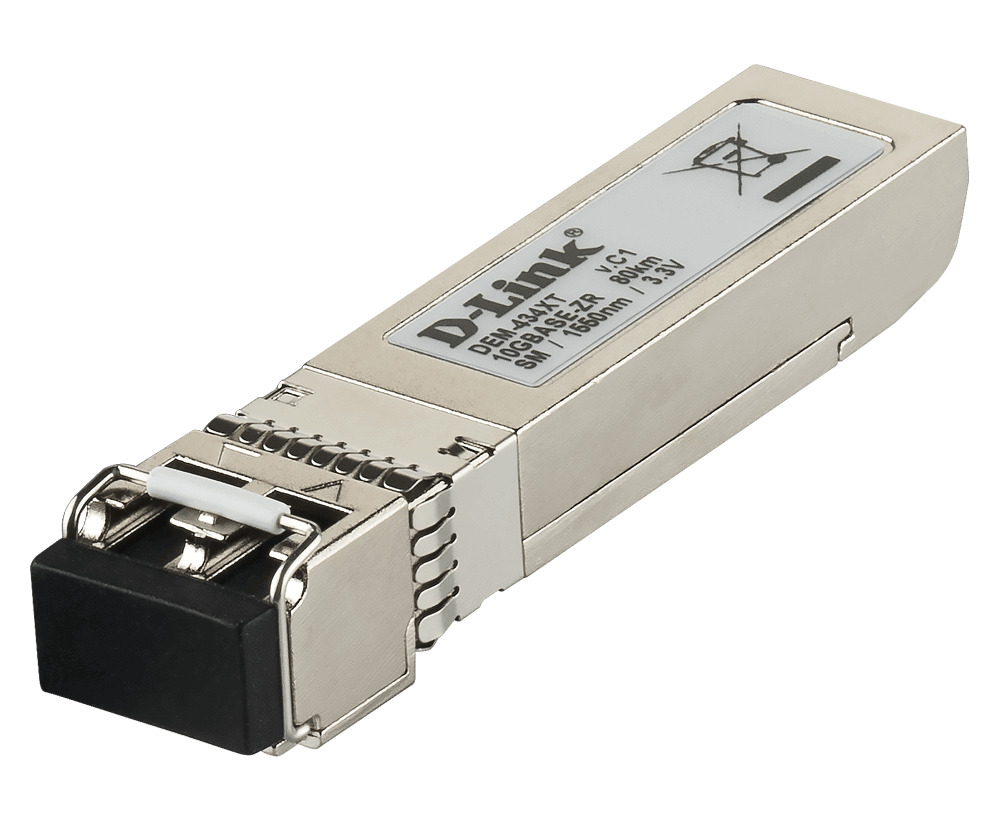

*Actual product appearance may differ from the image displayed on this page

10G Ethernet speeds

The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.

Enhanced Small Form-factor Pluggable Format

The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

Hot-Pluggable

All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.

Hot Pluggable Yes
MSA Compliant Yes
RoHS Compliant Yes
Compliant Standard IEEE-802.3ae 10GBASE-ZR
Transceiver Type SFP+
Fiber Channel FC-PI standard 1200-SM-LL-L 10G Fiber channel
Fiber Media support Single-Mode
Distance 80km
Speed 10Gbps
connector Duplex LC Connector
single/bi Direction single-direction
Wavelength 1550nm
Output Optical Power (TX Optical Power) MAX.: 4 dBm
Interface MIN.: -24 dBm
Input Optical Power (RX Optical Power) MAX.: -7 dBm
Sensitivity -24 dBm
Cable Type single-mode 9/125um fiber
Power 3.3V
Max Input Current 450mA
Power Budget (MIN Power Budget) 24dB
MAX Power Budget 28dB
Heat Generated 5.35KJ/H
MTBF (hours) 1584786
Operation Temperature 0°~70°C
Storage Temperature -40°~85°C
Humidity (Operating) 5% ~ 85%
Humidity (Storage) 5% ~ 85%
Dimension ( W x D x H ) Comply with SFF8432 14.3 x 56.5 x 11.85 mm
Weight 20g
EMI: CE, FCC, VCCI
Safety: UL, TUV
Hardware version A1
