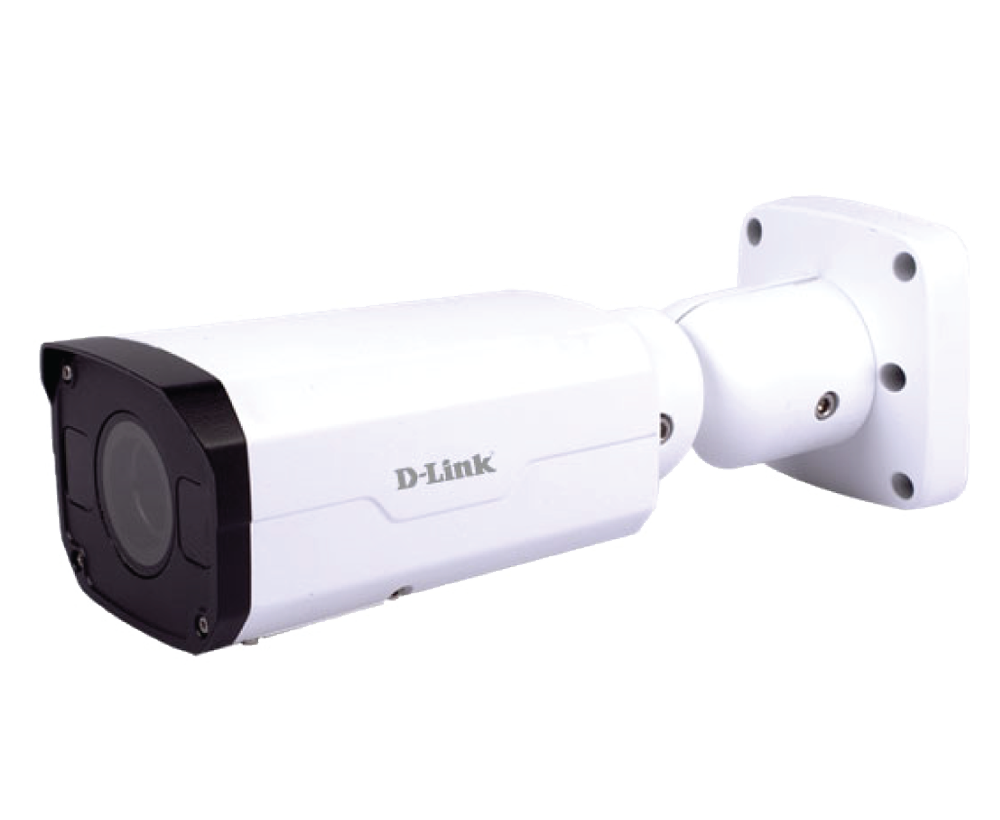

5MP DAY & NIGHT MOTORIZED VARI-FOCAL BULLET CAMERA
DCS-F5725
- Product Status (Revision Datasheet ME): Live
- Starlight illumination
- Day/night functionality
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 5MP DAY & NIGHT MOTORIZED VARI-FOCAL BULLET CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | 1920 x 1080: Max. 30 fps |
| Image Sensor | 1/2.7", progressive scan, 5.0megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (50 Meters) |
| Lens | AF automatic focusing and motorized zoom lens |
| Focal Length | 2.7~13.5mm |
| Angle of View (Horizontal / Vertical) | 93.38° ~ 28.56°(H) 88°~ 16.4°(V)121.4°~33.7°(D) |
| Mechanical PTZ | No |
| Audio | Two-way audio Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | No |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | 12 V DC±25% |
| Power over Ethernet (PoE) | (IEEE802.3 af) |
| Max. Power Consumption | Max 10 W |
| Dimension (W x D x H) | 253.4 ×86.4 ×78.7 mm (10.0” × 3.4” × 3.1”) |
| Net Weight | 1.0kg (2.2lb) |
| Operating Temperature | -35°C ~ +60°C (-31°F ~ 140°F) |
