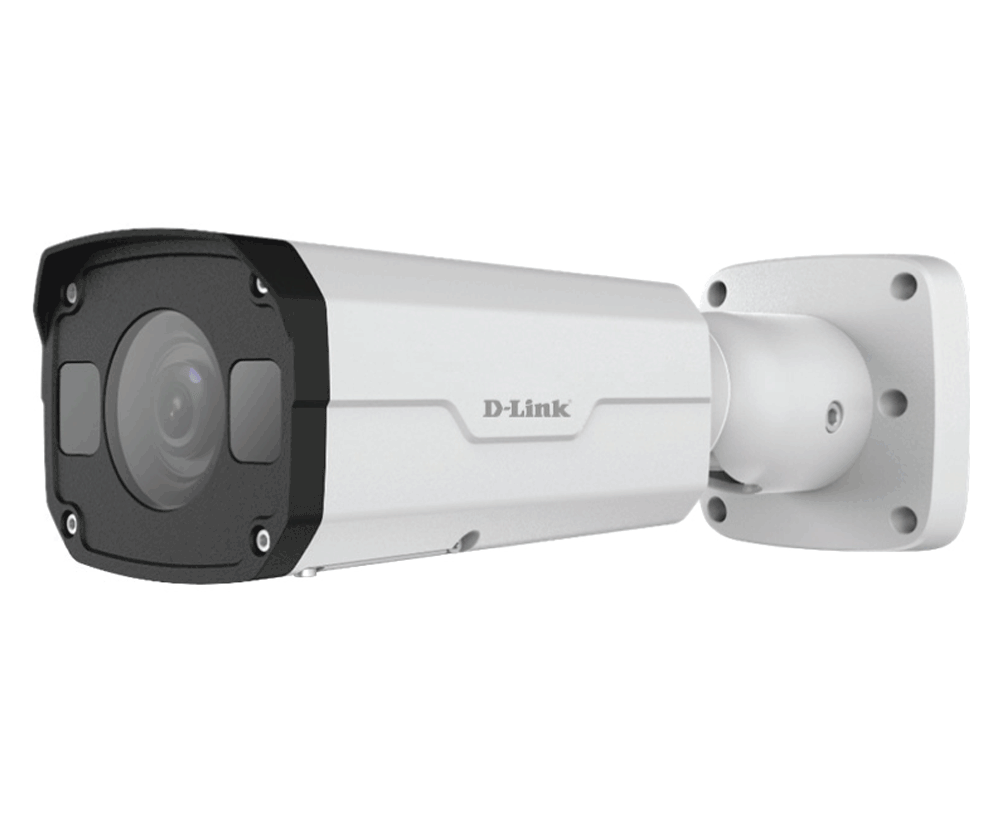

2MP VF NETWORK IR BULLET CAMERA
DCS-F5712
- Product Status (Revision Datasheet ME): Live
Optics
- Day/Night Functionality
- Smart IR , up to 30m (98 ft) IR Distance
- IR Anti-Reflection Window to Increase the Infrared Transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple Streams
Network
- ONVIF Conformance
Structure
- Wide Temperature Range: -30°C to 60°C (-22°F to 140°F)
- Wide Voltage Range of ±25%
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 2MP VF NETWORK IR BULLET CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | 1920×1080: Max. 30 fps |
| Image Sensor | 1/2.7", 2.0megapixel, Progressive Scan, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | Manual Zoom Lens |
| Focal Length | 2.8~12mm |
| Angle of View (Horizontal / Vertical) | 112.7°~28.1°(H)60.1°~15.4° (V) 146.5°~33.2°(D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | 12 V DC±25% |
| Power over Ethernet (PoE) | IEEE802.3 af |
| Max. Power Consumption | Max 6.5W |
| Dimension (W x D x H) | 253.4×86×71.7mm(9.98”×3.4”×2.8”) |
| Net Weight | 1kg 2.2lb |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
