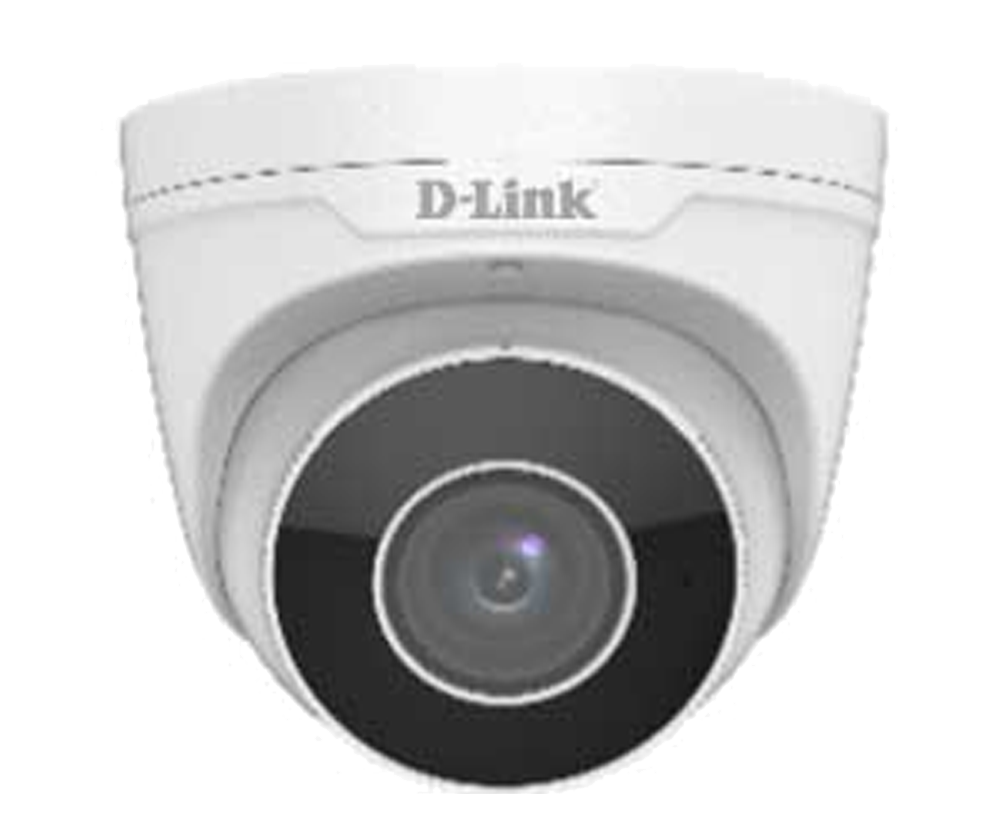

8MP WDR (Motorized) VF Eyeball Network IR
DCS-F5638E
- Product Status (Revision Datasheet ME): Live
Optics
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 8MP WDR (Motorized) VF Eyeball Network IR |
|---|---|
| Camera Type | Network IR |
| Video Compression | Ultra 265 , H.264,MJPEG |
| Max. Resolution | 8 Megapixel |
| Max. Frame | Ultra 265 , H.264,MJPEG |
| Image Sensor | 1/2", 8.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | Colour: 0.003Lux (F1.5, AGC ON)0Lux with IR |
| Lens | AF automatic focusing and motorized zoom lens |
| Focal Length | 2.8 ~ 12mm |
| Angle of View (Horizontal / Vertical) | 114.8° ~ 47.3°(H)75.3° ~ 20.4° (V)141.2° ~ 55.8° (D) |
| Mechanical PTZ | No |
| Audio | Two-way Audio Supported |
| Audio Codec | No |
| Storage Card Slot | No |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | IP67 |
| Power Input | DC 12V±25% |
| Power over Ethernet (PoE) | (IEEE802.3 af) |
| Max. Power Consumption | Max 8.16W |
| Dimension (W x D x H) | Φ129 x 110mm (Ø5.08” x 4.3”) |
| Net Weight | 0.82kg (1.8lb) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
