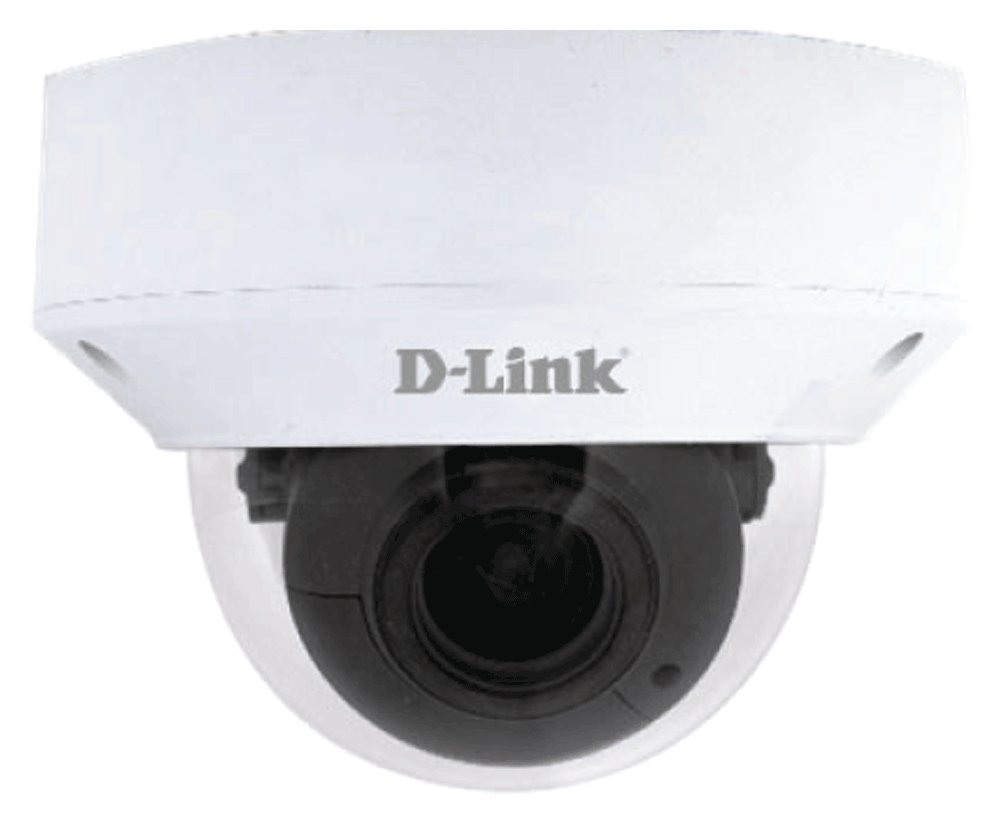

5MP DAY & NIGHT VANDAL PROOF MOTORIZED VARI-FOCAL DOME CAMERA
DCS-F5625
- Product Status (Revision Datasheet ME): Live
Optics
- Starlight Illumination
- Day/Night Functionality
- Smart IR, up to 30m (98 ft) IR Distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Motorized Lens for Remote Zoom
Compression
- Ultra 265, H.264, MJPEG
- Embedded Smart Algorithm
- Triple Streams
- ROI (Region of Interest)
- 9:16 Corridor Mode
Network
- ONVIF Conformance
Structure
- Support PoE Power Supply
- Built-in PoE Splitter that Outputs DC 12V
- Wide Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Wide Voltage Range of ±25%
- IK10 Vandal Resistant
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 5MP DAY & NIGHT VANDAL PROOF MOTORIZED VARI-FOCAL DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 5 Megapixel |
| Max. Frame | 1920 x 1080: Max. 30 fps |
| Image Sensor | 1/2.7", Progressive Scan, 5.0 megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | AF Automatic Focusing and Motorized Zoom Lens |
| Focal Length | 2.7~13.5mm |
| Angle of View (Horizontal / Vertical) | 93.38° ~ 28.56°(H)88°~ 16.4° (V) 121.4°~33.7°(D) |
| Mechanical PTZ | No |
| Audio | Two-Way Audio Supported |
| Audio Codec | No |
| Storage Card Slot | No |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | IP67 |
| Power Input | 12 V DC±25% |
| Power over Ethernet (PoE) | IEEE802.3 af |
| Max. Power Consumption | Max.8.7W |
| Dimension (W x D x H) | Ø148 x 111.3 mm (Ø5.8” x 4.4”) |
| Net Weight | 0.92 kg (2.0 lb) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ 140°F), |
