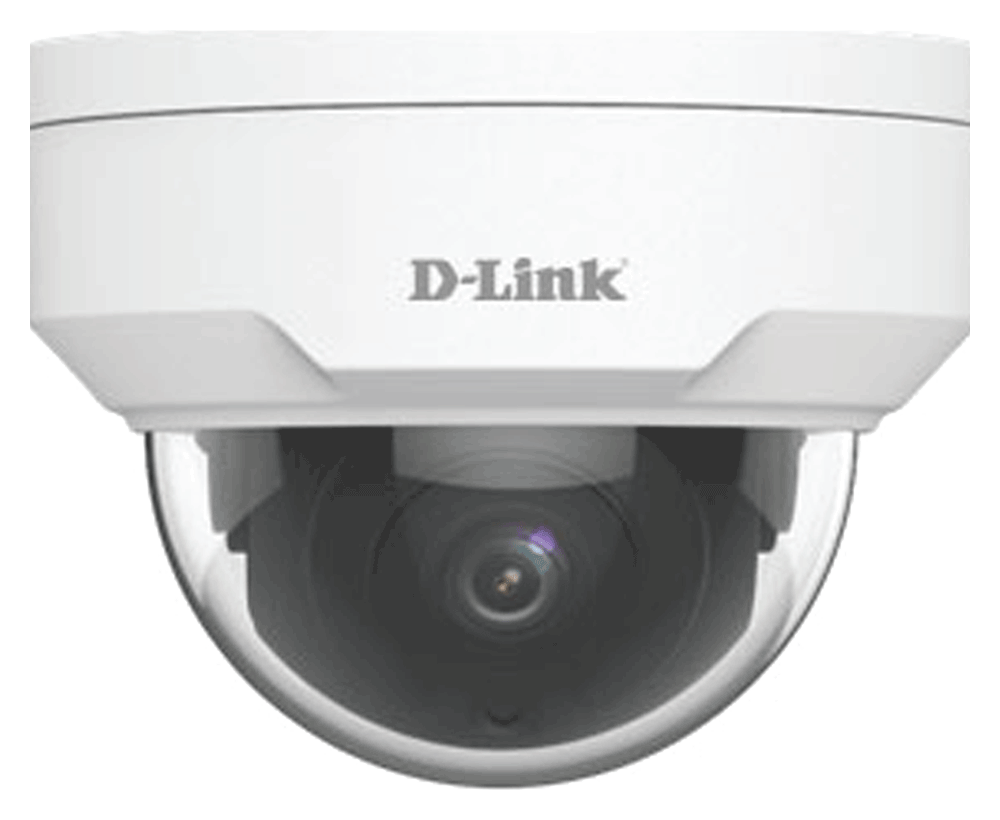

4K Vandal-Resistant Network IR Fixed Dome
DCS-F5608
- Product Status (Revision Datasheet ME): Live
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Where to buy
Specification
| Product Description | 4K Vandal-resistant Network IR Fixed Dome |
|---|---|
| Camera Type | Dome |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Max. Resolution | 4 K |
| Max. Frame | 2MP(1920*1080): Max. 30 fps |
| Image Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | Colour: 0.05 Lux (F2.0, AGC ON)0Lux with IR |
| Lens | Fixed Focal |
| Focal Length | 2.8mm |
| Aperture (F no. ) | F2.0 |
| Angle of View (Horizontal / Vertical) | 112.7°(H) 60.1° (V) 146.5° (D) |
| Mechanical PTZ | No |
| Audio | Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | DC 12V±25% |
| Power over Ethernet (PoE) | IEEE 802.3af |
| Max. Power Consumption | Max 5.5w |
| Dimension (W x D x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
| Net Weight | 0.45kg (0.99lb) |
| Operating Temperature | -35°C ~ +60°C (-31°F ~ 140°F) |
