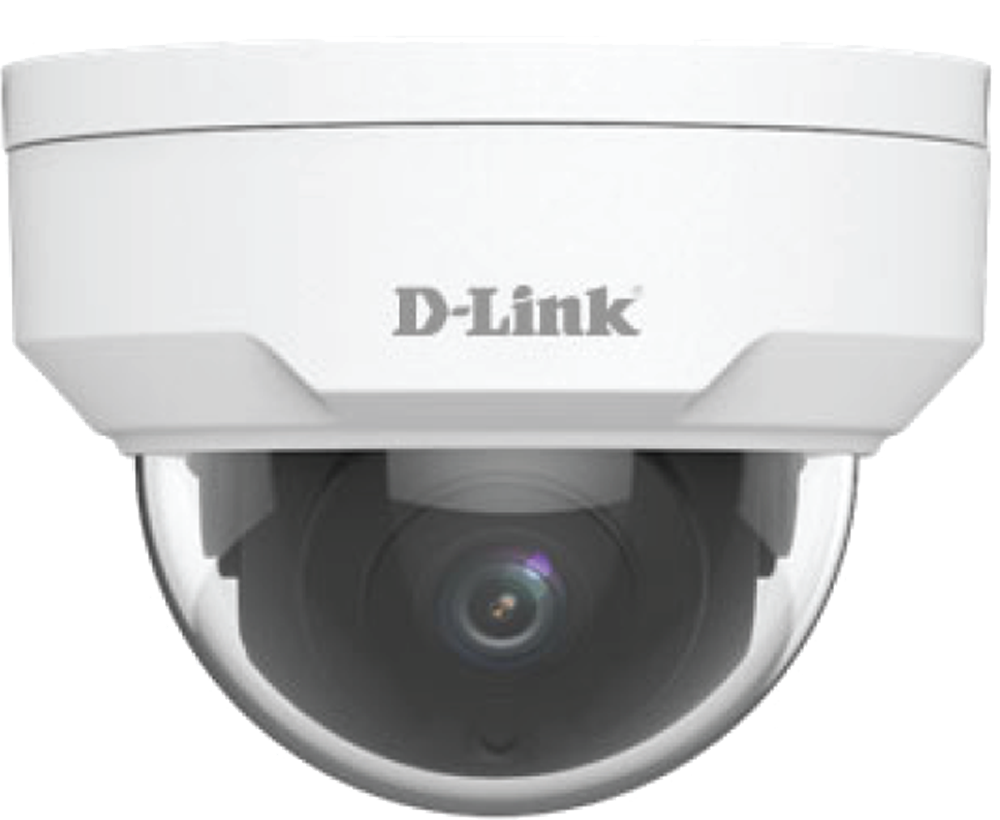

5MP DAY & NIGHT VANDAL PROOF FIXED DOME CAMERA
DCS-F5605
- Product Status (Revision Datasheet ME): Live
Optics
- Day/Night Functionality
- Smart IR, up to 30 m (98 ft) IR Distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Support PoE Power Supply
- Wide Temperature Range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide Voltage Range of ±25%
- IK10 Vandal Resistant
- IP67
- 2-Axis
Where to buy
Specification
| Product Description | 5MP DAY & NIGHT VANDAL PROOF FIXED DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 5 Megapixel |
| Max. Frame | (2592*1944): Max. 15 fps |
| Image Sensor | 1/2.7", Progressive Scan, 5.0 megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | Fixed Focal |
| Focal Length | 2.8mm |
| Aperture (F no. ) | F2.0 |
| Angle of View (Horizontal / Vertical) | 105.3°(H)69.5° (V) 136.9°(D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | No |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | DC12V±25% |
| Power over Ethernet (PoE) | (IEEE802.3 af) |
| Max. Power Consumption | Max.4w |
| Dimension (W x D x H) | Ø109 x 81mm (Ø4.3” x 3.2”) |
| Net Weight | 0.35kg (0.77lb) |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
