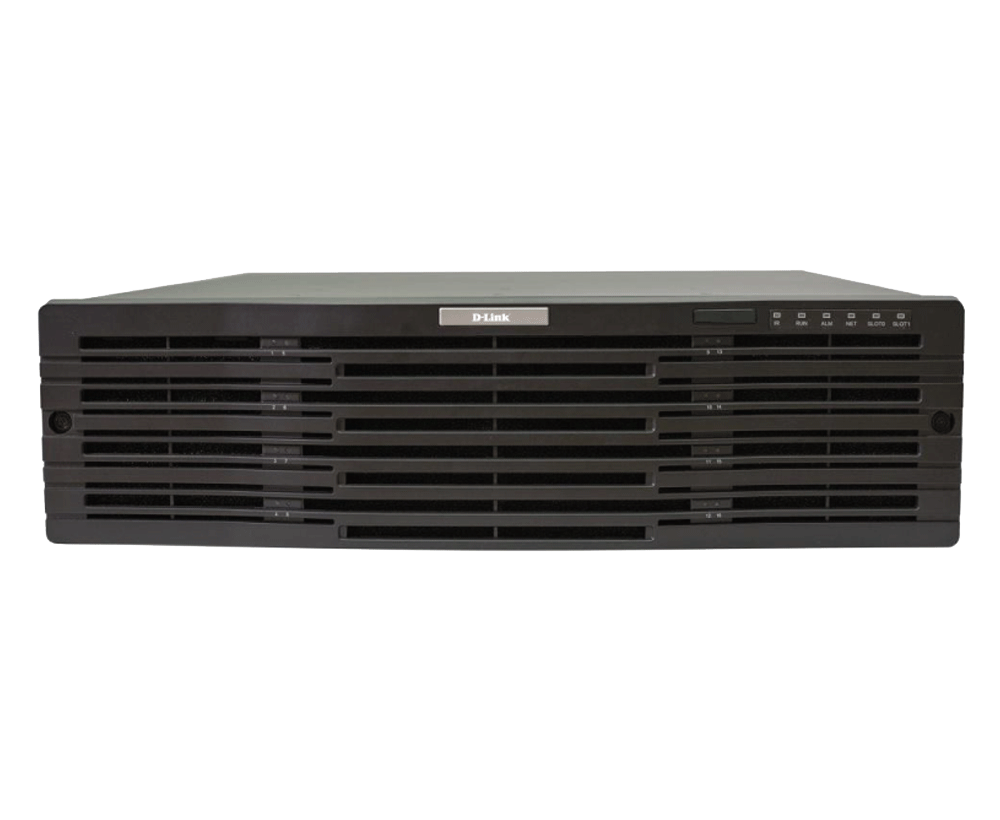

MYDLINK VIDEO MANAGEMENT SERVER

DCS-F500

  • Product Status (Revision Datasheet ME): Live
  • Stability: Linux OS, dual-BIOS, redundant power
  • Compatibility: Third-party IP Cameras supported with standard ONVIF
  • Access: Browser/Server, Client/Server and mobile clients (both iOS and Android)
  • Monitoring: 1000 device connections, up to 2000 channels of high-definition network videos
  • Recording: 256 Cameras
  • Management: Unified management of NVR, IPC, encoder, decoder, network keyboard, cloud devices, alarm control panel and door access control, support devices configuration import/export
  • Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 384TB storage
  • Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted
  • Service: Live view, playback, sequence, video wall, E-map, two-way audio, and alarm plan
  • VCA: Support of receiving VCA alarms, configuring alarm-linkage operations, and displaying people counting statistics in reports
  • Reliability: Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP configuration and load balancing

Download the datasheet.

Where to buy
Specification 1 Stability: Linux OS, dual-BIOS, redundant power[No text in field]
Channel Number 2000 Channels
Compression Format Ultra265, H.265, H.264
Display Mode (View Layout) HDMI(×2) and VGA(×1) output; HDMI output supports 4K resolution
Audio Recording Yes
Playback Mode Play NVR recordings Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client
Image Export File Format JPG
Video Search (Factor) Yes (Time, Event, Camera)
Network Interface 4×10M/100M/1000M Base-T adaptive Ethernet interfaces 2×1000M SFP optical interfaces
Supported Camera D-Link Cameras
Dimensions (mm) Height: 3U, support mounting in standard 19" cabinet
Weight (g) ≤ 10.0 Kg
Power Consumption (watts) 50W (not including HDD)  165W (including HDD)
Operation Temperature -10°C to 55°C (14°F to 131°F)

Support

Version Date Type File Size
Datasheet - PDF 1.21mb Download
