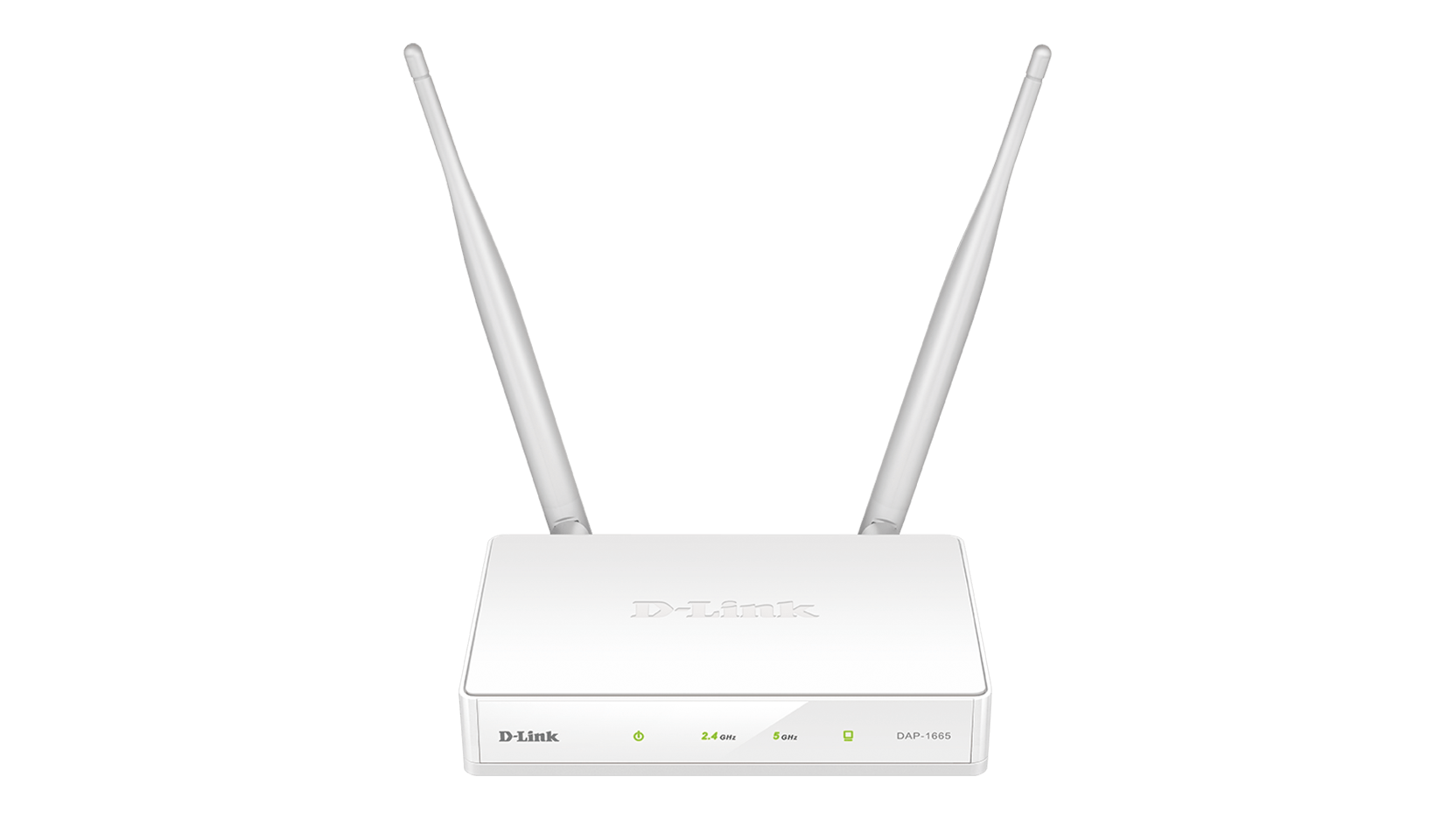

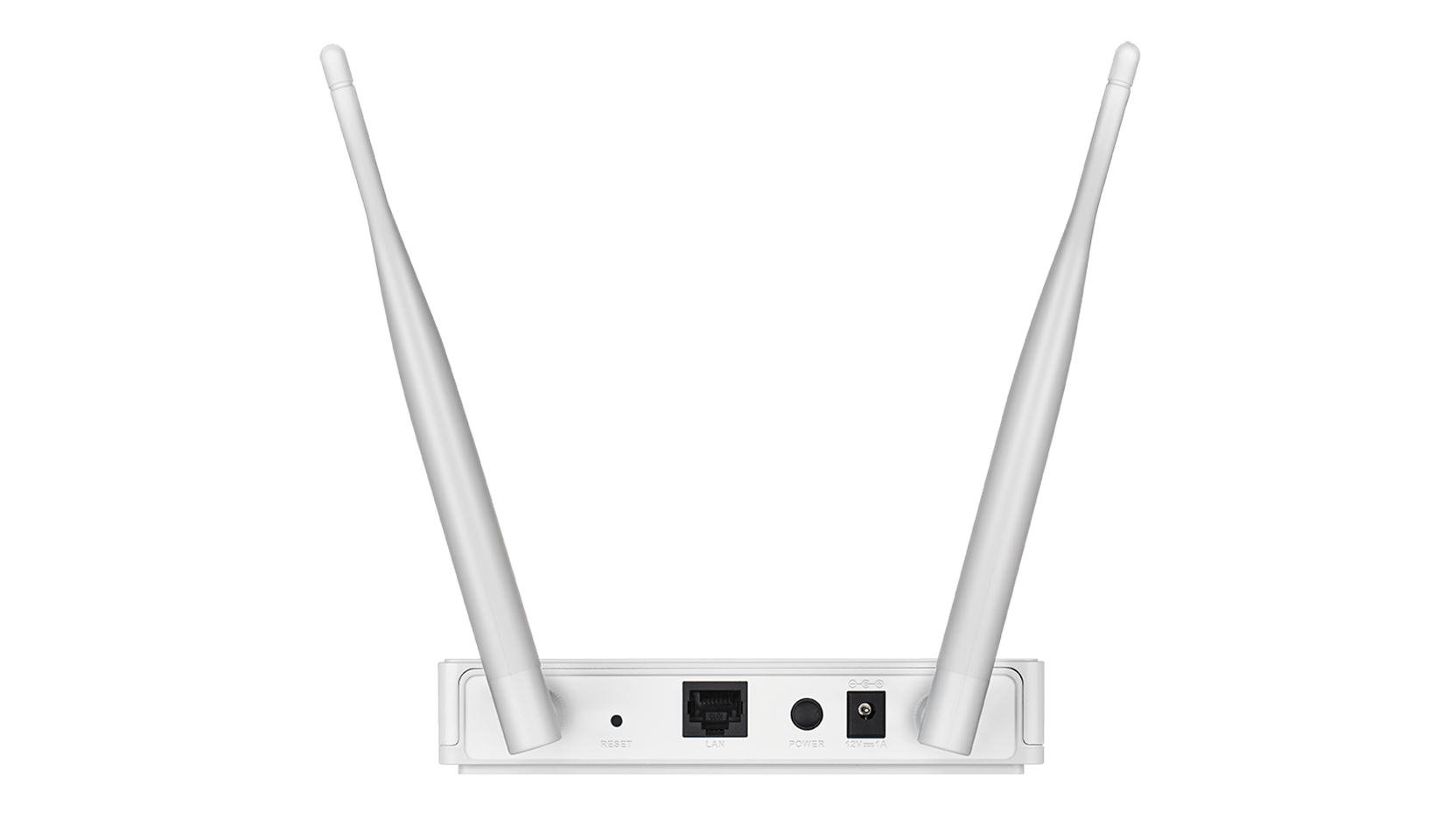

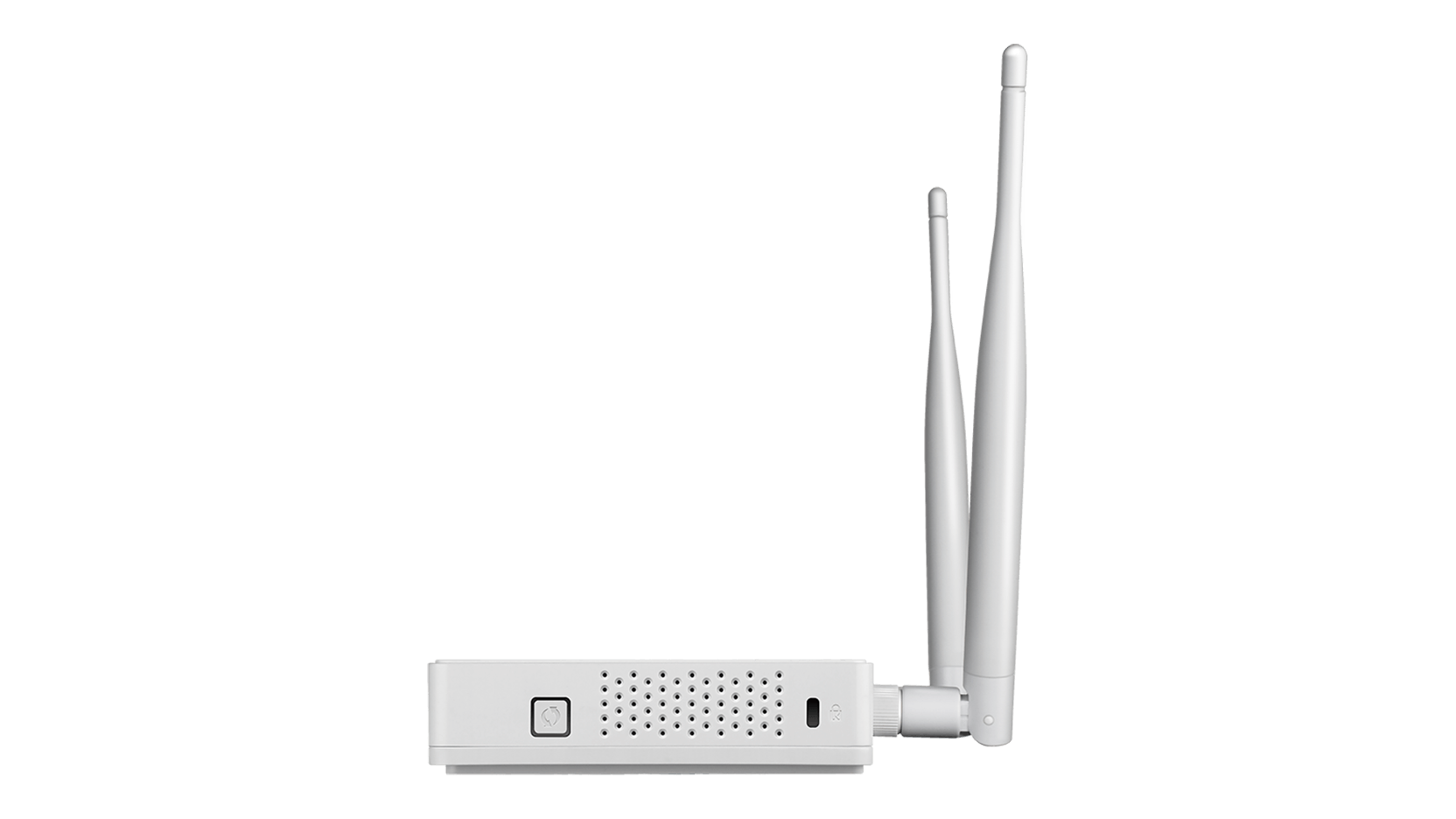

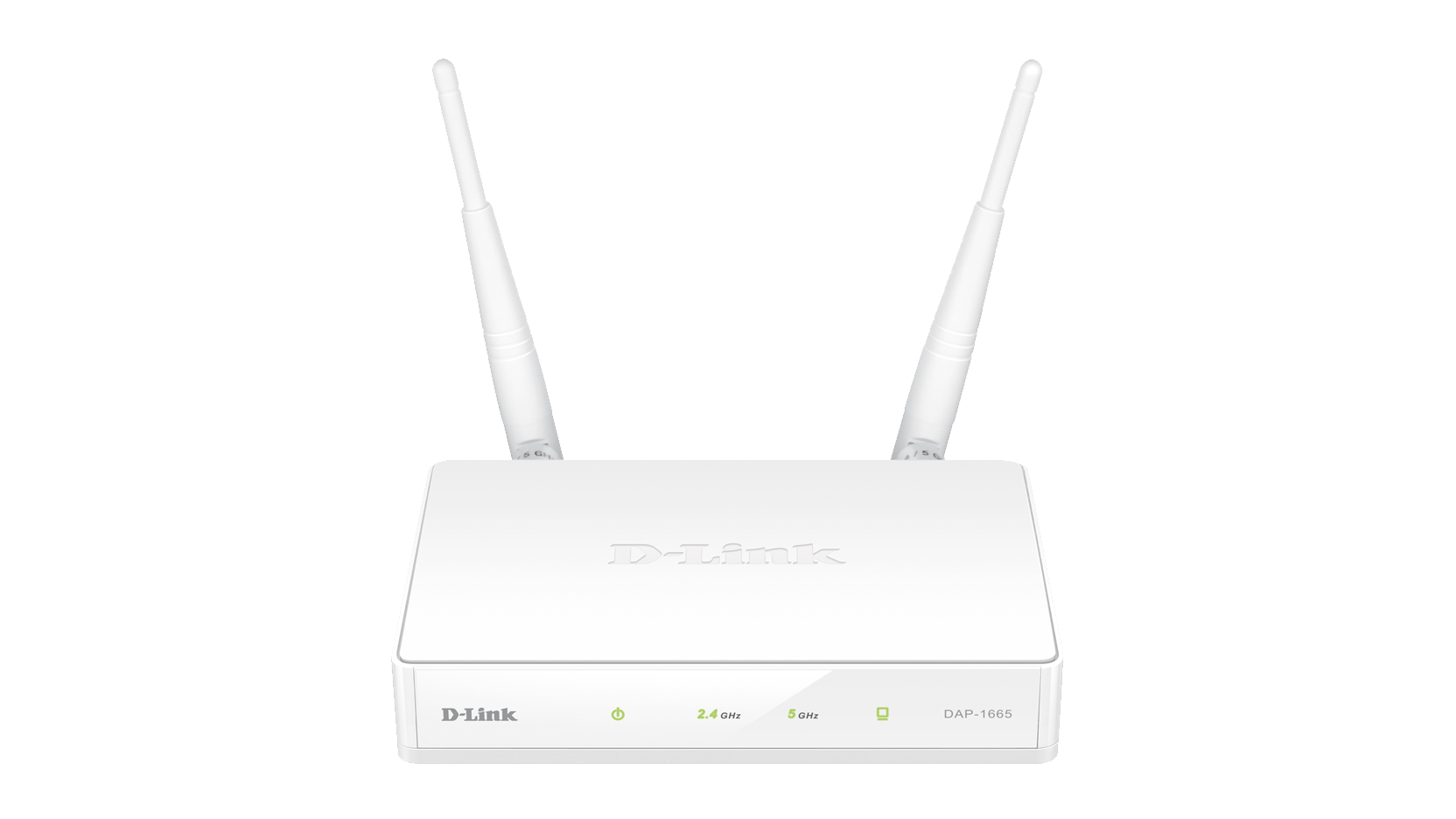

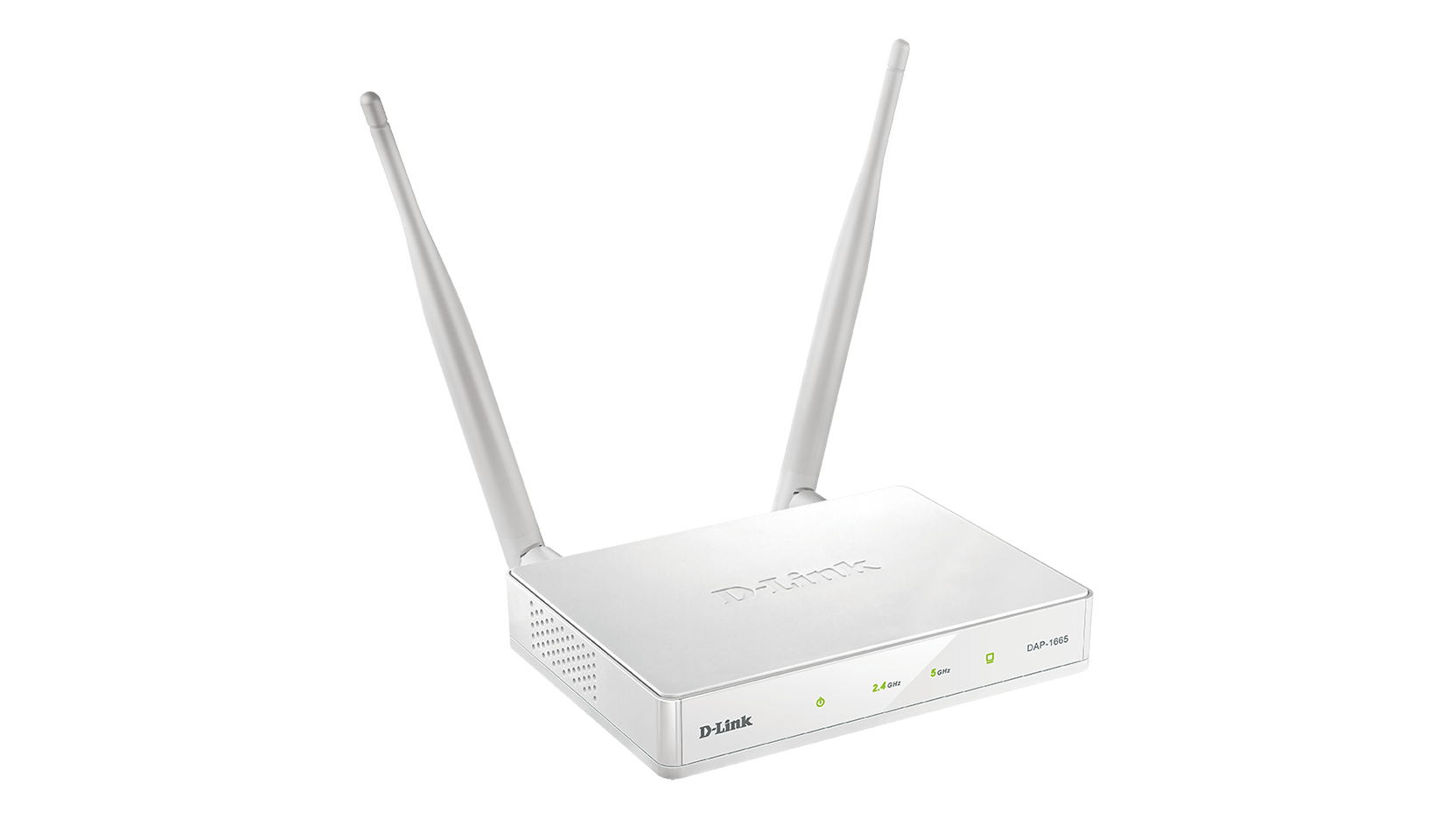

Wireless AC1200 Wave 2 Dual-Band Access Point

DAP-1665

  • Product Status: End of Sale

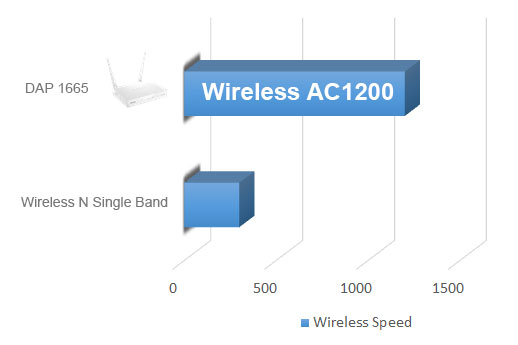

Performance without Compromise

Incorporating industry-leading Wireless AC Wave 2, the DAP-1665 delivers up to 3 times* the performance of Wireless N by supporting simultaneous dual-band operation.

Wireless Security

Advanced wireless security features including MAC address, filter, wireless LAN partition, user limit as well as the latest WPA/WPA2 wireless encryption to help protect your network and wireless data.

Flexible Wireless

The DAP-1665 delivers a combined wireless speed of up to 1200 Mbpswith MU-MIMO and beamforming, with increased capacity and range enabling your Wi-Fi to reach more places in your home or office.

Wireless ACRangeSpeedDual Band

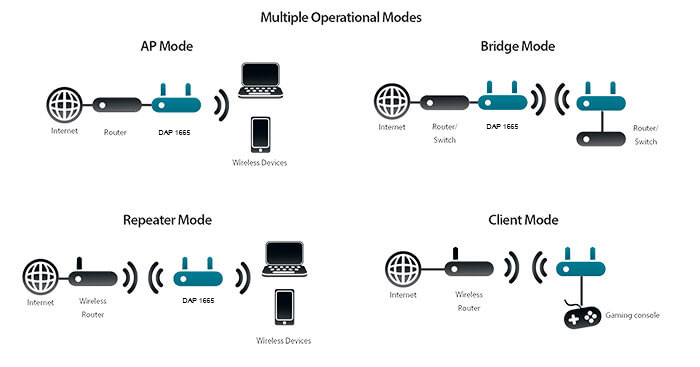

Flexible Deployment Options

Supporting up to 7 different operating modes, the DAP-1665 can operate as an Access Point (AP), bridge, bridge with AP, repeater, wireless client, WISP client or repeater, giving you the flexibility to tailor it to your network's needs.

DAP 1665 Flexible Deployment

Simultaneous Dual-Band Wireless

Supports up to 900 Mbps for the 5 Ghz band and up to 300 Mbps for the 2.4 Ghz band.

Smart Design

The DAP-1665 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

DAP 1665 Flexible Wireless

*When compared to Wireless N300.
1 Maximum wireless signal rate derived from 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and
network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless
range and speed rates of a standard Wireless N product from D-Link.

Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
5 dBi for 5 GHz
Wired interface
1 x Gigabit Ethernet LAN
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MU-MIMO
Maximum number of SSIDs
4 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
NTP
Supported
IPv6
Supported
WEB
Supported
Syslog
Supported

Support

This product was phased out on: 15/10/2022
