Gigabit L2 Managed Switches

DGS-3000

  • Product Status (Revision B1): End of Sale

There's a new version of this product:

Gigabit Managed Switches

DGS-2000

See Newer Product

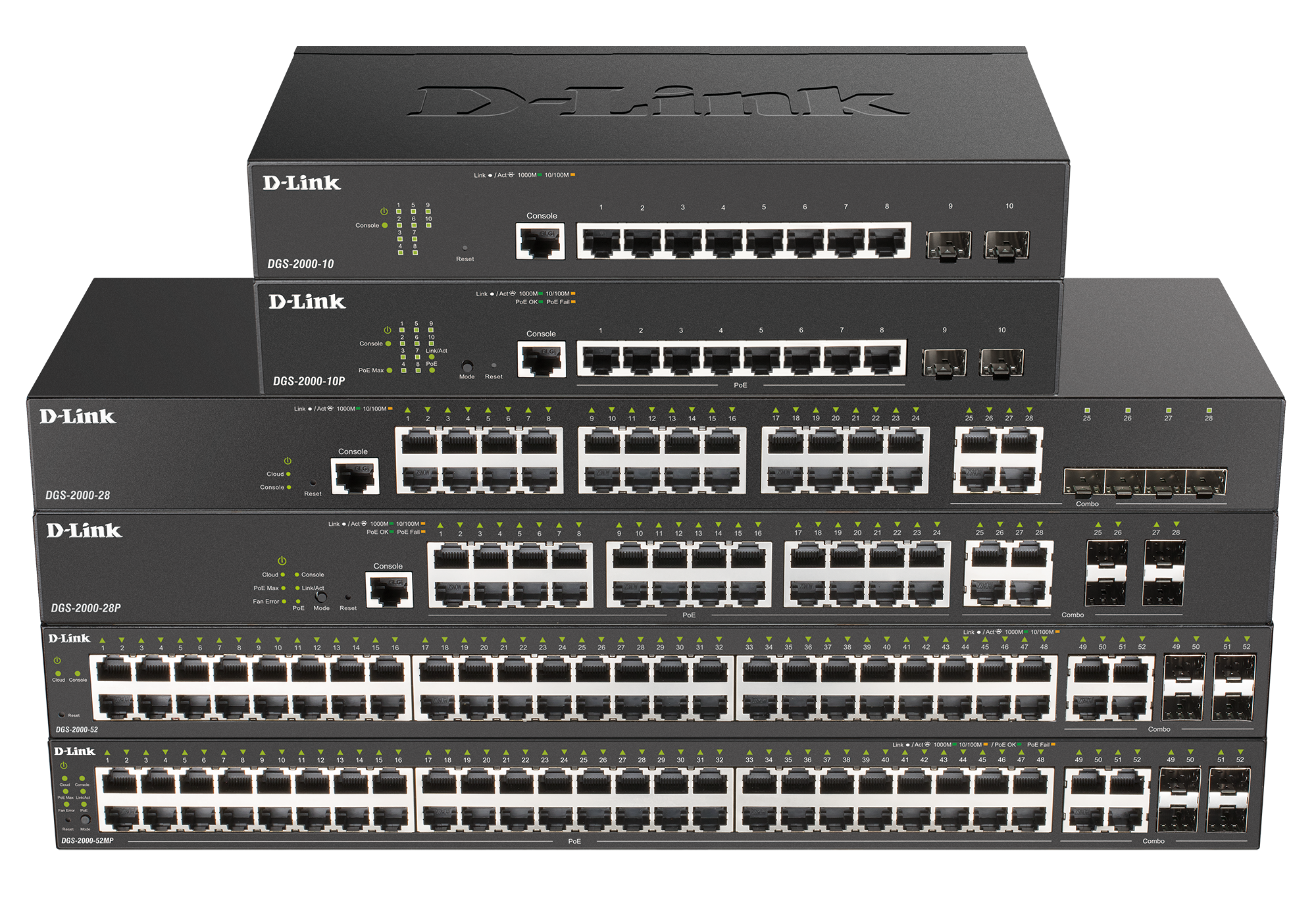

There's a new version of this product:

DGS-2000

Gigabit Managed Switches

Overview

  • Wide range of port and media types
  • Effortless multi-site deployment
  • PoE options up to 370W power budget
  • Easy management with web UI
  • Available in PoE and non-PoE variations
See Newer Product

Overview

  • Wide range of port and media types
  • Effortless multi-site deployment
  • PoE options up to 370W power budget
  • Easy management with web UI
  • Available in PoE and non-PoE variations
See Newer Product

Comprehensive Controllable Network.

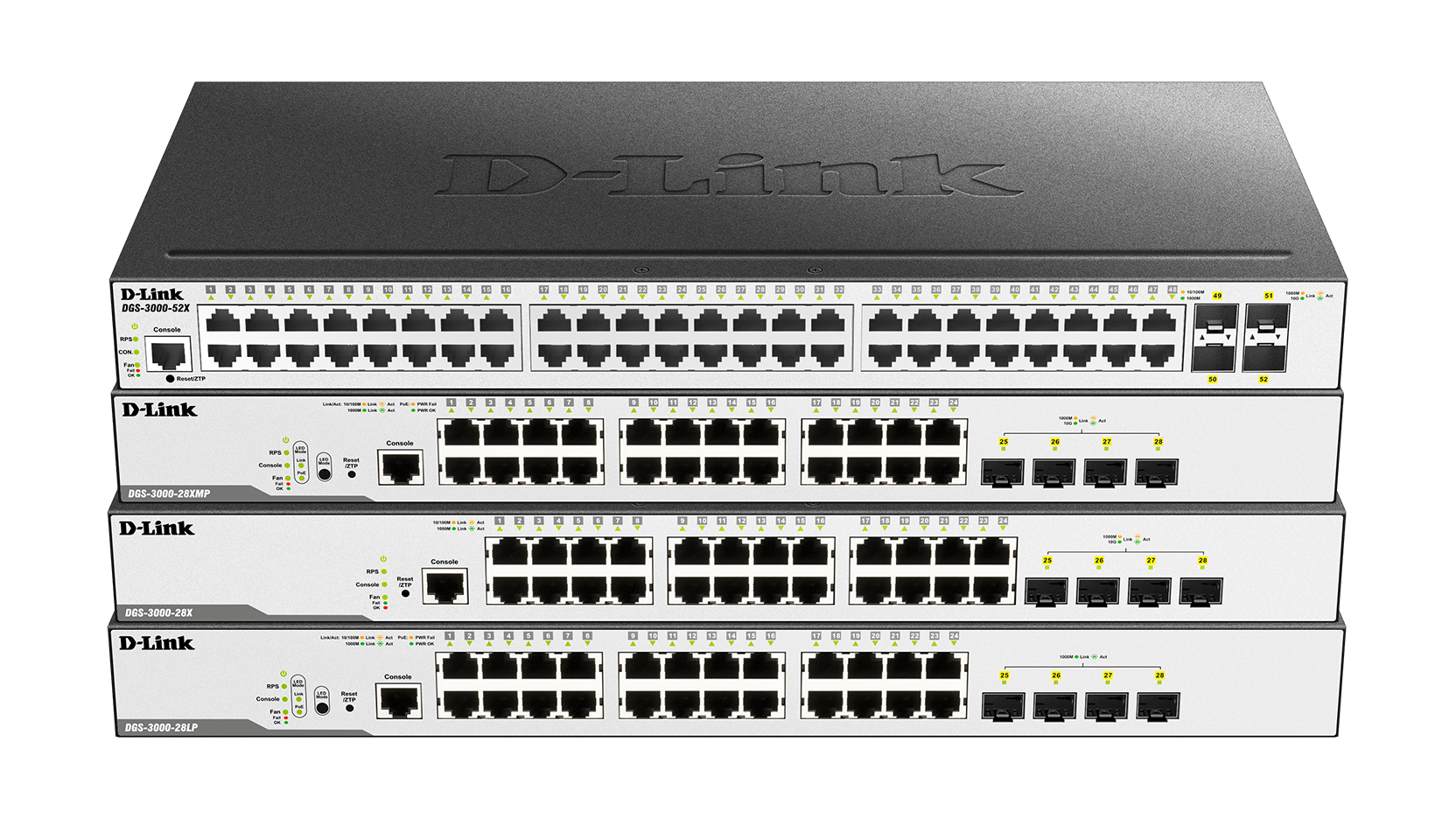

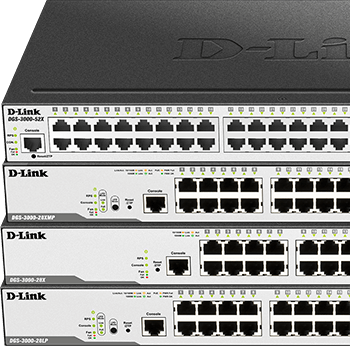

The DGS-3000 Series Gigabit L2 Managed Switches provide wired Gigabit speeds, featuring a variety of ports for increased network bandwidth.

Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-3000 Series Gigabit L2 Managed Switches ideal for Metro Ethernet and campus applications

Product Feature Highlights

Service Provider Features

Layer 2 multicast functions allow IPTV streams to be distributed efficiently and security features prevent network abuse.

Comprehensive Security Solution

Supports Access Control Lists (ACLs) and multiple device/user authentication methods.

Multi-Gigabit Performance

The DGS-3000 series comes with a variety of port types, including 1 G RJ-45 ports, 1 G SFP ports, and 10G SFP+ ports, with all models offering a minimum of at least 2 1G SFP ports.

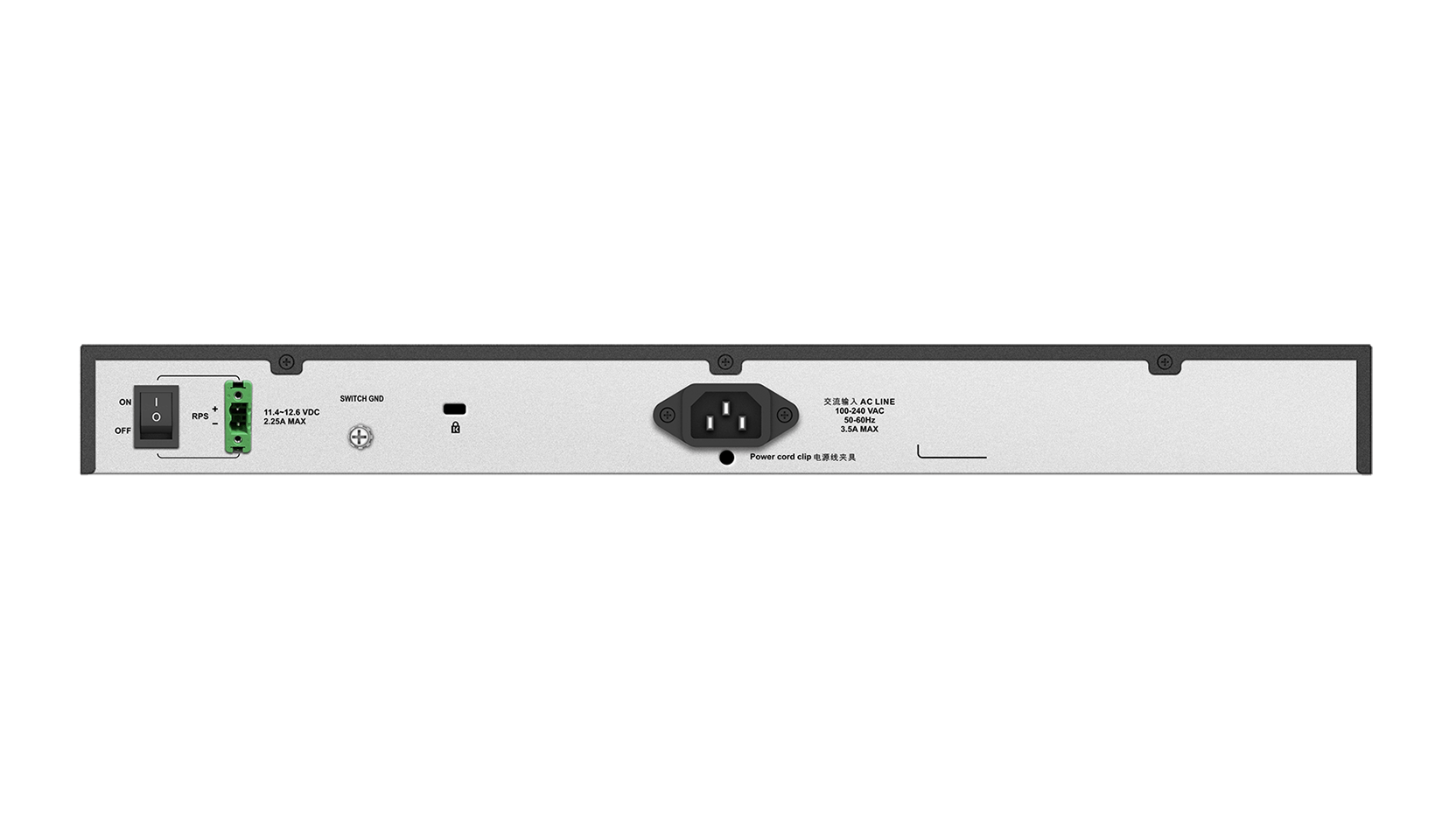

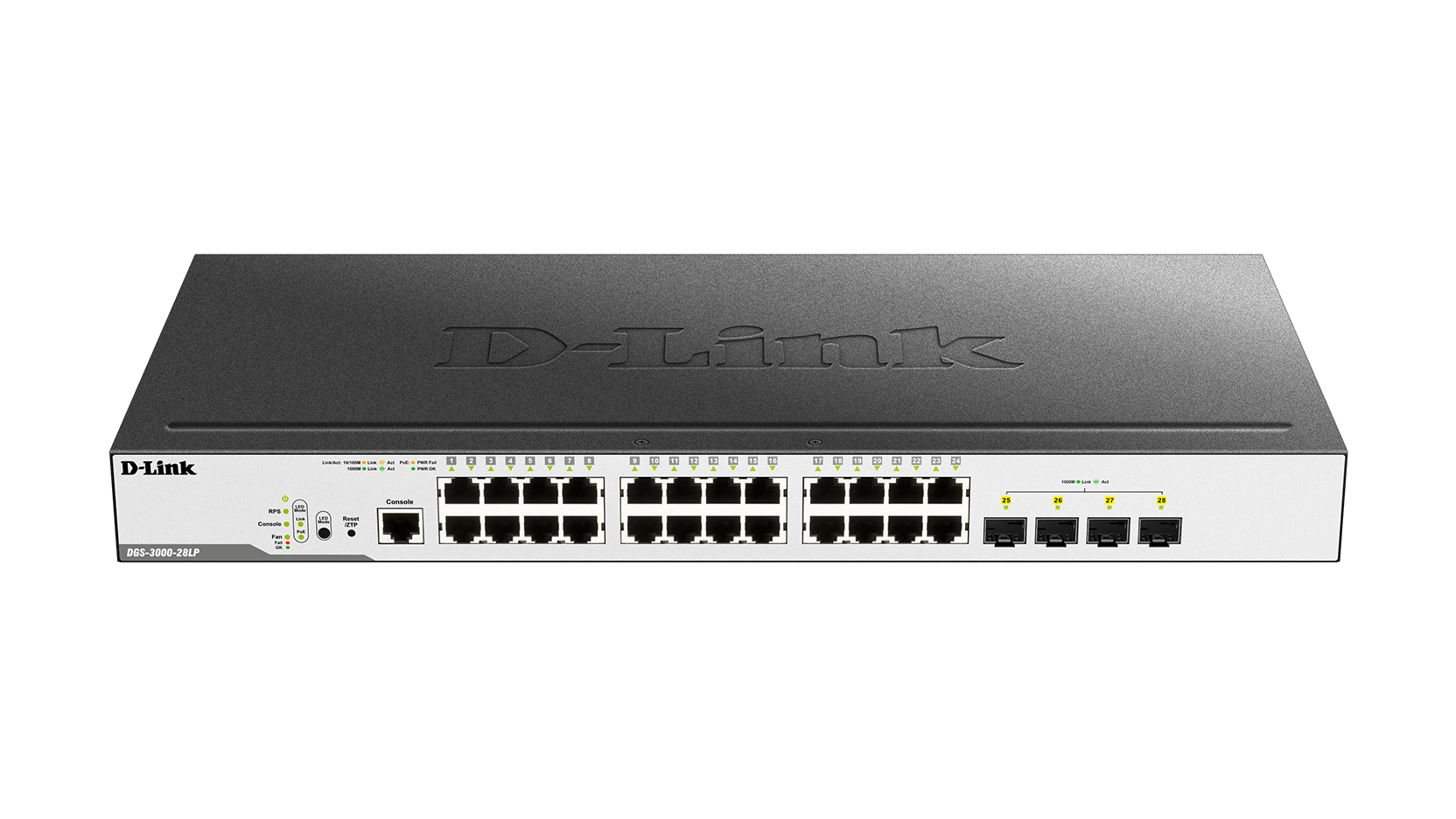

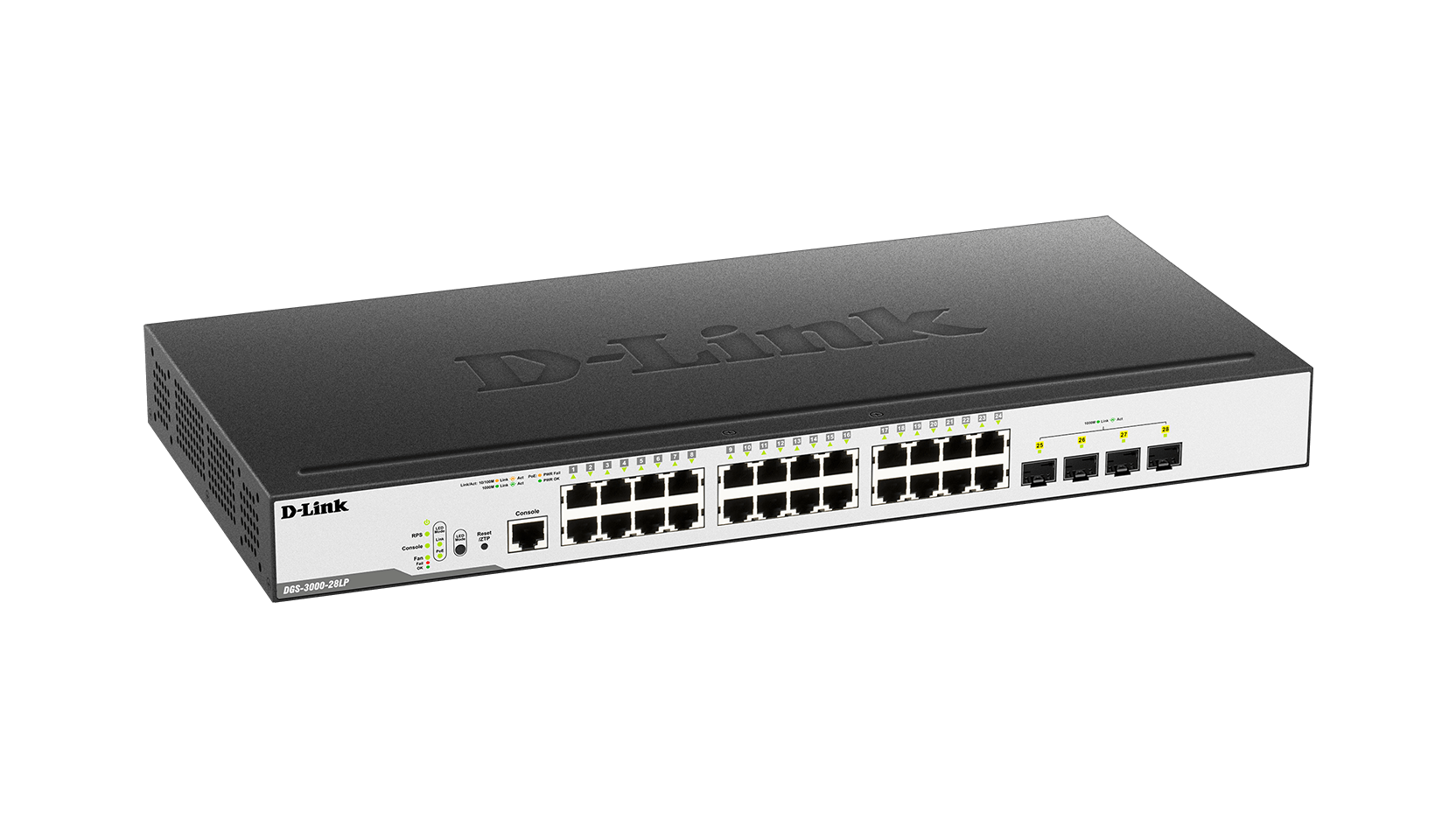

The DGS-3000-28LP switch features Power over Ethernet (PoE), and switching capacities of 56 Gbps.

Efficient and Resilient Networking

 The DGS-3000 Series supports:

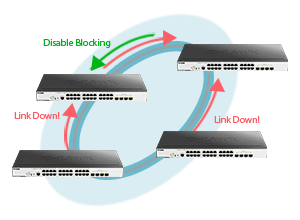

  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS), which allows 50-millisecond failover, minimising service disruption.
  • Up to 6 kV surge protection on all Ethernet ports.
  • IEEE 802.1AX and 802.3ad Link Aggregation allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments.

Manageability

All switches can be managed as a virtual stack, allowing physically separate switches to be managed using a single IP address. The DGS-3000 Series also supports management tools such as a Web UI, SSH, Telnet, and console, and standards-based protocols such as SNMP, RMON, and SSL.

D-Link Single IP Management (SIM) simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored, and maintained from any workstation, wherever the location.

Security & Authentication

The DGS-3000 Series offers user and device authentication, including host-based authentication and authorization, which provide the option to finely control network access for each device on the network.

Identity-driven Network Policies

Supported authentication mechanisms for the DGS-3000 series:

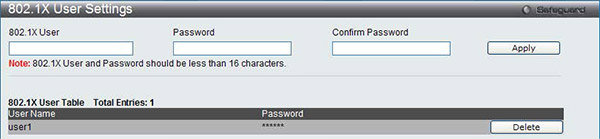

  •  802.1X port-based Access Control
  •  Web-based Access Control (WAC)
  • MAC-based Access Control (MAC)

After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host.

Secure Network Environment

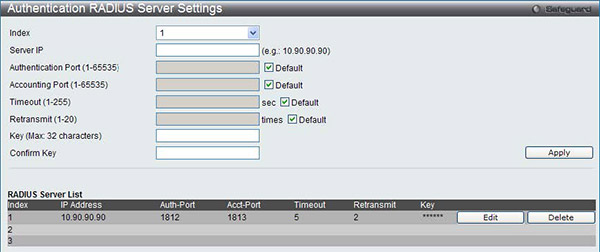

Advanced features such as RADIUS accounting allow the switches to be integrated with back-end systems for billing or advanced access control.

The DGS-3000 Series also supports address and interface binding features such as IP-MAC-Port Binding and ARP Spoofing Prevention to protect against Man-in-the-Middle or ARP Spoofing attacks.

Quality of Service

The DGS-3000 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority.

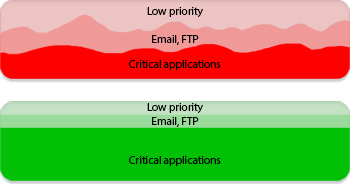

Administrators can prioritise network traffic with Traffic Shaping features guaranteeing bandwidth for critical services when the network is busy.

Related Products

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
SFP+ 10GBASE-SR Multi-Mode Fibre Transceiver (550m)
DEM-431XT
Find out more
10GBase-LR SFP+ Transceiver (10 Km)
DEM-432XT
Find out more
Type
Managed
Number of ports
16 to 30 ports
48 to 54 ports
Layer
Layer 2
Stacking
Virtual
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
10GbE SFP+
SFP
Switching capacity
128 Gbps
176 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
PoE power budget
See datasheet
See datasheet
Form Factor
Rackmountable
Housing
Metal
Virtual stacking (up to 32 devices)
Supported
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Voice VLAN
IP interfaces
16
Static route for IPv4/IPv6
IPv4 - 64
IPv6 - 32
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
This product was phased out on: 14/05/2022
This product's last date of support is on: 13/05/2027
Version Date Type File Size
Datasheet - PDF 0.53mb Download
Version Description Date
CE doc UKCA 2.10 RevB1 - 27.5.2022 Download
CE doc UKCA 2.10 RevB2 - 27.5.2022 Download
CE doc UKCA 3000-28LP 1.00 RevB1 CE document 23.5.2022 Download
CE doc 2.00 RevB1 - 11.8.2020 Download
CE doc 3000-52X 1.00 RevB2 CE document 23.3.2020 Download
CE doc 3000-28LP 1.20 RevB1 CE document 24.7.2019 Download
CE doc 3000-28XMP 1.20 RevB1 CE document 24.7.2019 Download
CE doc 3000-28X 1.20 RevB1 CE document 24.7.2019 Download
CE doc 3000-52X 1.20 RevB1 CE document 24.7.2019 Download
CE doc 3000-28LP 1.10 RevB1 CE document 25.9.2018 Download
CE doc 3000-28XMP 1.10 RevB1 CE document 25.9.2018 Download
CE doc 3000-28X 1.10 RevB1 CE document 25.9.2018 Download
CE doc 3000-52L 1.10 RevB1 CE document 25.9.2018 Download
CE doc 3000-52X 1.10 RevB1 CE document 25.9.2018 Download
HW install 4.00 Revision B1 Hardware Installation Guide 3.5.2018 Download
CLI guide 4.00 Revision B1 CLI reference guide 27.4.2018 Download
Web UI 4.00 Revision B1 WEB ui Reference Guide 27.4.2018 Download
