Sharecenter+ 4-Bay Network Storage Enclosure

DNS-345

  • Product Status (Revision A): End of Life

The ShareCenter™+ 4-Bay Network Storage Enclosure (DNS-345) is a high performance, easy-to-use solution for accessing, sharing, and backing up your important data by creating your own personal cloud. Keep all of your data safely stored and protected at home or in the office, and still have it at your fingertips with a sleek, award-winning Network Attached Storage (NAS) solution.

Access your files from anywhere with the mydlink™ Cloud app

By setting up a mydlink™ account, users can download and upload files, delete files/folders from their storage device and check the status of their ShareCenter™+ remotely. With the mydlink™ Cloud app available for iPhone, iPad and Android devices users can access files, view photos, stream music and videos from their mobile devices. Files can be downloaded from a storage device to a mobile device to send on or watch later. Music, movies and photos can be furthermore uploaded to a ShareCenter™ + and backed up, meaning that users won’t run out of space on their Smartphones or tablets. Important business documents can be backed-up to your ShareCenter™+ while you are away from the office ensuring the security of your business critical data.

D-Link Green™

For users interested in reducing their energy costs and helping to save the environment, D-Link Green™ products provide eco-friendly alternatives without compromising performance. This device uses Hard Drive power management and Smart Fan speed control to reduce energy costs, minimise noise, and prolong the lifespan of your Hard Drives. The ShareCenter™+ also saves energy by connecting to your router instead of a PC which has to be powered on for you to be able to access or share your data.

mydlinkTM Cloud app

Access business files, view photos and stream music and videos from your iPhone, iPad and Android. Download files from your storage device from wherever you are to view later. Upload music, documents, movies and photos to your ShareCenter™+ and back them up, so you never lose any previous files or run out of space on your Smartphone or tablet!

Do more with powerful add-ons

Powerful add-on applications extend NAS functionality and allow you to do more with your NAS. P2P applications offer access to a limitless collection of free content. Meanwhile, SqueezeCenter, Audio Streamer, and AjaXplorer can be used to stream a music collection stored on the NAS across the Internet. The powerful Gallery and Blog add-ons let you showcase your own photos or writing. Enjoy even more add-ons as they become available in the future.

Easy installation and set up

Installing your ShareCenter™+ 4-Bay Network Storage Enclosure is simple. A step-by-step guide will have your ShareCenter™+ up and running in a matter of minutes. Set up a mydlink™ account to view and manage your data from any Internet connected device.

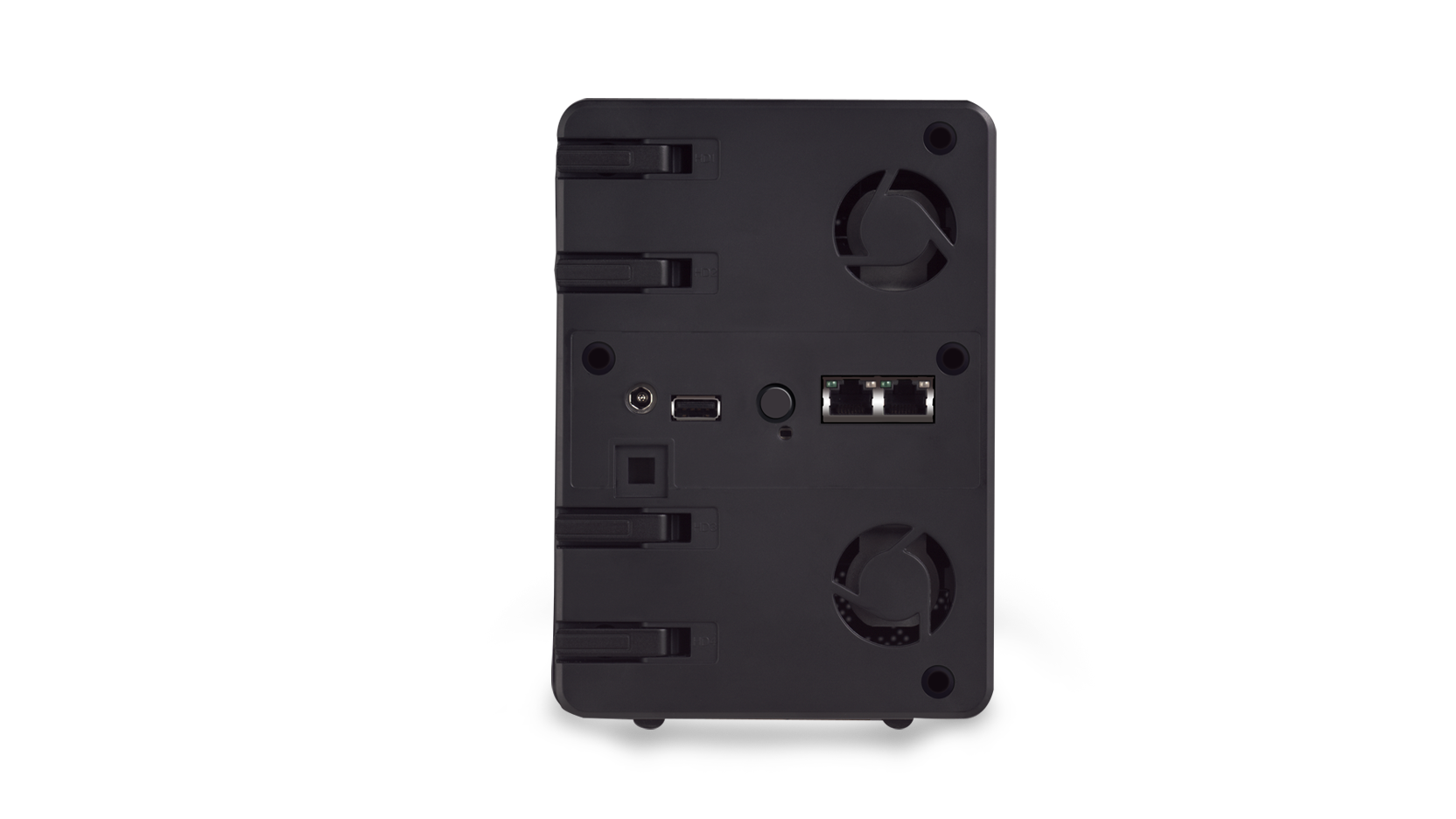

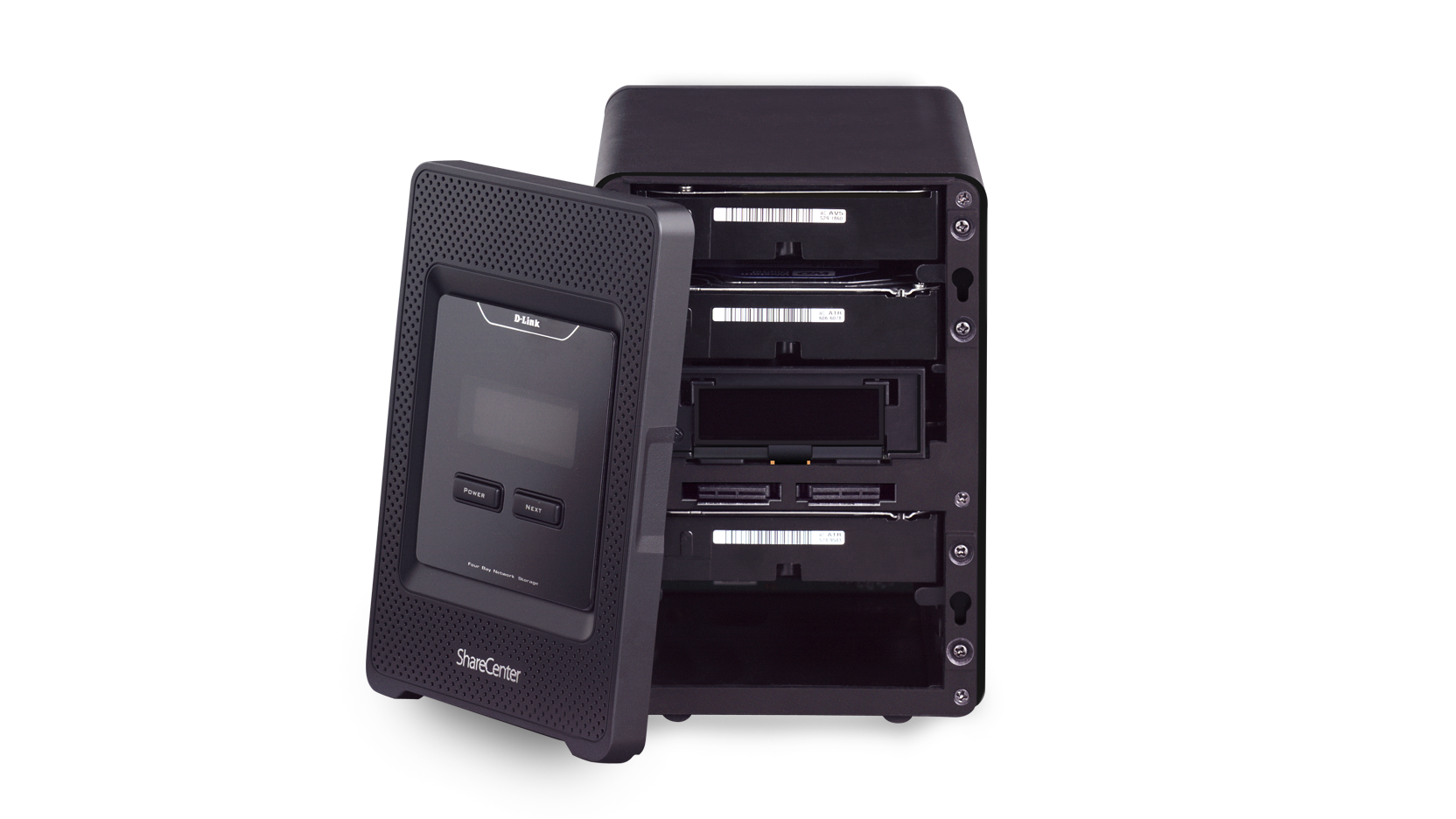

This enclosure supports 4 x internal SATA HDDs up to 3TB capacity, and installing them is as simple as popping the front panel and sliding them in. A convenient USB port on the back of the ShareCenter™+ can be used to either share a USB printer with an entire home or office, or attach an external USB storage drive for easy one-touch backup. You can also connect an Uninterruptible Power Supply (UPS) to monitor power levels and ensure the safety of your data in the event of a power failure. Plus, you can copy the contents of a USB dongle at the touch of a button.

Data protection, performance and flexibility

The ShareCenter™+ 4-Bay Network Storage Enclosure supports seven different hard drive mode configurations to fit your needs: Standard, JBOD, and RAID 0/1/5/5+Hot Spare/10. Standard mode creates four separately accessible hard drives, while JBOD combines the drives together for maximum space efficiency. RAID 0/10 give you maximum performance, while RAID 1/5/5+Hot Spare give you multiple ways to protect against data loss.

Stream digital media with a built-in media server

Back up your digital media files to the ShareCenter™+ for safekeeping, and enjoy the benefits of the built-in DLNA Certified UPnP AV media server. Stream digital content to compatible media players such as the Boxee Box by D-Link, PlayStation 3, Microsoft® Xbox 360, or directly to a smart TV. You can also enjoy photo, music, and video streaming remotely through mobile devices.

Secure your valuable assets

In addition to protecting your valuable data the ShareCenter™+ 4-Bay Network Storage Enclosure (DNS-345) can also be used to protect your valuable possessions; with support for up to 4 x D-Link IP Surveillance cameras users can create a comprehensive home security solution. Just install your cameras* and use your ShareCenter™+ to store, manage and replay the video footage.

Simple upgrade with Enhanced RAID Roaming

Enhanced RAID roaming allows the users to easily upgrade to the new cloud NAS experience. Simply install existing hard drives from compatible D-Link NAS models into the new Cloud Network Storage Enclosure and your data can be accessed from anywhere. There is no need to reformat, reconfigure or migrate your data (please refer to specifications for information on compatible upgrade models).

* Specific cameras supported.

Related Products

Wireless N 300 Router
DIR-615
Find out more
Type
Network Attached Storage
Enclosure form factor
Tower
CPU
Marvell 88F6282 1.6 GHz
FLASH
128 MB
SDRAM
512 MB
Number of drive bays
4
Drive interface
SATA I/II
Drive form factor
3.5 inch
Maximum storage capacity
16 TB
Network interface
2 x Gigabit Ethernet
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
1
D-Link Green with power saving mode and smart fan
Supported
Multiple drive configuration
JBOD
RAID 0/1/5/10/5+spare
standard
RAID migration non-RAID to RAID 1
Supported
Drive format
EXT4
Scan disk
Supported
SMART
Supported
Volume encryption
Supported
Disk/RAID roaming
Supported
Windows Active Directory service support
Supported
User account management
Supported
Maximum number of user accounts
512 non-ADS,800 ADS
Group account management
Supported
Maximum number of group accounts
64 non-ADS,200 ADS
User/group quota management
Supported
Network share management
Supported
Maximum number of managed shared forlders
128
ISO mount management
Supported
Maximum concurrent connections via FTP
10
Maximum concurrent connections via Samba
64
Schedule backup from PC to NAS
Supported
Schedule local backups
Supported
Schedule remote backups
Supported
Apple Time Machine support
Supported
Cloud storage backup
Amazon S3
USB backup
Supported
FTP/HTTP/P2P downloads
Supported
File sharing protocol
CIFS/NFS/DFS/Web File Manager/AFP/WebDAV
Network streaming service
DLNA
iTunes Server
UPnP AV
Add-on support
Supported
Photo Center
Supported
Surveillance Center
Supported
Web interface through browser
Supported
E-mail/SMS notification
Supported
System/FTP log
Supported
SNMP
Supported
Resource monitor
Supported
This product was phased out on: 06/06/2015
This product's last date of support is on: 05/06/2017
Version Date Type File Size
Storage Product Guide - PDF 2.63mb Download
Datasheet (English) - PDF 2.10mb Download
IP Surveillance Guide - PDF 3.58mb Download
Version Description Date Type File Size
Product manual

Product manual

22.9.2014 - - Download
Version Description Date Type File Size
1.00 Quick Installation Guide - - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
DNS-345 Firmware 1.05b09 DNS-345 Firmware  18.11.2016 - Download
Version Description Date
Surveillance center addon

Surveillance center addon
Release notes included

26.1.2016 Download
Mac setup wizard 1.0.2.7

Mac setup wizard

30.7.2014 Download
Windows setup wizard 1.0.2.8

Windows setup wizard

30.7.2014 Download
Transmission Package 1.01 Transmission Package 2.7.2014 Download
Squeezecenter Package 1.03 Squeezecenter Package 2.7.2014 Download
Php BB Package 1.01 Php BB Package 2.7.2014 Download
Software: Joomla widget 1.01

Software: Joomla widget

2.7.2014 Download
Software: Photocenter package 1.02

Software: Photocenter package

2.7.2014 Download
Software: Logitech media server addon 7.7.2

Software: Logitech media server addon

2.7.2014 Download
Php MyAdmin Package 1.01 Php MyAdmin Package 2.7.2014 Download
Mydlink Cloud package 2.38 Mydlink Cloud package 6.8.2013 Download
Software: GPL Code 1.00 Software: GPL Code 13.3.2012 Download
DView Software v1.00 build 02 1.00 b02 DView Software v1.00 build 02 1.2.2012 Download
Software: Storage Utility (Win) 5.1.0.2 Software: Storage Utility (Win) 2.1.2012 Download
Software: Storage Utility (Mac) 1.0.0.5 Software: Storage Utility (Mac) 2.1.2012 Download
Software: Yahoo Widget 2.02 Software: Yahoo Widget 2.1.2012 Download
Software: PnP X Treiber 1.00 Software: PnP X Treiber 2.1.2012 Download
Add ons contain the following:

Add ons contain the following:

  • Ajaxplorer Package
  • Amule Package
  • Audiostreamer Package
  • Blog Package
  • MyDlink Cloud Package
  • PhotoCenter Package
  • Squeeze Center Package
  • Surveillance Center
- Download
Version Description Date
Hard disk drive compatibility list

Hard disk drive compatibility list

23.11.2015 Download
Qucik_Guide_ShareCenter_DEU

Quick Guide on mydlink ShareCenter

10.7.2014 Download
How_to_enable_Java_on_Mac_OS_X_for_mydlink How to enable Java on Mac OS X for mydlink 12.8.2013 Download
DEU_CE_Declaration_A2_RevA Certificate of Declaration - Download
DEU_CE_Declaration_A1_RevA Certificate of Declaration - Download
Network Attached Storage Comparison Network Attached Storage Comparison - Download
