Multilayer 6-Port 1000BASE-SX Switch + 2 GBIC ports


  • Product Status (DEU Revision A): End of Life

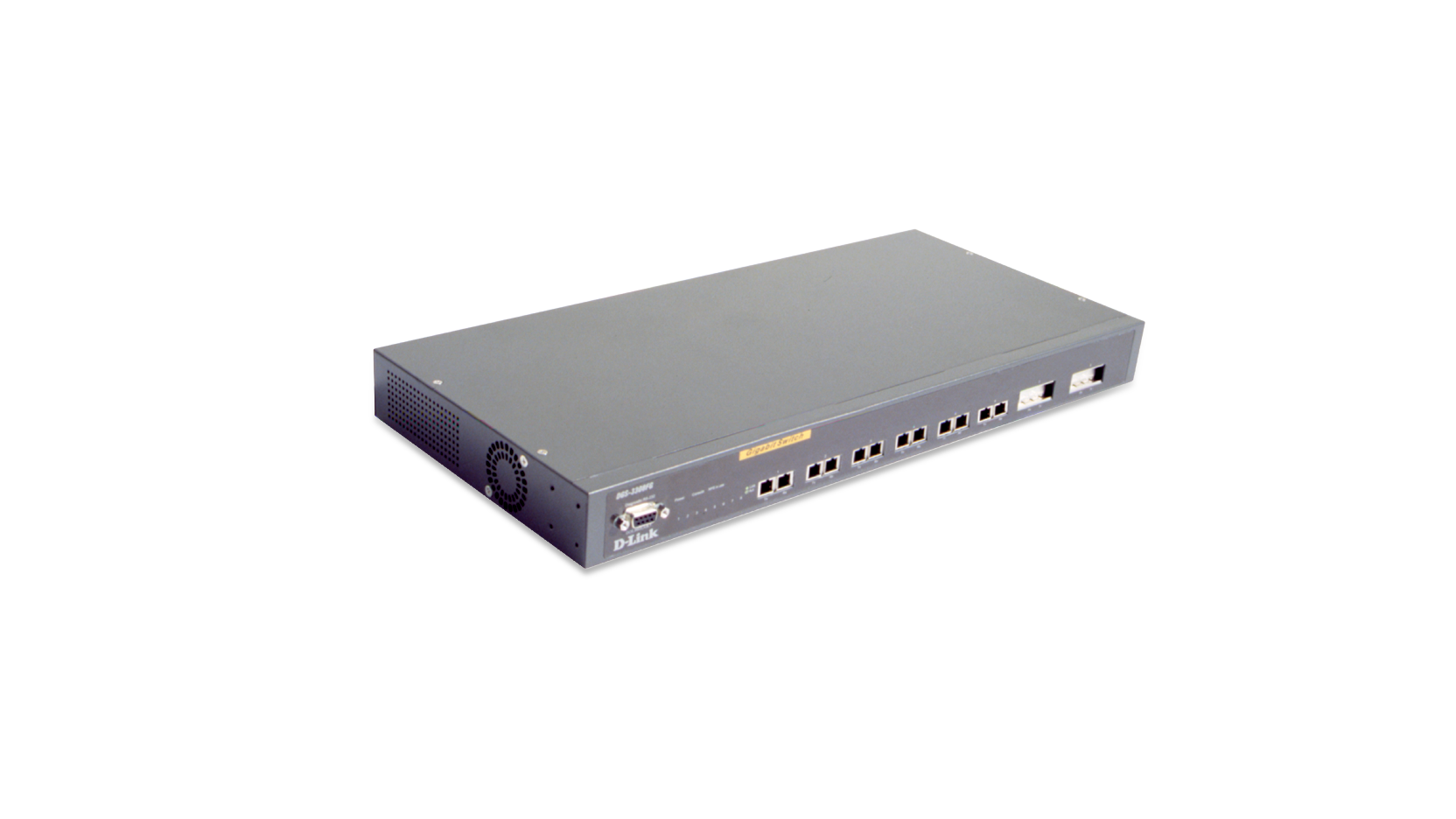

D-Link’s DGS-3308FG is a high performance managed Layer 3 Gigabit switch that provides an ideal solution for Enterprise Gigabit applications. With (6) 1000BASE-SX Gigabit Ethernet ports and (2) Open GBIC-Based ports, the DGS-3308FG is designed to meet the needs of the most demanding departmental and enterprise connectivity applications.

High Performance Wire-Speed Architecture

The DGS-3308FG supports full-duplex wire-speed forwarding, 8K MAC addresses, 2K IP networks, and the ability to prioritize traffic into (4) priority queues. The DGS-3308FG can be used as a cost effective Gigabit wiring closet solution or a high performance backbone aggregation device.

Network Management

D-Link’s DGS-3308FG looks to address today’s diverse business and IT requirements through its robust support of standards based network management protocols (SNMP/RMON/BOOTP/Telnet/Web) and port mirroring. By supporting standards-based network management protocols, the DGS-3308FG can be easily integrated into most third-party network management products.

Advanced Enterprise Features

The DGS-3308FG brings advanced Enterprise functions to a new level of affordability without compromising advanced features including: RIP1/2, OSPF, DVMRP, QoS/CoS, Multicast, VLANs, Port Trunking & Network Management. These features facilitate the deployment of applications across an Enterprise, including: VOIP, streaming media, and multicast content delivery (IP video, software deployment…etc).

Investment Protection

With support for Layer 2 & Layer 3 switch or routing, the DGS-3308FG can easily adapt to changes in customer media requirements without the need to perform an expensive “forklift” upgrade. By supporting GBIC modules, customers can migrate to other more advanced solutions in the future, while still protecting a portion of their original investment.
Technical Specifications


  • IEEE802.3z 1000BASE-SX Gigabit Ethernet (fiber)
  • IEEE802.3z 1000BASE-LX Gigabit Ethernet (fiber)
  • ANSI/IEEE 802.3 Auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Priority Queues
  • IEEE 802.1Q VLAN
  • IEEE 802.1D Spanning Tree


Data Transfer Rates
  • Gigabit Ethernet: 2000Mbps (full duplex)

  • Star

Network Cables
  • 1000BASE-SX: 50/125-micron multimode fiber-optics (550 m max.) 62.5/125-micron multi-mode fiber-optics (275 m max.)
  • 1000BASE-LX: 9-micron single-mode fiber-optics (5 km max.)

Full/half Duplex
  • Full duplex only for Gigabit speed

Performance & Management

Switch Fabric
  • 16Gbps

Packet Forwarding Rate
  • 12Mpps Layer 3 IP forwarding

Switching Method
  • Store-and-forward

Routing Protocols
  • RIP-1& RIP-2

MAC Address Table
  • 8K entries per device

IP Address Routing Table
  • 2K entries per device

RAM Buffer
  • 16MB per device (excluding optional modules)

IEEE 802.1p Priority Queues
  • 4 queues

RMON Groups
  • 1, 2, 3, 9 (Alarm, Statistics, History, Events)

Multicast Support
  • IGMPv2
  • PIM-Dense Mode

VLAN Support
  • Port Based VLAN
  • 802.1q tagging

  • MIB-II (RFC 1213)
  • Bridge MIBs (RFC 1493)
  • RMON MIBs (RFC 1757)
  • VLAN MIBs (RFC 2674)
  • IF MIBs (RFC 2233)
  • IF-Forward MIBs (RFC 2096)
  • RIP-2 MIBs (RFC 1724)
  • PIM MIBs

IP Number Self-identification
  • Through DHCP client, BOOTP client

Console Port
  • DB-9 RS-232

Physical & Environmental

  • (2) 40 x 40 x 10 mm DC fans

Power Consumption
  • 35 watts max.

  • 2.8kg (6.2 lb.)

  • 441 x 367 x 44 mm (17.4 x 14.5 x 1.7 inches) Standard 19-inch rack-mount width, 1 U height

Power Supply
  • 100 - 240VAC 50/60Hz internal universal power supply

Operating temperature
  • 0° - 50° C ( 32° - 122° F)

Storage temperature
  • -25° - 55° C (-13° - 131° F )

  • FCC Class A/ICES-003 (Canada)
  • CE Class A (EN55022, EN50082-1)
  • C-Tick (AS/NZS 3548)
  • VCCI Class A ITE - BSMI (CNS 13438)

  • IEC 950 (CB)
  • UL 1950 (CB)
  • TUV (EN60950)

Ordering Information
  • 1000Base-SX Managed Layer 3 Switch

  • Six (6) 1000Base-SX Ports with Two (2) Optional GBIC Ports

Optional Modules:
  • DGS-701 1000Base-SX GBIC
  • DGS-702 1000Base-LX GBIC
This product was phased out on: 06/12/2004
This product's last date of support is on: 05/12/2009
