Chassis Based Switches

DES-7200 Series

  • Product Status (Revision A): End of Sale

DES-7200 Series Chassis-Based Switches* consists of:

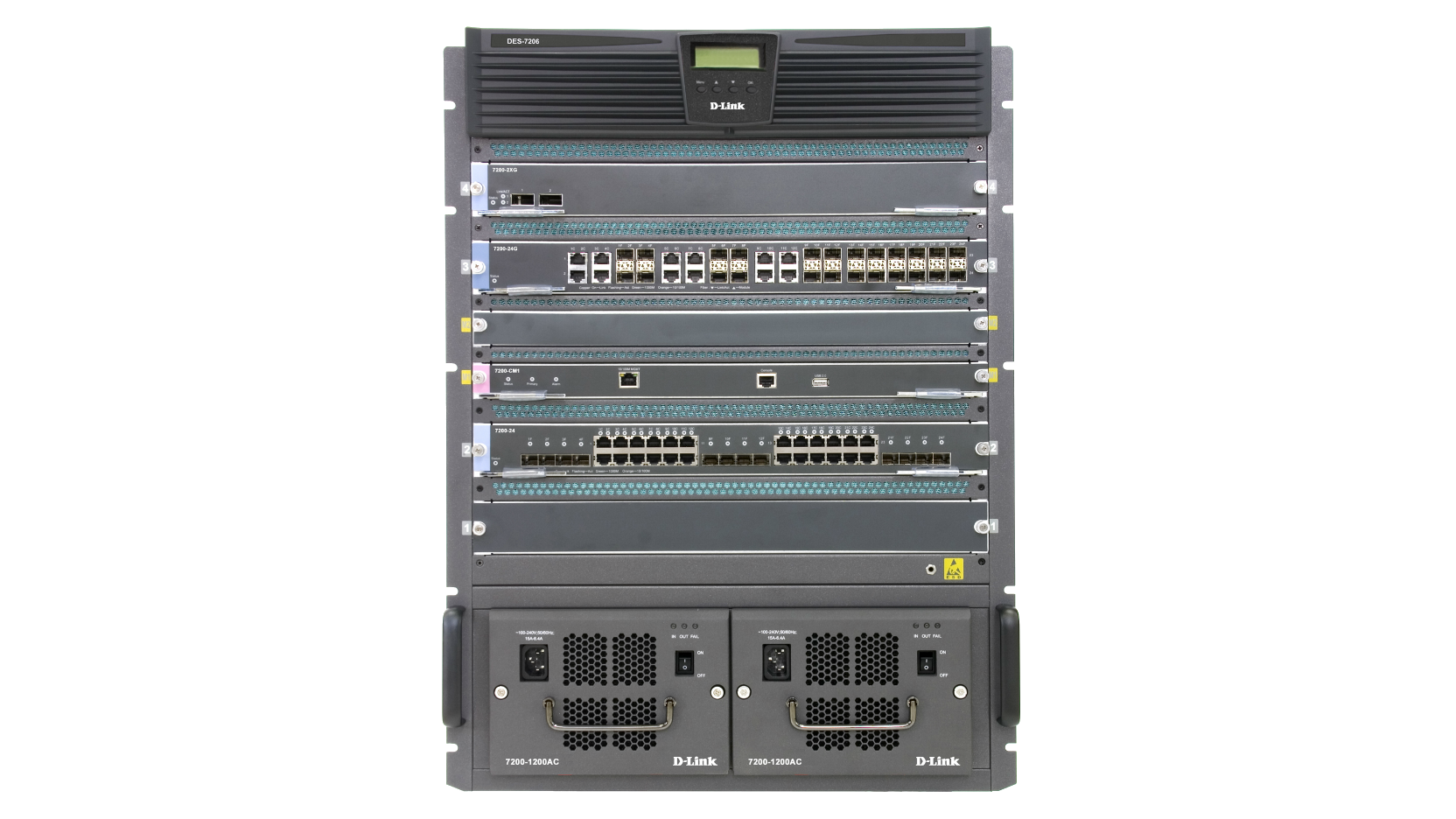

  • DES-7206-BASE: 6-Slot Chassis-Based Managed Switch
  • Discontinued - DES-7210-BASE: 10-Slot Chassis-Based Managed Switch

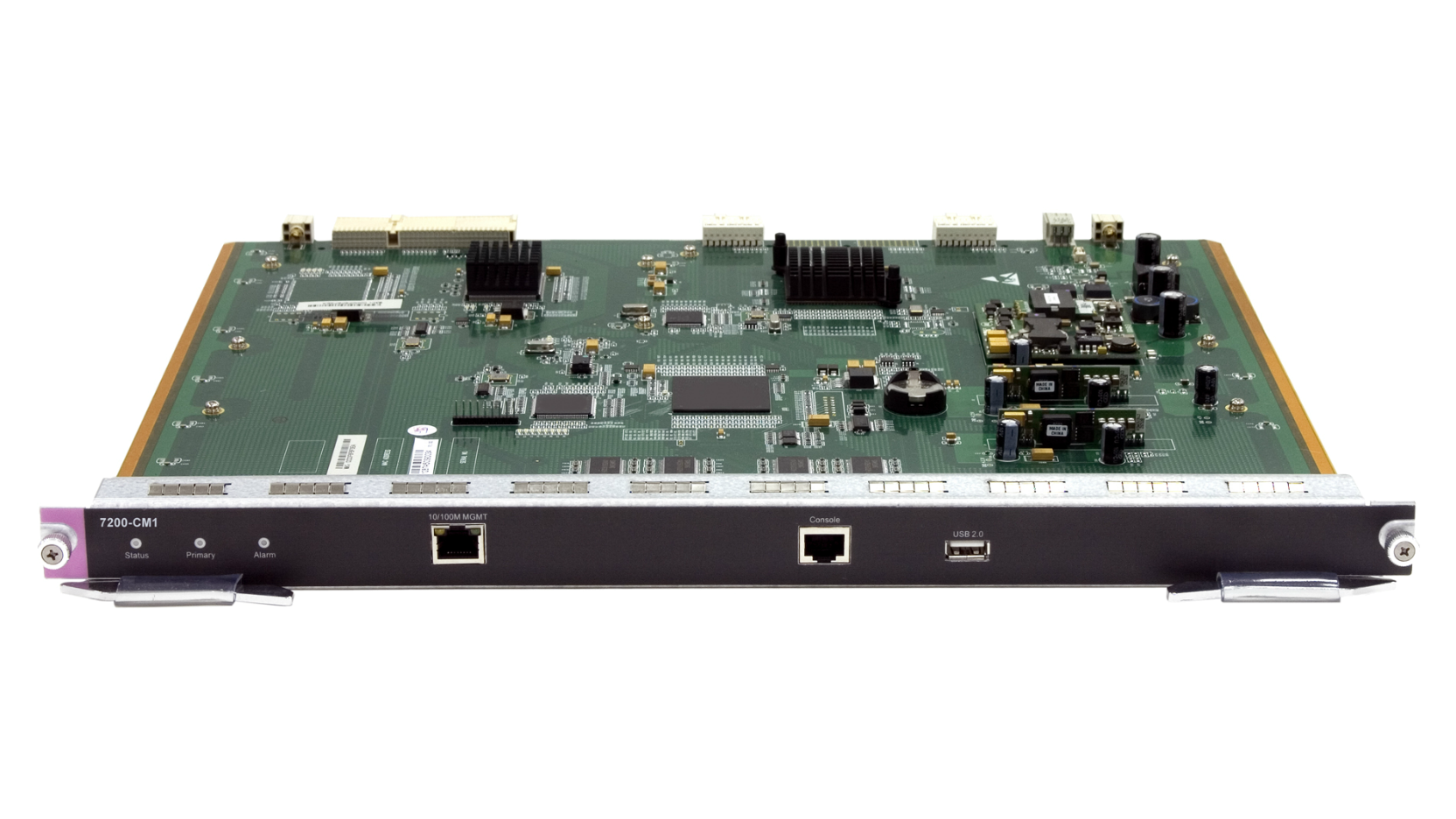

  • DES-7200-CM1: CPU Module for DES-7206 with 96G Switching Capacity

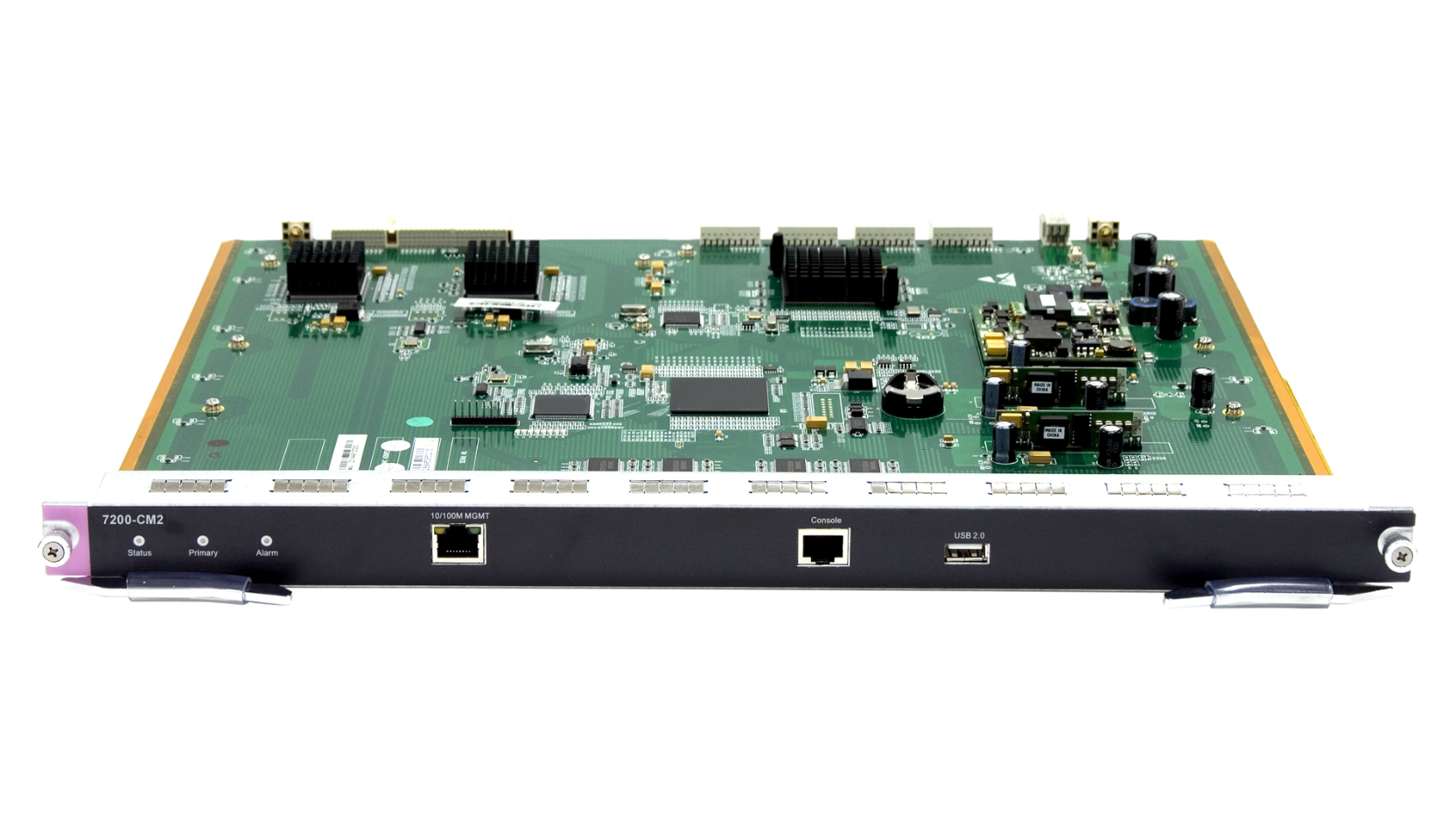

  • Discontinued - DES-7200-CM2: CPU Module for DES-7210 with 192G Switching Capacity

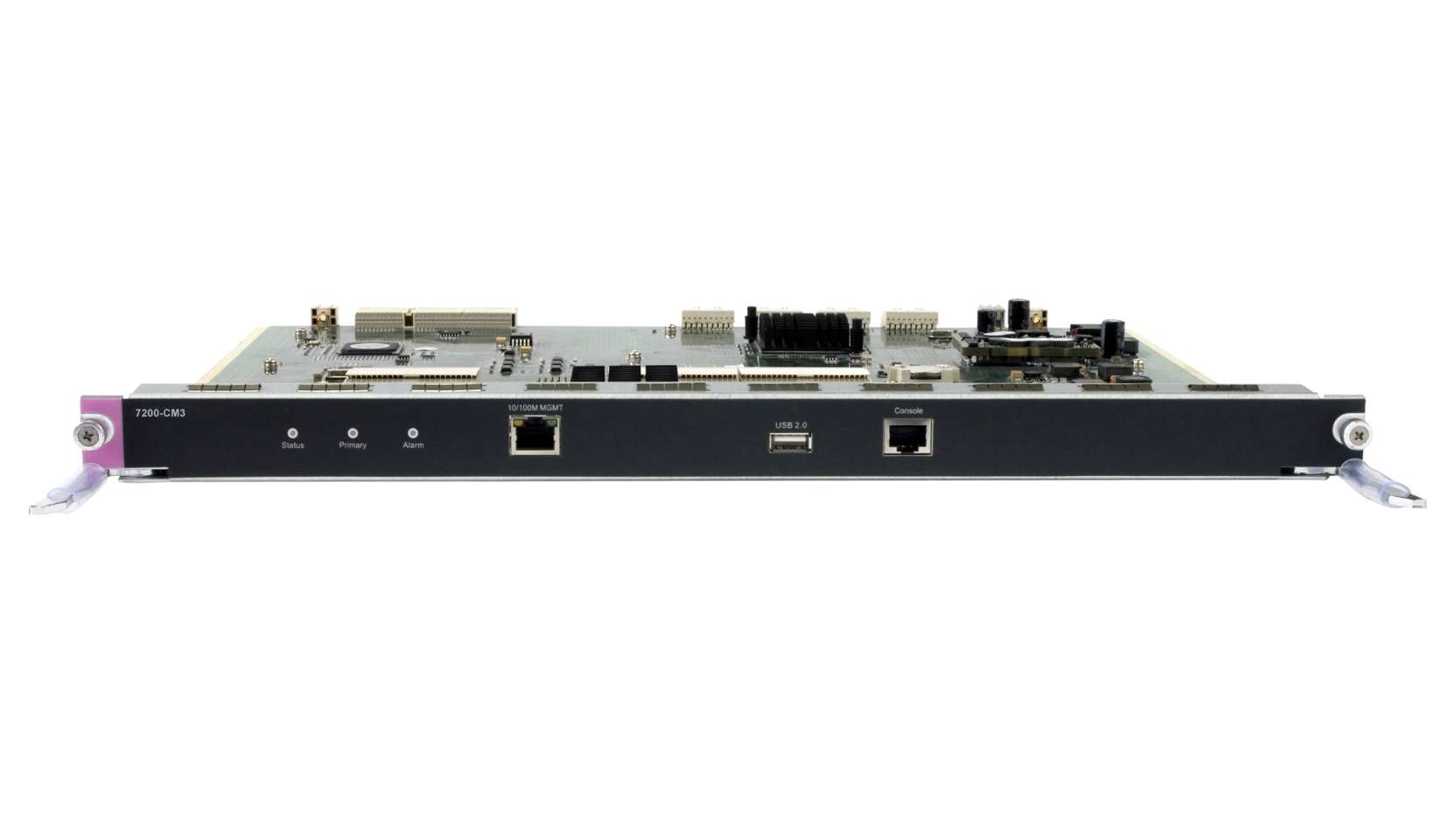

  • DES-7200-CM3: CPU Module for DES-7206 with 96G Switching Capacity and Support for Advanced Server Engine (ASE)

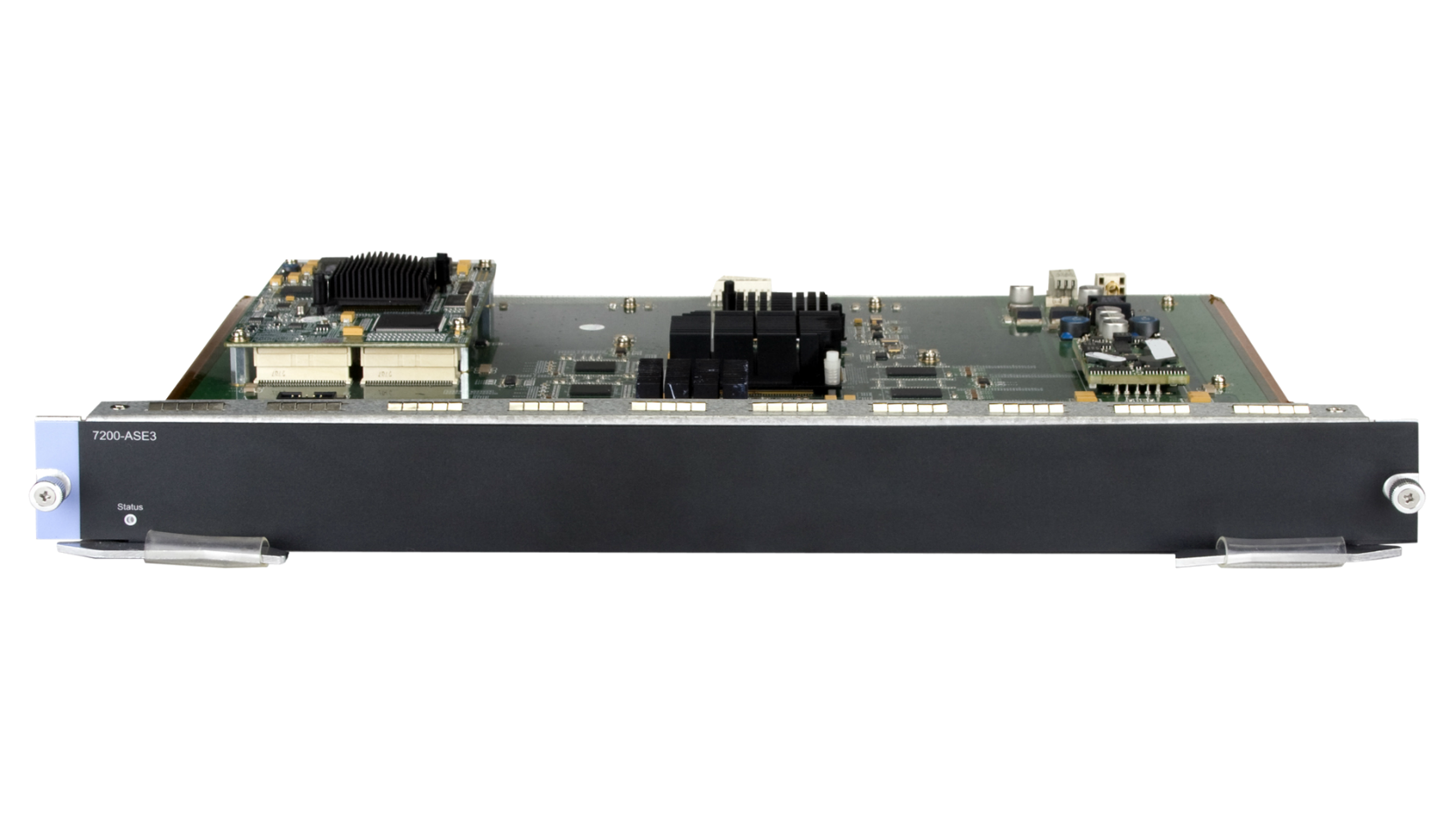

  • DES-7200-ASE3: Advanced Service Engine Module for DES-7200 Series with MPLS Support

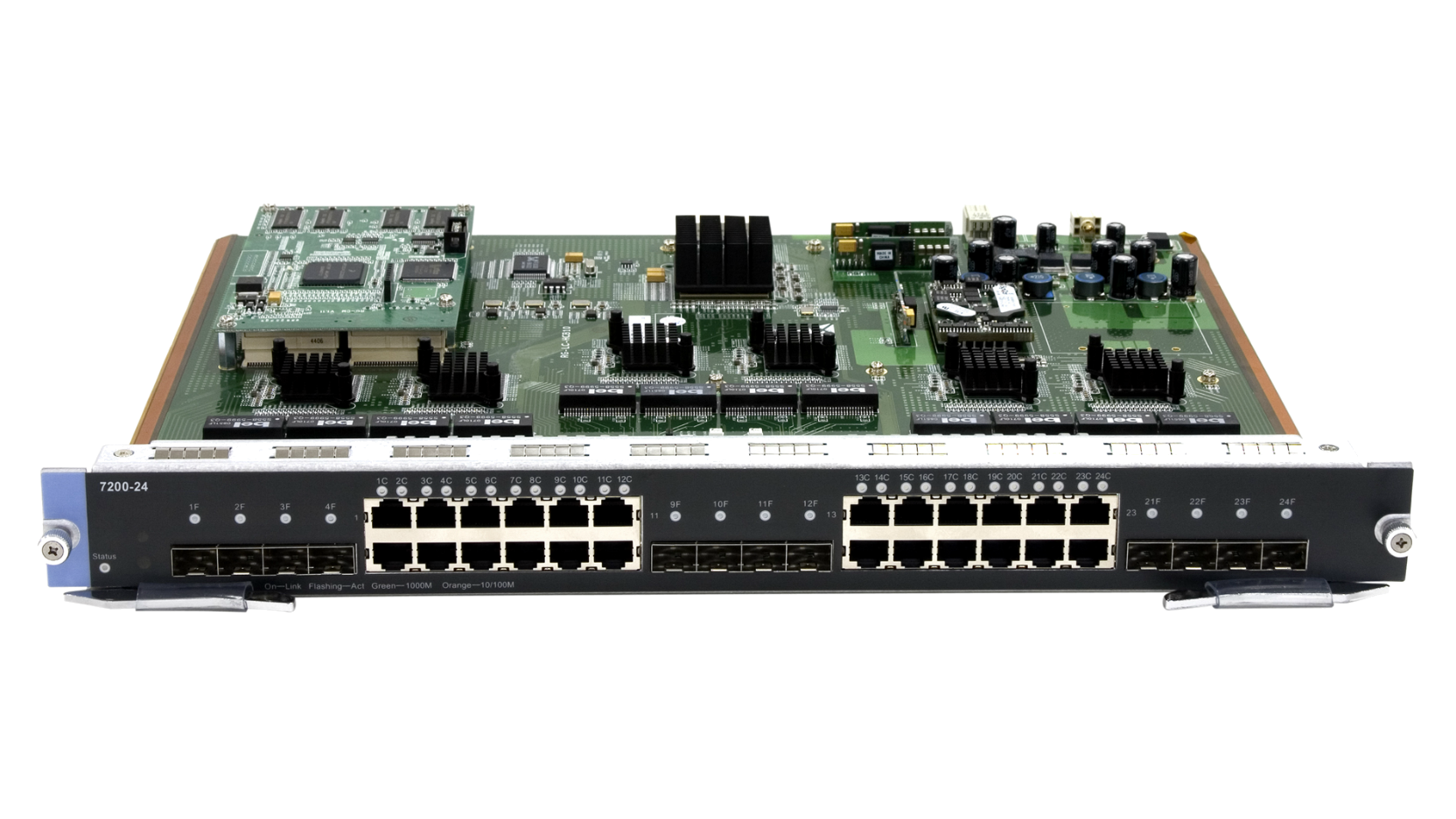

  • DES-7200-24: 12-Port 10/100/1000BASE-T and 12-Port Combo 1000BASE-T/SFP Module for DES-7200 Series

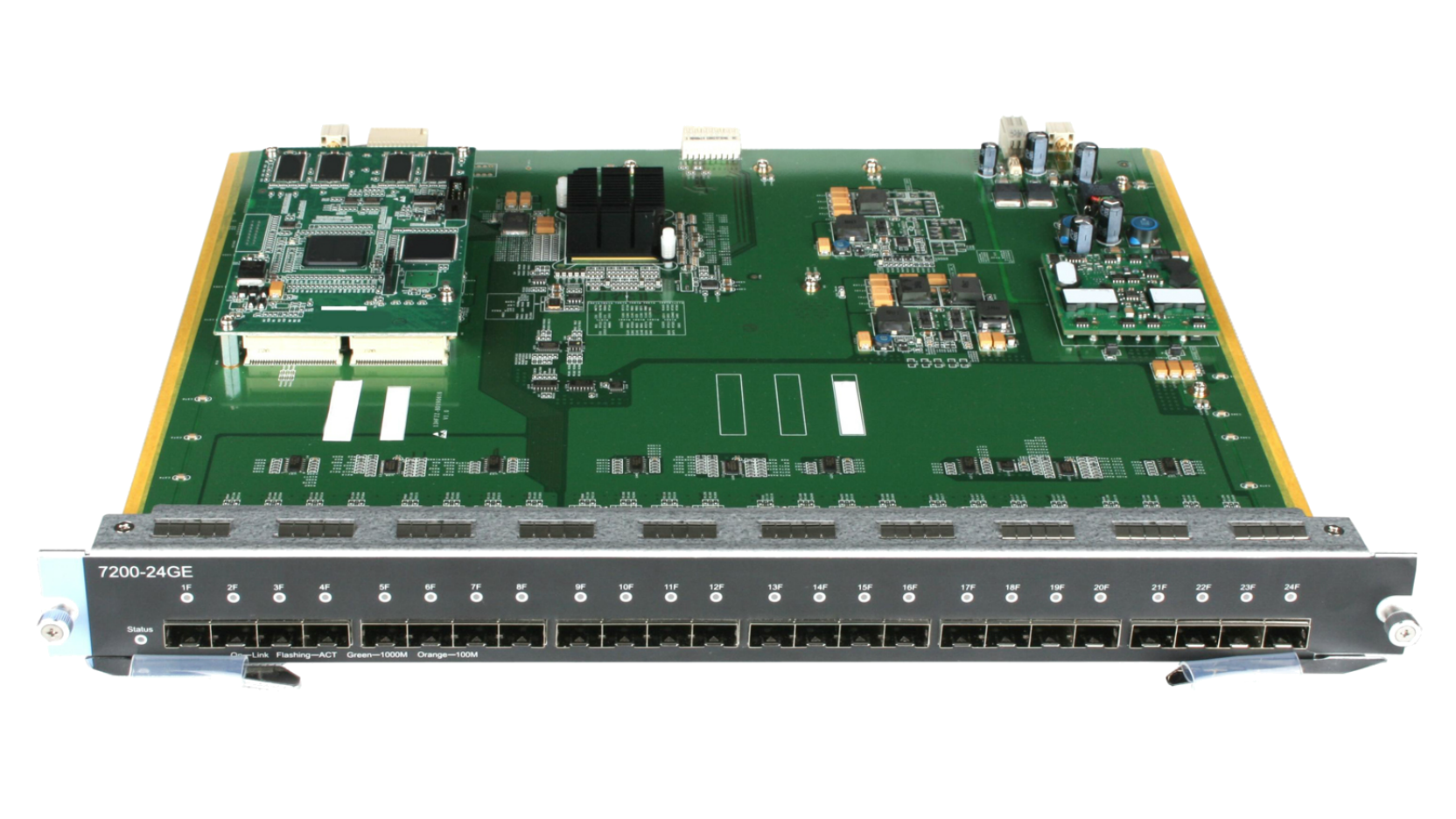

  • DES-7200-24GE: Enhanced 24-Port  SFP Module for DES-7200 Series

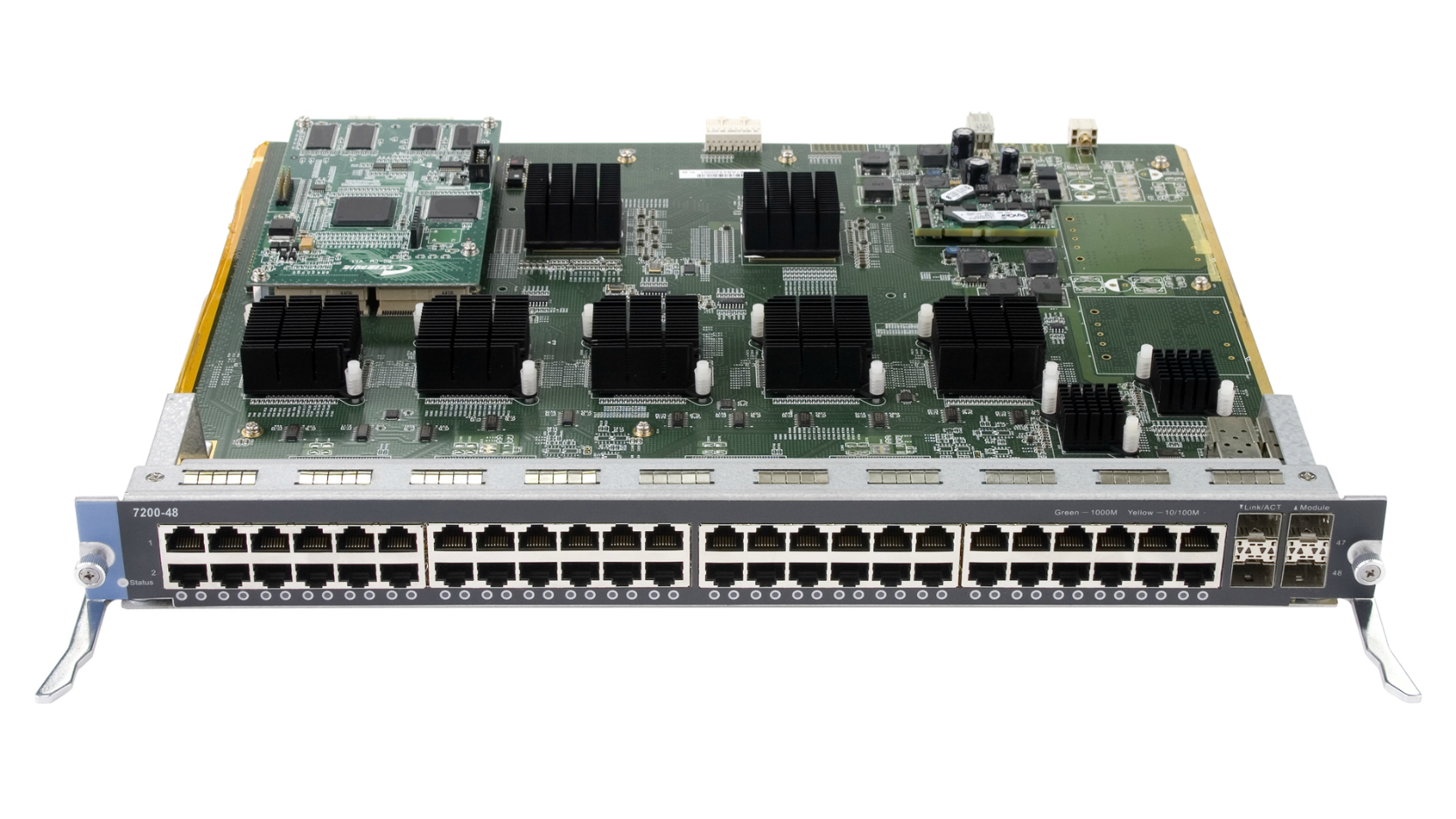

  • DES-7200-48: 44-Port 10/100/1000BASE-T and 4-Port Combo 1000BASE-T/SFP Module for DES-7200 Series

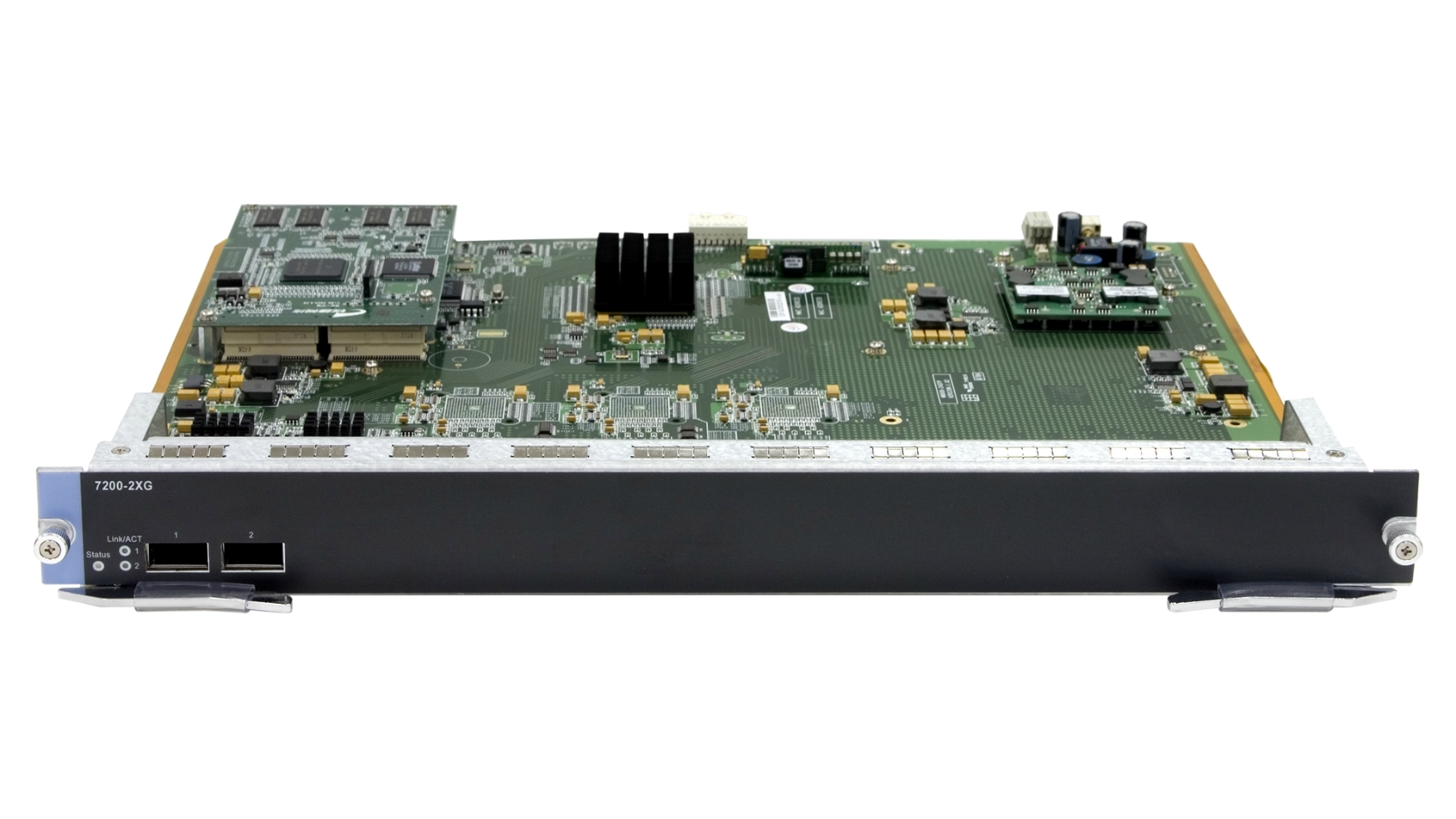

  • DES-7200-2XG: 2-Port 10G XFP Module for DES-7200 Series
  • DES-7200-1200AC: 1200W AC Power Module for DES-7200 Series

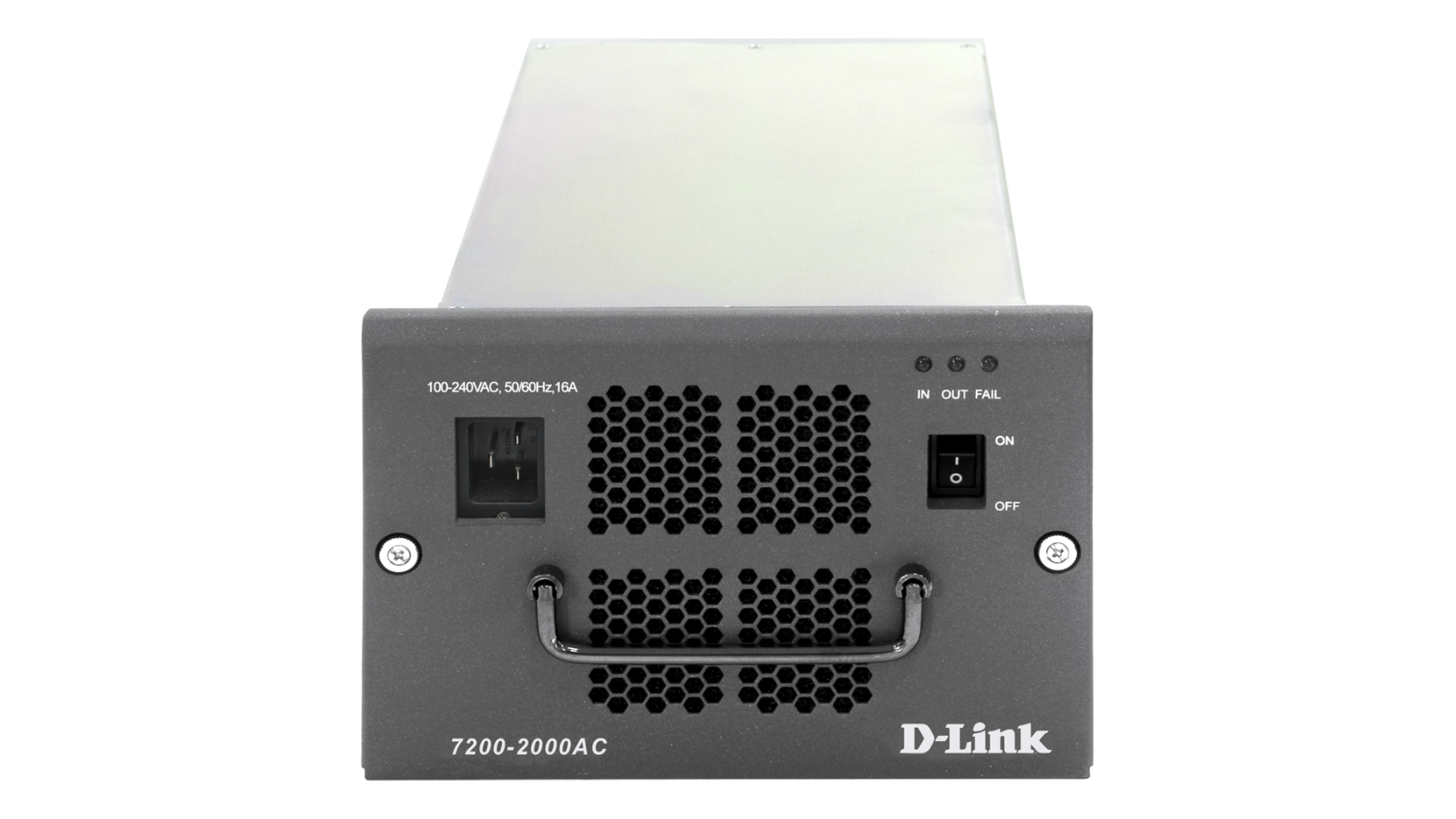

  • DES-7200-2000AC: 2000W AC Power Module for DES-7200 Series

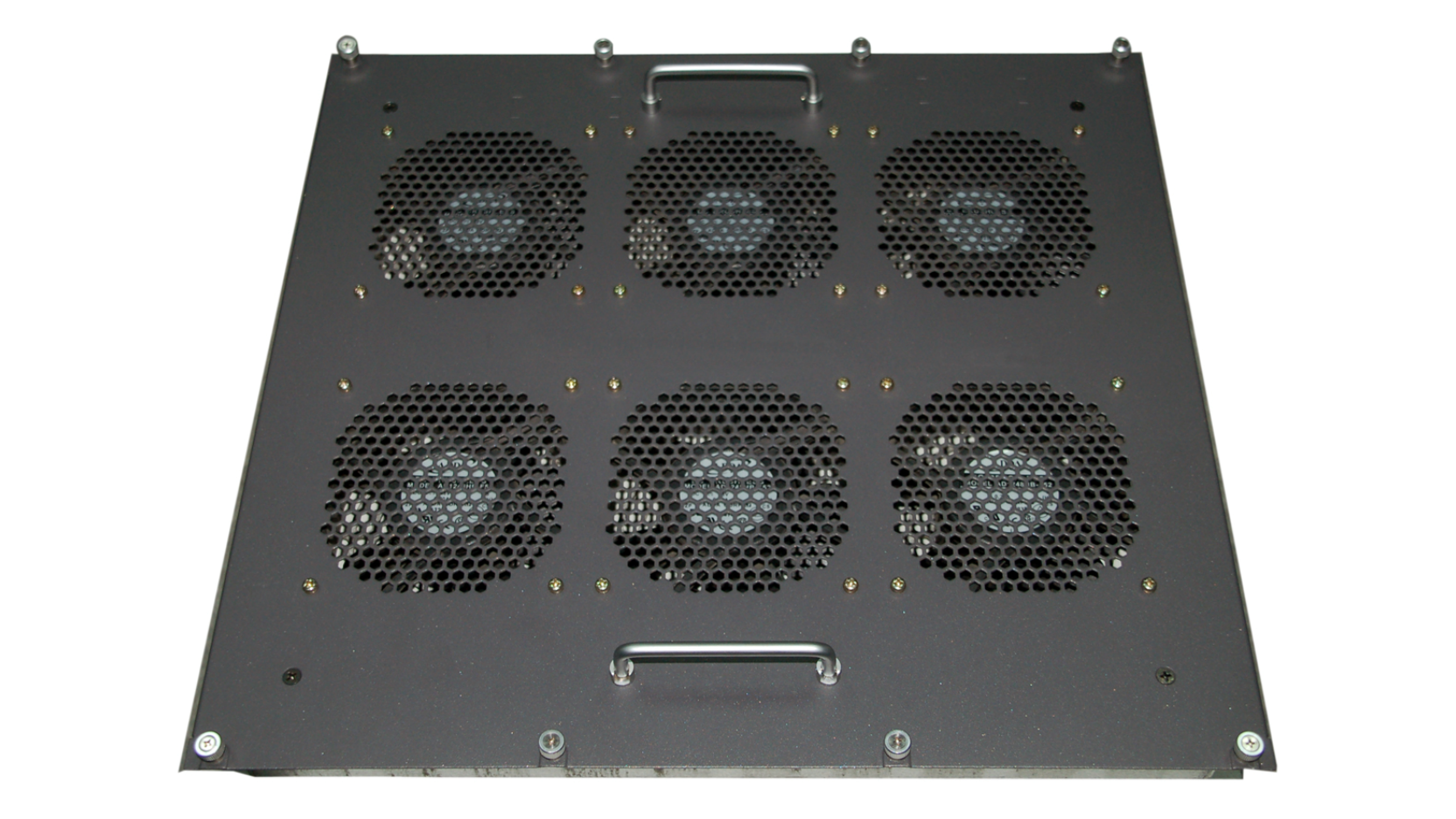

  • DES-7206-FAN: Replacement Fan Module for DES-7206

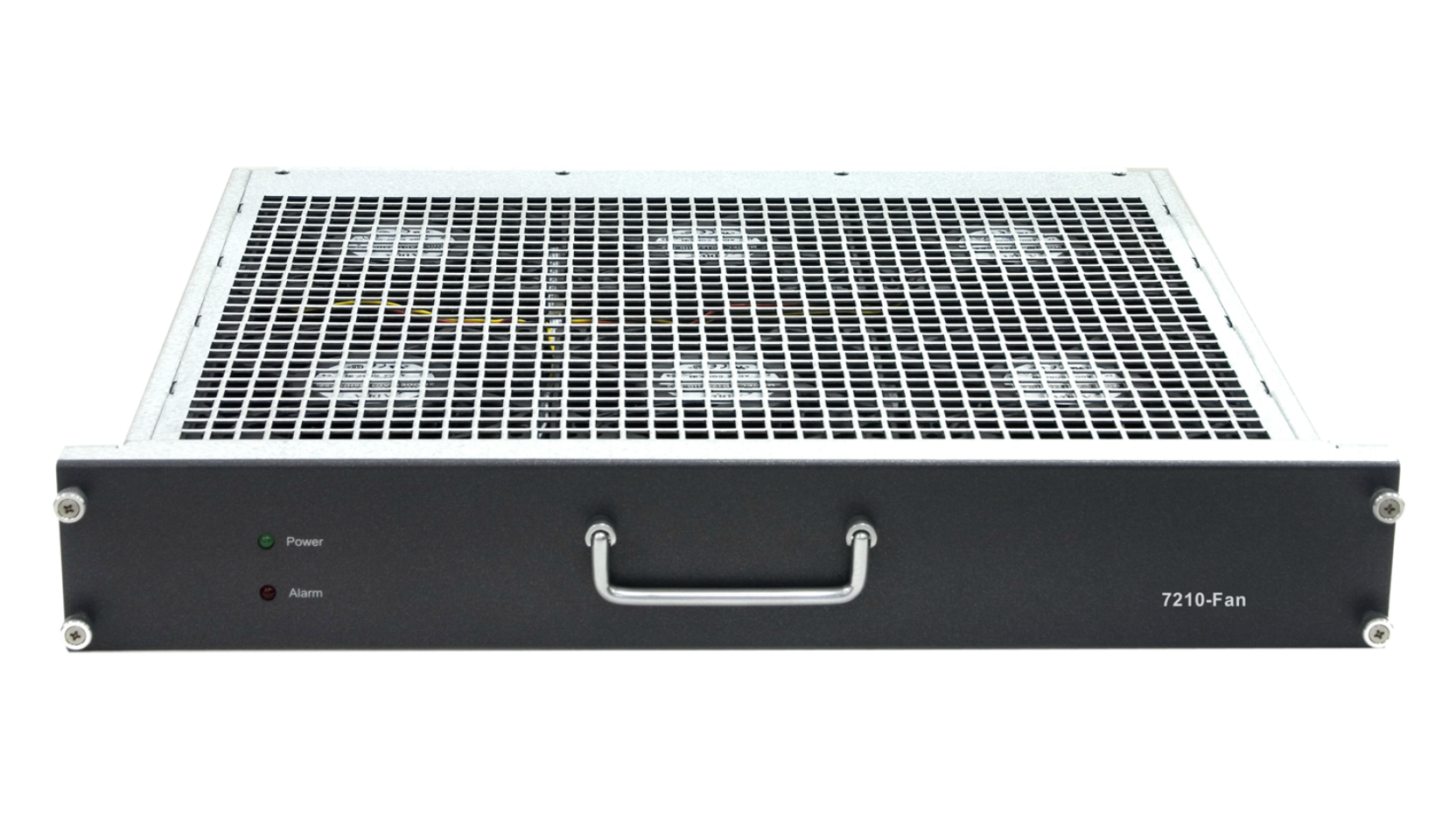

  • DES-7210-FAN: Replacement Fan Module for DES-7210

D-Link’s DES-7200 series of chassis-based switches are intelligent and high-performance multi-layer LAN devices designed for enterprise campus and metropolitan area networks (MAN). They are ideal for deployment in environments where uninterrupted running of network applications and a high level of performance, security, and control are required.

Featuring a flexible modular architecture and industry standard compliance, these switches provide scalable expansion and a high level of investment protection for businesses and telecom carriers deploying Gigabit and 10-Gigabit packet switching and routing for office networking and Ethernet-based Internet services to homes.

The DES-7200 series features minimum to zero network downtime, robust security, and real-time running of bandwidth-intensive applications. Equipped with high-speed switch fabrics, redundant backup/load sharing capability, and advanced software functions including complete IPv6 support, these switches provide the performance, high availability, and future-proof architecture suitable for applications of not just today but those of the future.

The DES-7200 series offers end-to-end connectivity and granular application control with two chassis supporting a wide range of port modules:

DES-7206

  • 6-slot chassis
  • 2 slots for dual control modules with dual load-sharing/redundant switch fabrics of up to 192 Gbps
  • 4 slots for user-selectable port modules
  • 2 slots for redundant backup power supplies
  • 1 slot for a fan module
  • Up to 192 Gbps switch fabric
  • 142 Mpps packet forwarding rate
  • Up to 192 Gigabit ports
  • Up to 16 10-Gigabit ports

Flexible Modular Design

The DES-7200 series is available in two models: the DES-7206 6-slot chassis with 6 open slots, and the DES-7210 10-slot chassis with 10 open slots. Two open slots are reserved for redundant backup control modules and the other open slots can be fitted with user-selectable port modules. In addition to the open slots, there are 2 slots for redundant backup power supplies, and one slot for a replaceable fan module. This modular architecture allows modules to be gradually added to meet network growth, and modules to be easily swapped anytime to fit network requirement changes.

Deployable as Core or Distribution Switch

Using a common set of modules for 10/100/1000BASE-T ports, PoE support, SFP, and 10-Gigabit uplinks, IT personnel can fit a DES-7200 series switch with different port types and deploy it either as a core switch or an aggregation (i.e. distribution) switch. As a core switch, the DES-7200 series provides numerous high-speed fibre backbones for a campus and central office network, while as an aggregation switch can provide high port density connections to workstations in an office environment, or to a subscriber’s CPE in a densely populated Ethernet metro area network.

High Availability

Both the DES-7206 and the DES-7210 provide 2 slots for control modules. Each control module is equipped with its own switch fabric and management agent, and can be used for redundant backup and sharing of network traffic load and management tasks. Additionally, 2 redundant backup power supplies and a hot swappable fan module help create highly available chassis-based devices suitable for mission-critical network applications.

High Performance

The DES-7206 6-slot switch provides a switching capacity of up to 192 Gbps and system performance of up to 142 Mpps. The DES-7210 10-slot switch provides a switching capacity of up to 384 Gbps and system performance of up to 286 Mpps. To make use of this high-performance hardware, these switches utilize a distribution switching method which has each line card (the port module that directly connects to the network nodes) intelligently determine the switch path for each data packet. The switches synchronize the switching and routing information between the control cards and the line cards to map out the fastest data transfer path. With each line card capable of performing L2/3/4 on-board packet switching without reliance on the control cards, the DES-7200 series switches can deliver very fast packet forwarding at almost zero-wait speed.

High Port Densities

Port densities can reach 192 Gigabit or 16 10-Gigabit ports per 6-slot chassis, or 384 Gigabit or 32 10-Gigabit ports per 10-slot chassis. All port modules are hot-swappable, and can be used in either chassis type without the need to change hardware or software settings.

Application Convergence

The DES-7200 series combines high-speed hardware with software functions like prioritized traffic QoS and multicast routing to deliver performance suitable for real-time applications such as Internet telephony, streaming multimedia, and TV. In addition, these switches offer Power over Ethernet (PoE) solutions to provide both electrical power and network connectivity to PoE-capable devices, such as IP phones and wireless AP, and are ideal for large-scale enterprise edge deployment. An example of this application convergence would be VoIP for mobile users via wireless access points connected through DES-7200 series switches.

Complete IPv6 Support

The DES-7200 series provides complete support for IPv6 to accommodate the potential huge increase in number of users and geographical needs of the expanding Internet. It addresses the requirements of emerging applications such as Internet-enabled wireless devices, home and industrial appliances, Internet-connected transportation, integrated telephony services, sensor networks, distributed computing, and gaming. The use of globally unique IPv6 addresses simplifies the mechanisms used for reachability and end-to-end security for network devices that are crucial to the applications and services that are driving the demand for IP addresses.

Enterprise-Wide Security

The DES-7200 series provides not only network access security but also protection against virus and worm attacks. Access security is provided through comprehensive policy-based ACL, port security, IPMAC-Port binding features, and Defeat IP Scan, while attacks hidden behind control protocols are thwarted to prevent the switch’s CPU from being overwhelmed with unnecessary tasks which can cause degradation to a network’s performance. The DES-7200 series extends security to network management via such functions as SSH v2 and SNMP v3 with authentication and encryption of management traffic.

MPLS Functions

With the Advanced Service Engine (ASE), the DES-7200 series supports many advanced Multiprotocol Label Switching (MPLS) functions, including MPLS label management, LDP, and MPLS L2/L3 VPN, enabling enterprises and service providers to build next-generation intelligent networks that deliver a wide variety of advanced, value-added services over a single infrastructure. This solution can be integrated seamlessly over any existing infrastructure, such as IP, Frame Relay, ATM, or Ethernet. Subscribers with differing access links can be aggregated on an MPLS edge without changing their current environments, as MPLS is independent of access technologies.

QoS & Bandwidth Management

The DES-7200 series supports numerous advanced traffic management options including flow-based bandwidth control and broadcast/multicast storm control. It provides egress traffic bandwidth control with minimum granularity of 64 Kbits. Combining Rate Limiting applicable to categories of subscriber CPE and access control-based accounting, the DES-7200 series provides functions that are useful for carriers offering services to home users in a metropolitan Ethernet network.

Comprehensive Management

To maximize management uptime, the DES-7200 series provides optional dual redundant backup management agents in the same chassis. It offers a comprehensive set of management features to provide enterprise-wide visibility and control to network administrators for configuration, access and traffic monitoring and troubleshooting. These features are accessible through a CLI, Telnet, or SNMP console. RMON monitoring is supported, and complete debug, system, and alert information is provided.

* Please note that DES-7210 has been discontinued in the European region.

Related Products

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
SFP 100Base-FX Multi-mode Fibre Transceiver
DEM-211
Find out more
Number of ports
100 to 200 ports
Layer
Layer 3
Main type of ports
1000BASE-T Gigabit Ethernet
SFP
Type of uplink ports
10GbE XFP
Combo 1000BASE-T/SFP
SFP
Switching capacity
192 Gbps
Form Factor
Chassis-based
MAC address
16K
32K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
Port-based
Protocol-based
Advanced VLAN
Double VLAN (Q-in-Q)
Super VLAN
IPv4/IPv6 routing table
IPv4 - 12K
IPv4 - 192K
IPv6 - 6K
IPv6 - 96K
IP interfaces
2000
IPv6 Ready
Supported
IPv6 tunneling
Supported
Multicasting
Supported
PIM-SM
Supported
RIP v1/v2
Supported
OSPF
Supported
BGP
Supported
OSPFv3
Supported
MPLS
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
IP-MAC-port binding (IMPB) / Smart Binding
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1
Supported
This product was phased out on: 08/01/2015
