12-Port 1000Base-T 2 Combo Mini-GBIC Module
DES-6507
- Product Status (Revision A): End of Life
Description

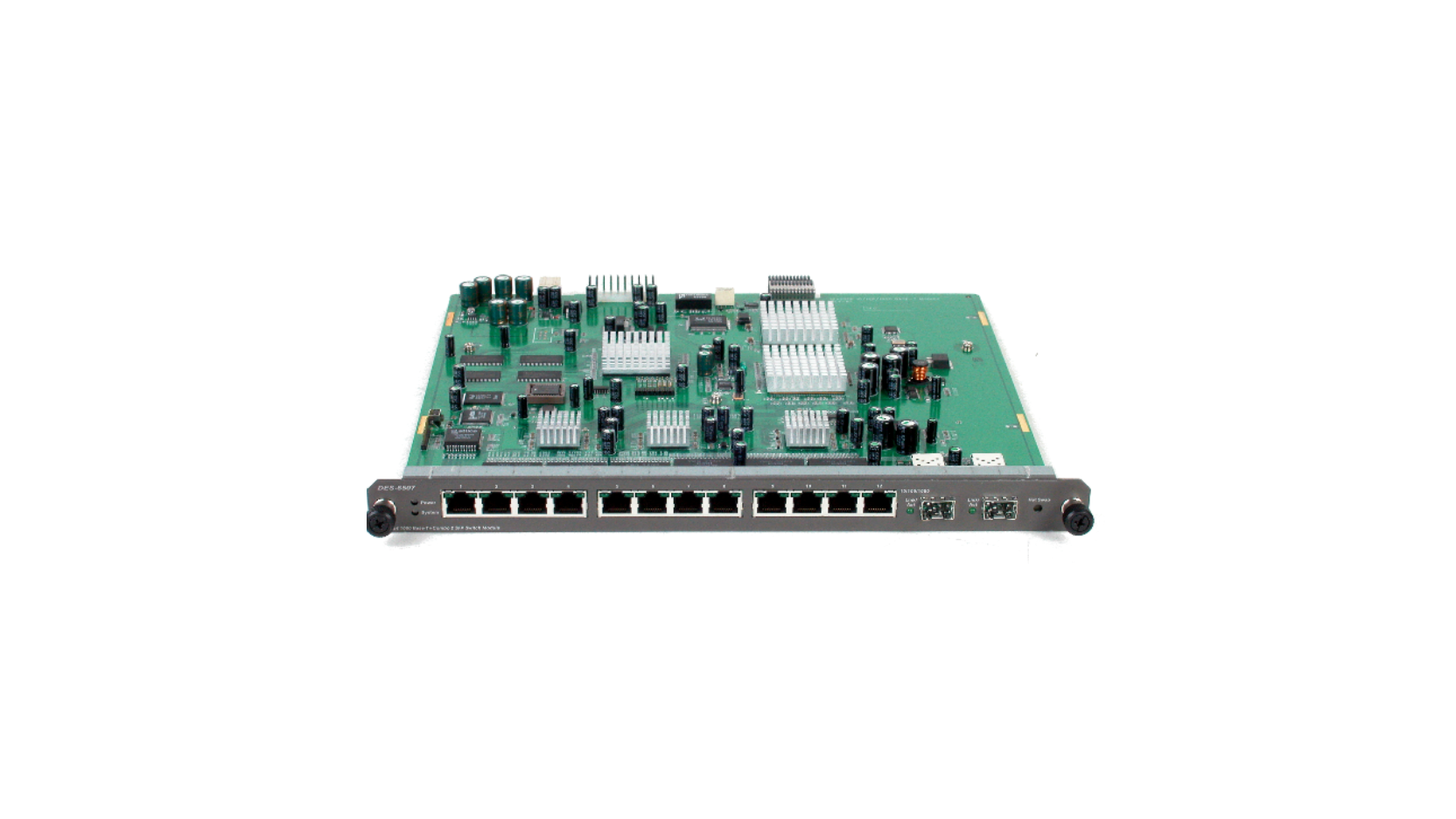

The D-Link DES-6507 is a 12-Port Gigabit Module for the DES-6500 Chassis that allows you to further customize your switching experience.
The DES-6507 is a 12-Port RJ-45 Module for the D-Link DES-6500 Chassis Switch. This module supports up to 12 10/100/1000BASE-T ports and is fully compliant with the IEEE 802.3ab standard. Additionally there are 2 optional SFP combo ports that provide fiber links to distant nodes. When the 2 SFP ports are used, 2 of the RJ-45 ports will be disabled.
The DES-6507 follows all industry standards. It provides auto MD-I/MDI-II crossover on all ports, and also includes a full panel of LED light indicators displaying link established, link down, and link activity. By pressing the hot swap button, the module can be removed without affecting the performance of the xStack DES-6500 Chassis switch.
The D-Link DES-6507 is a 12-Port Gigabit Module for the DES-6500 Chassis that allows you to further customize your switching experience.
The DES-6507 is a 12-Port RJ-45 Module for the D-Link DES-6500 Chassis Switch. This module supports up to 12 10/100/1000BASE-T ports and is fully compliant with the IEEE 802.3ab standard. Additionally there are 2 optional SFP combo ports that provide fiber links to distant nodes. When the 2 SFP ports are used, 2 of the RJ-45 ports will be disabled.
The DES-6507 follows all industry standards. It provides auto MD-I/MDI-II crossover on all ports, and also includes a full panel of LED light indicators displaying link established, link down, and link activity. By pressing the hot swap button, the module can be removed without affecting the performance of the xStack DES-6500 Chassis switch.
Specs
Technical Specifications
Product/Performance Specifications
DES-6507
LEDs
Interface Option
Network Protocols and Standards
Physical and Environmental
Weight
Heat Dissipation
Power Consumption
Temperature
Humidity
Warranty Information
Warranty
Ordering Information
DES-6507
Transceivers Description
DEM-310GT
DEM-311GT
Product/Performance Specifications
DES-6507
- 12-Port 10/100/1000BASE-T with 2 Combo SFP Module
LEDs
- Power, System, Link/Activity, Speed
Interface Option
- SFP 2 Slots for Optional Transceivers with LC Connectors (sold separately)
Network Protocols and Standards
- IEEE IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3z Gigabit, IEEE 802.3x Compliant Flow Control Support for Full-duplex, Back Pressure Flow Control Support for Half-duplex mode
Physical and Environmental
- Dimensions (W x D x H) 13 x 11.07 x 1.08in (330.2 x 281.18 x27.43mm)
Weight
- 2.58lbs (1.2kg)
Heat Dissipation
- 106.36BTU/hr
Power Consumption
- 30 Watts Maximum
Temperature
- Operating: 0˚C to 40˚C (32˚F to 104˚F)
- Storage: -25˚C to 55˚C (-13˚F – 131˚F)
Humidity
- Operating: 20% to 80% Non-condensing
- Storage: 5% to 95% Non-condensing
Warranty Information
Warranty
- Limited Lifetime Warranty
Ordering Information
DES-6507
- 12-Port 10/100/1000BASE-T Modulewith 2 Combo SFP Uplinks
Transceivers Description
DEM-310GT
- 1000BASE-LX SFP/Mini-GBIC Transceiver (up to 10Km)
DEM-311GT
- 1000BASE-SX SFP/Mini-GBIC Transceiver (up to 550m)
Support
This product was phased out on: 01/12/2010
This product's last date of support is on: 30/11/2015
