xStack 24-Port L2 10-100Mbps Switch with 2 Combo SFP Gigabit Ports


  • Product Status (Revision A): End of Life

Project-based item only. Please contact us for further information.

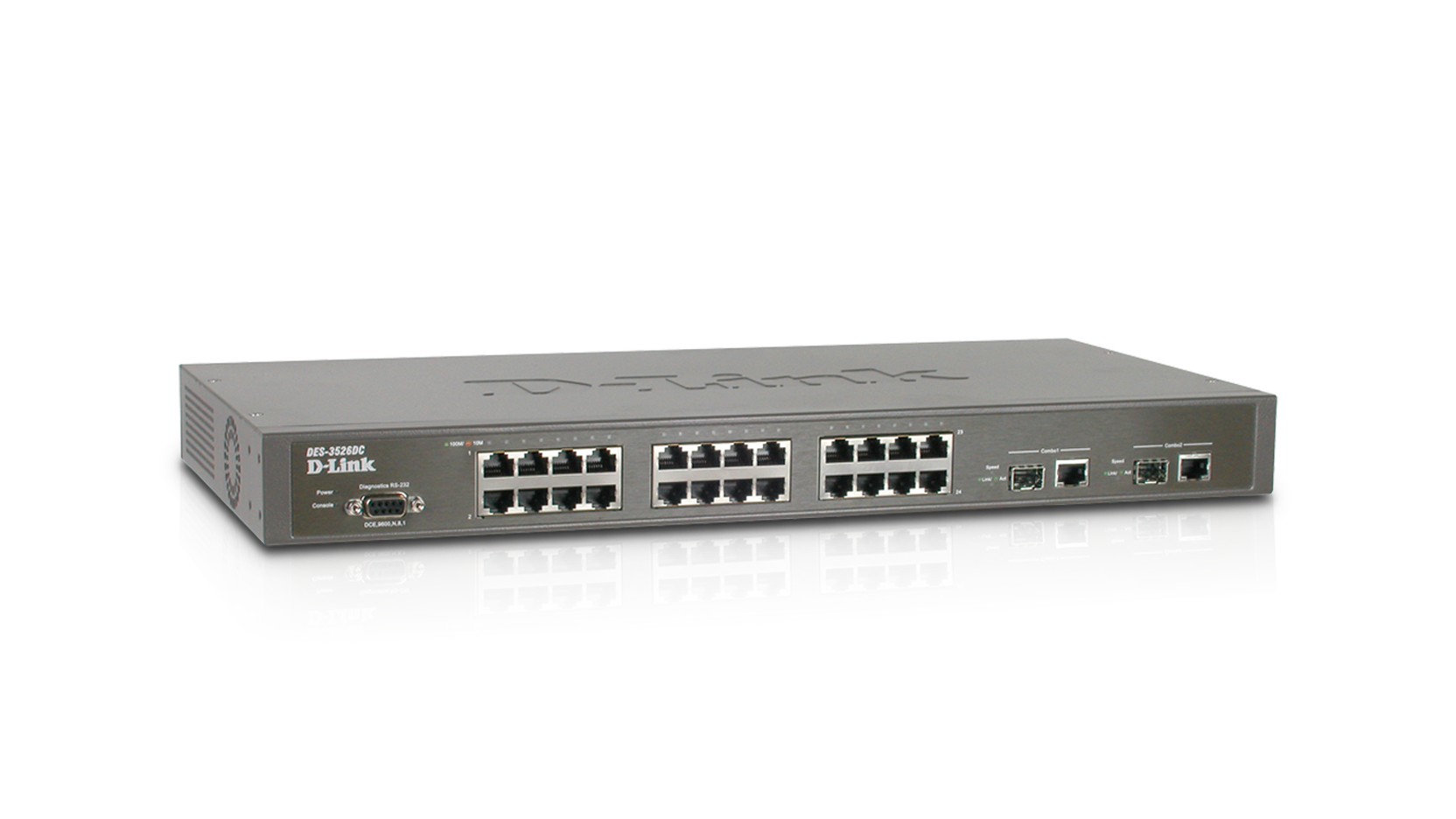

Actual product appearance may differ from the image displayed on this page

  • 48 V DC (24) ports 10/100BASE-T plus 2 Combo 10/100/1000Mbps Copper/ SFP ports*
MAC Address Table Size
  • 8,000
Switch Fabric
  • 8.8Gbps switching capacity
Transmission method
  • Store-and-Forward
Spanning Tree Support
  • 802.1d, 802.1w and 802.1s support
  • Supports up to 255 Dynamic/ 64 Static VLAN groups (Port-based, Asymetric Port Based, 802.1q and GARP/GVRP)
Access Control Lists
  • L2/L3/L4 filtering rules based On MAC address, IP Address, 802.1p, DSCP, TCP/UDP payload, and/or TCP/UDP port numbers
Link Aggregation
  • 802.3ad and LACP support
Port Security
  • Port lock down to MAC Address
IGMP Snooping
  • Supports up to 128 L2 Multicast Groups

Interface Options


  • 10BASE-T, 100BASE-TX & 1000BASE-T
  • Support For Standard 3.3 Volt SFPs

Network Management

In Band & Out of Band

  • Telnet, CLI/Console, RMON (4 Groups), Web-based HTTP, SNMPv1/v2c/v3 Compatible & Port Mirroring

Network Protocol and Standards


  • 802.3 Ethernet, 802.3u Fast Ethernet,802.3ad Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Group, 802.1p Priority Tags, 802.1Q VLANs, 802.3ad Link Aggregation Control, 802.3x Flow Control, 802.1x Port-based Network Access Control, and 802.1x MAC-based Network Access Control
  • RFC 1157 SNMP, RFC 1757 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 1643 Ether-like MIB, RFC 2674 802.1p, IF MIB

Electrical & Electrical Emissions


  • CE Mark, & FCC Class A, C-Tick, VCCI Class A
Power Supply
  • 60W DC Power Input; -48 V, output 12V. Internal universal power supply

Safety Agency Certifications


  • CSA International

Physical and Environmental


  • 441(W) x 207(D) x 44(H)mm (17.36 x 8.26 x 1.69 inches) 19-inch rack-mount width
  • 1U
  • 4.0 kg (8.89 lb.)
  • Operating: 0° - 40° C (32° - 104° F)
  • Storage: -40° - 70° C (-40° - 158° F)
  • Operating: 5% to 95% RH, Non-Condensing

Warranty and Support Information


  • Limited Lifetime Warranty
  • Free Technical Support

Ordering Information

  • Part Number
  • Description
  • -48V DC Managed stackable layer 2 switch with (24) 10/100Base-T ports , plus 2 10/100/1000 Copper/SFP ports*
  • 1000BASE-LX 3.3V Mini GBIC Up to 550m (Multimode) Up to 10km (Singlemode)
  • 1000BASE-SX 3.3V Mini GBIC, Up to 220m/550m (Multimode)
  • 1000BASE-SX+ 3.3V Mini GBIC Up to 2km (Multimode)
  • 1000BASE-LH+ 3.3V Mini GBIC Up to 50km (Singlemode)
  • 1000BASE-ZX+ 3.3V Mini GBIC Up to 80km (Singlemode)
This product was phased out on: 07/08/2010
This product's last date of support is on: 06/08/2015
Version Date Type File Size
Datasheet - PDF 0.74mb Download
Version Description Date Type File Size
Manual for v5 firmware Manual for v5 firmware 28.2.2013 PDF 12.56mb Download
CLI Reference Manual v5.1 CLI Reference Manual v5.1 28.2.2013 PDF 1.38mb Download
Version Description Date Type File Size
1.0 Quick Installation Guide 28.2.2013 PDF 0.18mb Download
Version Description Date Type
Firmware 5.01B65 Firmware 24.11.2009 - Download
Version Description Date
CE declaration CE declaration 20.10.2014 Download
