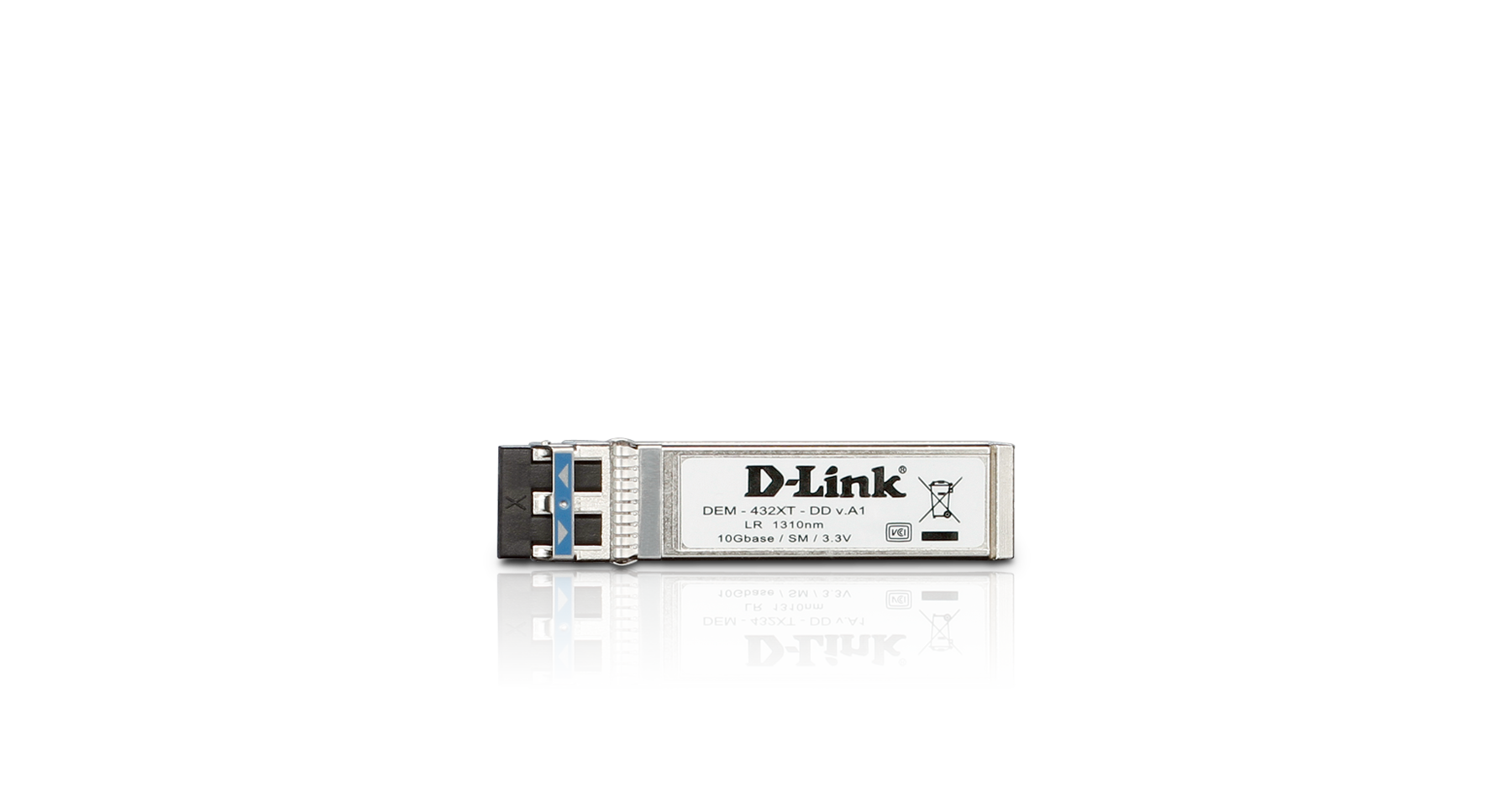

10GBASE-LR SFP+ Transceiver (with DDM)
DEM-432XT-DD
- Product Status (Revision A): End of Life
Description
The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density.
The DEM-432XT-DD is a 10GBASE-LR high performance 1310nm Single-Mode SFP+ transceiver with Digital Diagnostics Monitoring (DDM) support. It supports full duplex, 10Gigabit speeds on Single-Mode fiber for distances of up to 10Km. DDM allows Real time monitoring of critical device parameters including: bias current, transmit & receive power, temperature, and voltage. The DEM-432XT-DD is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
- 1310nm Single-Mode Transceiver
- 10Km Max Distance, Duplex LC Connector
- Digital Diagnostics Monitoring (DDM)
The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density.
The DEM-432XT-DD is a 10GBASE-LR high performance 1310nm Single-Mode SFP+ transceiver with Digital Diagnostics Monitoring (DDM) support. It supports full duplex, 10Gigabit speeds on Single-Mode fiber for distances of up to 10Km. DDM allows Real time monitoring of critical device parameters including: bias current, transmit & receive power, temperature, and voltage. The DEM-432XT-DD is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Specs
STANDARD
Standard Compliance
Form Factor Type
Fibre Channel FC-PI Standard
Fiber Media Support
Distance Capacity
FEATURES
Hot Pluggable
MSA Compliant
RoHS Compliant
MAC Address Update
DDM (Digital Diagnostics Monitoring)
Speed
INTERFACE
Connector
Single/Bi-Directional
Wavelength
Output Optical Power (TX Optical Power)
Input Optical Power (RX Optical Power)
Sensitivity
Cable Type
OPERATING
Power
Maximum Input Current
Minimum Power Budget
Maximum Power Budget
Heat Generated
RELIABILITY
MTBF (Hours)
PHYSICAL & ENVIRONMENTAL
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimensions(W x D x H)
Bail Latch Color
Certifications
EMISSION (EMI) AND SAFETY
EMI
Safety
Standard Compliance
- IEEE-802.3ae
- 10GBASE-LR
Form Factor Type
- SFP+
Fibre Channel FC-PI Standard
- 1200-SM-LL-L
Fiber Media Support
- Single-Mode
Distance Capacity
- 10 km
FEATURES
Hot Pluggable
- Yes
MSA Compliant
- Yes
RoHS Compliant
- Yes
MAC Address Update
- Yes
DDM (Digital Diagnostics Monitoring)
- Yes
Speed
- 10 Gbps
INTERFACE
Connector
- Duplex LC Connector
Single/Bi-Directional
- Single Direction
Wavelength
- 1310nm
Output Optical Power (TX Optical Power)
- Max.: 0.5 dBm
- Min.: -8.2 dBm
Input Optical Power (RX Optical Power)
- Max.: 0.5 dBm
- Min.: -12.6 dBm
Sensitivity
- -12.6 dBm
Cable Type
- Single-mode 9/125 μm fiber
OPERATING
Power
- 3.3 V
Maximum Input Current
- 285 mA
Minimum Power Budget
- 4.4 dB
Maximum Power Budget
- 17.6 dB
Heat Generated
- 3.4 kJ/h
RELIABILITY
MTBF (Hours)
- 3,390,000
PHYSICAL & ENVIRONMENTAL
Operating Temperature
- -5 to 70 °C
Storage Temperature
- -40 to 85 °C
Operating Humidity
- 0 to 85%
Storage Humidity
- 0 to 85%
Weight
- 0.05 lbs (22g)
Dimensions(W x D x H)
- 0.58 x 2.22 x 0.47 inches (14.8 x 56.5 x 11.85 mm) Compliant with SFF8432
Bail Latch Color
- Blue
Certifications
- FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
EMISSION (EMI) AND SAFETY
EMI
- CE, FCC, VCCI
Safety
- CSA, TUV, CDRH
Support
This product was phased out on: 12/04/2016
This product's last date of support is on: 12/04/2018
