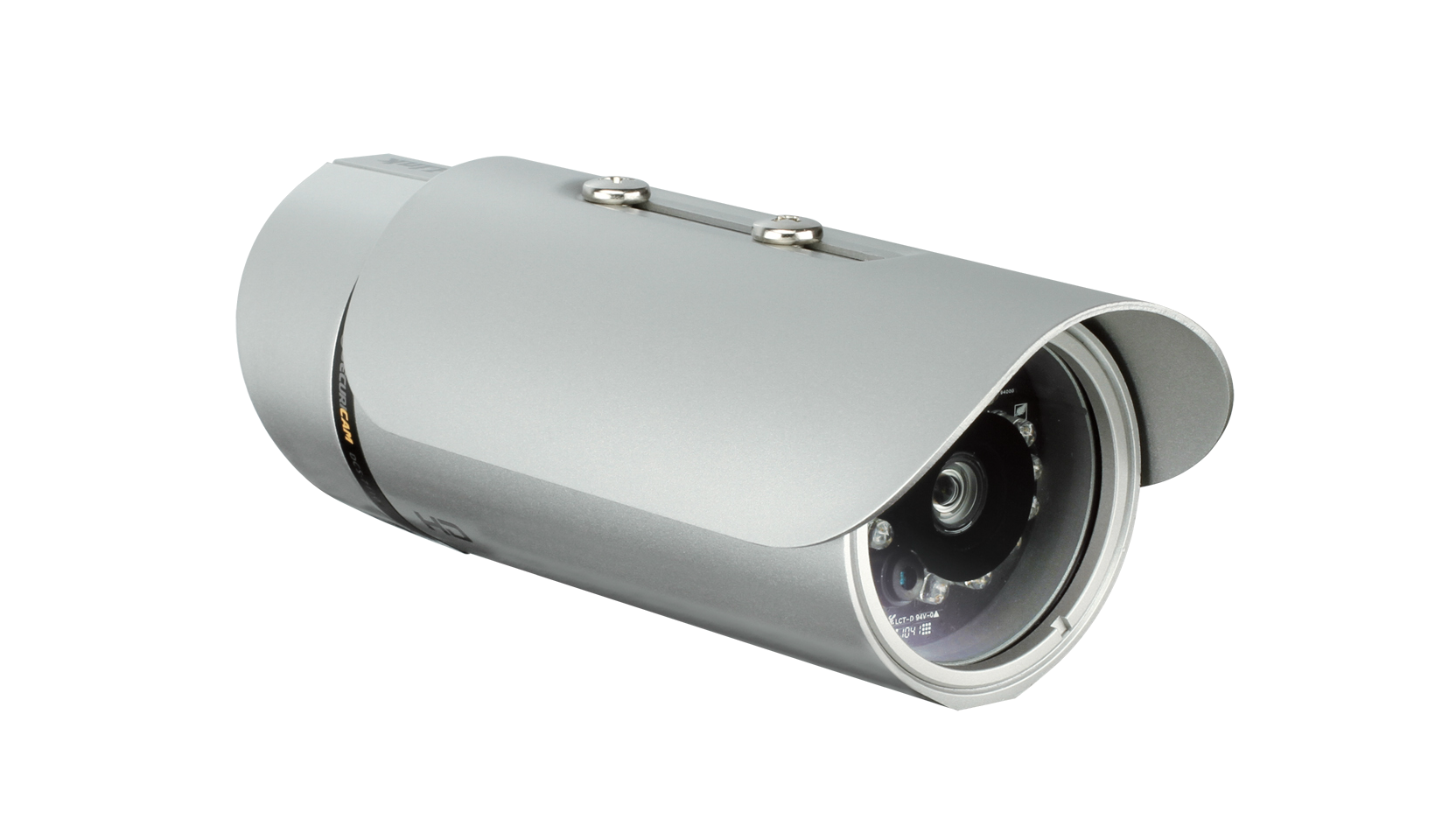

Outdoor Full HD PoE Day/Night Fixed Bullet Network Camera

DCS-7110

  • Product Status (Revision A): End of Life

The D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet, capable of capturing video in both day and night environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. This feature allows the camera to capture crisp colour images during the daytime and detailed grayscale images at night or in or low-light conditions.

Multiple Video Streams

The DCS-7110 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording in high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require better image quality. Additionally, the DCS- 7110 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity

The DCS-7110 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-7110 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Weatherproof and Tamper Proof

Designed to be mounted outdoors, the DCS-7110 includes an IP66 certified enclosure which protects against the elements. Anti-tamper features make this camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense when the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam for Management

The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Indoor/outdoor
Outdoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 800 (other)
1920 x 1080 (16:9)
Lens
4 mm
F1.5
Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
15 m
Privacy Masks
5 zones
Digital Input/Output(DI/DO)
1/1
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
4x
Motion Detection
Supported
Tamper Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 11/06/2019
This product's last date of support is on: 10/06/2021

Downloads can vary across product revisions. Please select the correct hardware revision.
