High-resolution vandal-proof surveillance

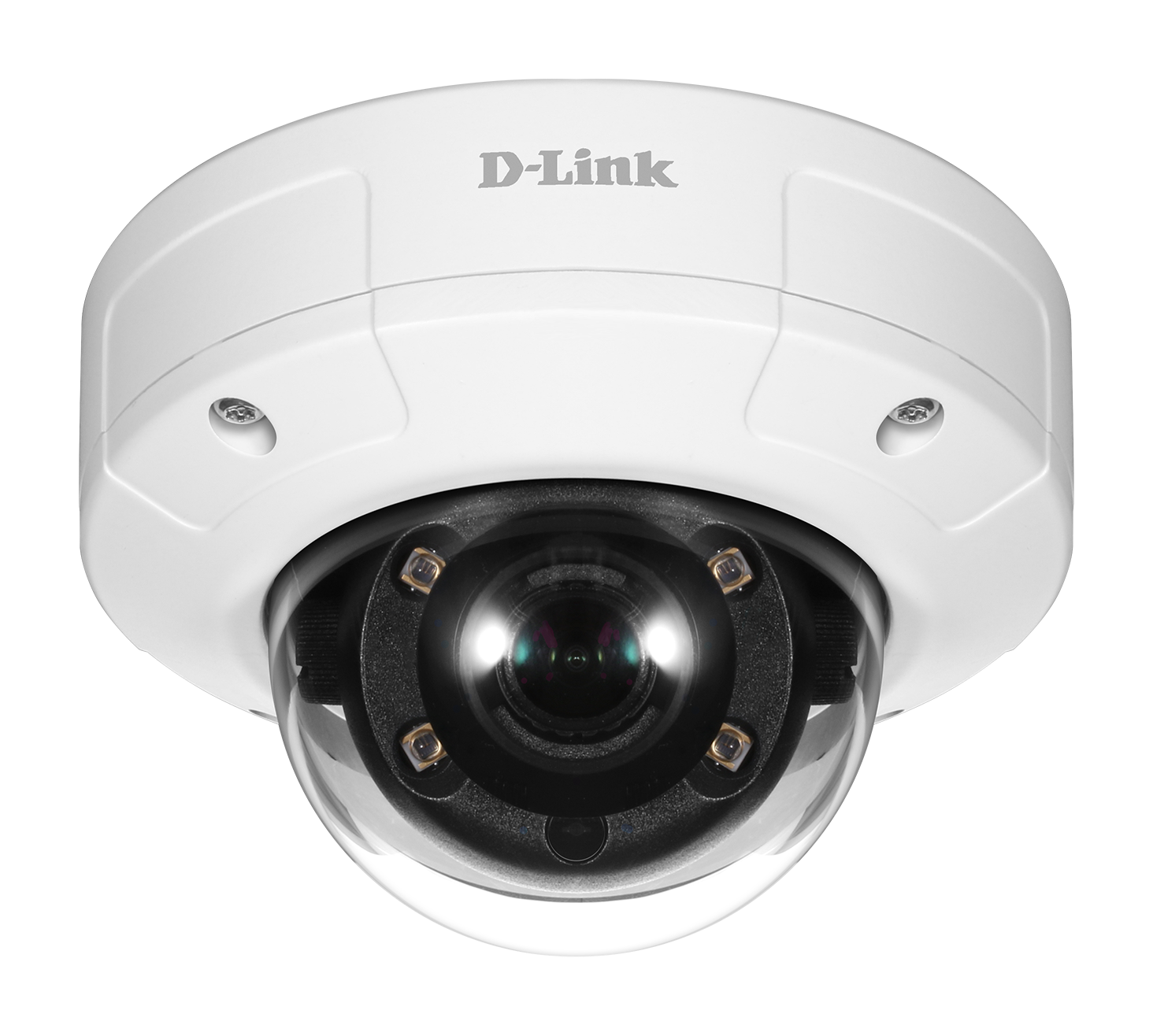

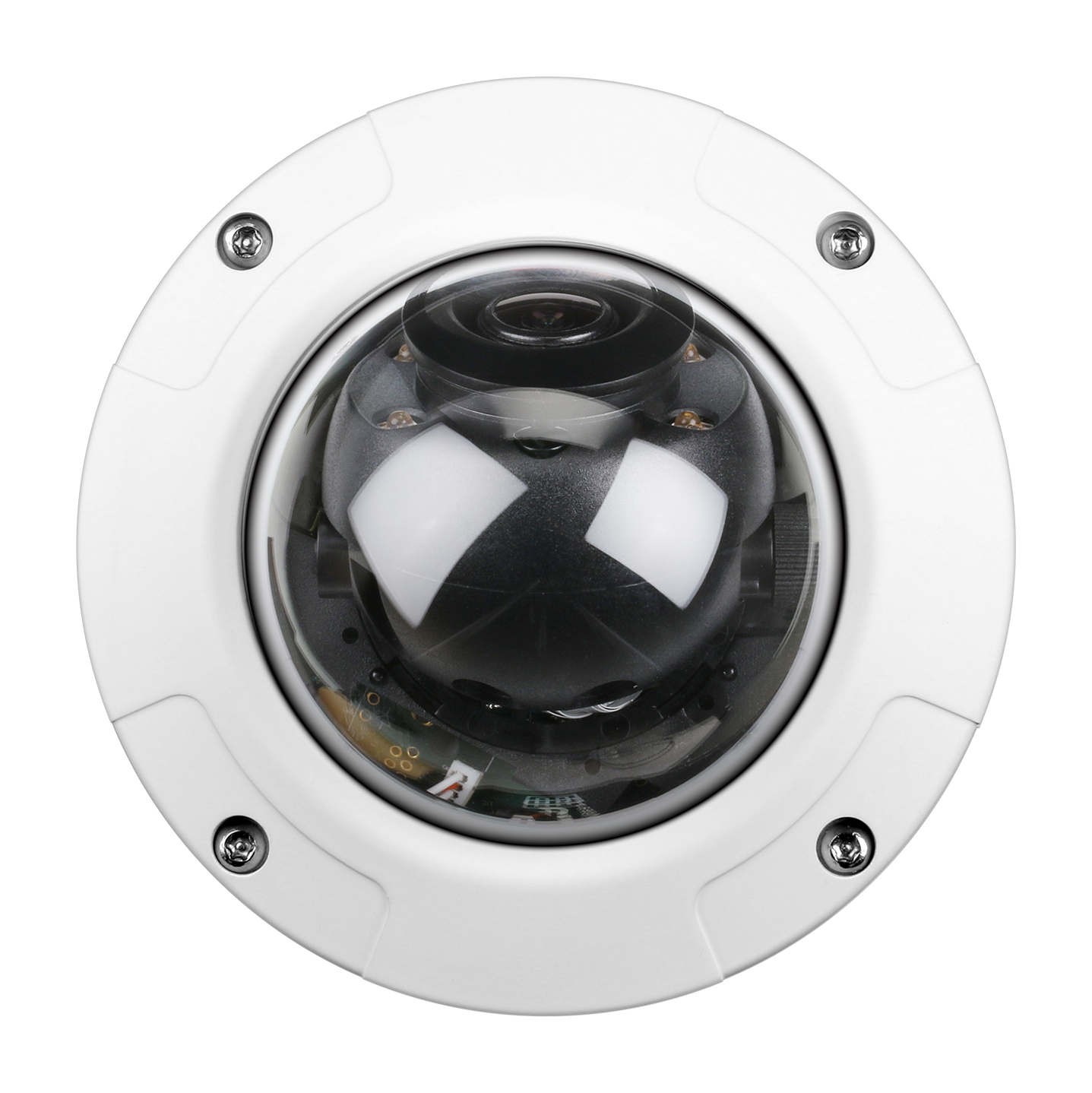

The D-Link DCS-4633EV Vigilance 3-Megapixel Vandal-Proof Outdoor Dome Camera is a professional security camera crafted for the growing demands of modern surveillance, delivering truly superior quality video in all conditions.
3 Megapixel resolution with x10 digital zoom
A high-resolution sensor provides 2048x1536 resolution while Wide Dynamic Range (WDR) technology ensures improved quality image in any light
Vandal & Weatherproof
The IP66 and IK10 ratings make it ideal for even the most demanding of surveillance locations
Day & Night Monitoring
Keep watch 24 hours a day. See up to 20 meters in complete darkness

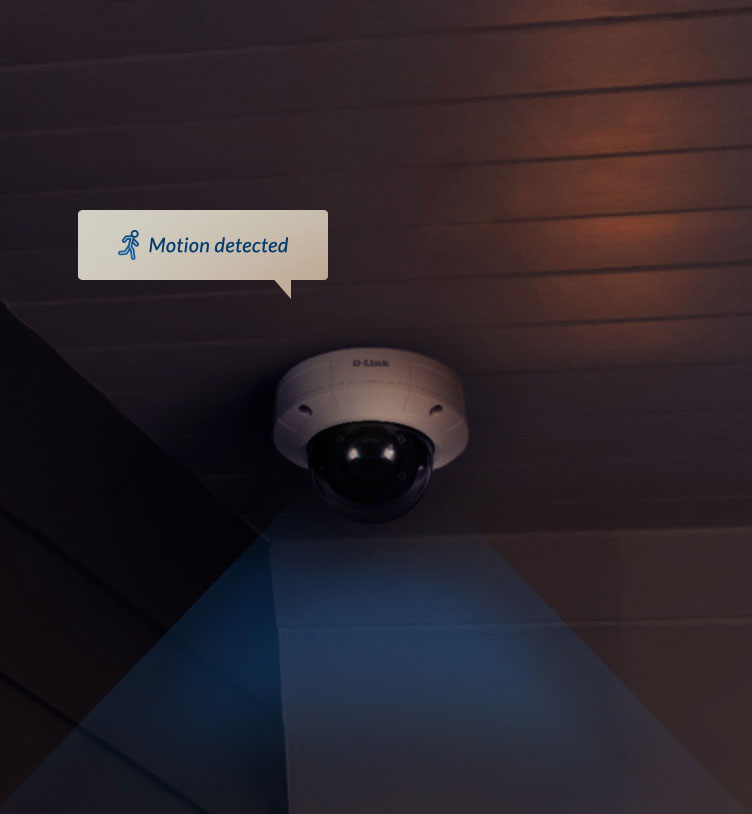

Tampering & Motion Detection
Know exactly what’s happening with instant event notifications for tampering and motion detection
Free Surveillance Management Software
Includes D-ViewCam - view, manage, and record with up to 32 cameras
Easy installation with PoE
Power Over Ethernet (PoE) support allows easy installation in a variety of locations without the need for additional power cabling or sockets
High-Quality Streaming & Recording
The DCS-4633EV uses a powerful 3-megapixel CMOS sensor providing clear 2048 x 1536 resolution footage. It provides up to 3 simultaneous streams for monitoring and recording, incorporating H.265 compression and noise reduction to maximise bandwidth efficiency and image quality.

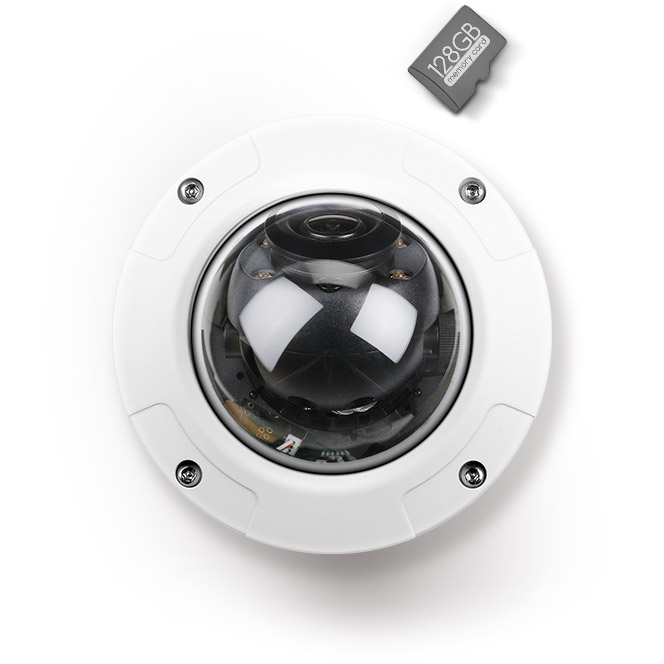

The microSD card slot gives you the ability to store and record up to 256GB of footage locally for extra backup protection.
Uninterrupted surveillance in any situation
Wide Dynamic Range (WDR) image enhancements deliver improved quality in conditions with uneven or difficult lighting. Built-in IR LED illuminators with a 20-metre range, allow the DCS-4633EV to keep watch even in complete darkness.
The IP66 certification ensures the camera is completely protected from dust and water in any environment, and its IK10 certified vandal-proof housing along with tamper detection ensures uninterrupted surveillance even if intruders attempt to sabotage the camera.
Flexible Connectivity
Built-in PoE simplifies installation by providing power and networking connectivity with a single cable, and can significantly reduce deployment time and costs.

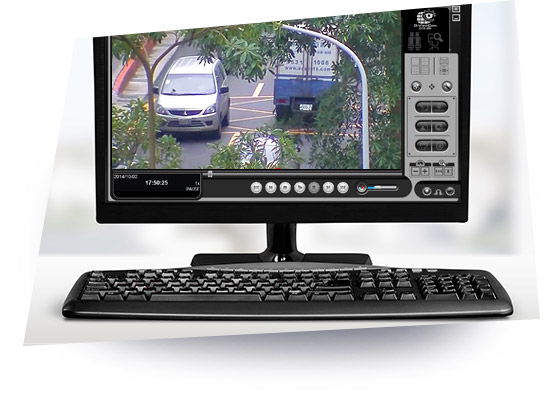

Complete Management Software
D-ViewCam, a free and complete surveillance software package, is included with the camera and enables you to view, manage, and record from up to 32 cameras in a central location. Recordings and e-mail alerts can be triggered by motion detection or by external digital input devices, keeping a record of any unusual activity.

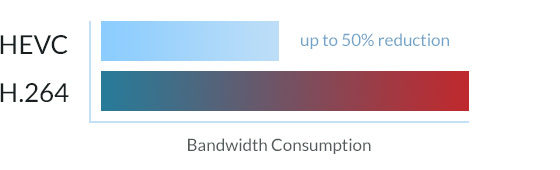

Save bandwidth
H.265 High-Efficiency Video Encoding can significantly reduce required network bandwidth. The DCS-4633EV also supports H.264, and MJPEG codecs for streaming and recording.
Related Products
Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
3 megapixel |
Image sensor
|
1/3" 3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) 2048 x 1536 (other) |
Advanced Light features
|
Wide Dynamic Range |
Lens
|
2.8 mm F1.85 Fixed |
Angle of View (H/V/D)
|
105° / 80° / 137° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
20 m |
Wide Dynamic Range(WDR)
|
Supported
|
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
Power Consumption
|
6 W |
App Support
|
JustConnect+ |
Features
|
D-ViewCam D-Link NVR compatible MicroSD Card slot ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Tamper Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
1 Frame rates when streaming video may vary depending on network conditions and method used.
2microSD card not included. microSD/SDHC/SDXC v3.1 compatible.
