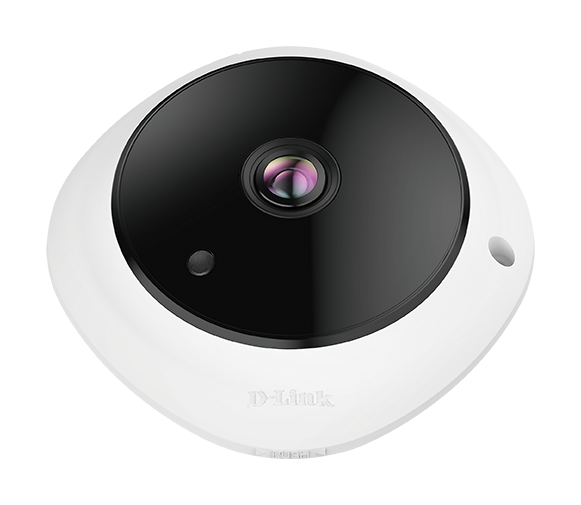

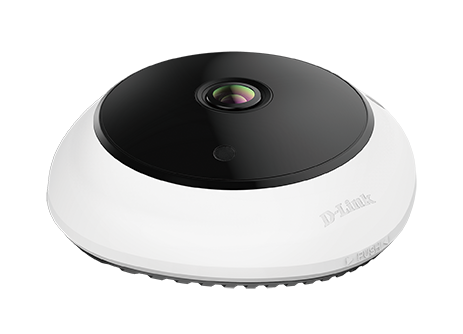

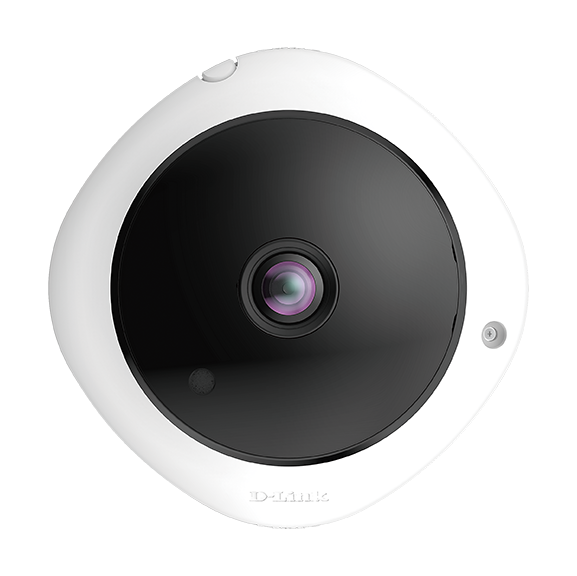

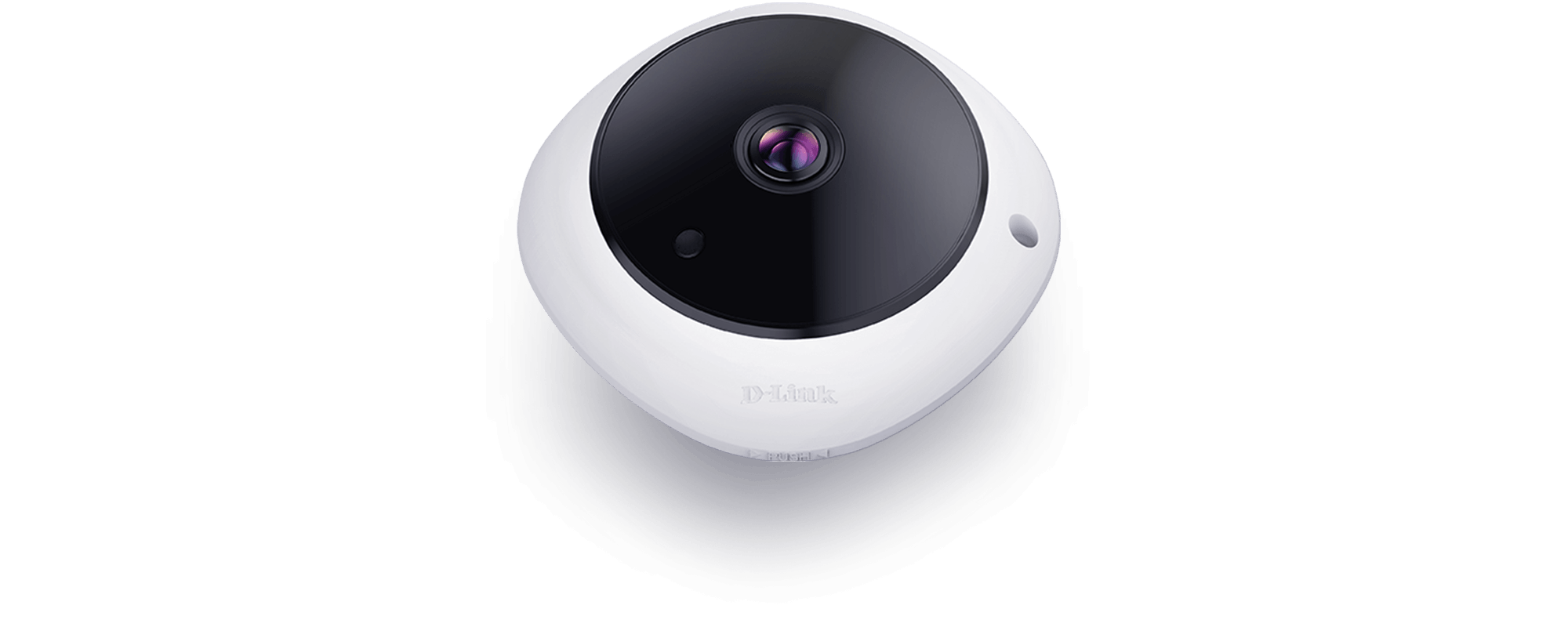

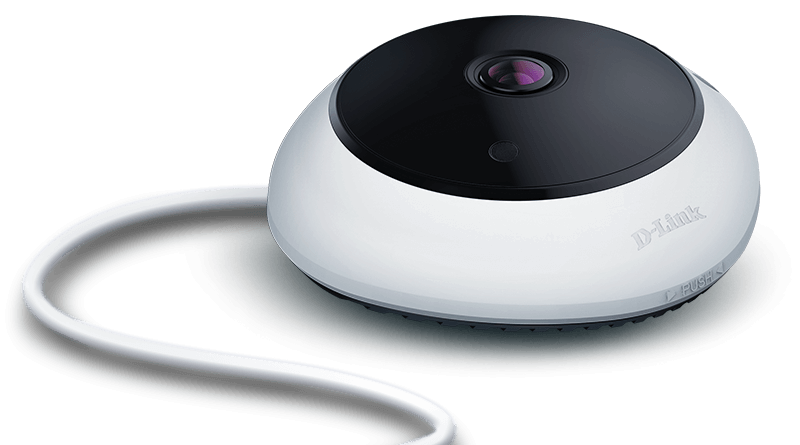

One camera, 360° business security.
Designed for SMBs and enterprises, this indoor security camera features a 5-megapixel sensor with onboard De-Warping and Wide Dynamic Range (WDR) image enhancements to deliver industry-leading video quality. With its f/2.0 wide-angle panoramic lens, distortion correction, and PoE support, it’s ideal for monitoring large areas with a single camera.
Know what’s happening at every angle.

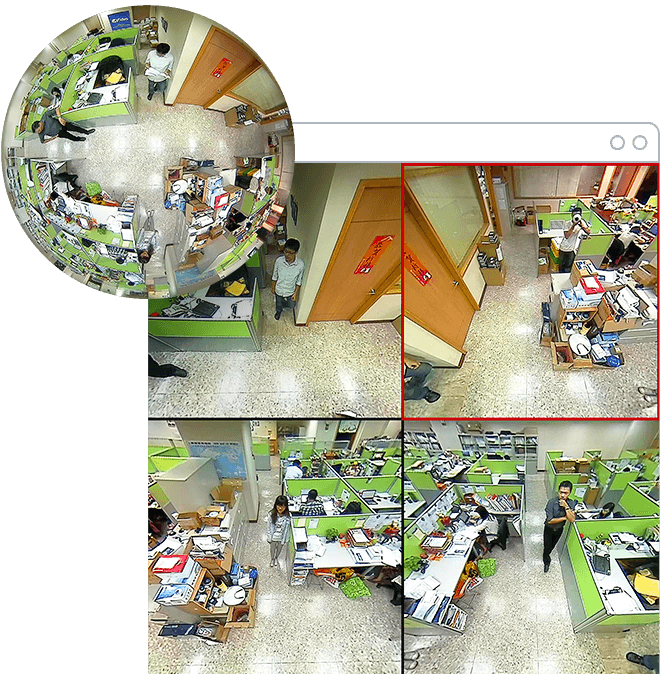

The wide-angle panoramic lens achieves the widest possible coverage with 360° video. Onboard de-warping technology gives you the option to display this as four regional views, or two panoramas. Cover all corners with a single camera.
Easily record events with advanced motion detection, and automatically save JPEG snapshots and video before the action happens so you never miss anything. Configure motion detection windows to isolate where motion can be detected. Motion events can be immediately sent via email and uploaded to an FTP.
Enterprise-grade surveillance videos.
Video resolutions of up to 2560x1920 provide clear details, while noise reduction improves video quality if forensic work is required for evidence.

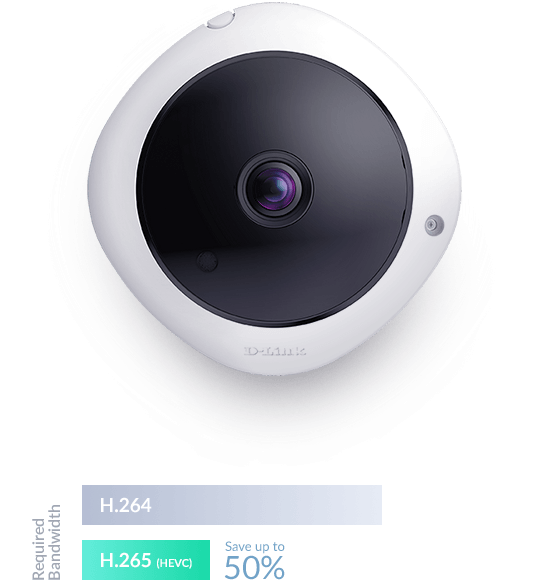

The camera provides real-time video compression using the latest High Efficiency Video Coding H.265 codec for optimal bandwidth efficiency and video quality. It also supports H.264/MJPEG codecs and three separate profiles for simultaneous video streaming and recording.
Tamper detection and event management features are ideal for a variety of surveillance applications such as monitoring public areas to detect incidents and coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.
Safeguard your property day and night.

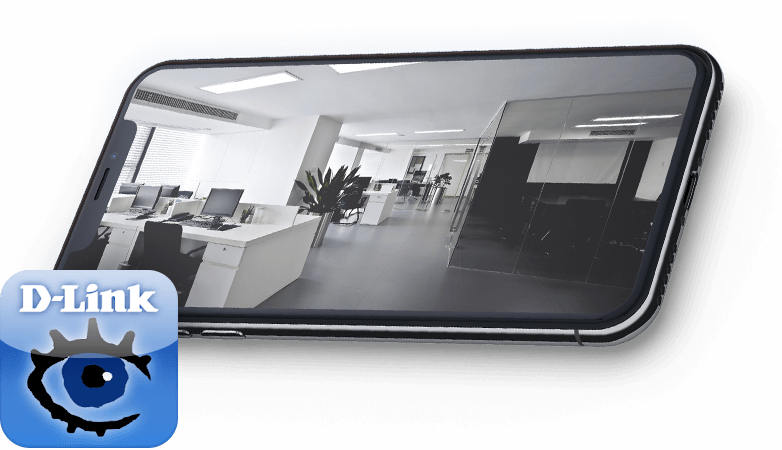

The IR-Cut filter automatically filters infrared light for clearer, more accurate daytime recordings, and automatically lets in more light for brighter night vision footage.

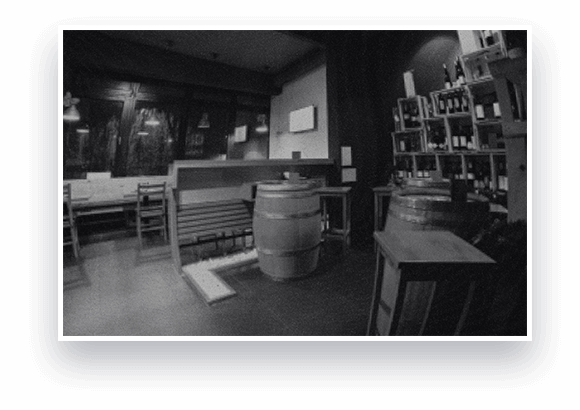

The built-in night vision with IR LED illuminators lights up dark areas and allows you to see up to 5m even in complete darkness.

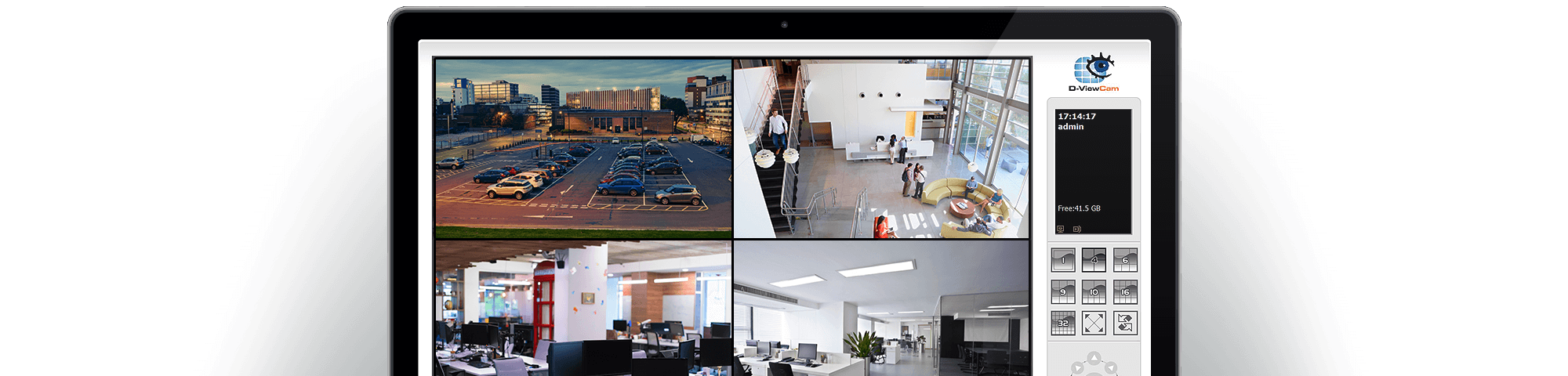

Free Surveillance Management Software
All D-Link Network Cameras include free D-ViewCam software - view, manage and record up to 32 cameras on a single computer from a central location with this complete surveillance software package.
It’s simple to schedule motion-triggered events, select manual recording options, reboot the camera, upgrade the firmware, and also to configure camera settings like image size, frame rate, shutter speed, and brightness, all from the easy-to-use D-ViewCam interface.
Faster deployments and flexible connections.
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single Ethernet cable. Speed up deployments by removing the need to lay extra electrical wiring and install nearby power outlets.
Utilise the onboard Digital Input port to connect an external device such as a PIR motion sensor. And the Audio Line Input allows an optional microphone to be attached.
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
2‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
Specs
Indoor/outdoor
|
Indoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
5 megapixel |
Image sensor
|
1/2.5'' 5 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
2560 x 1440 (16:9) 2560 x 1920 (other) |
Advanced Light features
|
Wide Dynamic Range |
Lens
|
1.37 mm F2.0 Fisheye |
Angle of View (H/V/D)
|
180° / 180° / 180° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
5 m |
Wide Dynamic Range(WDR)
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
Power Consumption
|
8 W |
App Support
|
JustConnect+ |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 0.69mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual 1.00 RevA1 | Product Manual | 22.11.2019 | - | - | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
QSG 1.00 RevA1 | Quick Setup Guide | 5.8.2019 | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
FW 1.00.02 RevA1 | Firmware | 2.10.2019 | - | Download |
Version | Description | Date | |
---|---|---|---|
CE doc 1.00 RevA1 | CE document | 22.7.2019 | Download |
