Functional Cable for DCS-6517, DCS-7513, DCS-7517

DCS-11

  • Product Status (Eu_RevA1): End of Sale

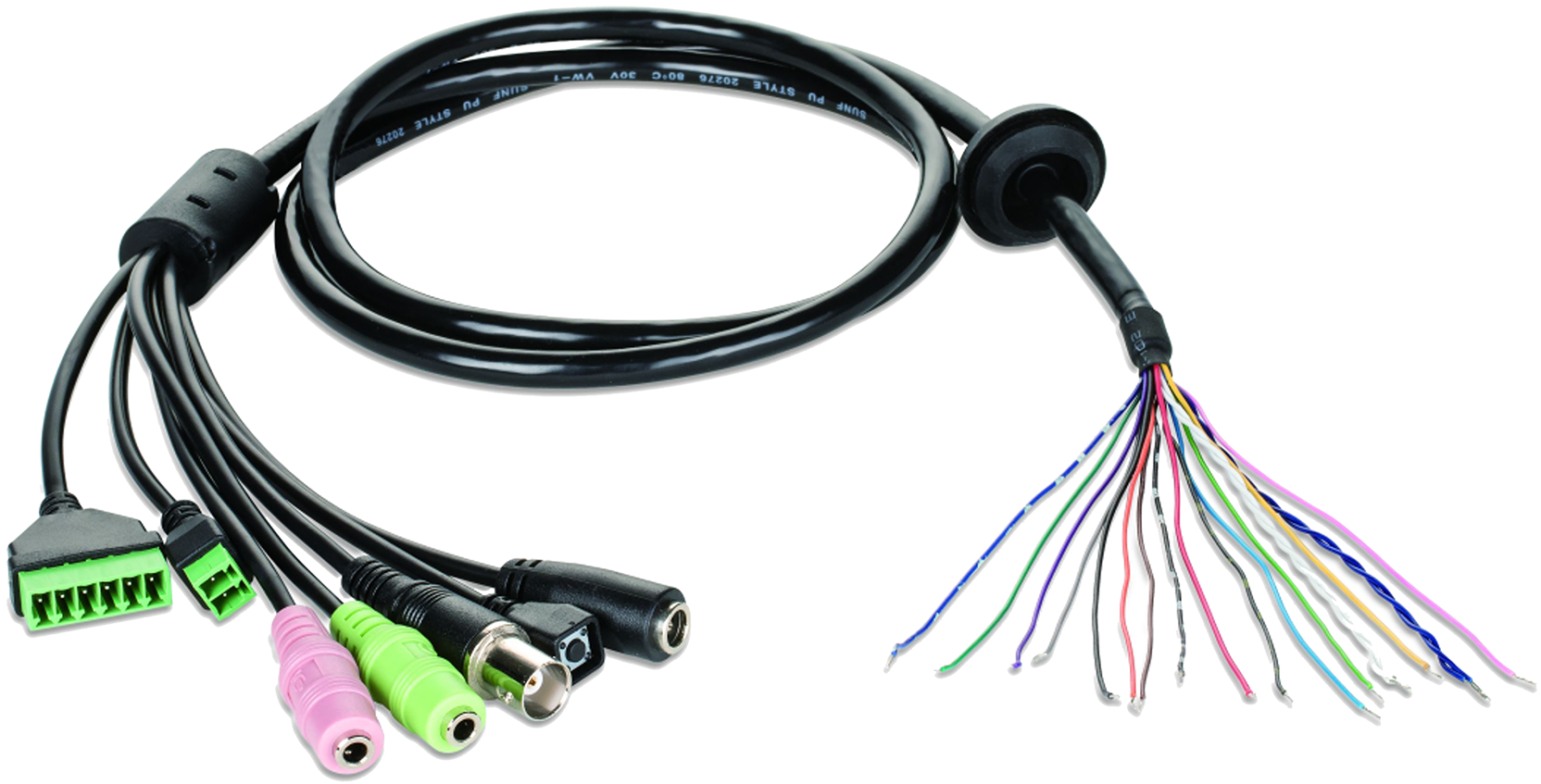

The DCS-11 functional cable provides additional interfaces and functionalities to DCS-6517 (H/W vers. B1), DCS-7513 (H/W vers. B1) and DCS-7517 (H/W vers. B1).

Related Products

5 Megapixel Varifocal Outdoor Dome Network Camera
DCS-6517
Find out more

Specs

Compatible with

  • DCS-6517 (H/W vers. B1)
  • DCS-7513 (H/W vers. B1)
  • DCS-7517 (H/W vers. B1)

Provide below interfaces

  • DI/DO connector - I/O connector to other devices
  • Reset button - allows the camera to be reset to factory default
  • 24V AC power input - allows the camera to be powered by a 24V AC power supply
  • 12V DC power input - allows the camera to be powered by a 12V DC power adapter
  • Audio in/out - adds 2-way audio function
  • BNC connector - can be connected to handheld monitors to check the field of view during installation

Support

This product was phased out on: 01/03/2022
This product's last date of support is on: 01/03/2027
Version Description Date Type File Size
QIG 1.00 RevA1 Quick Installation Guide 27.12.2019 - - Download
