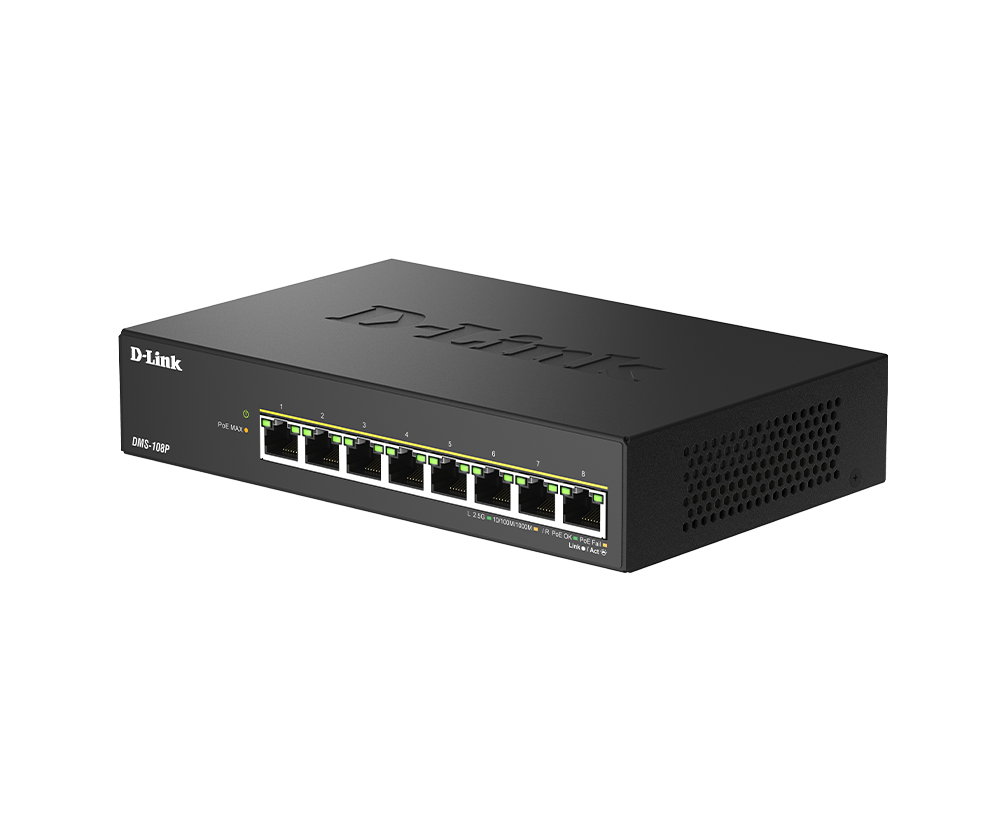

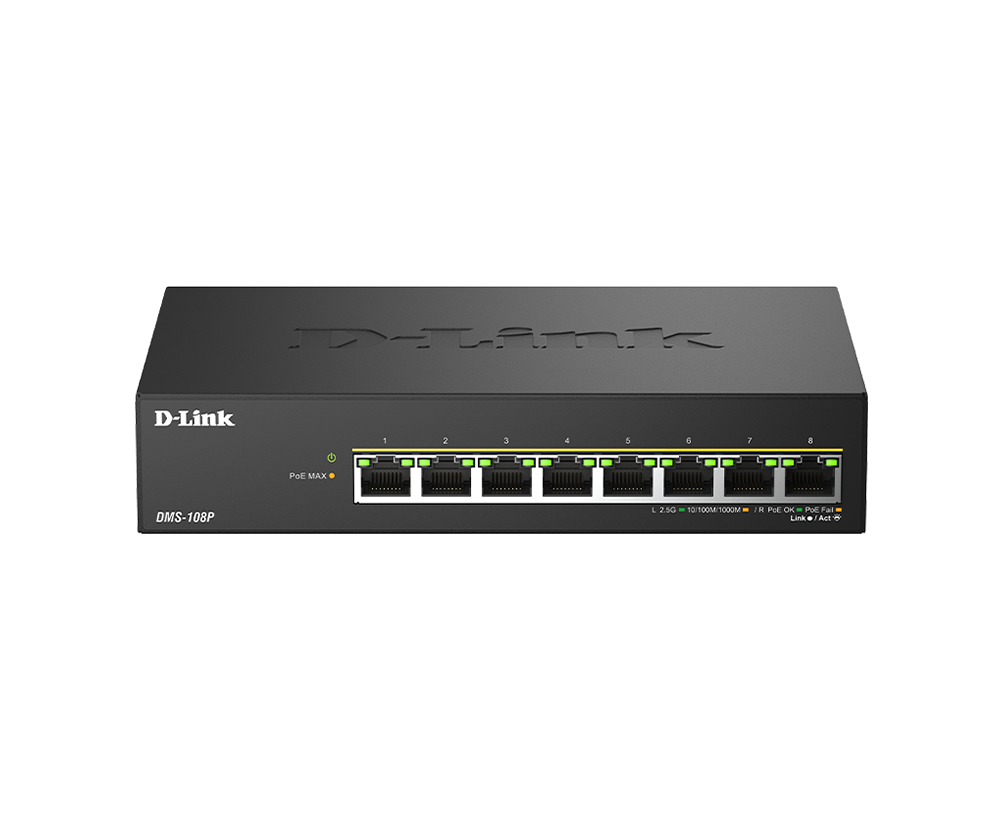

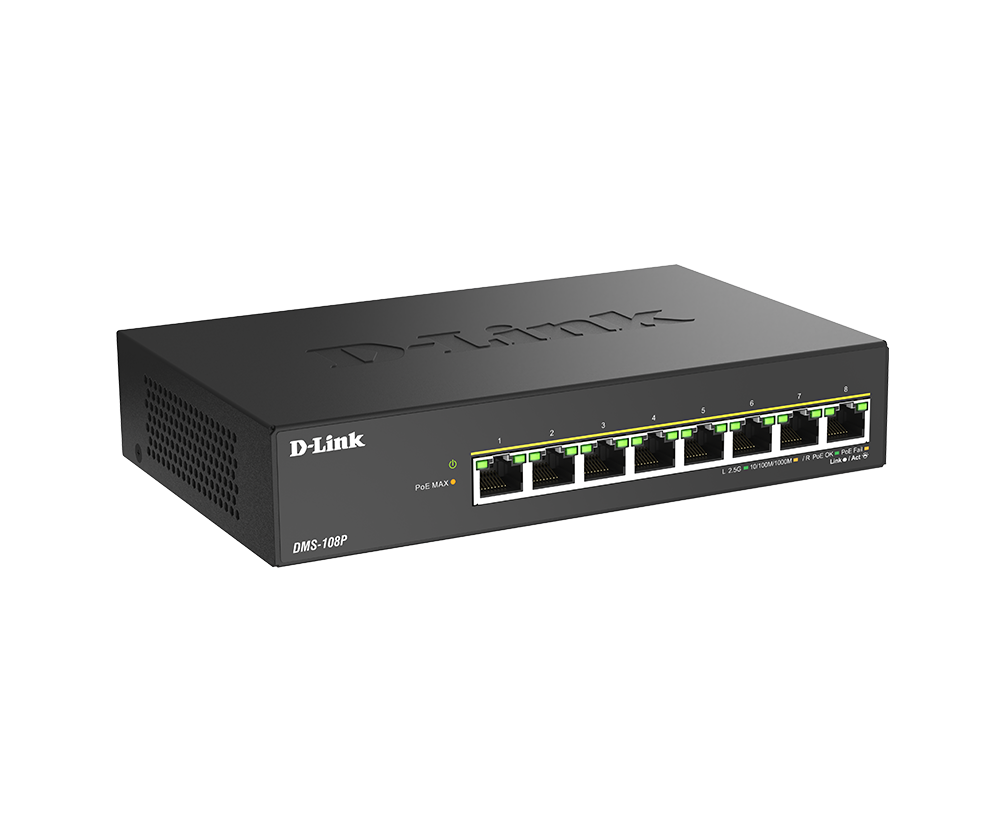

8-Port 2.5G Multi-Gigabit Unmanaged PoE Switch

DMS-108P

  • Product Status (Revision A): Live
  • 8-port 2.5GE connectivity for high performance networking
  • IEEE 802.3af/at/bt PoE (up to 90W/port), 230W power budget
  • Plug and Play simplicity for easy installation
  • Fanless design for enhanced reliability and silent performance
  • Durable metal housing enhances product durability
  • IGMP snooping for optimized bandwidth utilization
  • Auto MDI/MDI-X crossover on all ports simplifies setup
  • IEEE 802.3x flow control prevents packet loss
  • Quality of Service (QoS) ensures uninterrupted connectivity
  • IEEE 802.3az reduces power consumption and operating cost

Download the datasheet.

Where to buy

User Benefits​

Plug & Play

No complex configurations required for fast and easy network connectivity

Multi-Gigabit​

Multi-Gigabit ports for high data rate transmission

High Power Budget

230W PoE total budget to power more devices

IEEE802.3bt

Up to 90W per port enables high-power devices (PD)

Multicast Optimization

IGMP snooping feature prevents network flooding

Silent Operation

Fanless design for a noise-free working environment

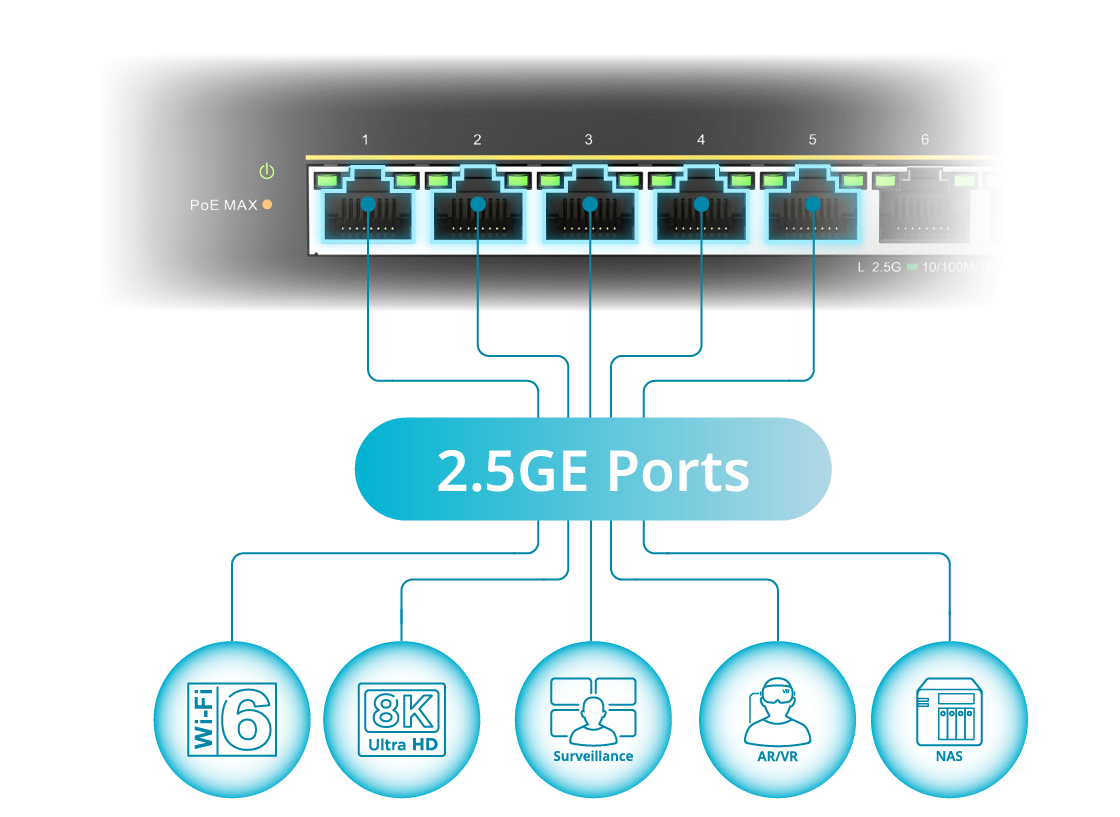

Unleash Wi-Fi 6 via 2.5G Ports

As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

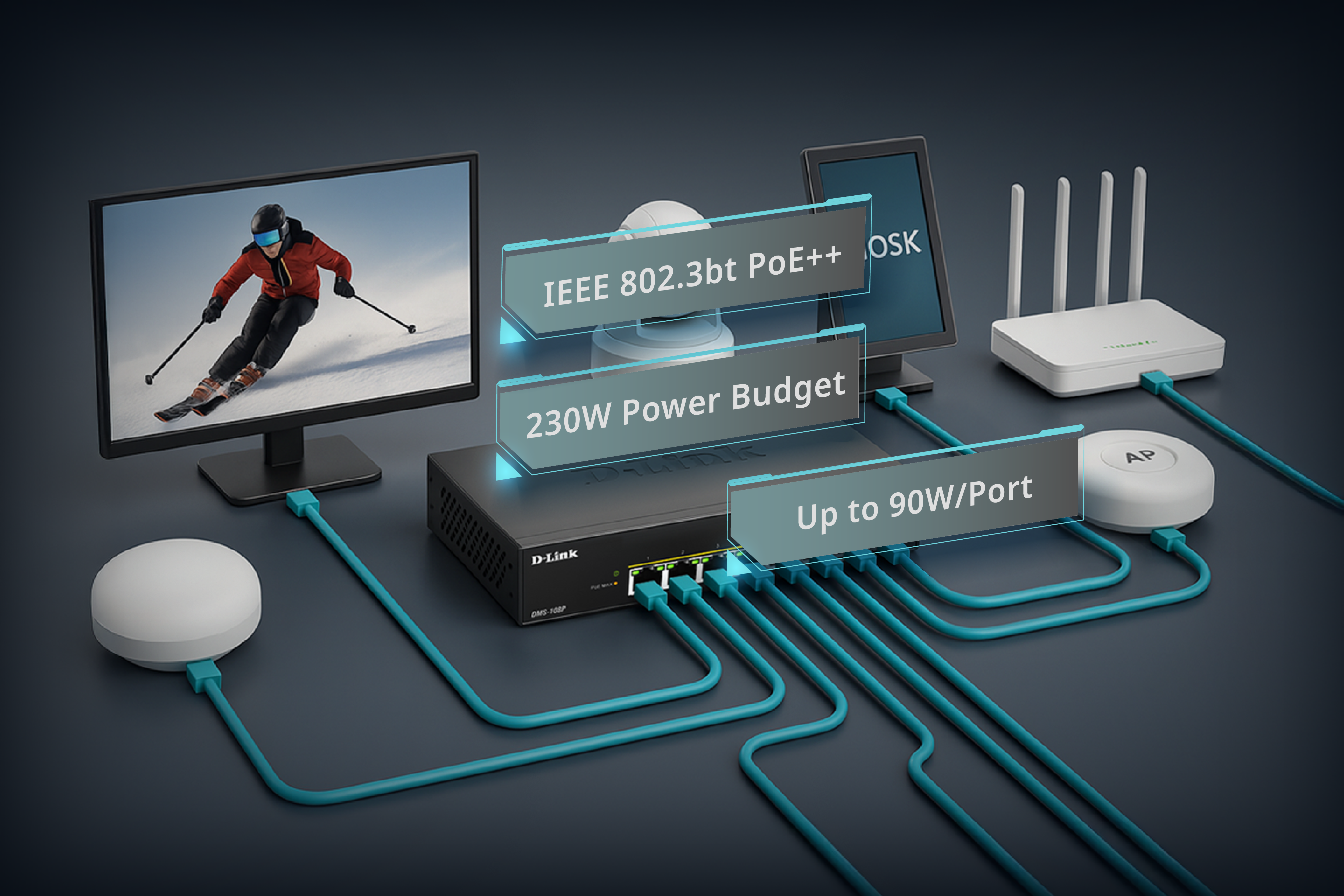

　Small Size, Big Power

The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.

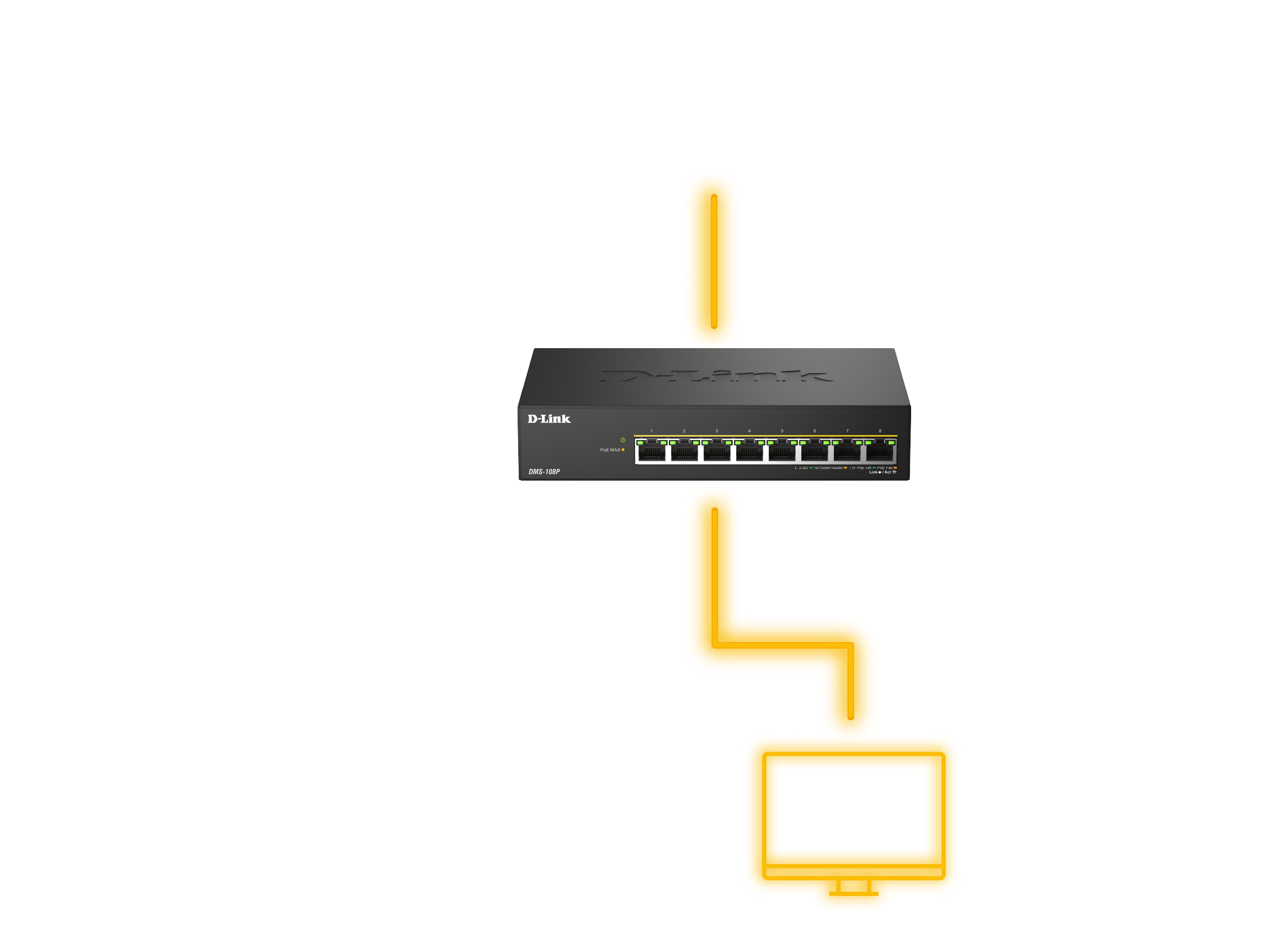

Smarter Multicast, Smoother Performance

The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

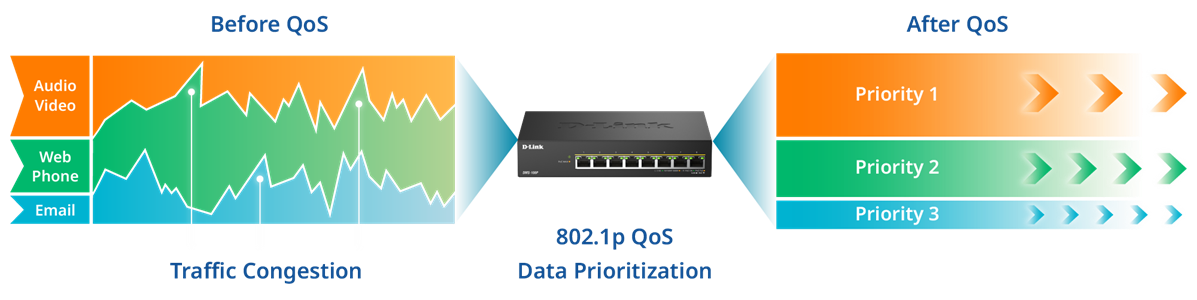

Prioritize Traffic for Optimized Performance

With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Related Products

5-Port 2.5G Multi-Gigabit Desktop Switch
DMS-105
Find out more
7-Port Multi-Gigabit Unmanaged Switch
DMS-107
Find out more
8-Port 2.5G Multi-Gigabit Desktop Switch
DMS-108
Find out more
16-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-1016
Find out more
24-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-1024
Find out more

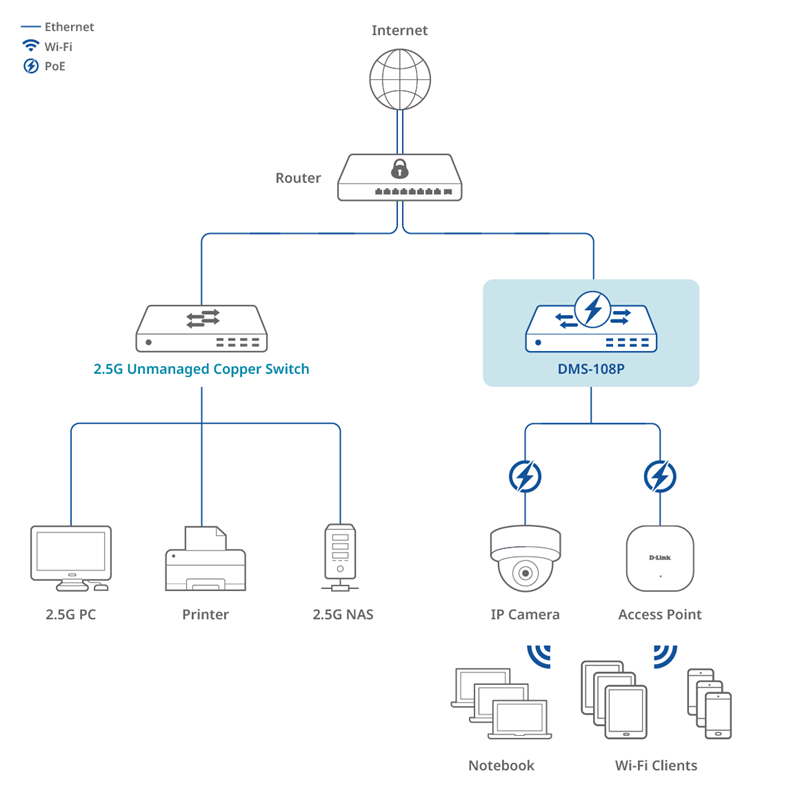

Connection Diagram

The cost-effective DMS-108P not only delivers plug-and-play 2.5G PoE connectivity for edge powered devices, it offers performance optimization to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.

Business Router

Learn More

Access Point

Learn More

Specs

Download the datasheet.

Number of 2.5 GBASE-T ports​
8
Switching Capacity
40 Gbps
PoE Standards
802.3af, 802.3at, 802.3bt
PoE Power Budget
230W
PoE Capable Ports
Port 1-8, up to 90 W
Fanless
Supported
D-Link Green
Supported
802.3az EEE
Supported

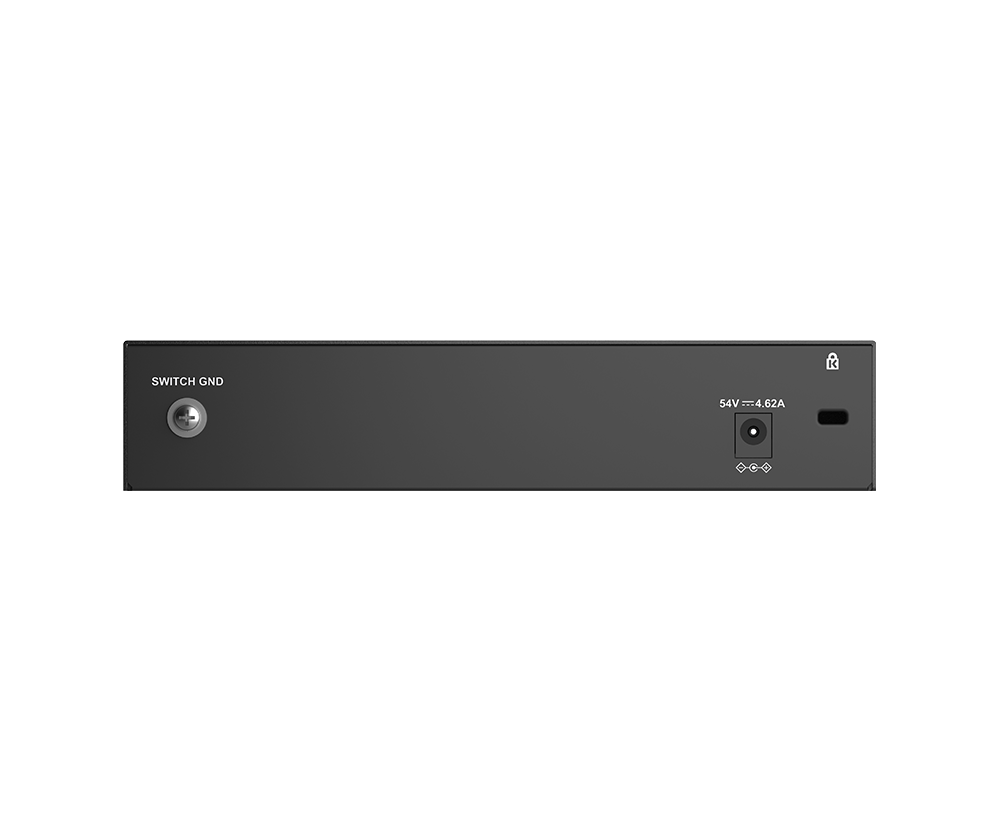

Power Supply Type
External
MAC Address
4K
802.1p QoS​
Supported

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice.

Download the datasheet.
