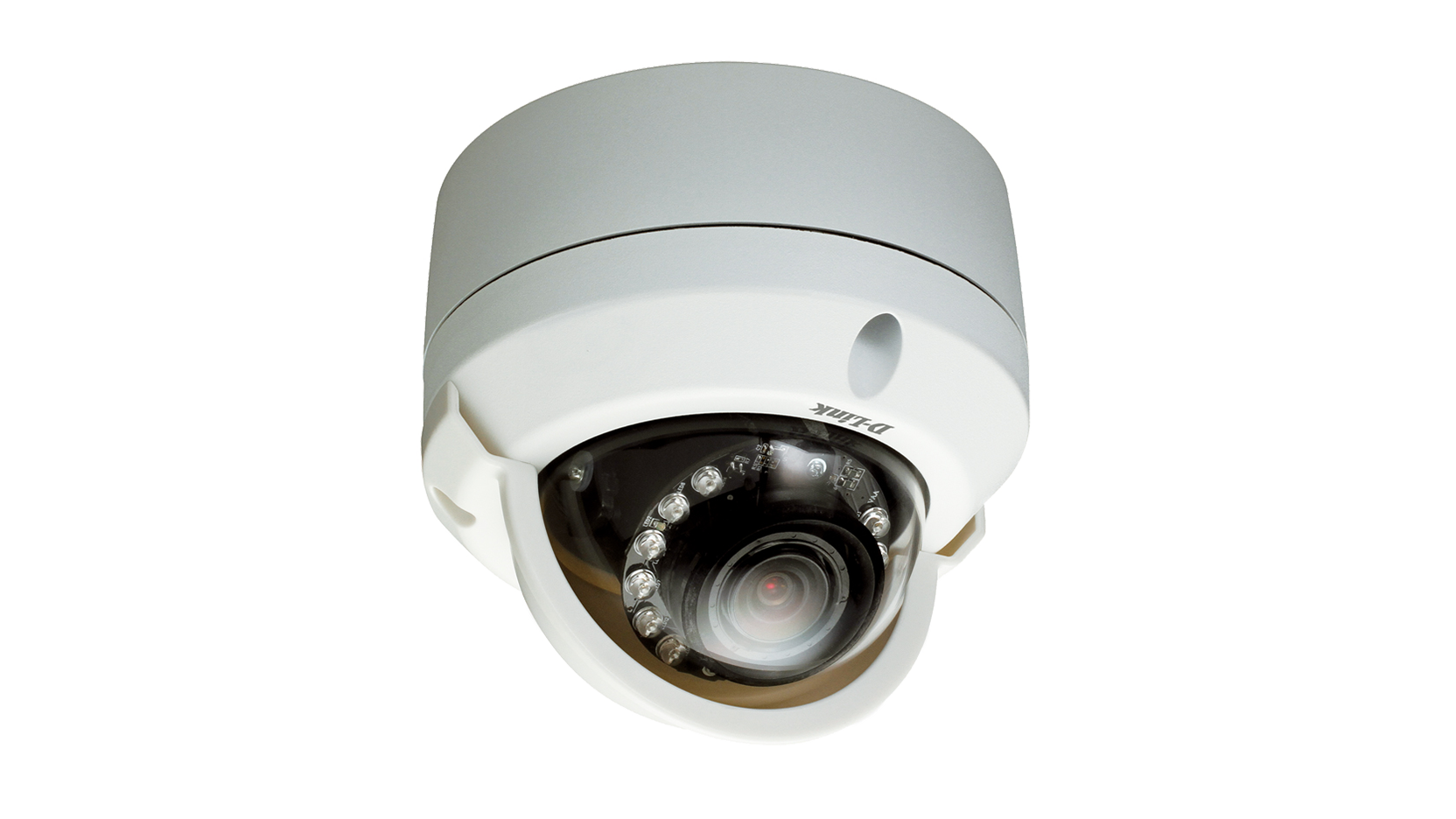

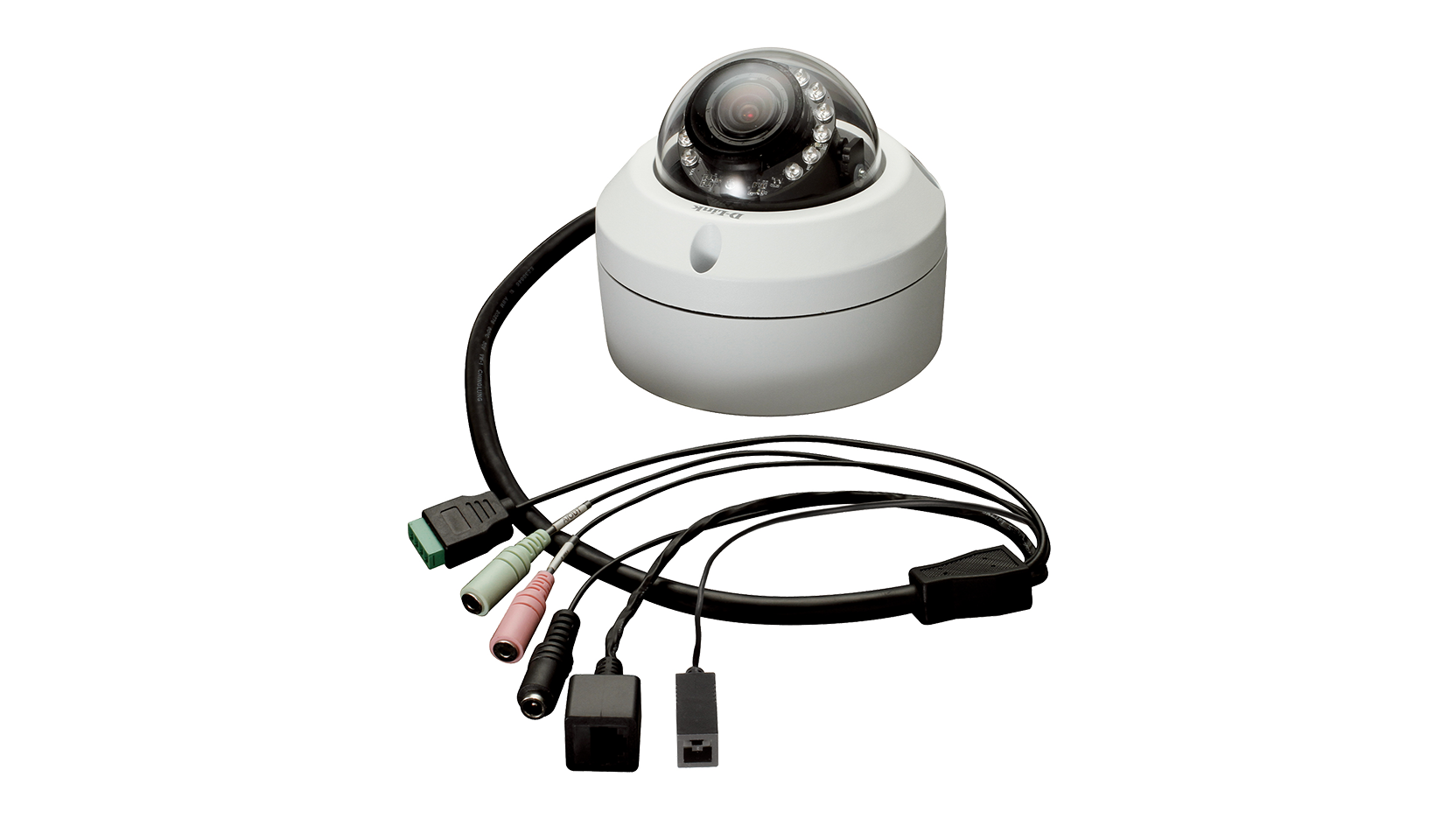

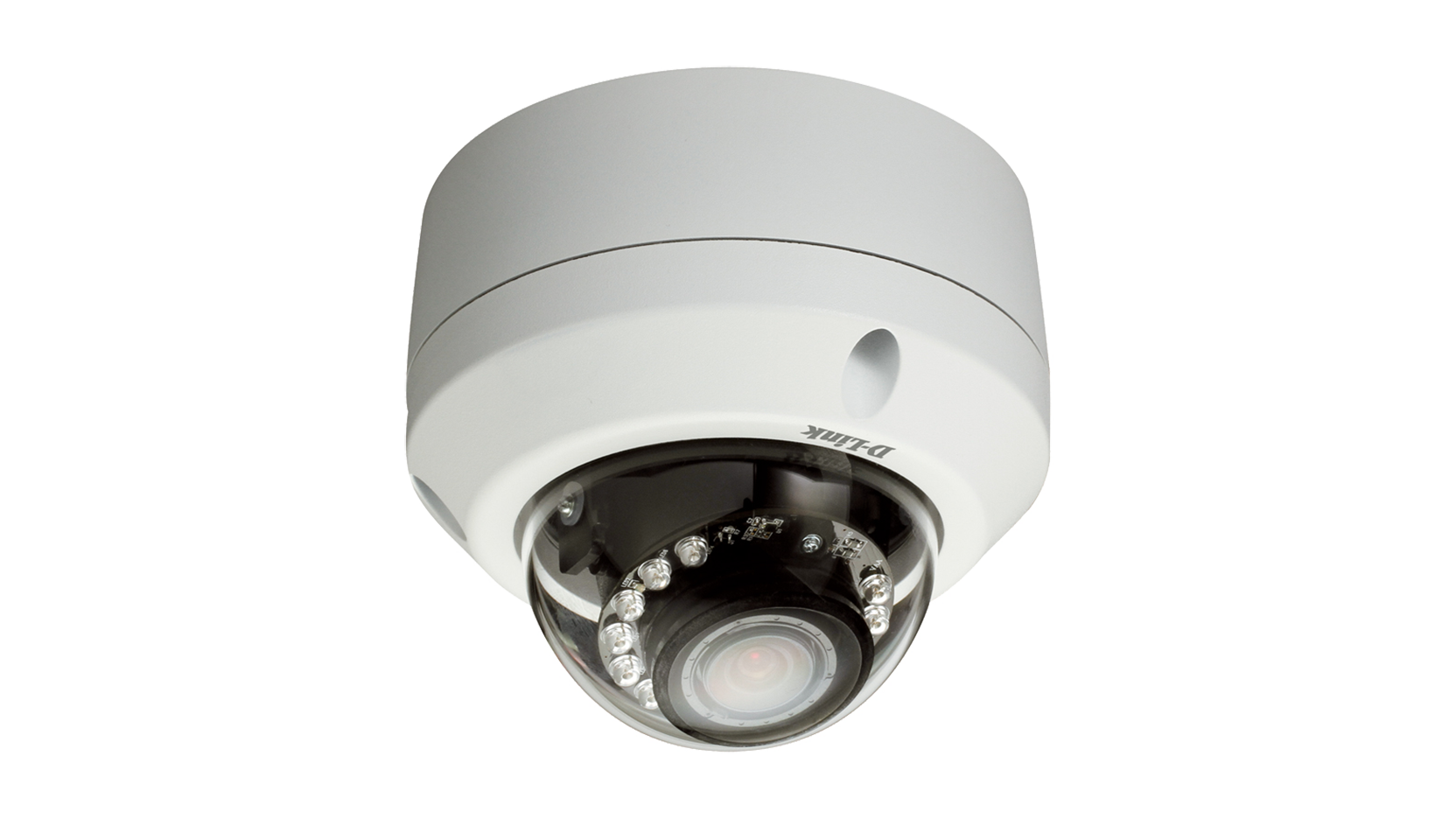

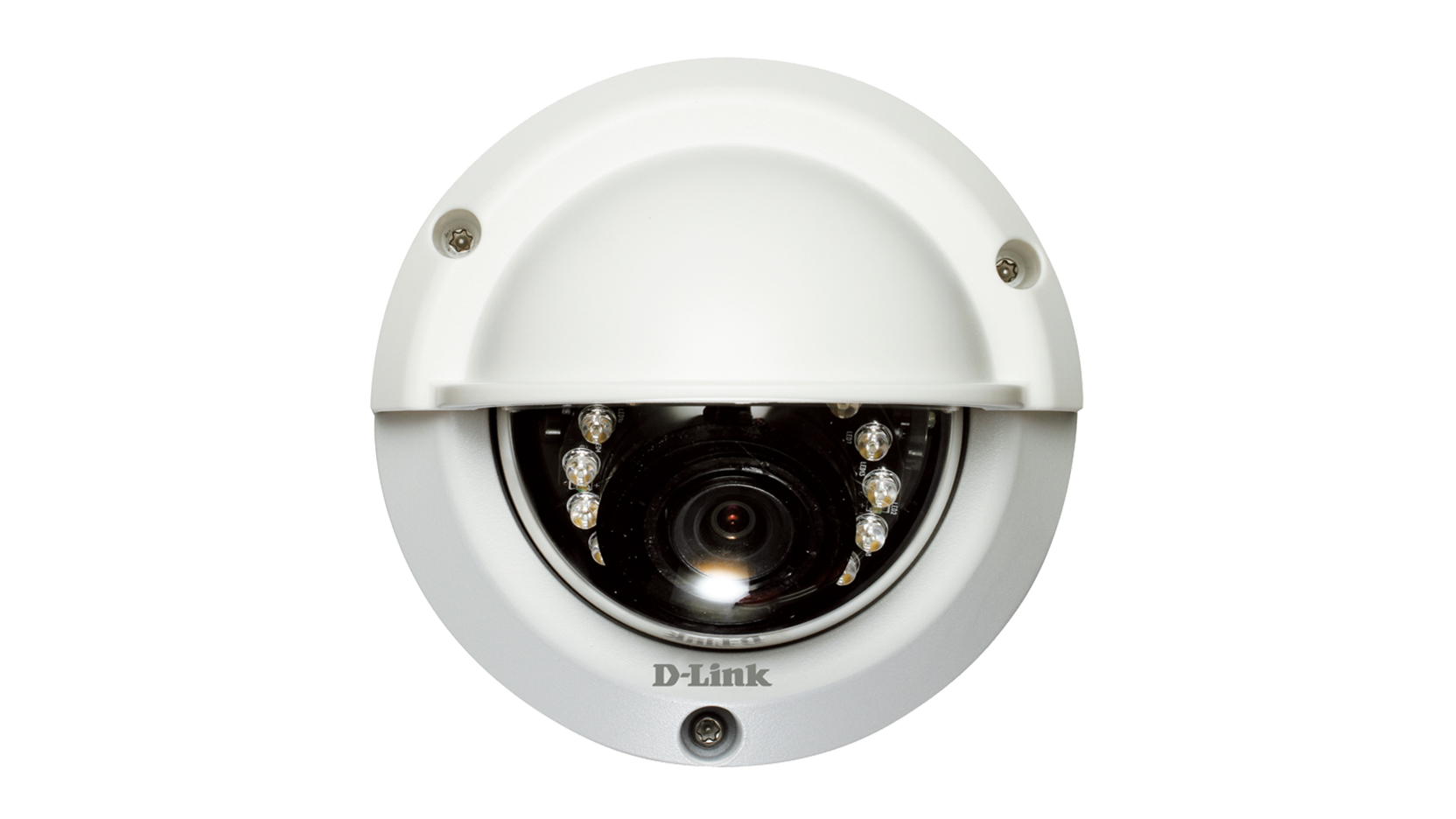

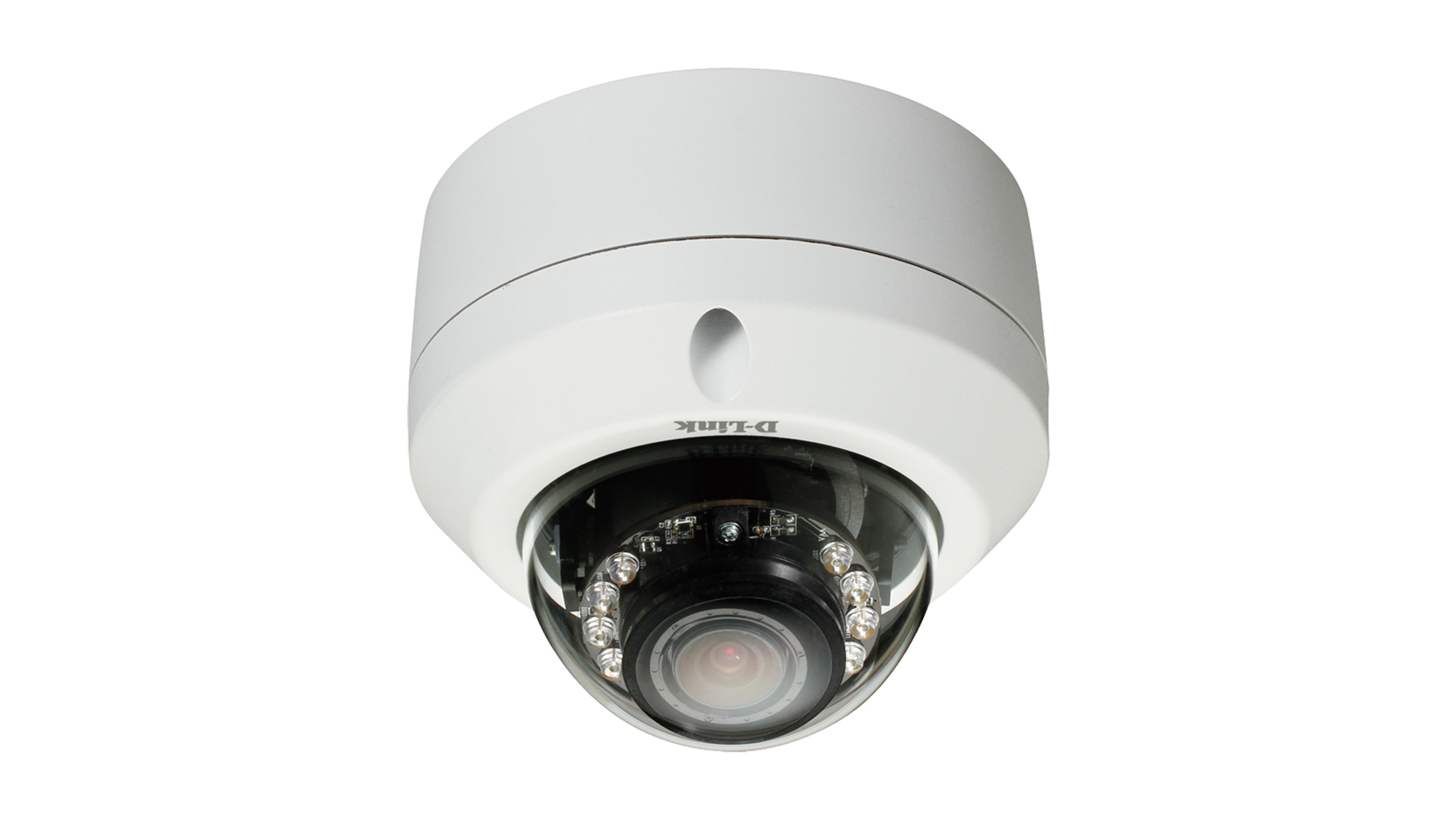

HD WDR Varifocal Outdoor Fixed Dome Network Camera with Colour Night Vision

DCS-6315

  • Product Status: End of Life

The D-Link DCS-6315 HD WDR Varifocal Outdoor Fixed Dome Network Camera is a high definition professional video surveillance and security solution suitable for small, medium and large enterprises. The camera uses a high-sensitivity megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in video surveillance applications without the need for additional accessories.

High-Quality Colour Night Vision

Incorporating a highly sensitive CMOS sensor with LowLight+ technology, the DCS-6315 provides outstanding performance in low light-conditions, resulting in more vibrant colour detail regardless of the amount of light available. The noise reduction feature has been upgraded and enhanced to provide exceptional quality images with high levels of detail.

To maximise bandwidth efficiency and improve image quality, the DCS-6315 provides real-time video compression using the H.264, MPEG‑4 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-6315’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the infrared-cut filter automatically slides out of the way to use all available light. The DCS-6315 also has built-in IR LED illuminators with a 15 metre range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable video surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-6315 HD WDR Varifocal Outdoor Fixed Dome Network Camera includes D-ViewCam™, a complete video surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-6315 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Indoor/outdoor
Outdoor
Connectivity
Wired PoE
Resolution
HD 1 megapixel
Image sensor
1/3” 1 megapixel WDR progressive scan CMOS
Maximum Video Resolution
1024 x 768 (other)
1280 x 720 (16:9)
Lens
2.8-12 mm
F1.4
Varifocal
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
15 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Optical Zoom
4x
Privacy Masks
3 zones
Vandal Proof
Supported
2-way audio
Supported
External Microphone Input
Supported
External Speaker Output
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 64 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 25/12/2018
This product's last date of support is on: 24/12/2020
Version Date Type File Size
Datasheet - PDF 0.38mb Download
Version Description Date Type File Size
1.01 Quick installation guide 19. 11. 2014 PDF 8.60mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.05.00 Firmware 15. 07. 2016 - Download
1.03.03 Release notes included 21. 10. 2015 - Download
1.04.00 Firmware 19. 10. 2015 - Download
Firmware 1.02.00 Firmware 26. 02. 2015 - Download
Firmware 1.00.05 1.00.05 Firmware 1.00.05 2. 07. 2014 - Download
Firmware 1.00 1.00 Firmware 1.00 2. 07. 2014 - Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22. 09. 2016 Download
CE declaration CE declaration 14. 10. 2014 Download
