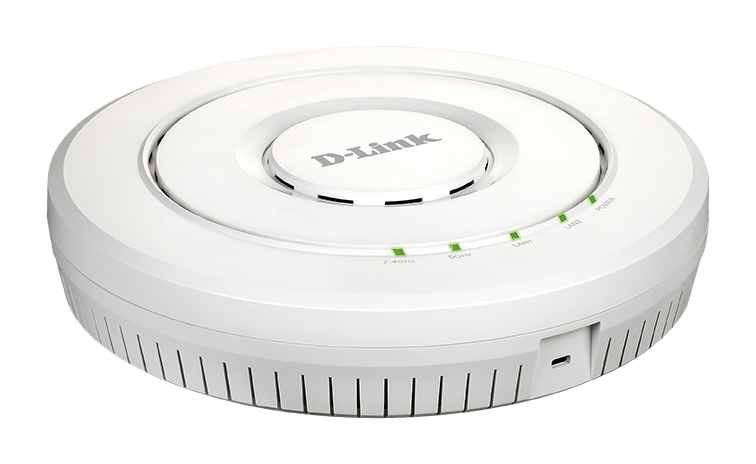

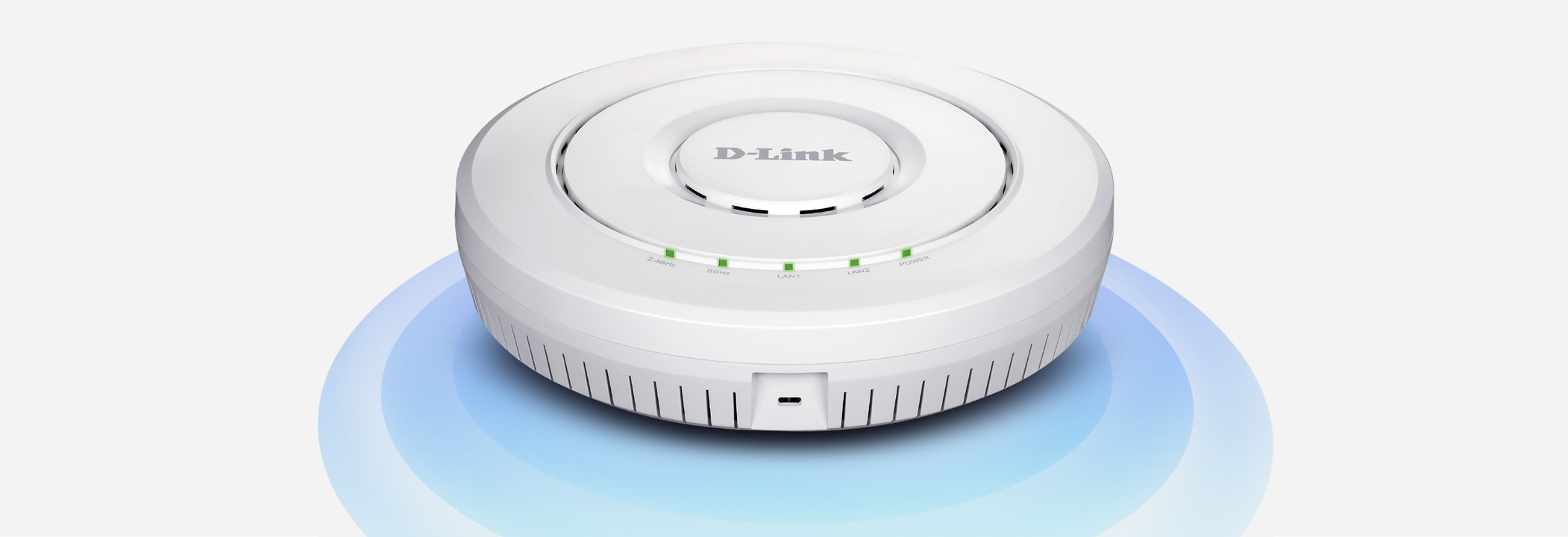

AX3600 Wi-Fi 6 Dual-Band Unified Access Point


  • Product Status (Revision A1): Live
  • 802.11ax Wi-Fi CERTIFIED 6™, Dual-Band, up to 3.6 Gbps2
  • 4x4 MU-MIMO internal omnidirectional antennas
  • Self-optimising, self-healing, Fast Roaming with wireless controller
  • Link Aggregation with 2.5G and Gigabit ports
  • Limited Lifetime Warranty with registration

Download the datasheet.

Where to buy

Next-Generation Wi-Fi 6.

The AX3600 Wi-Fi 6 Dual-Band Unified Access Point brings the latest Wi-Fi technology to small-to-medium-sized businesses as well as larger enterprises. It’s part of D-Link’s Unified Wireless solution that allows companies to set up a highly scalable, flexible and manageable Wi-Fi network.

Wi-Fi 6

Next-generation 802.11ax Wi-Fi CERTIFIED 6™ technology provides increased speed, capacity and the latest WPA3 security.

Dual-Band with band steering

Two bands to improve throughput and coverage as well as reduces co-channel interference.

4 x 4 MU-MIMO

Improved efficiency in handling throughput distribution to multiple devices connected to the network.

PoE & flexible installation

Power the device over Ethernet without the need for nearby power outlets with the option for ceiling or wall mounting.

Fast roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1


Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.1

Centrally Managed

Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.1

Take Your Business to the Next Level with Wi-Fi 6

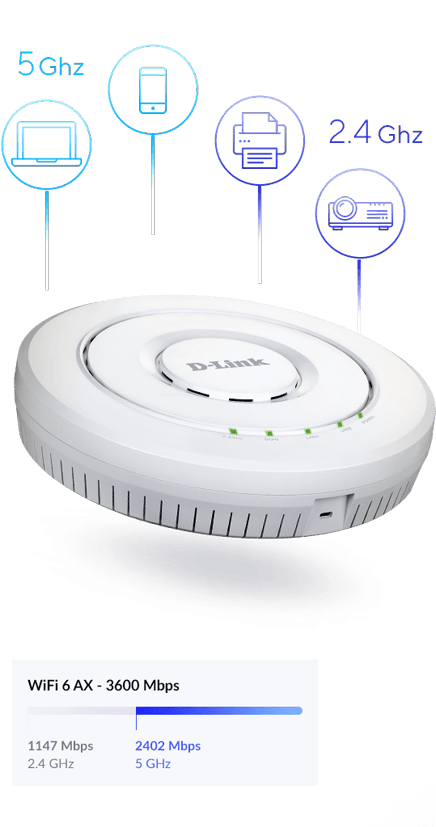

Uses the latest Wi-Fi technology to deliver reliable wireless performance and reduce congestion, with combined maximum wireless signal rates of up to 3.6 Gbps (1147 Mbps on 2.4 GHz band and 2402 Mbps on 5 GHz band)2. Together with OFDMA and MU-MIMO support, the DWL-X8630AP gives your business a faster wireless network with higher capacity and efficiency.

  • Band steering
  • Airtime Fairness
  • 802.11k Fast Roaming1

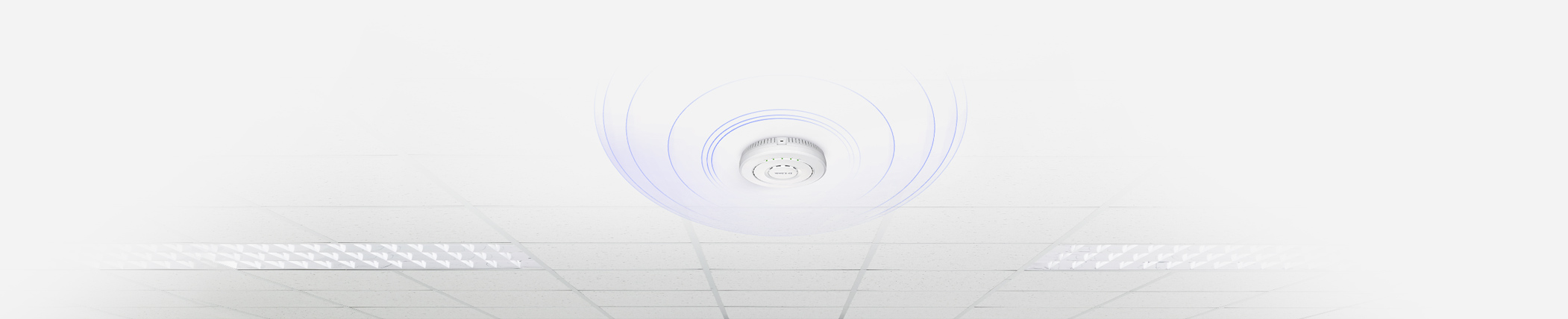

Flexible Installation

Power-over-Ethernet support allows the DWL-X8630AP to be connected and powered using a single cable, so it can be installed in areas without power outlets.

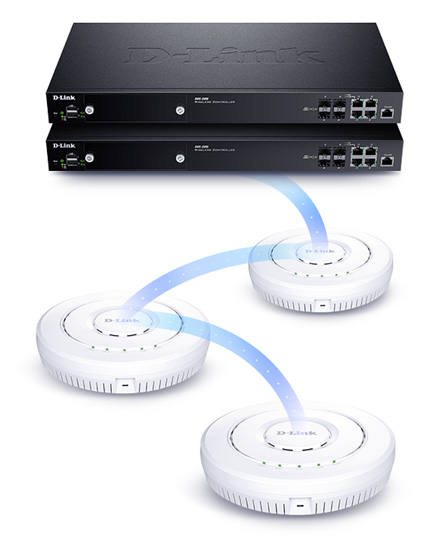

Highly Scalable and Centrally Managed1

The DWL-X8630AP can be used as a single access point or as part of a centrally managed wireless network with up to 1,024 access points when deployed with D-Link Unified Wireless Controllers.

Self-Healing and Resilient1

When working in conjunction with D-Link Unified Wireless Controllers, you can create a network that automatically heals itself when an access point or controller fails, allowing your business to stay online.

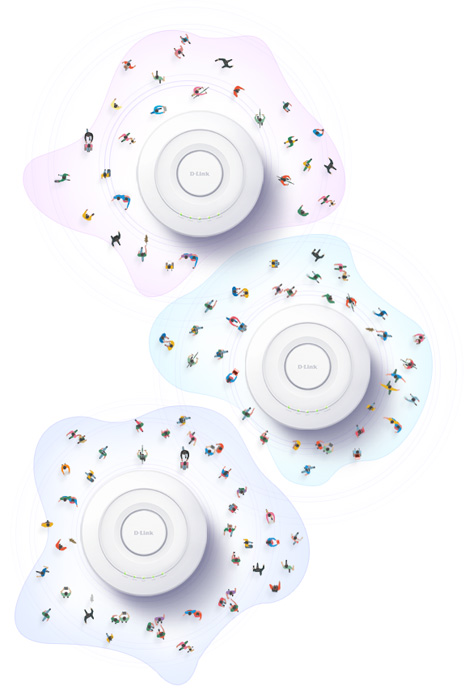

Self-Optimised Network

Automatic radio frequency (RF) management provides the best possible coverage for wireless clients by reducing interference when access points are deployed close to each other. When the DWL-X8630AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This significantly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-X8630AP will automatically adjust its transmission power.

D-Link is officially Wi-Fi Certified by the Alliance.

The Wi-Fi CERTIFIED 6™ seal is a declaration of having passed a series of rigorous tests performed by the Wi-Fi Alliance - an internationally recognised organisation. It's only granted to products that adhere to the strict industry-agreed standards for interoperability.

With this, purchasing a D-Link Wi-Fi CERTIFIED 6™ device ensures increased speeds, advanced Wi-Fi 6 capability, backwards compatibility and improved security.


We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

DWC 1000 Front
Wireless Controller
Find out more
Wireless Controller
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
Find out more
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
Find out more
Hardware-managed AP
Wireless standard
802.11ax Wi Fi 6
Frequency band mode
Dual-band simultaneous
Wireless speed
1147 Mbps 2.4 GHz

2402 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz

4 dBi for 5 GHz

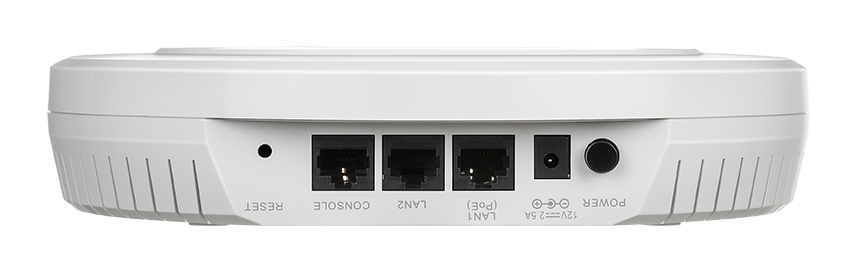

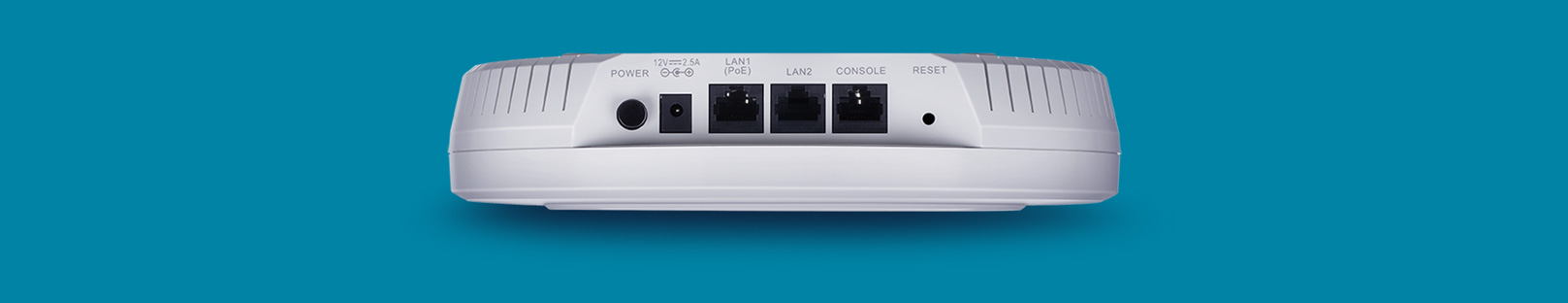

Wired interface
1 x 2.5GBASE-T LAN

1 x Gigabit Ethernet LAN
Console port
Type of housing
Plenum rated (UL-2043)
Wireless modes
Access Point (AP)
Advanced features
Fast Roaming


Maximum number of SSIDs
16 per radio
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
TKIP/AES encryption
WLAN partition
SSID broadcast disable
Rogue AP detection
Station isolation
MAC address filtering
802.1X authentication
Controller managed features
AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

Supported D-Link Wireless Controllers/Unified Switches

Management platform
Hardware controller: DWC Series
SNMP (v1, v2c, v3)

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
2 Maximum wireless signal rate derived from IEEE standard 802.11ax specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and
construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
