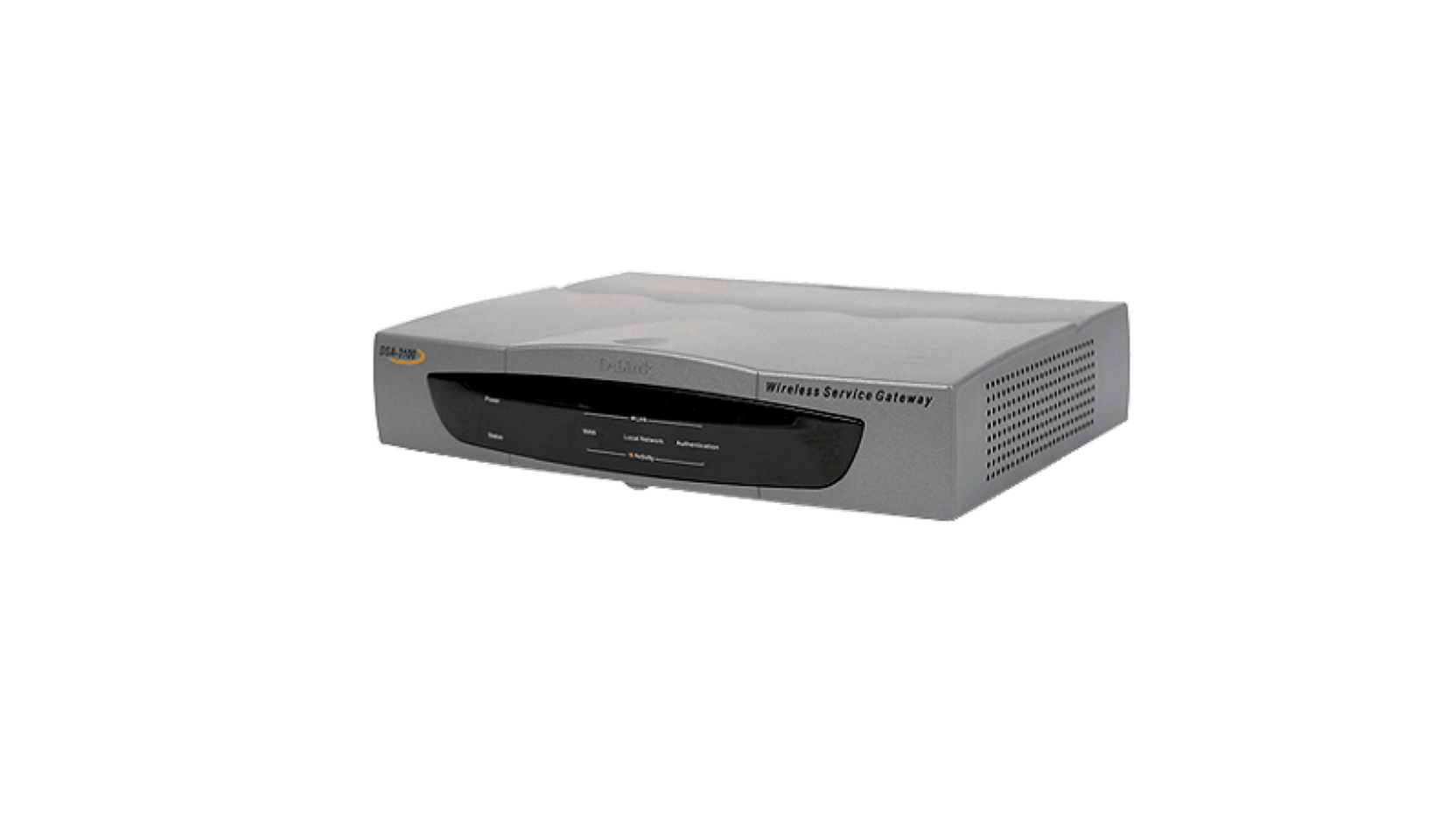

Wireless Service Gateway

DSA-3100

  • Product Status (Revision B): End of Life
Description

The D-Link DSA-3100 Public/Private Hot Spot Gateway is an Ethernet-based gateway specifically designed to provide free or fee-based broadband connection to the public or to a company's employees while at the same time, providing a separate and secure private network that shares the same Internet connection.

D-Link, the industry leader in innovative networking solutions, introduces the Airspot family of hot spot gateway products. With the increasing number of telecommuters and road warriors, Wi-Fi enabled hot spots have spread across the country to accommodate the need for on-demand Internet access. The D-Link Airspot DSA-3100 Public/Private Hot Spot Gateway provides business owners a simple solution for adding public Internet service to their establishment while still maintaining the integrity of their existing network.

The DSA-3100 Public/Private Hot Spot Gateway is a secure gateway designed to create two distinct networks through its integrated public and private ports. By adding a wireless access point to the public port on the DSA-3100, customers and patrons can connect to a free or fee-based broadband Internet connection. Through the private port, hot spot operators can be assured their private and confidential information is secured from public access. And depending on the establishment size and network deployment needs, hot spot operators can add switches and access points to expand their networks to provide full wireless coverage.

Business owners maintain full control over their hot spot service using the DSA-3100’s wide variety of advanced features. This gateway manages up to 250 user accounts in its internal database and supports at least 50 users online at any time. Additional features include user bandwidth control, network policy enforcement, customizable user timer, login/logout web-page, online traffic monitoring, and URL redirection. The DSA-3100 also supports NAT IP Plug & Play (PnP) which allows any networkable computer to connect to the Internet without having to change their static IP configurations.

In order to prevent unauthorized users from accessing your public hot spot services, the DSA-3100 Public/Private Hot Spot Gateway supports Authentication, Authorization, and Accounting (AAA) to ensure all connecting wireless users have been granted access. The DSA-3100 also supports POP3, RADIUS, and LDAP external authentication for larger-scale hot spot networks. For the private network, the integrated DHCP server and firewall with Denial of Service (DoS) Protection safeguards the network from malicious attacks and hackers.

Hot spot operators can easily manage the DSA-3100 unit and all its provided features via its Web-based configuration utility. The user-friendly interface is intuitive enough for anyone managing the hot spot establishment to use and reconfigure settings if necessary.

Whether the location is a coffee shop, airport terminal, bookstore, or resort, business owners can maximize their network investment using DSA-3100 Public/Private Hot Spot Gateway to provide their customers with the value-added service of a public hot spot network.

Technical Specifications

Functions Provided

Manages up to 250 user account data with internal user account database

Supports up to 50 on-line users

ID/Password based authentication and authorization
  • Can be combined with MAC address locking to provide stricter access control

POP3, RADIUS and LDAP external authentication mechanism support
  • Only one of these can be selected at a time

On-line status monitoring and history traffic data review

SSL protected access to the administration interface and user authentication interface

Customizable user login & logout web interface

Customizable user logout timer

Customizable target URL for users who successfully get authorization

Console mode administration interface via serial console port

Display of text messages on login page
  • Administrator can use the administration interface to input texts
  • Network users can see the text in the DSA-3100 web-based login page

NAT support for managed clients

Static IP, DHCP client and PPPoE client on WAN interface

Built-in DHCP server to service managed clients

Built-in high-speed policy routing engine

Customizable peremptory traffic redirection (IP and Port Redirect)

Built-in NTP client

Local network port for connecting a trusted network
  • Permits access to WAN, and LAN from local network without authentication
  • Permits connection to wired Ethernet while connecting the wireless network to this Ethernet port

Hardware

CPU
  • NS GX-1 300 MHz

Memory
  • SDRAM 32 MB

Device Ports
  • WAN port: 10/100Mbps Fast Ethernet
  • LAN port: 10/100Mbps Fast Ethernet connects to workstations & servers that do not need authentication
  • LAN port: 10/100Mbps Fast Ethernet connects to workstations & devices that need authentication
  • Console port:RS-232 (default set to 115200, n, 8, 1, no flow control)

Physical & Environmental

Power Supply
  • External power adapter

Power Input
  • DC 5V/3A

Dimensions
  • 45 mm (H) x 163 mm (D) x 215 mm (W)

Operating Temperature
  • 0° -  50° C

Storage Temperature
  • -25° -   55° C

EMI Certification
  • FCC Class A
  • CE Class A
  • VCCI Class A
  • C-Tick

Safety
  • UL
  • CSA
  • TUV/GS
  • T-Mark

Ordering Information

DSA-3100
  • Wireless Service Gateway

Please specify your order as follows:

DSA-3100/B
  • with UK standard power adapter

FAQ

  • What is the difference between the Authentication and Local Network settings Read Answer
  • How do I access Web-based configuration of the DSA-3100? Read Answer
  • Do I have to setup any firewall rules to protect my LAN from the Authentication Network on my DSA-3100? Read Answer
This product was phased out on: 08/11/2005
This product's last date of support is on: 08/11/2007
