Managed PCI Network Adapter

DFE-550TX

  • Product Status: End of Life

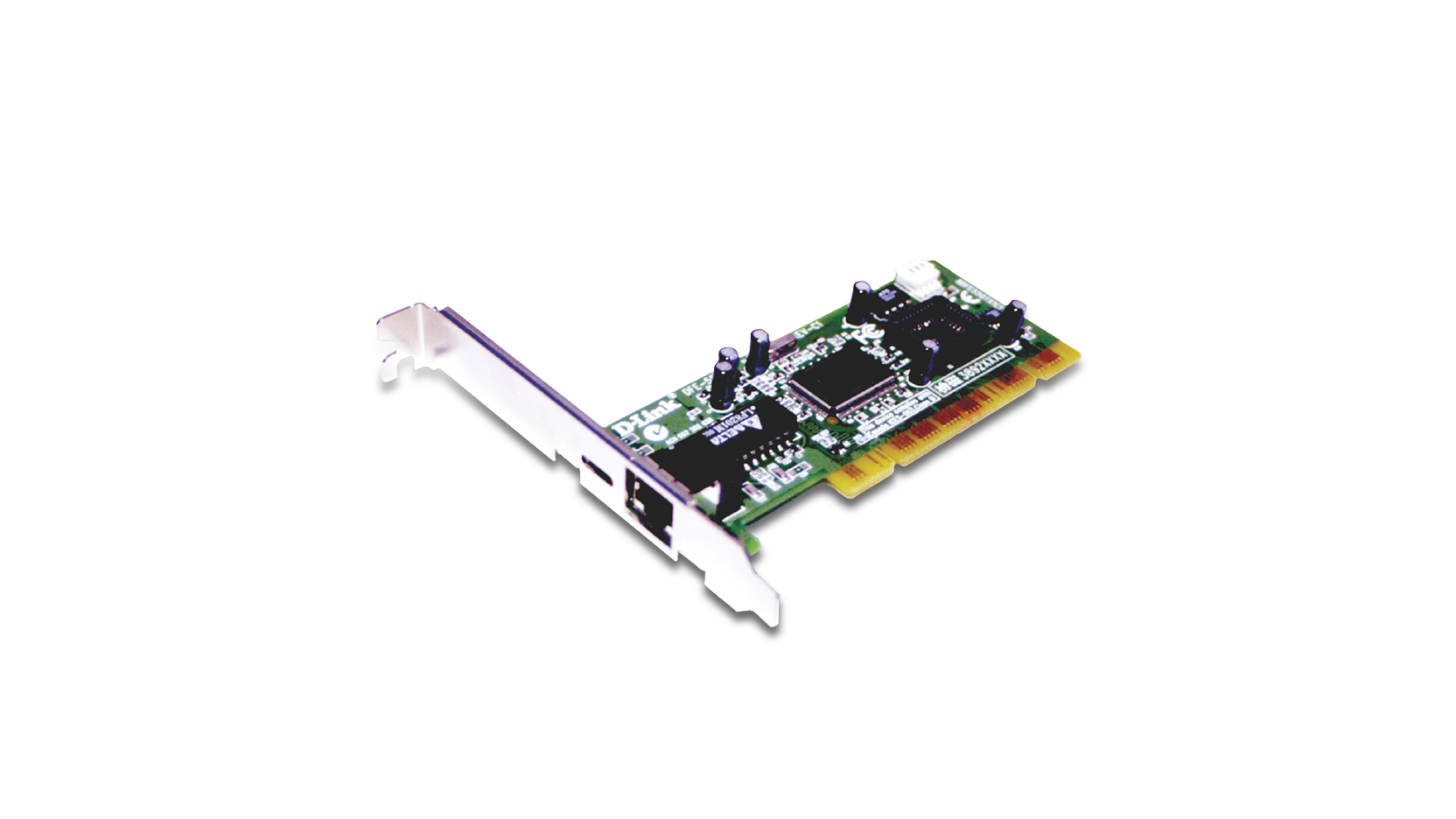

The D-Link DFE-550TX is a manageable 10/100MB Dual Speed Ethernet PCI Network Interface Card with Wake-On-LAN (WOL). The DFE-550TX provides an industry standard interface for a desktop computer to access an Ethernet, Fast Ethernet, or Dual Speed Network.

The DFE-550TX is fully compliant with IEEE802.3 10Base-T, IEEE 802.3u 100Base-T specifications as well as IEEE 802.3x Flow Control. The MAC controller for the DFE-550TX is D-Link's DL10050B chipset which implements several advanced features.

Aside from the ACPI/WOL (Advanced Configuration Power Management Interface) feature, the DFE-550TX supports IP Multicast packet filtering, PXE (PreBoot execution Environment) Boot ROM, IEEE 802.1p, IEEE 802.1Q, and DMI (Desktop Management Interface).

For standard network functions, the DFE-550TX utilizes plug-and-play feature for easy installation. The DFE-550TX's single RJ-45 connector automatically negotiates to the highest speed at half or full duplex using industry standard NWay auto-negotiation.

With the PCI 32-bit data bus, the DFE-550TX delivers high throughput without using on board memory. Integrated 2Kbyte RxFIFO and 2Kbyte TxFIFO cache buffers synchronize transmissions and buffer data to help prevent packet loss. The DFE-550TX's compliance to PCI 2.2 Bus Specification along with its integrated FIFO buffers lower overall CPU utilization.

Furthermore, the DFE-550TX uses chip-level address filtering when implementing IP Multicasting. As multicast data such as stock quotes, video and audio conferencing, and database replication becomes more prevalent in the network, IP multicasting will help alleviate the need to maintain parallel networks for voice, video, and data. By examining multicast packets, the DFE-550TX conserves CPU utilization while accepting only the packets intended for the host's Multicast group.

The DFE-550TX's compliance to IEEE 802.1p Priority Tagging ensures that time-critical data arrives on time by using tagging to define the data packet's priority. Whereas, compliance to IEEE 802.1Q improve network performance and security by limiting broadcast and unicast (node to node) traffic within a single VLAN. The value-added management features offered by DMI allow remote troubleshooting and higher quality management of computers equipped with the DFE-550TX.

The DFE-550TX ships complete with a WOL cable and drivers for the most popular operating systems including Windows, Netware, and Linux. As with most D-Link networking products, it comes with a lifetime warranty and free support.
  • 10/100Mbps Fast Ethernet connection for desktop PC's
  • 32-bit bus master data transfer with PC host
  • Wake on LAN (WOL) power management
  • Flow Control

This product was phased out on: 06/02/2012
This product's last date of support is on: 05/02/2014
Version Date Type File Size
Datasheet (English) - PDF 2.93mb Download
Version Description Date Type File Size
Manual (English) Manual (English) 01-07-2000 PDF 0.15mb Download
Version Description Date
DEU_Drivers_NDIS_rev_fixed_All_RevA NDIS drivers rev (fixed) 16-12-2004 Download
DEU_Drivers_rev_2560_all_RevA Drivers v2.5.6.0 07-03-2002 Download
DEU_Drivers_rev_dlh5x_24_all_RevA Drivers DLH5X-24 09-11-2001 Download
Version Description Date
DEU_CE_C4_en_RevA Certificate of Declaration C4 12-09-2006 Download
DEU_CE_en_040126_RevA Certificate of Declaration 26-04-2001 Download
DEU_GPL_Source_All_RevA GNU General Public License Source all - Download
