52-Port xStack L2+ Managed Stackable Fast Ethernet Switch

DES-3552

  • Product Status (Revision A): End of Life

The xStack DES-3552 by D-Link is a high-performance, managed, stackable 52-port Layer 2 Fast Ethernet switch including 2 Gigabit Ethernet and 2 Combo 1000BASET-T/SFP ports that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 dispersed switches with fewer distance limitations through a single IP address.

Flexible stacking options

Several DES-3552 switches may be physically stacked, using the two 10/100/1000BASE-T ports on the back panel. Up to 8 switches can be stacked in this way, with 2 Gbps bi-directional stacking bandwidth.

With D-Link Single IP Management (SIM) support, you can easily add up to 32 switch units -regardless of the model- in a virtual stack in addition to your physical stack. Multiple switches can be configured, monitored and maintained from any workstation running a Web browser via one single IP address. The stack is managed as a single object, as all stacked units are identified by a single IP address. A simple yet powerful web-based interface allows you to perform most management and configuration tasks.

Comprehensive security

A complete set of security features is provided for connectivity and access control. These include 802.1X Guest VLAN, MAC-based Access Control (MAC) and Web-based Access Control (WAC). 802.1X Guest VLAN is a comprehensive end-point security solution for user authentication/authorisation and WAC guarantees granular network access control with user-friendly authentication mechanism.In addition, the switch provides IP-MAC-Port Binding to allow administrators to bind source IP to associated MAC and source port. The DHCP Snooping feature blocks illegal IP addresses within the network, keeping the network secure and auditable.

Enhanced network availability

When implemented in conjunction with a D-Link NetDefend firewall, the switch is able to automatically quarantine any host displaying abnormal behaviour. This mechanism, D-Link’s ZoneDefense™, provides proactive network security by preventing viruses from spreading through the network and thwarting harmful network attacks.

In addition a unique feature, D-Link Safeguard Engine™, allows administrators to configure thresholds that limit the impact of packet flooding to the switch’s CPU typically caused by virus/worm outbreaks. This increases the switch's reliability and availability.

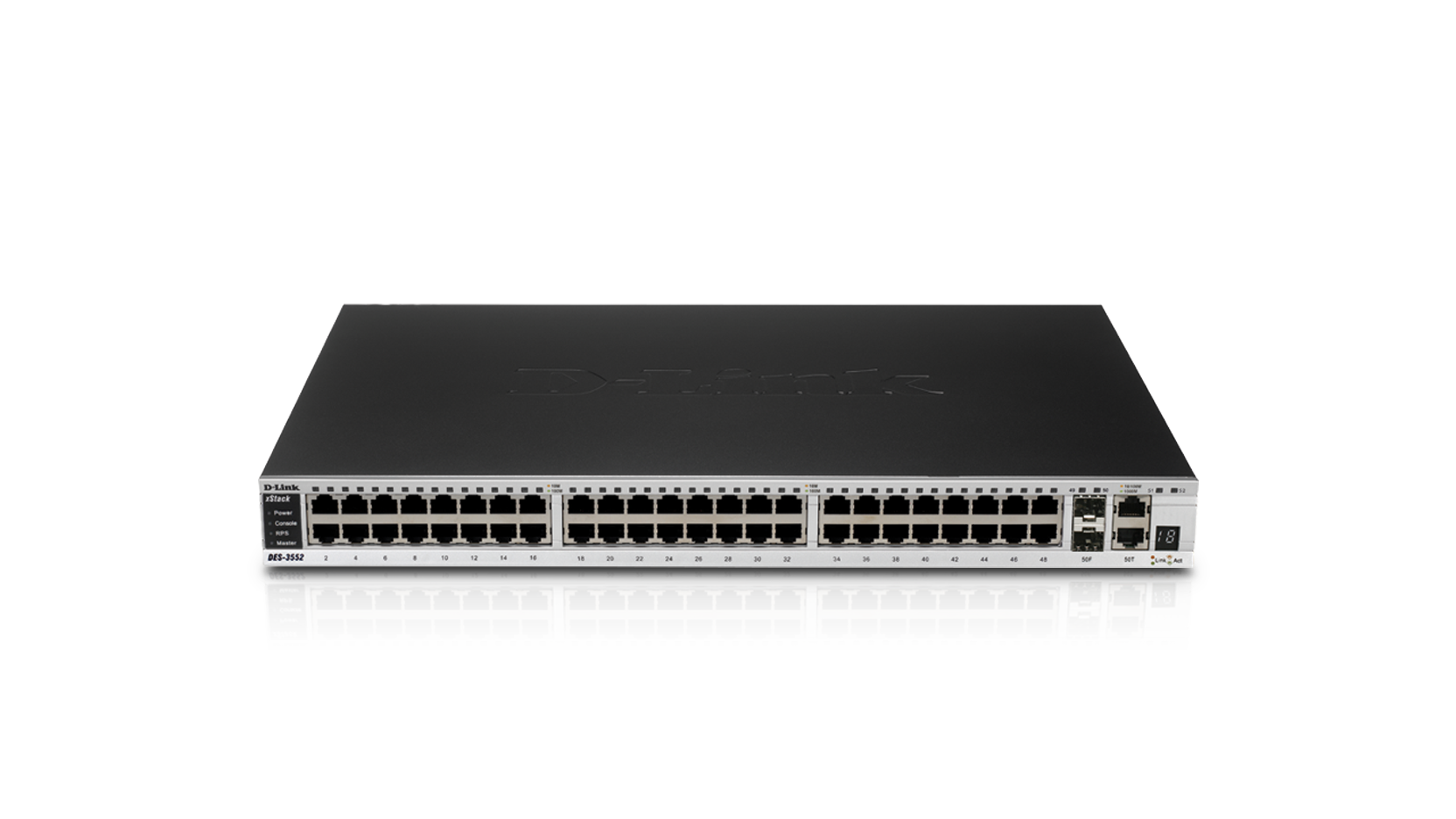

Actual product appearance may differ from the image displayed on this page

Related Products

SFP 100Base-FX Multi-mode Fibre Transceiver
DEM-211
Find out more
1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
Number of ports
48 to 54 ports
Layer
Layer 2+
Main type of ports
100BASE-TX Fast Ethernet
Type of uplink ports
1000BASE-T Gigabit Ethernet
Combo 1000BASE-T/SFP
Switching capacity
17.6 Gbps
Form Factor
Rackmountable
Physical stacking
Up to 4 Gbps bidirectional bandwidth
Up to 8 devices
Virtual stacking (up to 32 devices)
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Asymmetric VLAN
Double VLAN (Q-in-Q)
ISM VLAN
Voice VLAN
IPv4/IPv6 routing table
IPv4 - 224
IPv6 - 96
IP interfaces
16
IPv6 Ready
Supported
Static route for IPv4/IPv6
IPv4 - 16
IPv6 - 16
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
Ingress
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP-MED
Supported
ICMPv6
Supported
802.3ah
Supported
802.1ag
Supported
ITU-T Y.1731
Supported
This product was phased out on: 10/10/2015
This product's last date of support is on: 08/10/2020
Version Date Type File Size
Datasheet (01/09/11) - PDF 1.05mb Download
Version Description Date Type File Size
CLI Manual CLI Manual 22-02-2013 PDF 3.83mb Download
User Manual User Manual 22-02-2013 PDF 22.65mb Download
Version Description Date Type
Firmware 2.60.17 Firmware 03-09-2010 - Download
Version Description Date
D-View 2.60.17 D-View 03-09-2010 Download
Management information base 2.60.17 Management information base 03-09-2010 Download
Version Description Date
Declaration of conformity for revision A3 Declaration of conformity for revision A3 10-09-2012 Download
Declaration of conformity for revision A1 Declaration of conformity for revision A1 08-05-2009 Download
